TRENDnet TPL-430APK WiFi Everywhere™ Powerline 1200 AV2 Wireless Kit

SKU TNTPL-430APK
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Powerline 1200 networking over existing electrical lines

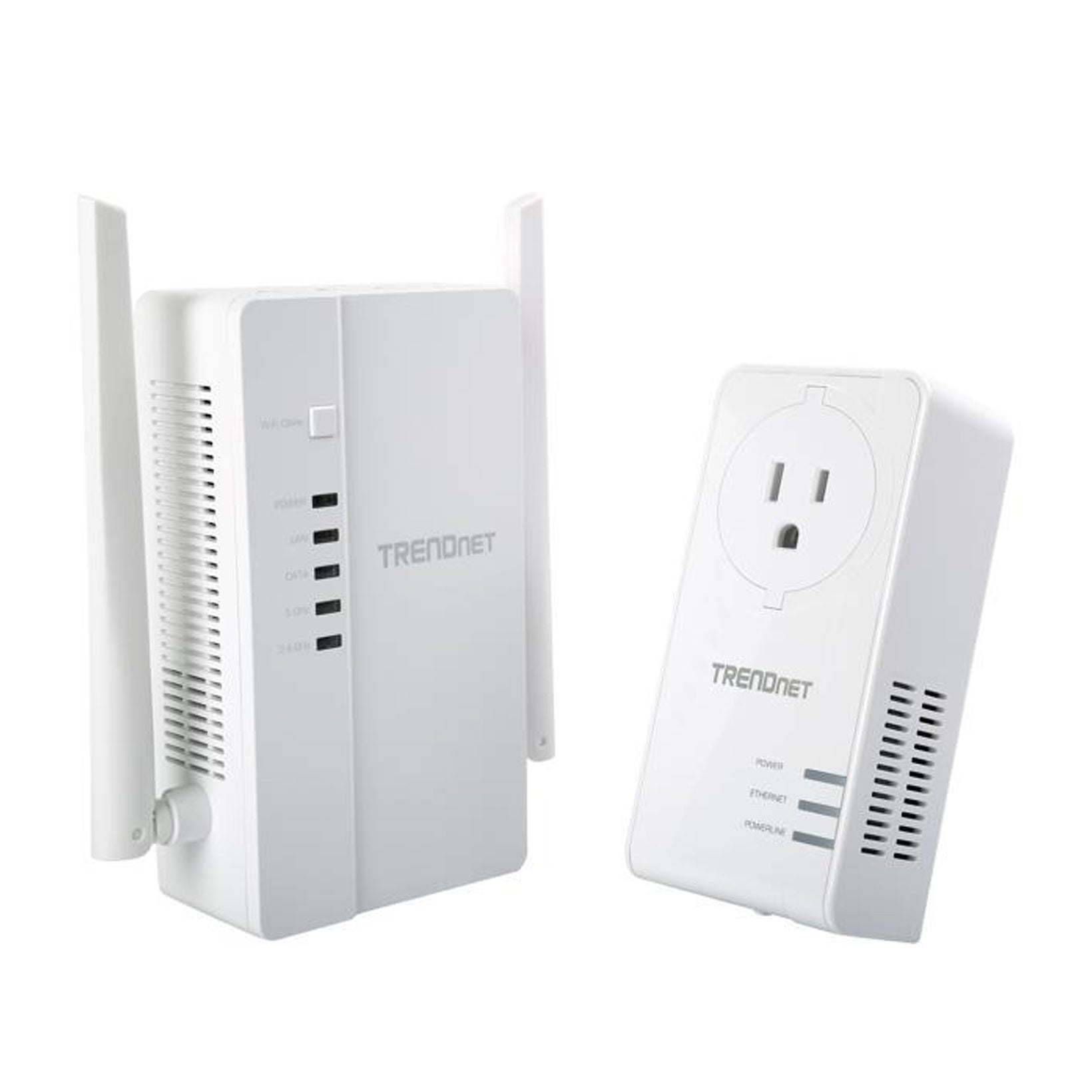

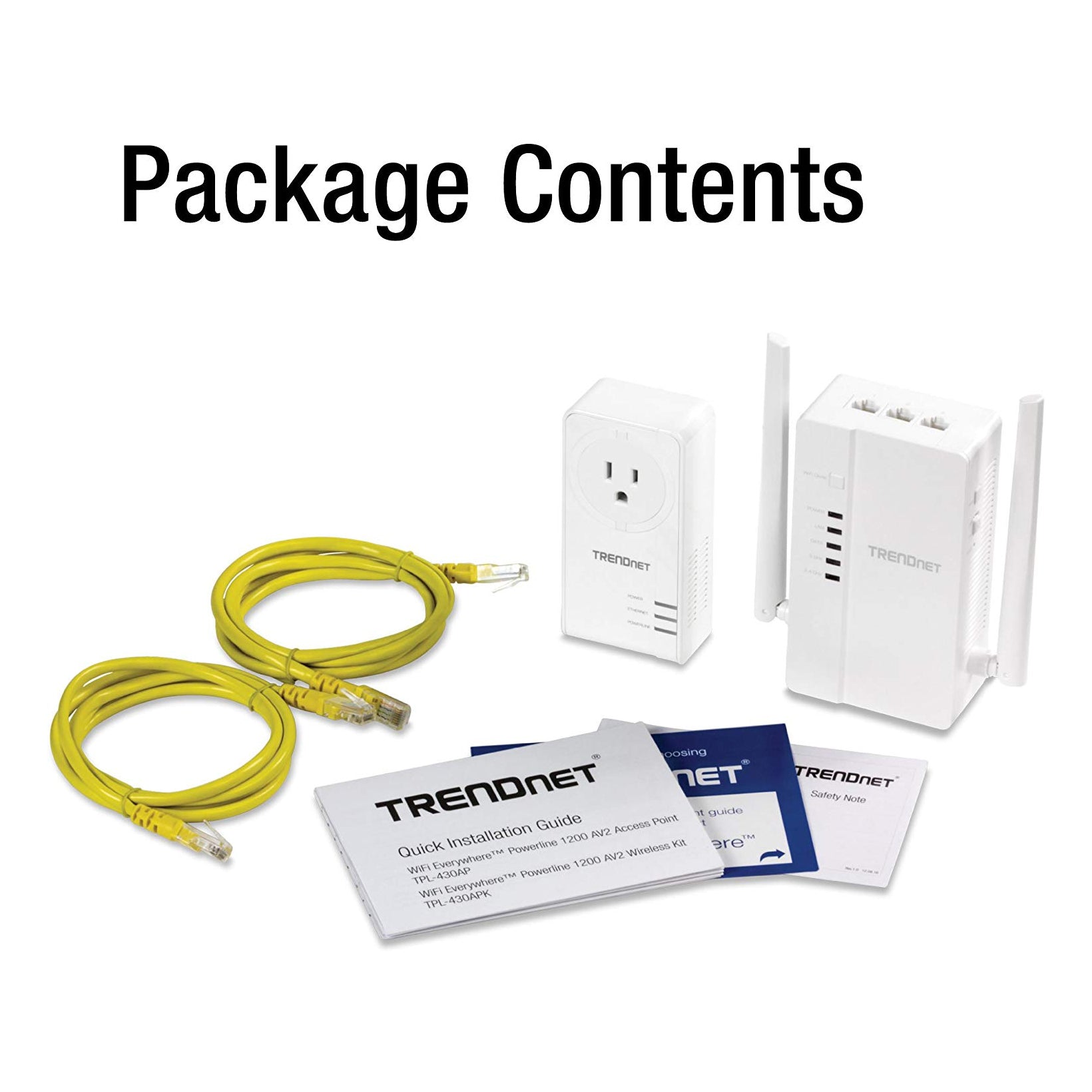

  • Powerline kit includes TPL-421E and TPL-430AP
  • TPL-430AP features a dual-band wireless AC1200 access point with three gigabit ports
  • Enhanced Powerline performance and range from MIMO with
  • Beamforming technology
  • Easy installation – TRENDnet adapters auto-connect out of the box
  • Pre-encrypted for your convenience
  • Powerline range of up to 300m (984 ft.) over existing electrical lines
  • WiFi Clone button copies your existing wireless network settings to the
  • TPL-430AP for faster network integration

Sync Button

Press the Sync button to change existing Powerline encryption keys

Powerline 1200

Powerline 1200 networking over existing electrical lines using all three electrical wires: the live, neutral, and ground wires to achieve faster throughput speeds

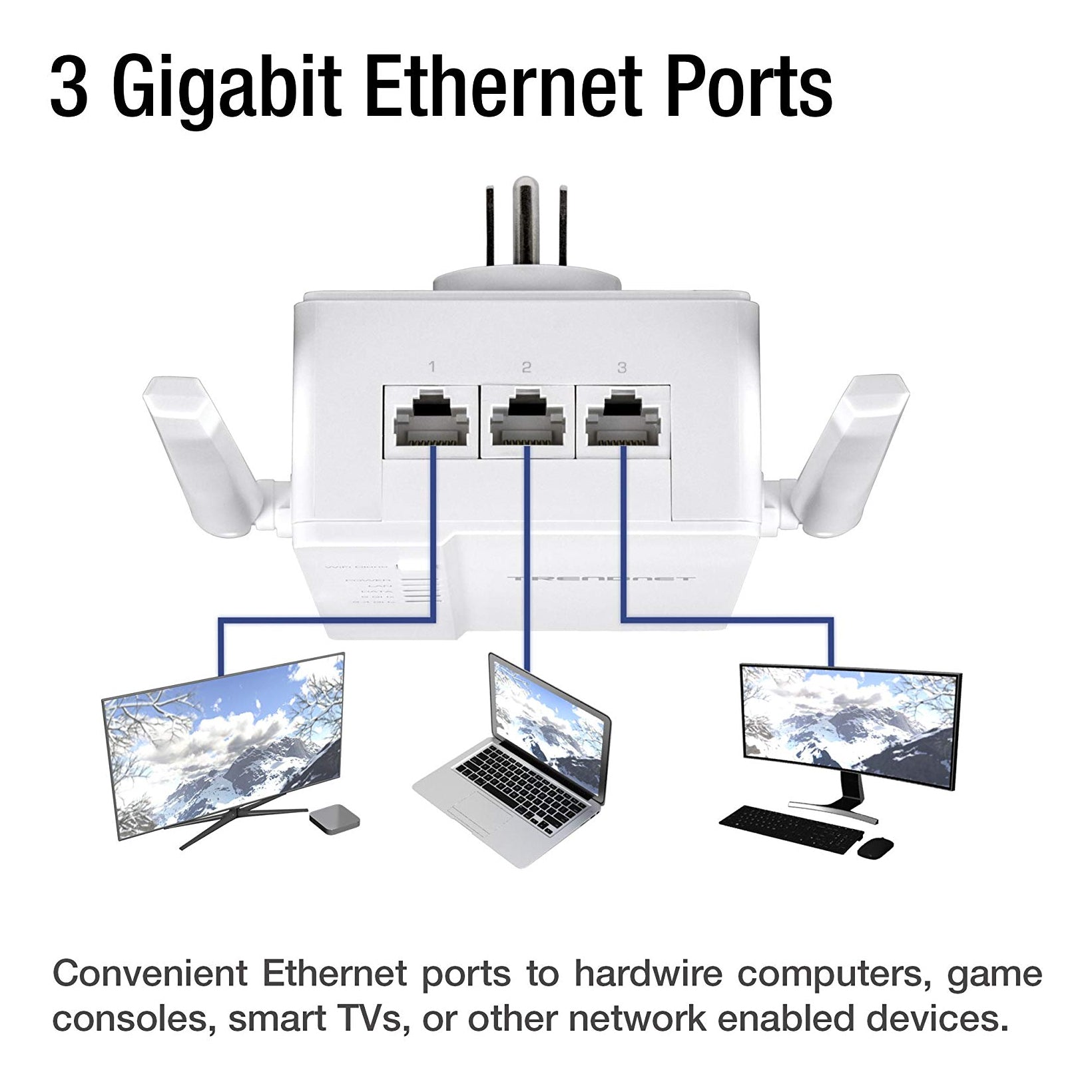

Gigabit Ports

Convenient gigabit ports to hardwire computers, smart TVs, or other network enabled devices

Compatibility

Backward compatible with Powerline 600, 500, and 200 adapters

MIMO with Beamforming Technology

Enhanced performance and range

Multiple Adapters

Use up to 8 adapters on a single Powerline network

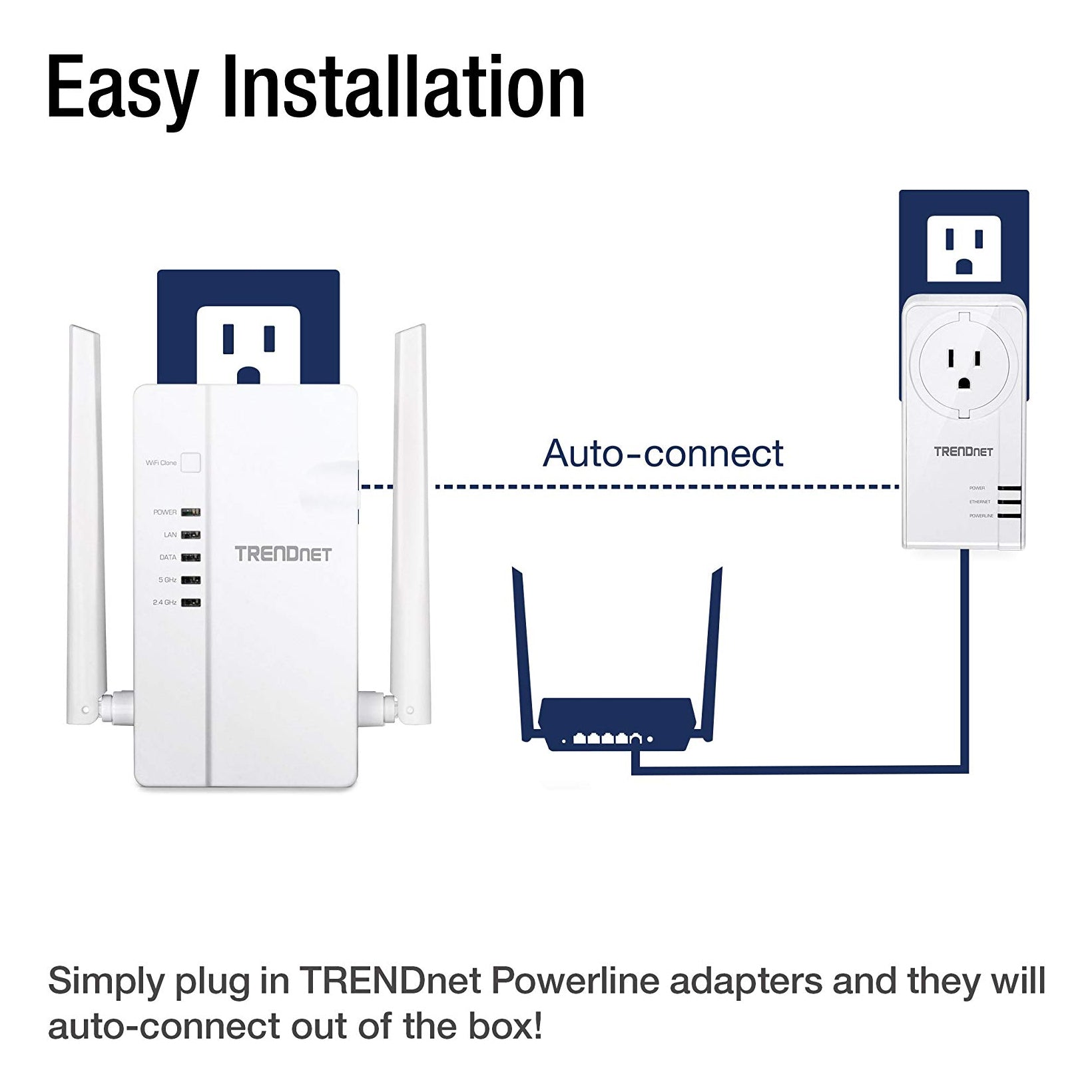

Easy Installation

TRENDnet adapters auto-connect out of the box

Concurrent Dual Band

AC1200: concurrent 867 Mbps WiFi AC + 300 Mbps WiFi N bands

Wireless Coverage

Expand your wireless coverage with MIMO antenna technology

Pre-Encrypted

For your convenience, the wireless is pre-encrypted with a unique password

WiFi Clone

Use your router’s WPS button and the TPL-430AP’s WiFi Clone button to conveniently copy your existing wireless network name and password for quick network integration.

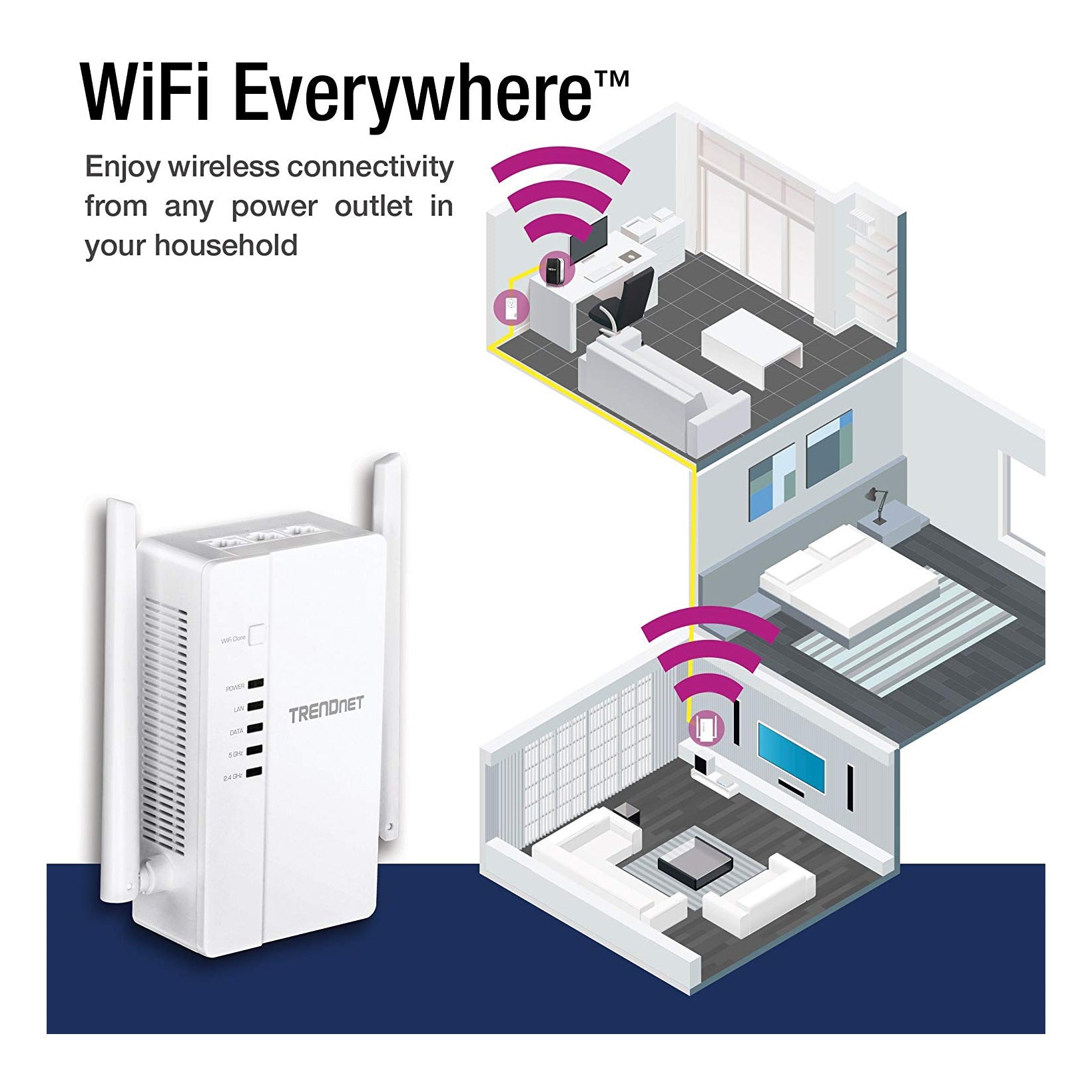

TRENDnet’s WiFi Everywhere Powerline 1200 AV2 Wireless Kit, model TPL-430APK, uses an electrical outlet to create or expand a wireless network. Easily install the included TRENDnet Powerline adapters to create a high-speed powerline network.

Connect the TPL-421E to the router and plug the TPL-430AP into a power outlet in another room where WiFi connectivity is needed. The WiFi Clone button conveniently copies your existing wireless network settings to the TPL-430AP for faster network integration.

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300Mbps)
  • IEEE 802.11ac (up to 866Mbps)
  • IEEE 1901
Device Interface
  • 3 x Gigabit LAN ports
  • WiFi Clone button
  • Reset button
  • Sync button
  • Power switch
  • LED indicators
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: European Type E/F Hybrid (CEE 7/7)
  • UK : United Kingdom Type G (BS 1363)
Frequency Band
  • 2 - 67MHz
Modulation/Protocol
  • OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
  • CSMA/CA
Networking Distance
  • Powerline: Up to 300m (980ft.) linear distance over electrical power lines***
Encryption
  • Wireless: WPA2-PSK
  • Powerline: 128-bit AES (Advanced Encryption Standard)
Powerline Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • Additional Ethernet ports for wired connectivity
  • Automatically clones the SSID and password of your WiFi network
  • IPv6 support
  • QoS Management
  • IGMP / MLDv2 Streams
Antenna Gain
  • 2.4GHz: 2 x 3.31dBi
  • 5GHz: 2 x 4.51dBi
Wireless Output Power / Receiving Sensitivity
  • 802.11a: 16 dBm (typical) / -65 dBm (typical) @ 54Mbps
  • 802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps
  • 802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps
  • 802.11n (2.4 GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps
  • 802.11n (5 GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps
  • 802.11ac (5GHz): 15dBm (typical) / -60dBm (typical) @ 866Mbps
Power
  • Input: 100 - 240V AC, 50 - 60Hz, 0.2A
  • Active mode consumption: 12W (max.)
Operating Temperature
  • 0 - 40°C (32 – 104°F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
  • IC
  • UL
Dimensions
  • 255 x 130 x 75mm (10.04 x 5.11 x 2.95in.)
Weight
  • A: 332g (11.7oz.)
  • EU: 342g (12oz.)
  • UK: 332g (11.7oz.)
TPL-421E
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901
Device Interfaces
  • Ethernet port
  • Sync / reset button
  • Status LEDs
  • Power plug
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 – 68MHz
Data PHY Rate
  • Up to 1200Mbps
Networking Distance
  • Up to 300m (980ft.) linear distance over electrical power lines
Security
  • 128-Bit AES (Advanced Encryption Standard)
Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Outlet Current
  • 110V AC, 20A (max.)
  • 220V AC, 16A (max.)
Power
  • Input: 100 - 240V AC, 50/60Hz
  • Consumption: Active mode: 2.7W (max.); Standby mode: 0.34W (max.)
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • CE
  • FCC
  • UL
Dimensions
  • A: 61 x 123 x 65mm (2.4 x 4.8 x 2.6in.)
  • EU: 61 x 123 x 75mm (2.4 x 4.8 x 3.0in.)
  • UK: 61 x 123 x 68mm (2.4 x 4.8 x 2.7in.)
Weight
  • A: 104g (3.7oz.)
  • EU: 190g (6.7oz.)
  • UK: 190g (6.7oz.)
Warranty:
  • 3 year
