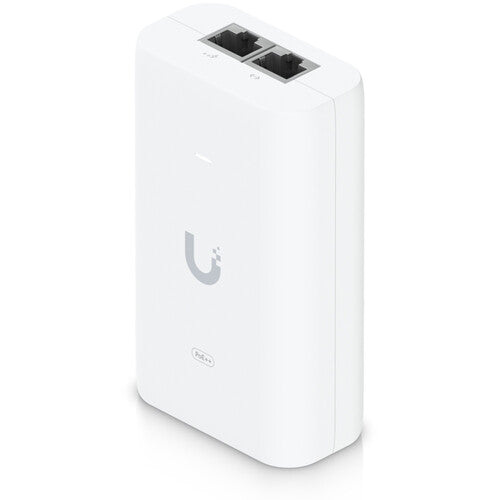

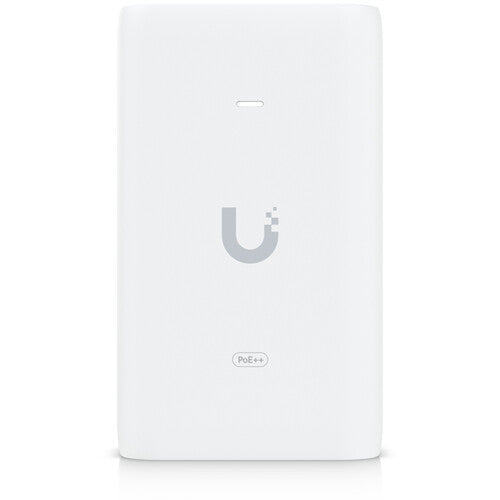

Ubiquiti U-POE++, 60W PoE Adapter, (For U6 products)
by Ubiquiti
SKU UBUPOE++
The UniFi PoE++ Adapter is designed to power PoE devices from Ubiquiti Networks. This unit will support devices that require up to 60W of PoE.
It provides surge, peak pulse, and overcurrent protection to ensure that your connected PoE devices remain operational.
- Compatible with Ubiquiti Networks PoE devices
- Provides surge, peak pulse, clamping, and overcurrent protection for your connected PoE devices

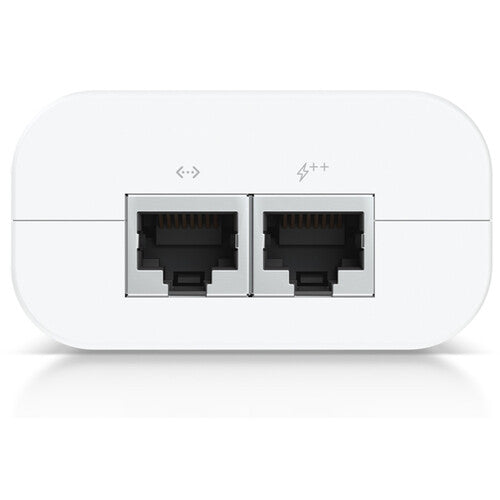

- Shielded RJ45 ports
- LED indicator for status monitoring
| Dimensions | 93 x 62 x 35 mm (3.66 x 2.44 x 1.38") |
| Weight | 156 g (5.5 oz) |
| Output voltage | 48V DC @ 0.65A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 0.75A Max. |
| Inrush current | <100A peak at 26_ |
| Efficiency | 87% |
| Output ripple | 1% max. |
| Switching frequency | 70 kHz max. |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |

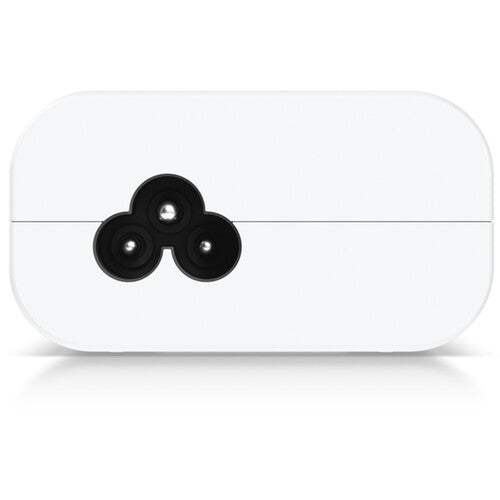

| AC connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |

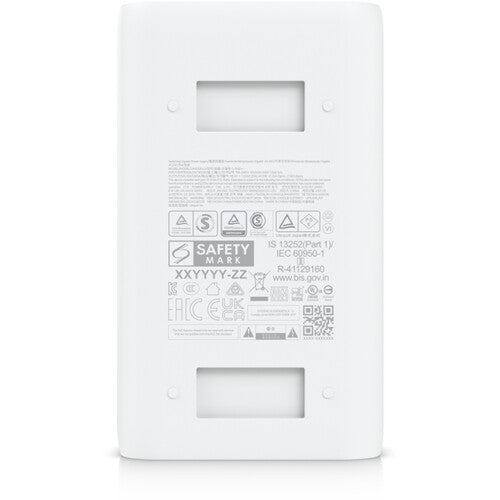

| Certifications | CE, FCC, IC, UL |
