Ubiquiti  |  SKU: UBUCG-ULTRA

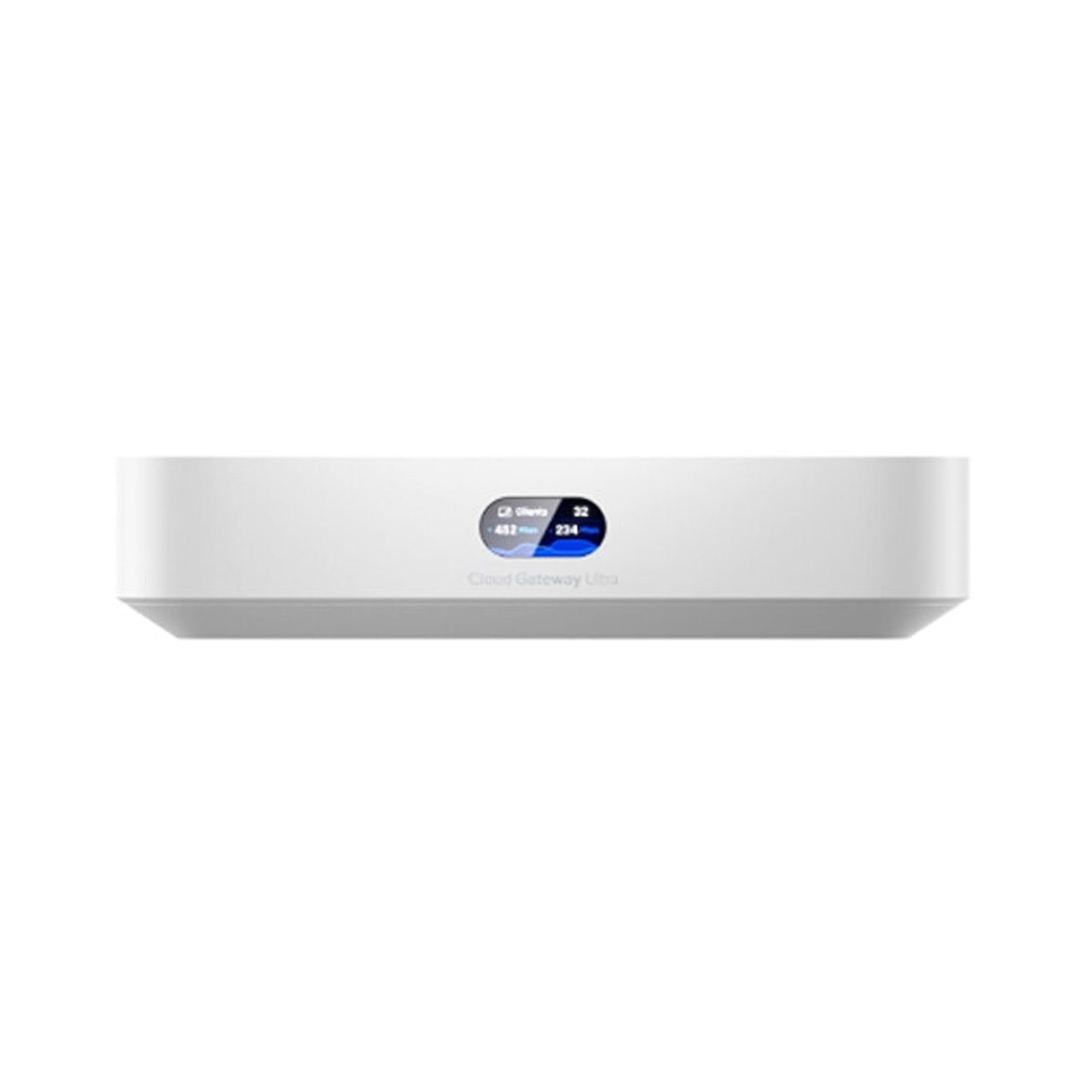

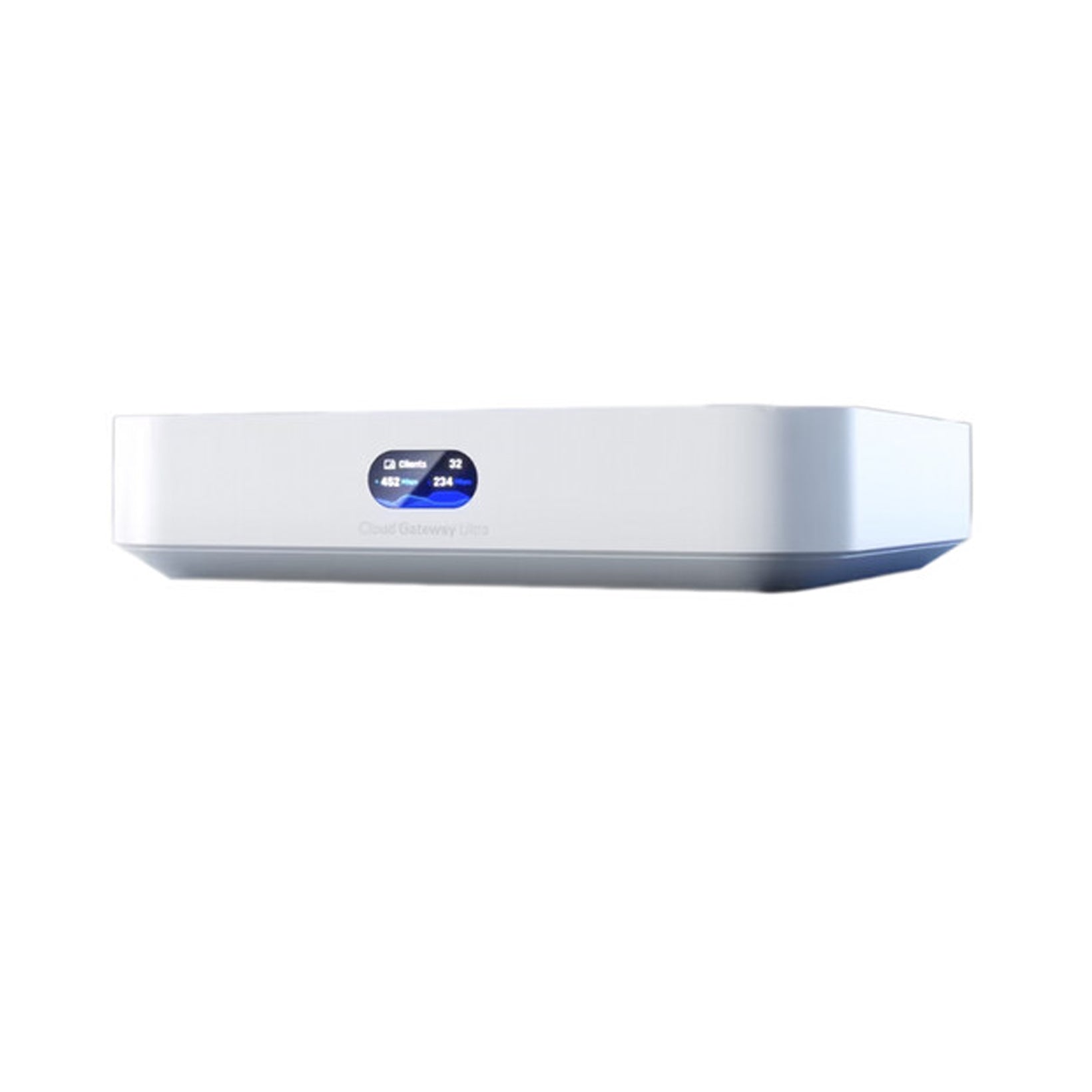

Ubiquiti UCG-Ultra UniFi Cloud Gateway Ultra

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Loading location-specific inventory...

Description


  • Works with UniFi Network Devices
  • 4 x Gigabit Ethernet LAN Port
  • 1 x 2.5G Ethernet WAN Port
  • 1 Gb/s IDS/IPS Routing
  • Up to 30 Device & 300 Client Management
  • Multi-WAN Load Balancing
  • 0.96" LCM Status Display
  • 1.5 GHz Cortex-A53 Quad-Core CPU
  • 3GB DDR4 RAM | 16GB eMMC
  • UniFi Network Management

Features

Secure and manage your Ubiquiti UniFi network devices with the Cloud Gateway Ultra. Featuring a full suite of advanced routing and security features, this compact gateway is designed to manage over 30 UniFi network devices and more than 300 client devices with up to 1 Gb/s routing IDS/IPS throughput.

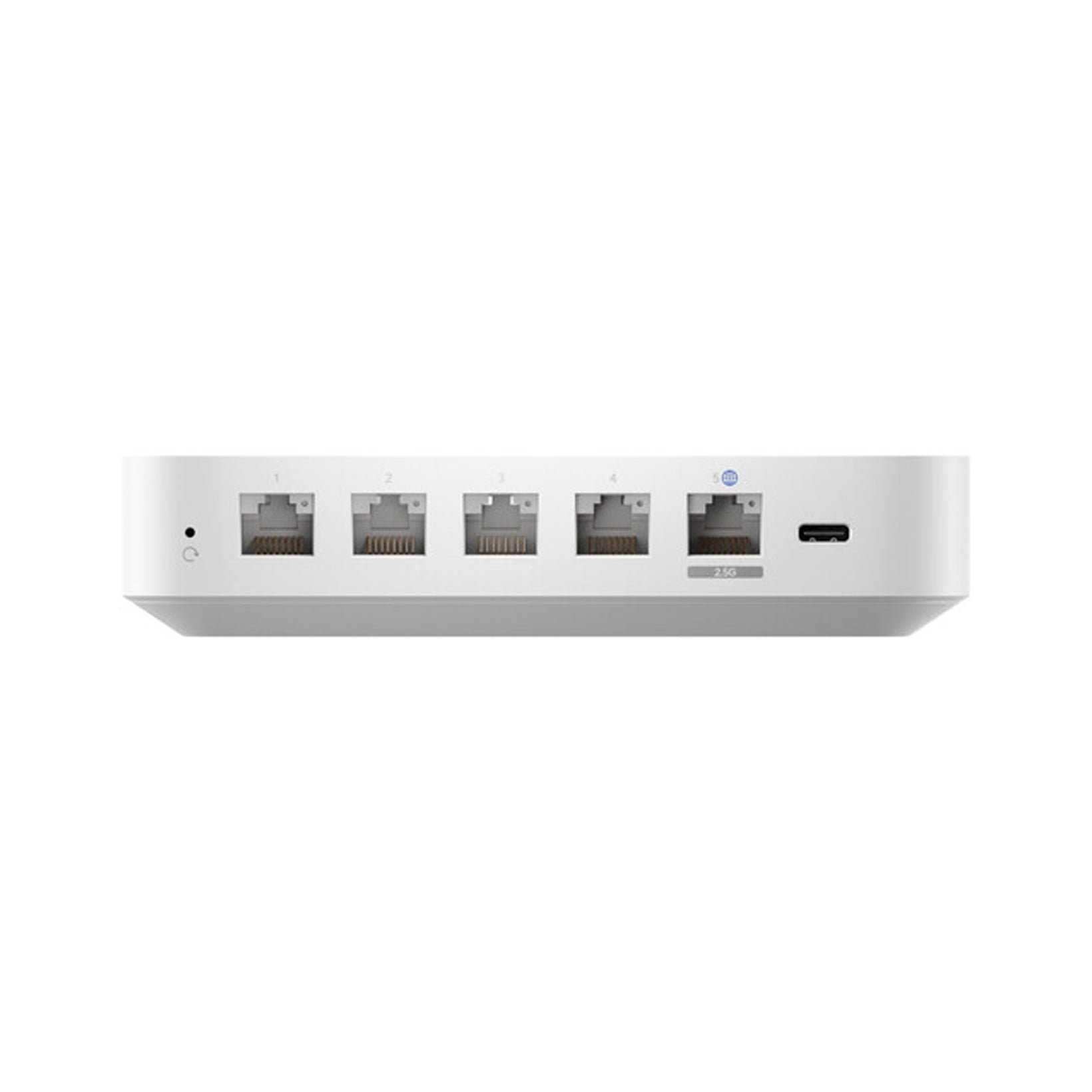

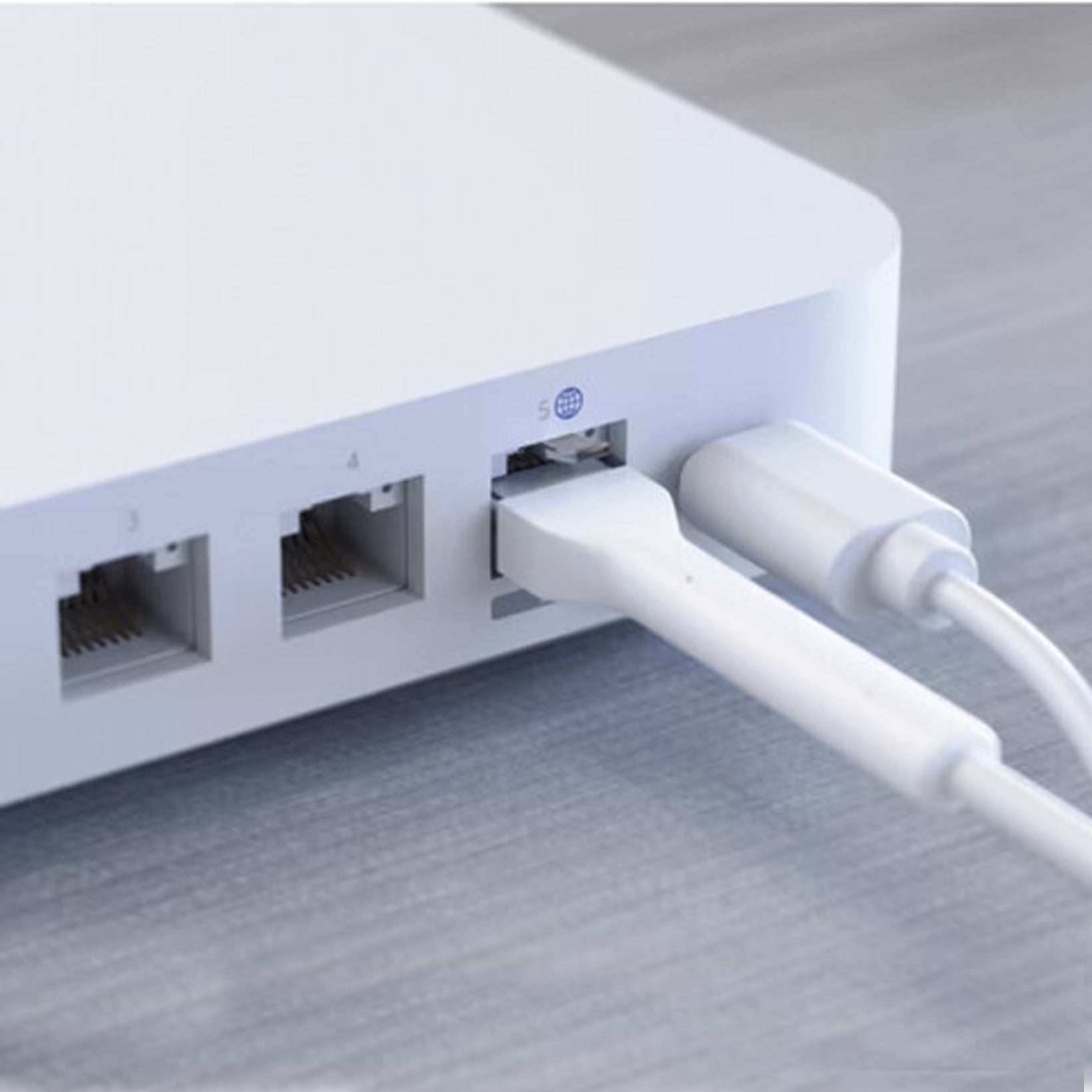

The Cloud Gateway Ultra includes a 2.5G Ethernet WAN port with multi-WAN load balancing capabilities. Network devices may be connected through the four Gigabit-speed Ethernet ports. A convenient 0.96" LCM display provides status updates. This gateway device is powered by a 1.5 GHz Cortex-A53 Quad-Core processor, 3GB of DDR4 memory, and 16GB eMMC storage with UniFi Network Management. It also works with the Unifi mobile app for iOS and Android.

Performance
  • Redundant WAN with failover and load balancing
  • Wi-Fi QoS with UniFi APs
  • Application, domain, and country-based QoS
  • Application and device type identification
  • Additional internet failover with LTE Backup
  • Internet quality and outage reporting
Next-Generation Security
  • Application-aware firewall rules
  • Signature-based IPS/IDS threat detection
  • Content, country, domain, and ad filtering
  • VLAN/subnet-based traffic segmentation
  • Full stateful firewall
  • License-free SD-WAN
  • WireGuard, L2TP and OpenVPN server
  • OpenVPN client
  • OpenVPN and IPsec site-to-site VPN
  • One-click Teleport and Identity VPN
  • Policy-based WAN and VPN routing
  • DHCP relay
  • Customizable DHCP server
  • IGMP proxy
  • IPv6 ISP support
Specifications
Mobile App Compatible
Yes: Android & iOS
App Name: UniFi
Power Source
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
5 VDC at 3 A
Power Consumption
6.2 W
Mounting
1x Desktop
Color
White
Material of Construction
Polycarbonate
Environmental Resistance
No
Operating Conditions
14 to 104°F / -10 to 40°C at 5 to 95% Humidity
Cable Length
Not Specified by Manufacturer
Dimensions
5.6 x 5 x 1.2" / 141.8 x 127.6 x 30 mm
Weight
1.1 lb / 520 g
Package Weight
1.83 lb
Box Dimensions (LxWxH)
7.6 x 6.3 x 2.9"
