Ubiquiti UK-ULTRA-US, Compact indoor/outdoor Acess Point
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Ubiquiti UK-ULTRA-US, Compact indoor/outdoor Acess Point is backordered and will ship as soon as it is back in stock.
Description
Description
- Wi-Fi 5 (802.11ac)
- Up to 1166 Mb/s Throughput
- 2.4 GHz / 5 GHz (Dual-Band)

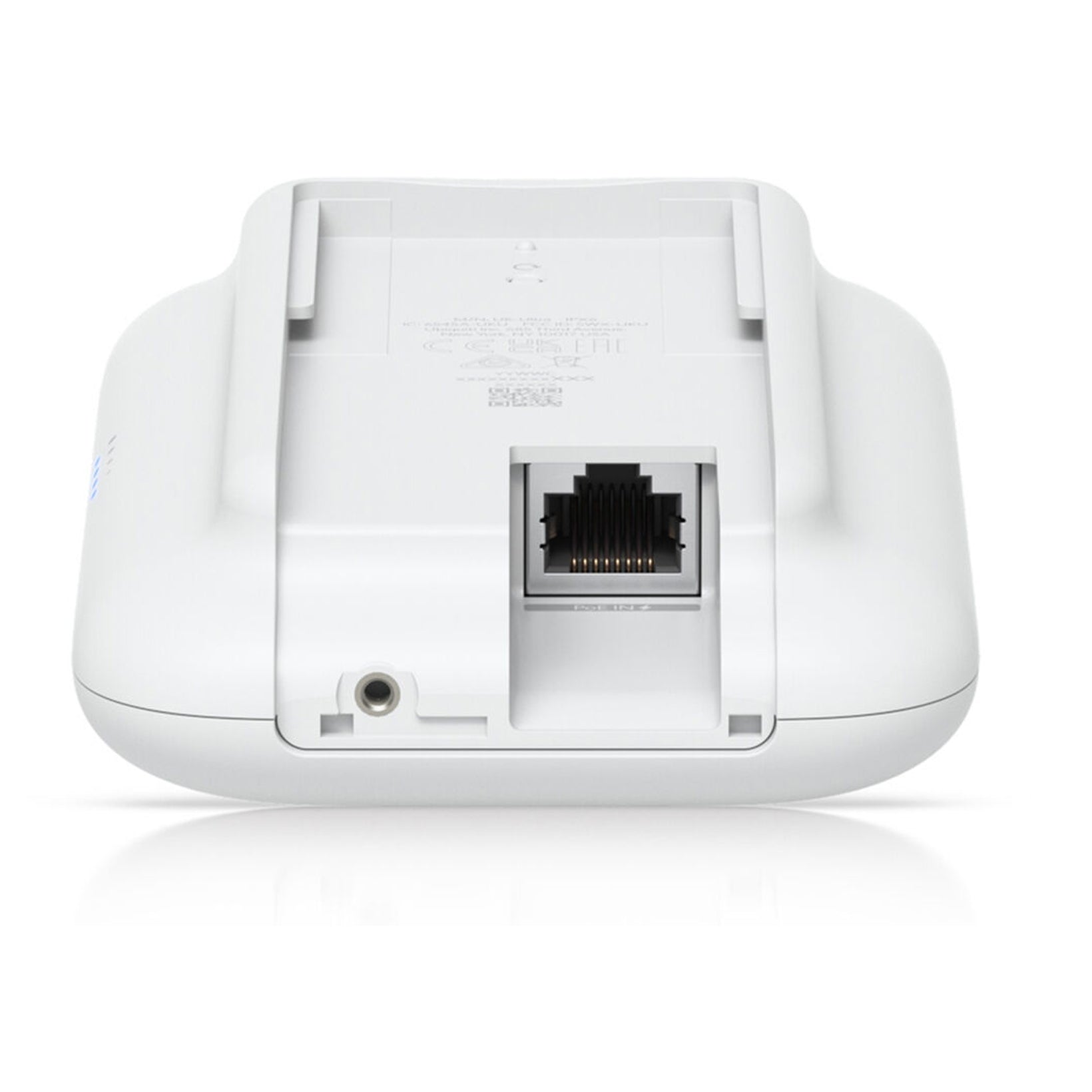

- 1 x Gigabit Ethernet PoE Port

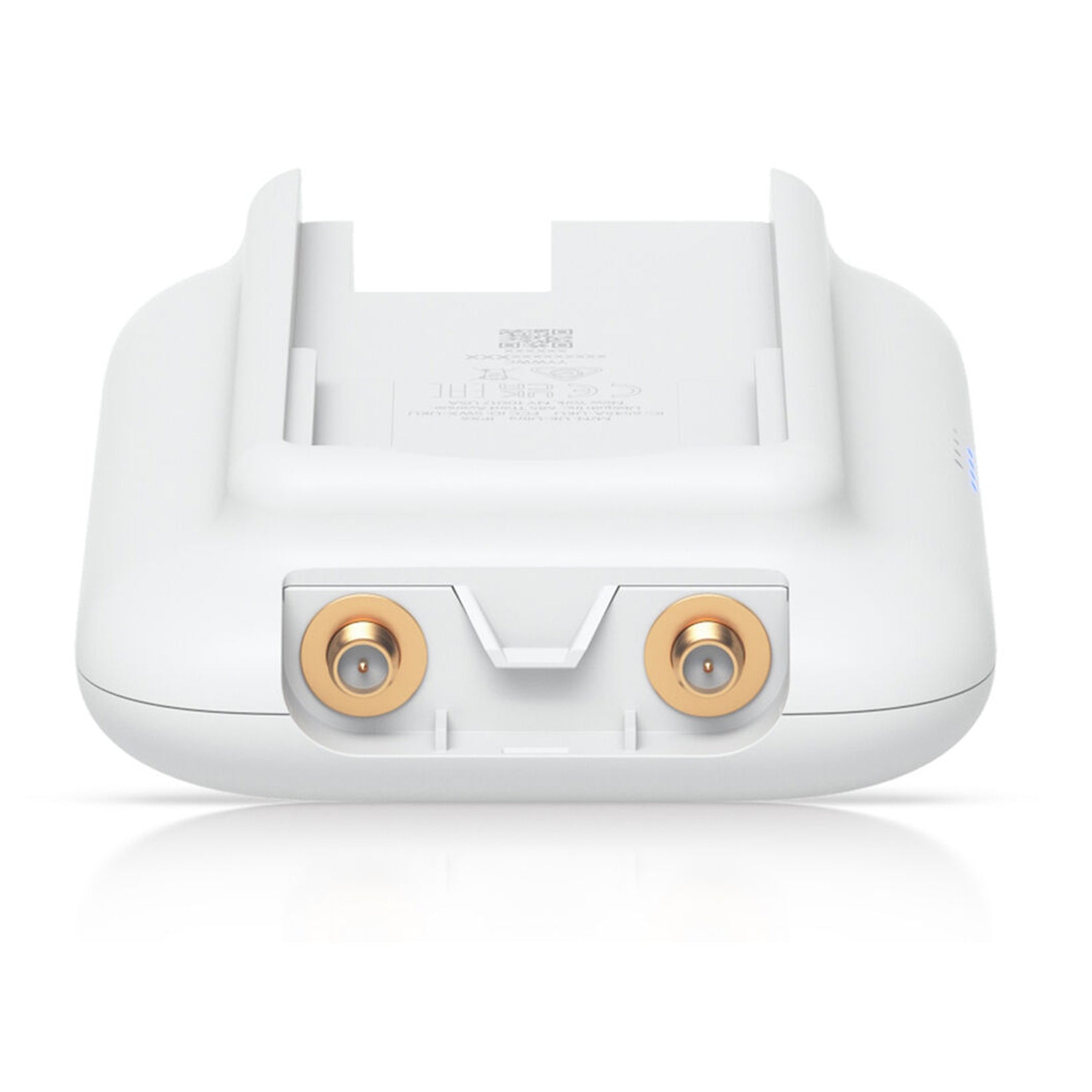

- 2 x SMA Antenna Connectors
- Compact Size
- Indoor & Outdoor Mountable

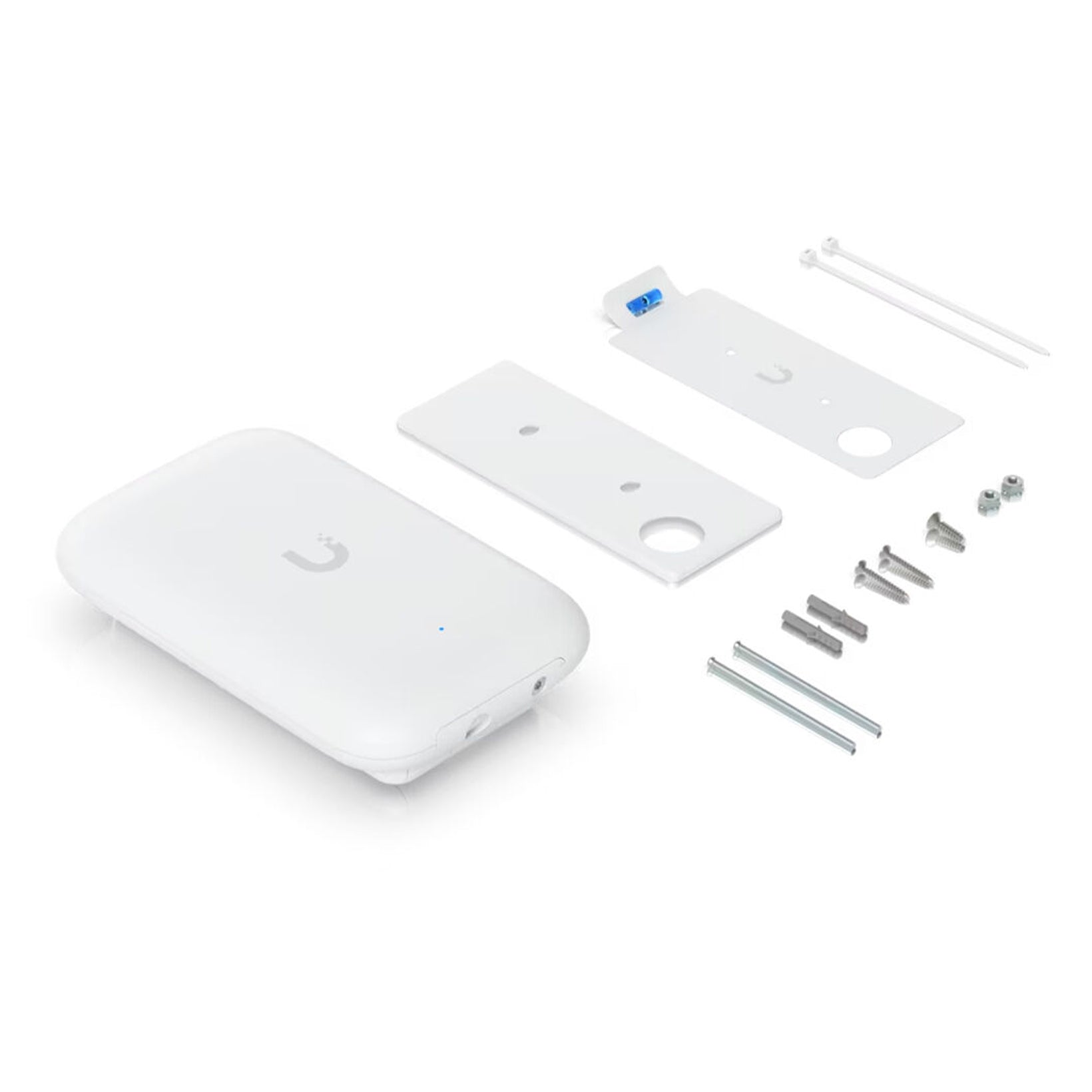

- Includes Wall, Ceiling & Pole Mounts
- IPX6-Rated Weatherproofing
- Works with UniFi Network Platform
Features
Expand your business's wireless coverage with ease using the Swiss Army Knife Ultra Access Point from Ubiquiti Networks. Featuring an IPX6 weatherproof rating, this Wi-Fi 5 (802.11ac) access point may be mounted either indoors or outdoors on a wall, ceiling, or pole using the included kits. Its compact size allows it to blend in with its surroundings while delivering up to 1166 Mb/s transfer speeds over the 2.4 GHz and 5 GHz bands to over 200 concurrent clients.
Connect the access point's Gigabit Ethernet port to a PoE compatible switch to deliver power and data over a single cable. Its internal antennas provide up to 1,250 square feet of coverage, which may be expanded by attaching separately purchased long-range antennas to the SMA connectors. You can mange the device's settings through the UniFi Network web interface or mobile apps.
Specifications
Wi-Fi
|
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
|
Antenna Gain
|
4.7 to 6 dBi
|
Transmit Power
|
20 dBm
|
Antenna Placement
|
Internal
|
Bluetooth
|
No
|
Throughput
|
1166 Mb/s Total
5 GHz: 866 Mb/s 2.4 GHz: 300 Mb/s |
Inputs/Outputs
|

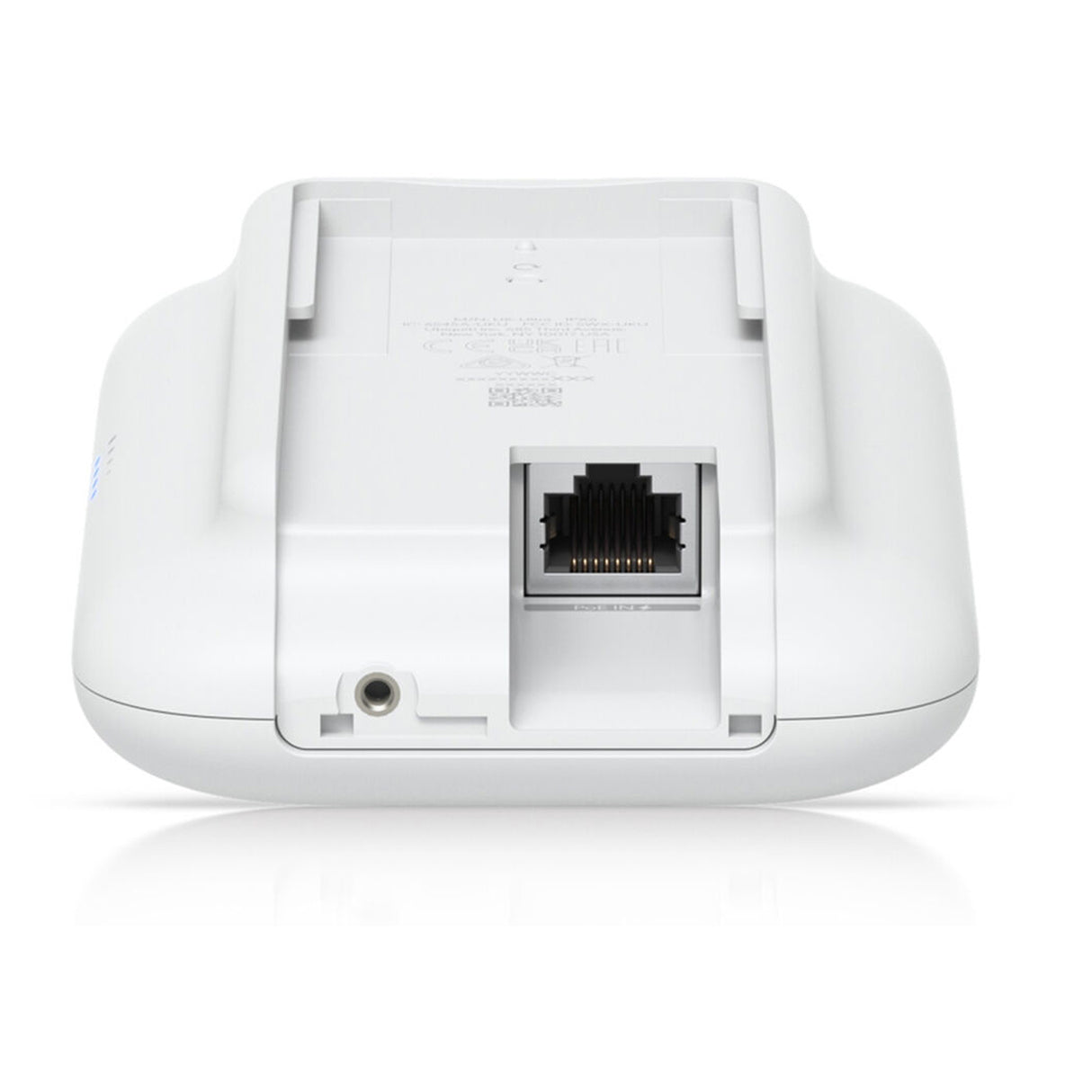

1x RJ45 Gigabit Ethernet WAN PoE (Unspecified)
2x SMA Antenna |
USB Sharing Support
|
No
|
Wireless Security
|
WPA-Enterprise, WPA-PSK
|
Lock Slot
|
No
|
Operation Modes
|
Access Point
|
Supported Clients
|
200
|
Max SSIDs Supported
|
16
|
Mobile App Compatible
|
Yes: Android & iOS
|
Supported IEEE Standards
|
802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.1q
|
Input Power
|
44 to 57 VDC
|
Power Consumption
|
8 W
|
Operating Temperature
|
-40 to 140°F / -40 to 60°C
|
Operating Humidity
|
5 to 95%
|
Environmental Protection
|
Weather-Resistant (IPX6)
|
Certifications
|
CE, FCC, IC
|
Mount Options
|
Pole, Wall, Ceiling
|
Dimensions
|

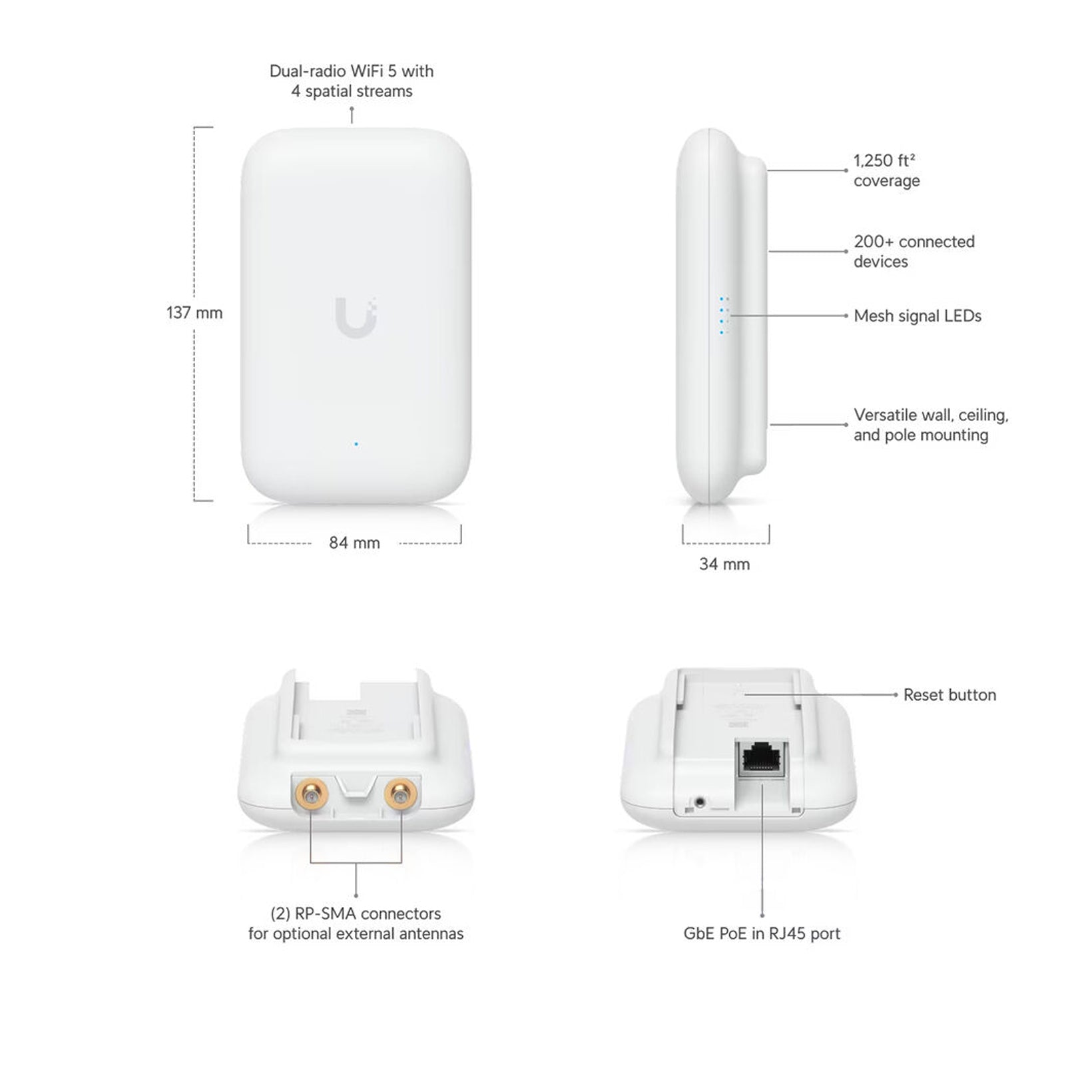

5.4 x 3.3 x 1.3" / 137 x 84 x 34 mm
|
Weight
|
6.1 oz / 173 g
|
Package Weight
|
0.77 lb
|
Box Dimensions (LxWxH)
|
7.3 x 3.8 x 3.3"
|
