Ubiquiti | SKU:
UBUPL-AMP-W-US

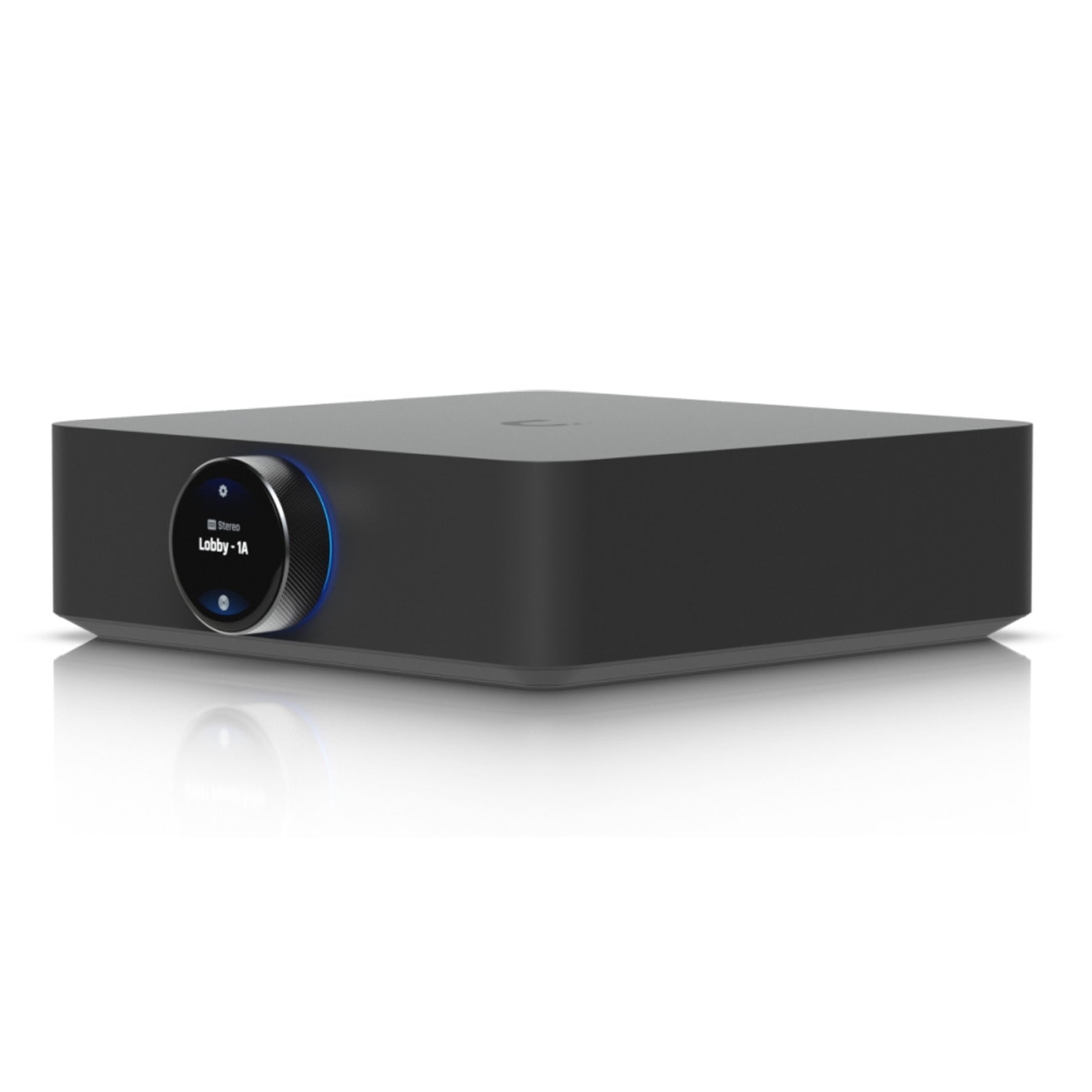

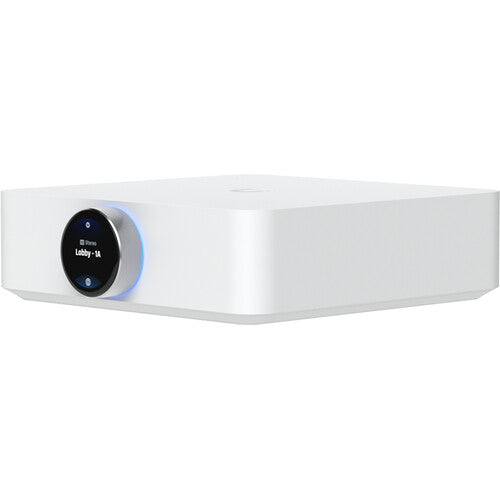

Ubiquiti UPL-Amp-B-US PowerAmp, Black / White
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Ubiquiti UPL-Amp-B-US PowerAmp, Black / White - White is backordered and will ship as soon as it is back in stock.
Description
Description

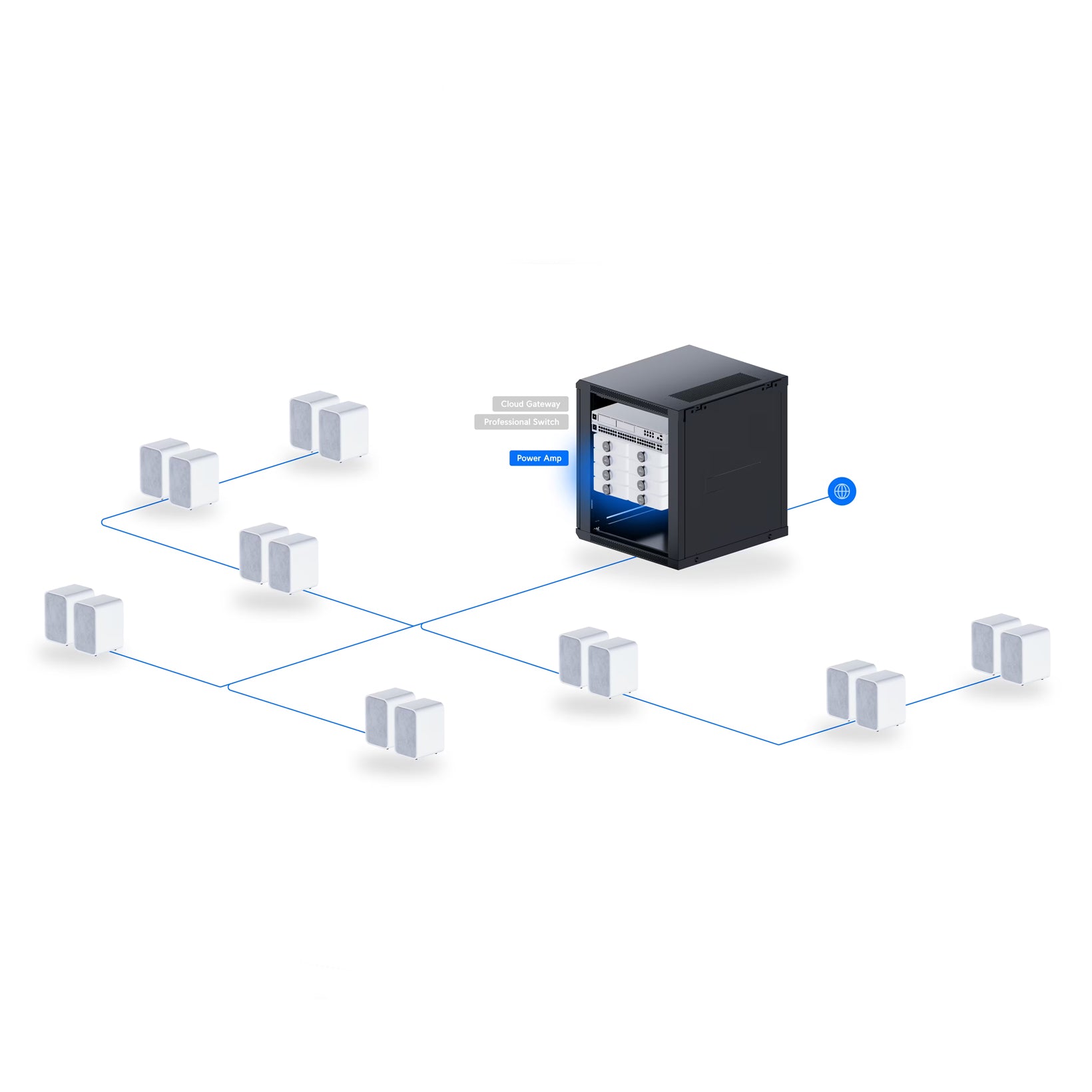

The Ubiquiti PowerAmp is a white premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.

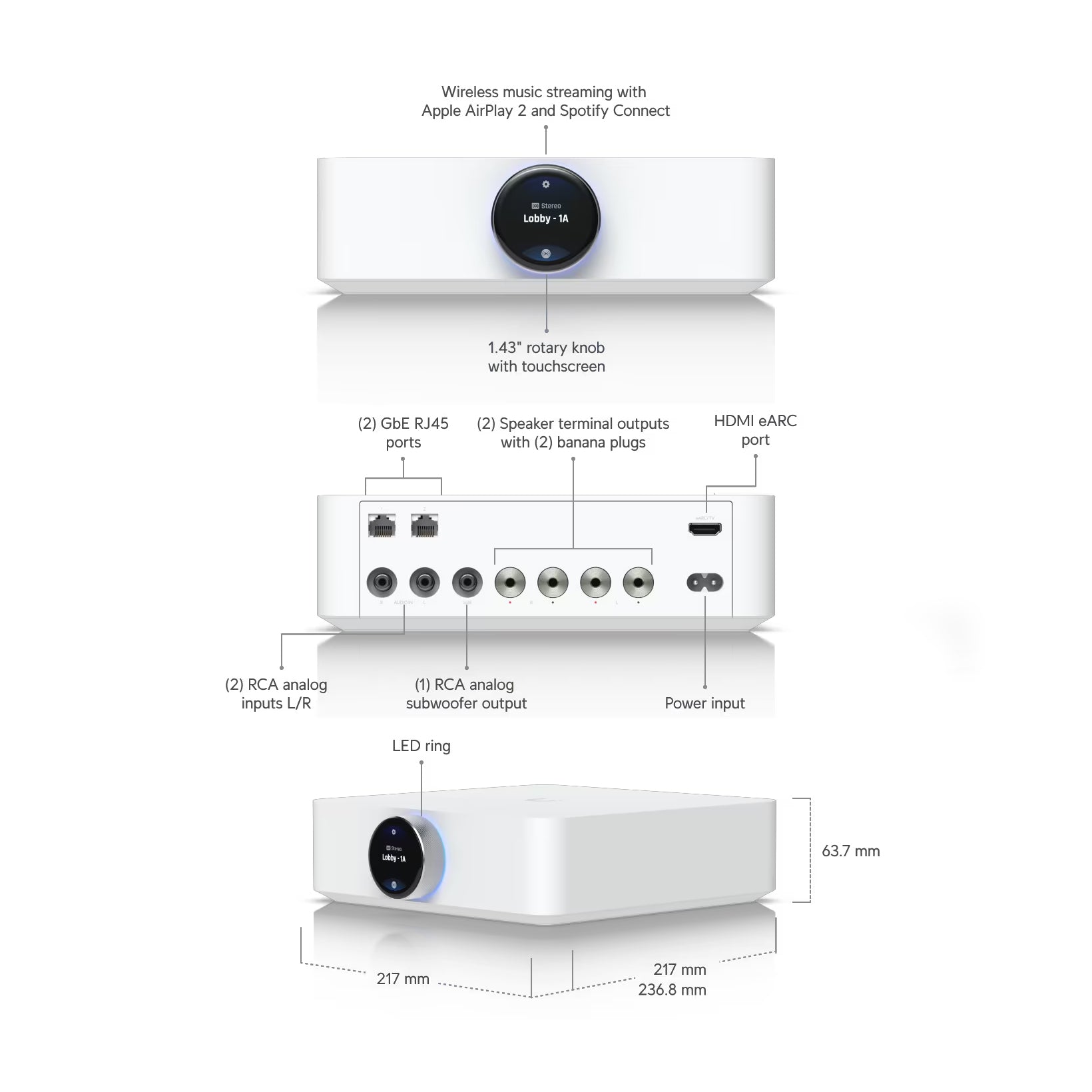

Ubiquiti PowerAmp Key Features:
- Low-latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect
- 130 watts per channel at 8 ohms
- (2) speaker terminal outputs with (2) custom-designed banana plugs included
- (1) RCA analog subwoofer output
- (2) RCA analog inputs for left and right channels
- (1) HDMI eARC input with immersive spatial sound powered by Dolby Atmos
- 1.43" rotary knob with touchscreen
- Effortless setup, management, and group control with the UniFi Play mobile app
Specifications
|
Mechanical
|
|
|---|---|
|
Dimensions
|
With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5")
Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5") |
|
Weight
|
2.4 kg (5.3 lb)
|
|
Enclosure material
|
Plastic
|
|
Mounting
|
Desktop
|
|
Color
|
Black
White |
|
Hardware
|
|
|
Networking interface
|
(2) GbE RJ45 ports
|
|
WiFi standards
|
802.11 a/b/g/n/ac
|
|
Connectivity
|
WiFi 2.4G, BW 20/40 MHz
WiFi 5G, BW 20/40/80 MHz |
|
Power method
|
(1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz
|
|
Power consumption
|
17W
|
|
LEDs
|
LED ring
|
|
LCM display
|
1.43" rotary knob with touchscreen
|
|
Button
|
Factory reset
|
|
Ambient operating temperature
|
-5 to 40° C (23 to 104° F)
|
|
Ambient operating humidity
|
5 to 90% noncondensing
|
|
Certifications
|
FCC, IC, CE
|
|
Audio
|
|
|
Per channel power (Continuous power)
|
130 W, 8 Ω, 1 kHz, < 0.05% THD+N, EIA (CEA-490-A)
260 W, 4 Ω, 1 kHz, < 0.09% THD+N, EIA (CEA-490-A) |
|
Amplifier class
|
Class D
|
|
Output
|
Stereo sound
|
|
Surround format
|
Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM
|
|
Grouping
|
Up to 32 PowerAmps
|
|
Audio input
|
(1) HDMI eARC input
(2) RCA analog inputs L/R |
|
Audio output
|
(1) RCA analog subwoofer output
(2) Speaker terminal outputs with (2) banana plugs |
|
Streaming
|
AirPlay2, Spotify Connect, Soundtrack Your Brand*
*Available November 8th. |
