Ubiquiti US-48-500W UniFi 48-Port Switch, 500W 70Gbps

SKU UBUS48500W
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

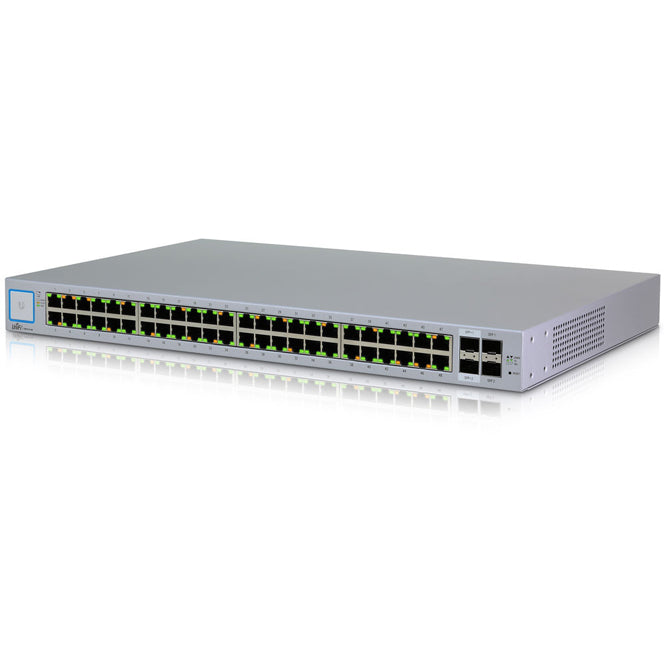

Ubiquiti Networks US-48-500W UniFi Managed PoE+ Gigabit 48 RJ45 Port 500W Switch with SFP+ Ports

The US-48-500W UniFi Managed PoE+ Gigabit 48 RJ45 Port 500W Switch from Ubiquiti Networks offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. It provides a total non-blocking throughput of up to 70 Gb/s.

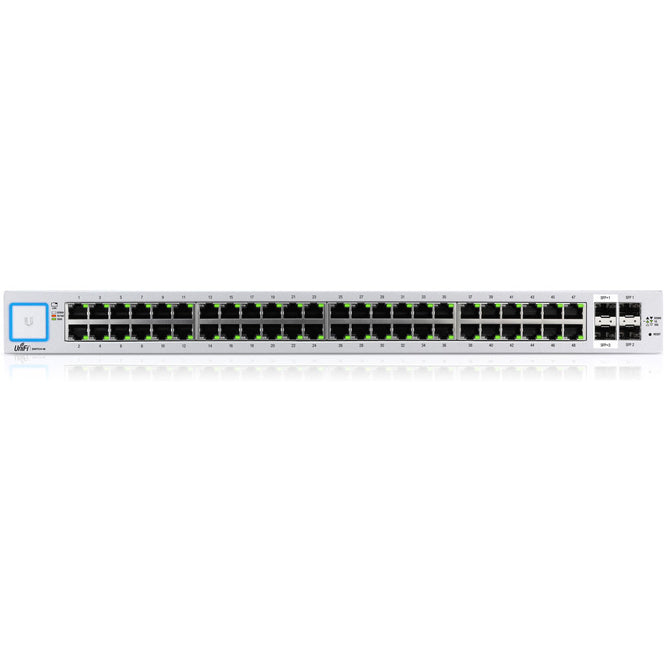

  • 48 x Gigabit RJ-45 Ethernet Ports
  • 2 x SFP+ Ports
  • 2 x SFP Ports
  • 1 x Serial Console Port
  • 70 Gbps Non-Blocking Throughput
  • 140 Gbps Switching Capacity
  • 104.16 Mpps Forwarding Rate
  • 500 W Max. Power Consumption

The switch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. It integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations — all controlled from a single interface.

  • Auto-sensing IEEE 802.3af/at PoE
  • 48 x Gigabit RJ45 ports, 2 x SFP+ ports, 2 x SFP ports
  • 1 Serial console port (reserved for future use)
  • Non-blocking throughput of up to 70 Gb/s
  • Switching capacity: 140 Gb/s
  • Forwarding rate of up to 104.16 Mp/s
  • Maximum power consumption of 500W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • Rack mountable
  • Designed for convenient management, the UniFi Controller software (not included) allows administrators to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface.1
Total Non-Blocking Throughput 70 Gb/s
Switching Capacity 140 Gb/s
Forwarding Rate 104.16 Mp/s
Maximum Power Consumption 500 W

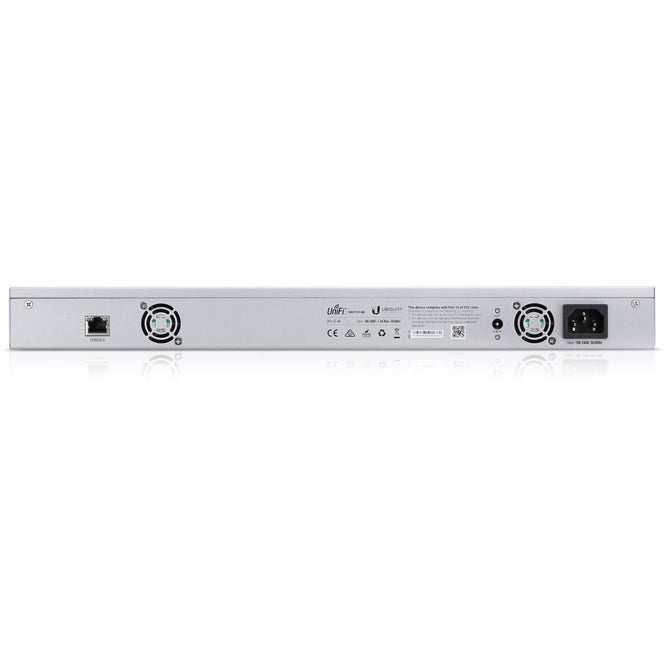

Power Method 100 to 240 VAC, 50 to 60 Hz, Universal Input
Power Supply AC/DC, Internal, 750 W DC
LEDs RJ45 Data Ports: PoE, Speed/Link/Activity
SFP Data Ports: Speed/Link/Activity
Ethernet Networking Interfaces 48 x 10/100/1000 Mb/s RJ45 Ethernet Ports
2 x 1/10 Gb/s SFP+ Ethernet Ports
2 x 1 Gb/s SFP Ethernet Ports
Management Interface 1 x RJ45 Serial Port (Reserved for Future Use), Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Shock and Vibration ETSI300-019-1.4 Standard
PoE POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24 VDC Passive PoE (Pins 4, 5+; 7, 8-)
Maximum PoE+ Wattage per Port by PSE: 34.2 W
Voltage Range 802.3at Mode, 50 to 57 V
Maximum PoE Wattage Per Data Port 17 W
Voltage Range 20 to 27 V
System Requirements Linux, Mac OS X, or Microsoft Windows 7/8
Java Runtime Environment 1.6 (or above)
Web Browser: Mozilla Firefox, Google Chrome, or Microsoft Internet Explorer 8 (or above)
Operating Temperature 23 to 104°F (-5 to 40°C)
Operating Humidity 5 to 95%, non-condensing
Dimensions 19.1 x 1.75 x 13.69" (485.04 x 44.45 x 347.6 mm)
Weight 11.68 lb (5.3 kg)
Package Weight 17.0 lb
Box Dimensions (LxWxH) 22.3 x 16.9 x 3.6"
