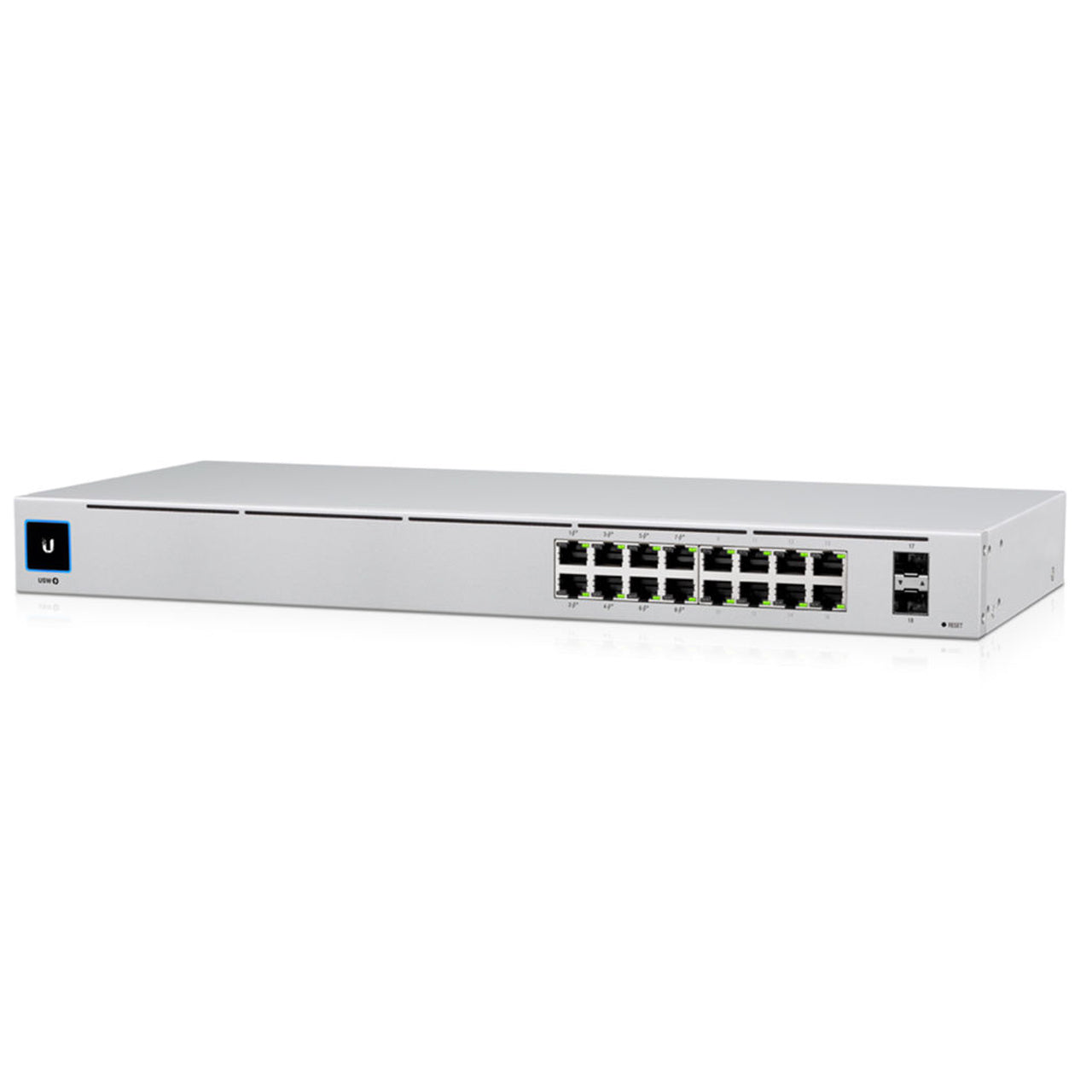

Ubiquiti USW-16-POE, UniFi 16-Port Managed, 8 Gigabit PoE Ports, 8 Gigabit Ports Switch with SFP

by Ubiquiti

SKU UBUSW-16-POE

16 x Gigabit Ethernet Ports
8 x PoE+ Compliant Ports
2 x Gigabit SFP Ethernet Ports
36 Gb/s Switching Capacity
26.78 Mpps Forwarding Capacity
Rack-Mountable Design
1.3" Touchscreen Display
Passive Cooling
UniFi Controller Support

Features
Specification

Expand your business's network with the fully manageable UniFi 16-Port Gigabit PoE+ Complaint Managed Switch from Ubiquiti. Designed for a rack mount or desktop installation, this passively cooled 16-port Gigabit switch includes eight 32W PoE+ connectors with a total power budget of 42W to power devices such as network security cameras. Each port delivers 18 Gb/s non-blocking throughput, with a 36 Gb/s switching capacity, and a 26.78 Mpps forwarding rate.

Two 1Gb SFP Ethernet Ports are available for additional expansion with compatible devices. Administrators may monitor and manage the switch with the 1.3" touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.

Operation mode (switching, mirroring, or aggregate) per port
Network/VLAN configuration
Jumbo frame and flow control services
Network settings
Storm control setting per port
Spanning tree configuration
802.1X control and RADIUS VLAN
Debug terminal option for command-line interface

Supported Protocols	Auto-MDIX/MDI Port Mirroring
Forwarding Rate	26.78 Mpps
Switching Bandwidth	18 Gb/s (Non-Blocking)
PoE per Port	32 W
PoE Power Budget	42 W
Power Draw	18.00 W (Max)
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Supply Type	Internal
Operating Temperature	27 to 72°F / -5 to 40°C
Operating Humidity	10 to 90%
Certifications	CE, FCC, IC
Cooling System	Passive
Indicator Lights	Yes
Rack Mountable	Yes 1 RU
Dimensions	17.42 x 7.87 x 1.72" / 442.4 x 200 x 43.7 mm
Weight	6.17 lb / 2.8 kg
Package Weight	7.875 lb
Box Dimensions (LxWxH)	20.5 x 12.1 x 4.8"
