Ubiquiti USW-48-POE, UniFi 48-Port Managed, 32 Gigabit PoE Ports, 16 Gigabit Ports Switch with 4 SFP Ports

The Switch 48 (USW 48) is a fully managed, fanless switch with (48) GbE RJ45 ports and (4) 1G SFP ports. The versatile USW 48 provides Gigabit links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Specifications

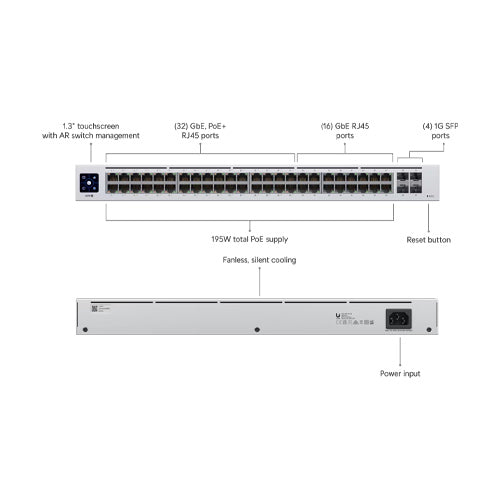

• (1) 1.3" LCM color touchscreen with AR switch management
• (48) GbE RJ45 ports
• (4) 1G SFP ports
• Fanless, silent cooling

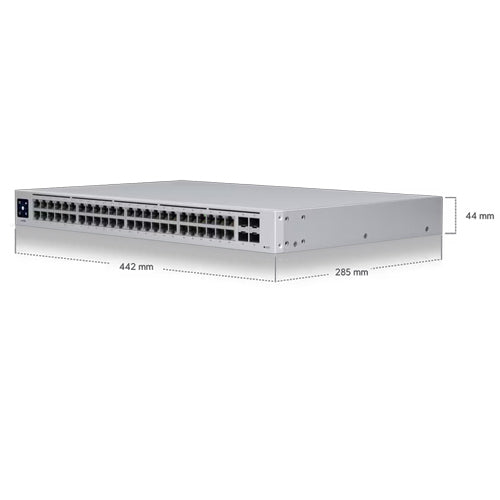

• Dimensions: 442.4 x 285 x 43.7 mm (17.4 x 11.2 x 1.7")
• Weight: Without mounting brackets: 3.9 kg (8.6 lb)
• With mounting brackets: 4 kg (8.8 lb)
• Enclosure material: SGCC steel
• Networking interface:
  • (48) GbE RJ45 ports
  • (4) 1G SFP Ethernet ports
• Total non-blocking throughput: 52 Gbps
• Switching capacity: 104 Gbps
• Forwarding rate: 77.376 Mpps
• Power method: Universal input, 100—240V AC, 50/60 Hz
• Power supply: AC/DC, internal, 60W
• Supported voltage range: 100—240V AC
• Max. power consumption: 40W
• ESD/EMP protection: Air: ± 16kV, contact: ± 12k
• LCM display: (1) 1.3" touchscreen
• Button: Factory reset
• Operating temperature: -15 to 40° C (5 to 104° F)
• Operating humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC
•
• Management interface: Ethernet In-Band
• LEDs
  • System: Status
  • Ethernet: Speed/link/activity
  • SFP: Link/activity
• Application Requirements
  • UniFi Network: Version 7.2.94 and later
