Ubiquiti  |  SKU: UBUSW-LITE-16-POE

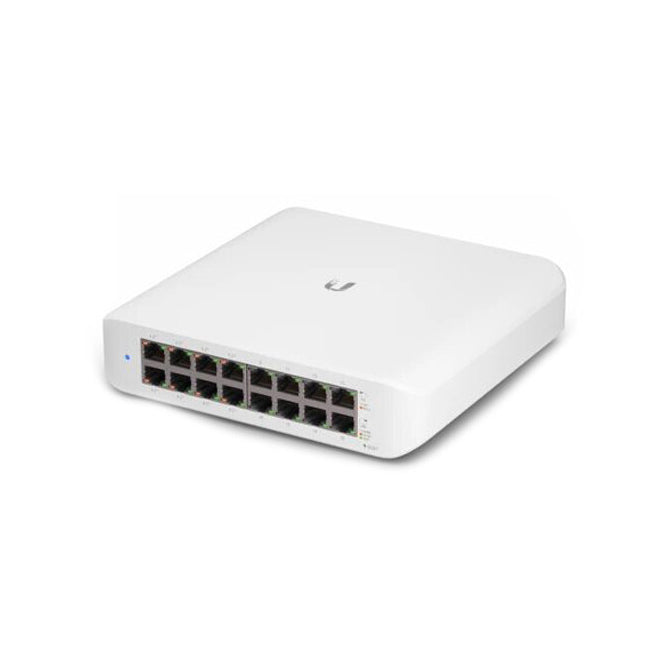

Ubiquiti USW-LITE-16-POE, Unifi POE GbE Switch 8 port, 8 GbE port (45W)

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description
  • 16 x Gigabit Ethernet Ports
  • 8 x PoE+ Compliant Ports
  • 16 Gb/s Switching Capacity
  • Desktop & Wall Mountable Design
  • 45W Power Budget
  • Includes Wall Mounting Kit
  • Supports UniFi Network Controller
Features

Grow your network capacity to support computers, printers, storage, and power over Ethernet devices with the UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch from Ubiquiti Networks. Featuring a 16 Gb/s switching capacity, this Layer 2 managed switch features 16 Gigabit Ethernet ports, eight of which are 802.3af/at PoE+ complaint with a 45W power budget, up to 30W per port, to operate compatible devices such as security cameras, VoIP phones, access points, and more.

Network traffic with connected devices can be further optimized using the UniFi Network Controller, which offers a comprehensive suite of features to configure, control, and monitor performance. Additionally, its fanless design helps the switch to operate silently in the background of your home office or business. For added convenience, this desktop switch includes a wall mounting kit.

  • Manage your networks from a single control plane
  • Robust configuration, control, and monitoring features
  • Remote firmware upgrade
  • User and guest management
  • Guest portal and hotspot support
Specifications
Inputs/Outputs
8x RJ45 Gigabit Ethernet
8x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
Stackable
No
Switching Bandwidth
16 Gb/s
PoE Power Budget
45 W
Layer Services Supported
Layer 2
Switching Bandwidth
16 Gb/s
PoE per Port
30 W
PoE Power Budget
45 W
Power Draw
15.00 W (Max)
Input Power
100 to 240 VAC, 50 / 60 Hz
50 to 57 VDC
Power Supply Type
Internal
Operating Temperature
5 to 104°F / -15 to 40°C
Operating Humidity
10 to 90%
Certifications
No
Cooling System
Passive
Indicator Lights
Yes
Rack Mountable
No
Dimensions
7.5 x 7.3 x 1.7" / 191.7 x 185 x 43.7 mm
Weight
2.6 lb / 1.2 kg
