Ubiquiti USW-PRO-24-POE, UniFi 24-Port Managed, 16 Gigabit PoE+ Ports, 8 Gigabit PoE++ Ports Switch with 2 SFP
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Ubiquiti USW-PRO-24-POE, UniFi 24-Port Managed, 16 Gigabit PoE+ Ports, 8 Gigabit PoE++ Ports Switch with 2 SFP is backordered and will ship as soon as it is back in stock.
Description
Description

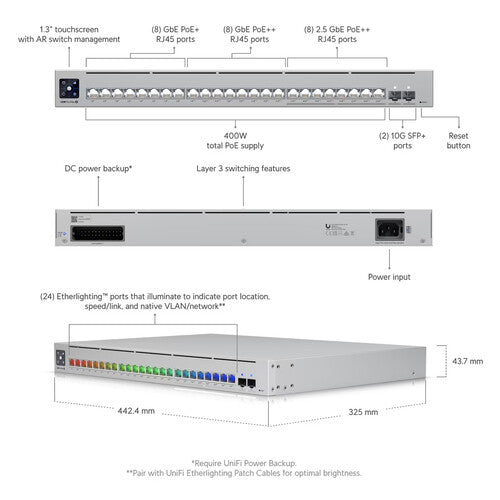

- 8 x 2.5G Ethernet PoE++ Ports (60W)
- 8 x Gigabit Ethernet PoE++ Ports (60W)
- 8 x Gigabit Ethernet PoE+ Ports (30W)
- 2 x 10G SFP+ Ports
- 112 Gb/s Switching Capacity
- 1.3" Touchscreen | Etherlighting Ports
- 400W Power Budget
- DC Power Backup Ready
- UniFi Network Management
Features
Expand your business's network with the Pro Max 24 PoE 24-Port 2.5G / 1G Managed Network Switch from Ubiquiti Networks to support advanced IP cameras, access points, and other PoE compatible devices. Eight 60W 2.5G PoE++ Ethernet ports are available. Alongside them are 16 Gigabit speed Ethernet ports, eight of which provide 60W while the other eight support 30W with a total power budget of 400W for compatible equipment. Two SFP+ ports are also available for up to 10 Gb/s uplinks.
Etherlighting technology illuminates each port to indicate the port location, speed/link status, and native VLAN/network configurations when used with compatible cables. A 1.3" touchscreen display provides important status information at a glance. Supporting a 112 Gb/s (56 Gb/s non-blocking) switching capacity and Layer 3 features, the Pro Max 24 PoE delivers smooth data transfers. Its settings may be managed through the UniFi Network platform.
Specifications
Layer Services Supported |
Layer 3 |
Supported Protocols |
Auto-MDIX/MDI |
Switching Bandwidth |
112 Gb/s 56 Gb/s (Non-Blocking) |
Power Draw |
50.00 W (Max) |
Input Power |
100 to 240 VAC, 50 / 60 Hz |
Power Supply Type |
Internal |
Certifications |
CE, FCC, IC |
Operating Conditions |
23 to 104°F / -5 to 40°C at 10 to 90% Humidity |
Material of Construction |
Steel |
Indicator Lights |
Yes |
Rack Mountable |
Yes 1 U |
Dimensions |
17.4 x 12.8 x 1.7" / 442 x 325 x 44 mm |
Weight |
11.2 lb / 5.1 kg |
