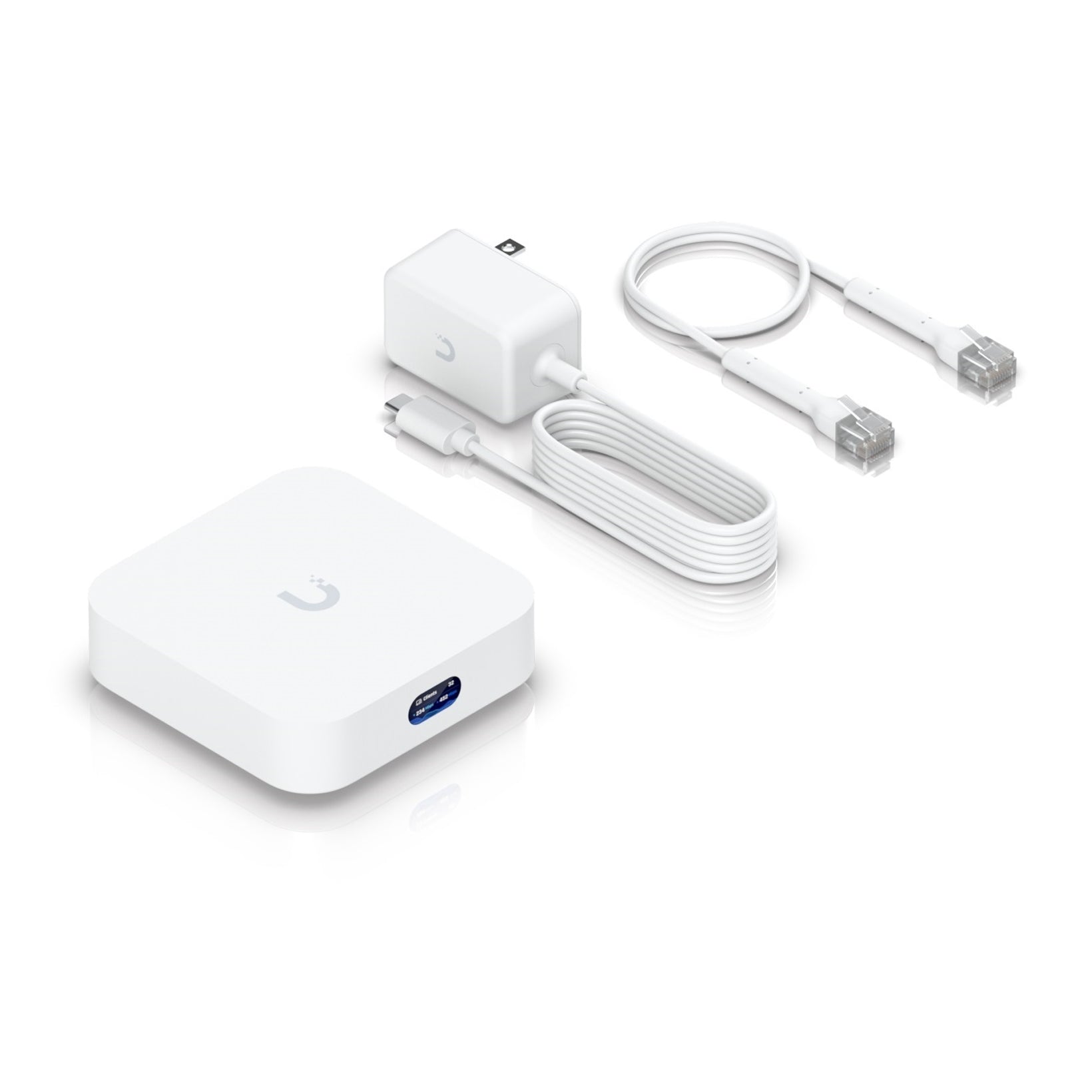

Ubiquiti UX-US UniFi Compact Cloud Gateway and WiFi 6 AP

SKU UBUX-US
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Wi-Fi 6 (802.11ax)
  • ​Works with UniFi Platform
  • Up to 2973 Mb/s Wireless Throughput
  • 2.4 GHz / 5 GHz (Dual-Band)
  • 1 x Gigabit Ethernet LAN Port
  • 1 x Gigabit Ethernet WAN Port
  • 0.96" Information Display
  • Supports Over 60 Clients
  • 1500 Square Foot Range
  • Gateway, Router & Mesh Network Features

Integrate the UniFi Express from Ubiquiti into your network for added security, easy management, and fast Wi-Fi coverage to your home or business. This compact and multi-functional device sits between your internet connection and your network via its Gigabit Ethernet WAN and LAN ports, where it pretty much does it all, including providing security gateway features and Wi-Fi 6 (802.11ax) connectivity in addition to SD-WAN and VLAN functionality.

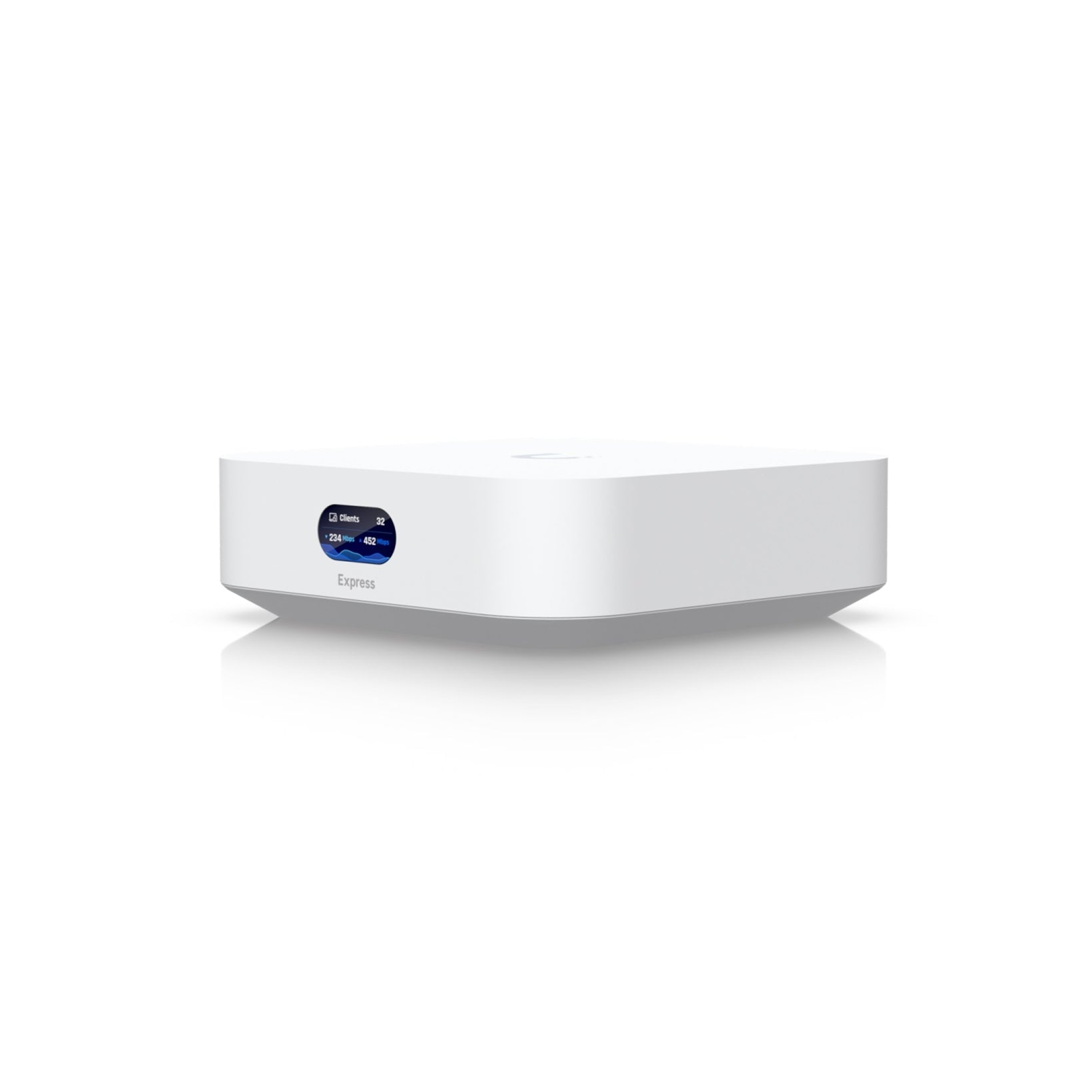

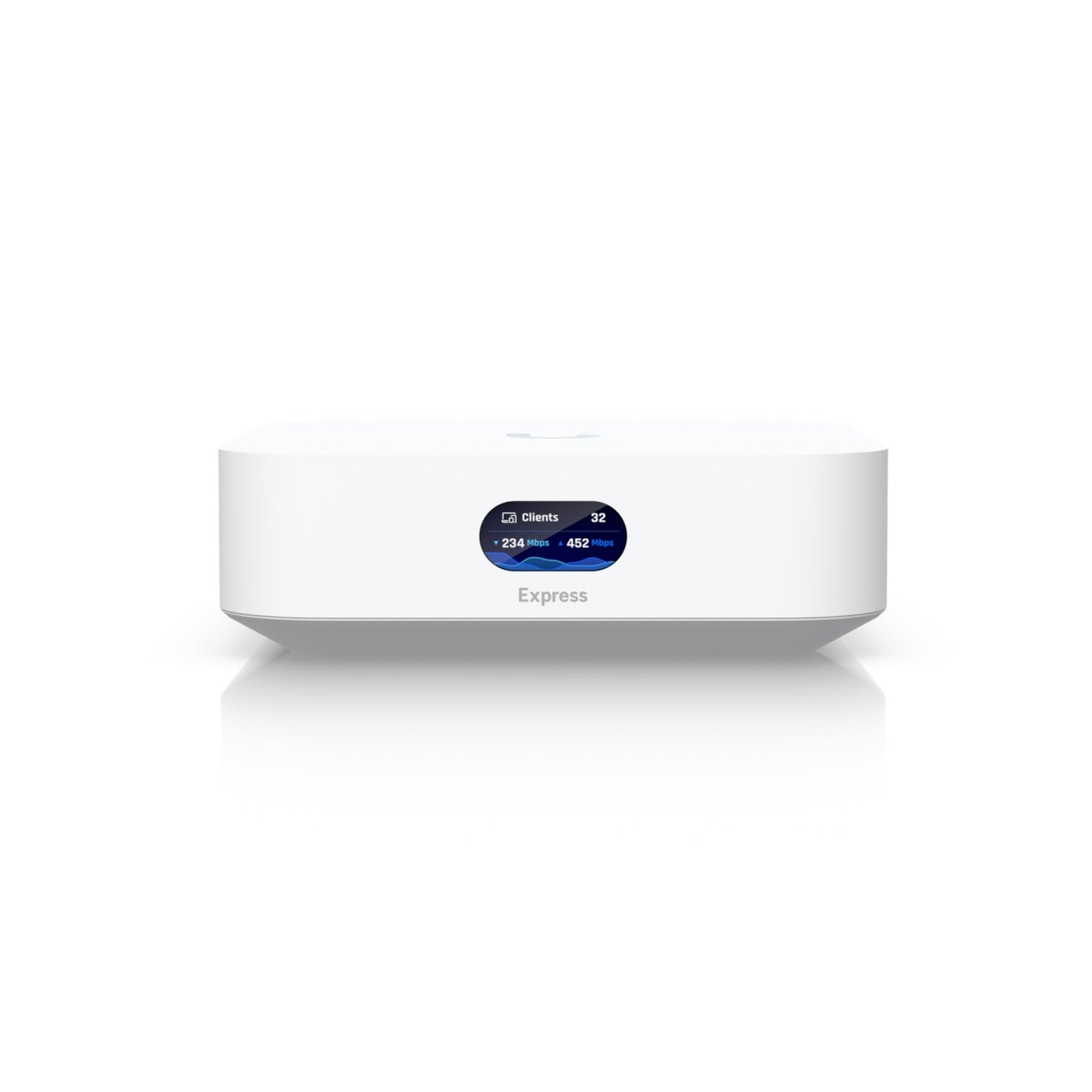

Supporting over 60 devices with up to 1500 square feet of coverage, the UniFi Express can be configured as a wireless router or as a mesh network satellite, delivering up to 2973 Mb/s data transfers over the 2.4 and 5 GHz bands while you move from room to room. A convenient 0.96" LCM color display provides you with information at a glance, including the number of connected clients and bandwidth usage. Its plug-and-play design helps to ensure a quick setup, and you can use the UniFi platform to manage its settings.


  • SD-WAN and VPN for Hybrid Network: Securely combine distributed networks across multiple remote locations into a single network.​
  • Home ISP Gateway: Manage your home gateways and mesh Wi-Fi settings with ease.​​
  • Powerful UniFi Features: The intuitive UniFi platform includes features such as an application-aware firewall, remote access VPN, intelligent failover, precise radio controls, VLAN configuration, flexible authentication, and the intuitive Site Magic SD-WAN.

Wireless

Wi-Fi 6 (802.11ax)

Wi-Fi

Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)

Number of Antennas

2x Internal
1x Internal (Bluetooth)


Antenna Gain

4 to 5.1 dBi

Transmit Power

22 to 25 dBm

Matter Support

No

Supported Protocols

Auto-MDIX/MDI

Communication Protocol

No

Bluetooth

No

Throughput

2973 Mb/s Total
5 GHz: 2400 Mb/s
2.4 GHz: 573 Mb/s

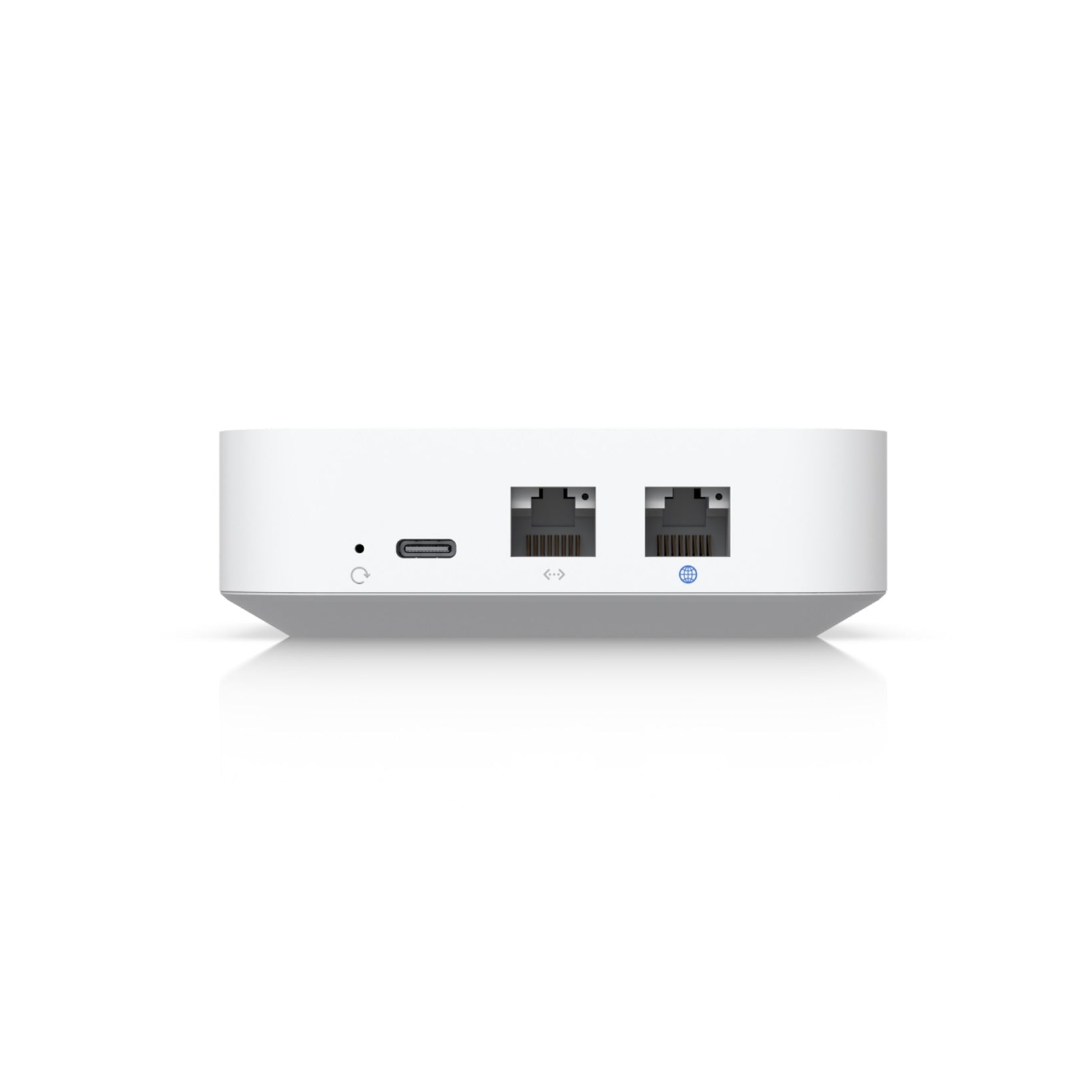

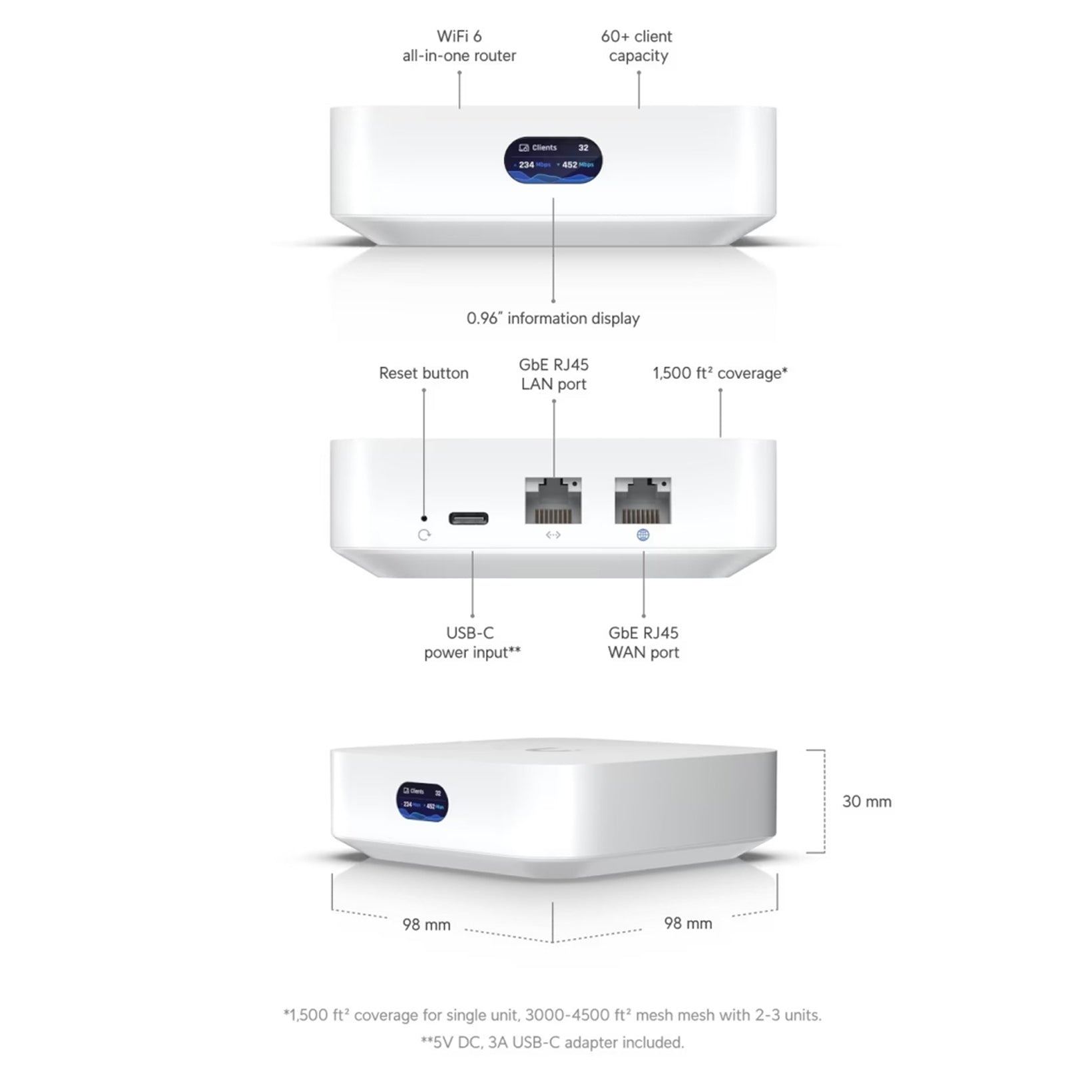

Inputs/Outputs

Router:
1x RJ45 Gigabit Ethernet (LAN)
1x RJ45 Gigabit Ethernet (WAN)
1x USB-C


Wireless Security

WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-Enterprise

Operation Modes

Access Point, Mesh, Wireless Router

Max SSIDs Supported

16

Virtual Assistant

No

Mobile App Compatible

Yes: Android & iOS
App Name: UniFi


Display

0.96"

Supported IEEE Standards

802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.1q

Input Power

5 VDC at 3 A

Power Consumption

10 W

Operating Temperature

14 to 113°F / -10 to 45°C

Operating Humidity

5 to 95%

Environmental Protection

No

Dimensions

3.9 x 3.9 x 1.2" / 98.0 x 98.0 x 30.0 mm

Weight

10.7 oz / 302 g

Package Weight

1.505 lb

Box Dimensions (LxWxH)

5.7 x 5 x 3.2"
