UL Listed Explosion-Proof Driver 60 W - 70.7V Xfmr Hydrogen Enviroment

SKU ATHLE-3T
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

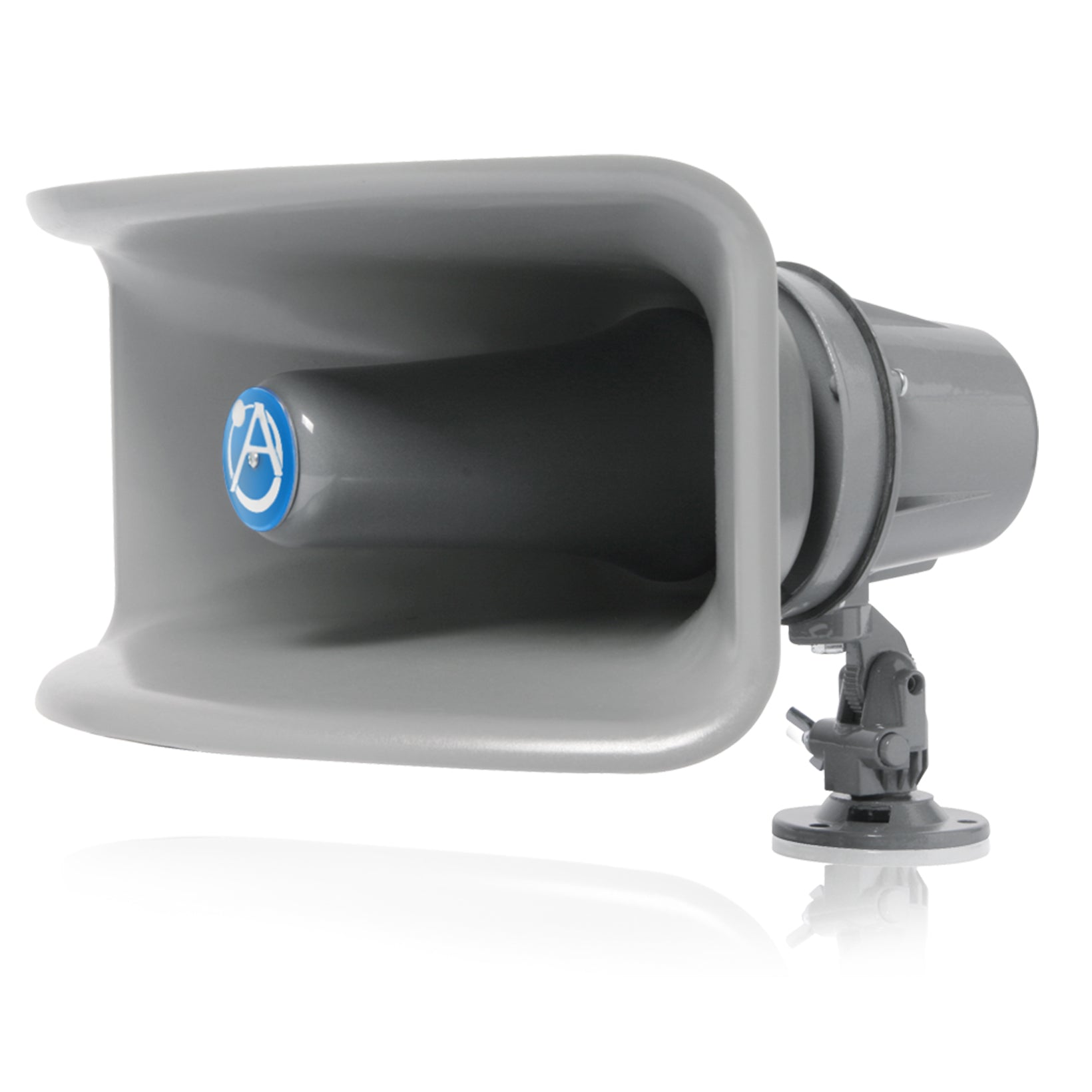

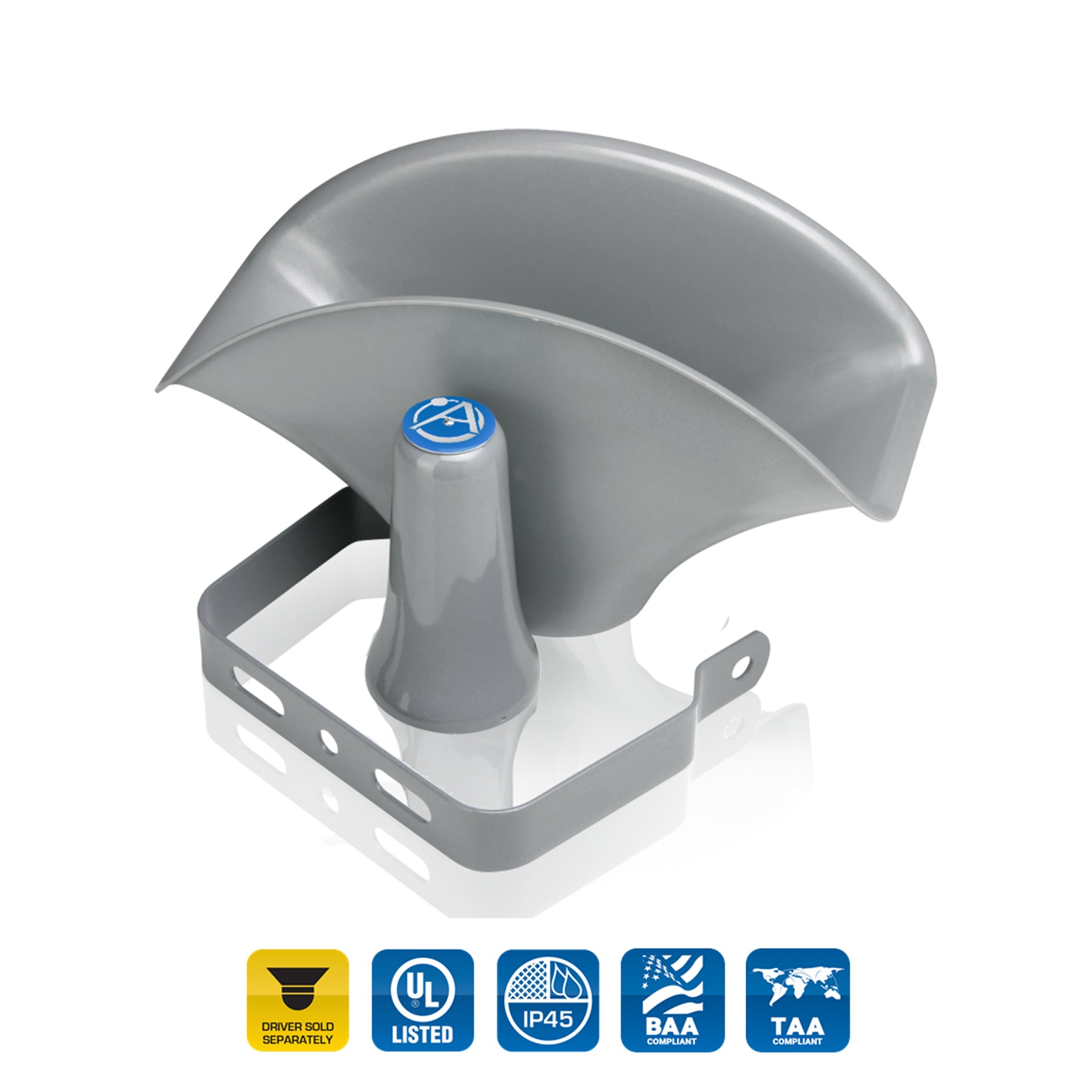

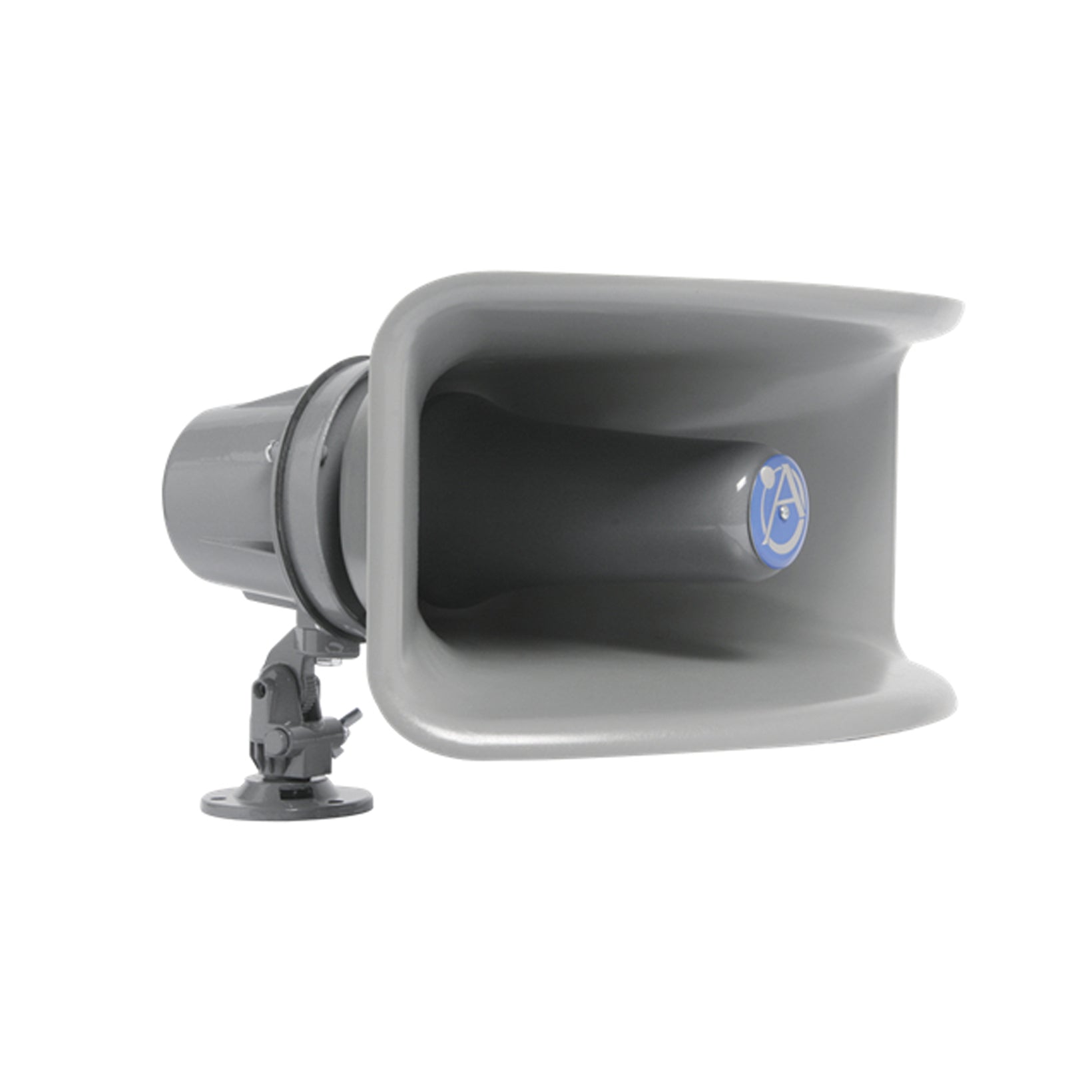

UL LISTED EXPLOSION-PROOF WIDE ANGLE HORN

The HLE-3T Explosion-Proof Driver with 60W, 70.7V Transformer from Atlas Sound is an explosion-proof compression driver/horn assembly engineered for high-efficiency voice and electronic signal communication in hazardous areas.

Drivers, which are protected within a rugged die-cast aluminum housing, have 60W power handling. This system includes a factory-installed, internally mounted transformer. The HLE-3T Transformer is equipped with a 1/2" conduit access and an adjustable mounting bracket.

  • 60 Watt, 16 Ohm Driver
  • Approved for Class 1/Groups C & D Environments
  • Can be Used with Either HLE/MLE-30 OR HLE/MLE-32 Horn Projectors
  • Explosion-Proof Loudspeaker Driver for Signal and Communications Systems
  • Listed by UL for Use in Hazardous/Combustible Environments (Noted Models)
  • UL Certified, Safety Listed to UL1203, UL1604, UL2279, and UL913
FREQUENCY RESPONSE 300Hz - 14kHz
SENSITIVITY 106dB
POWER RATING 30 Watts Cont.
SAFETY LISTED UL 1203, 1604, 2279, 913, NFPA 503
HEIGHT WITH HORN 6" (152.4 cm)
WIDTH WITH HORN 16.5" (419mm)
DEPTH WITH HORN 17.5" (444.5mm)
SHIPPING WEIGHT 13.18 lbs (5.98 kgs)
