UNV | SKU:
UVOEI-372S-H-W

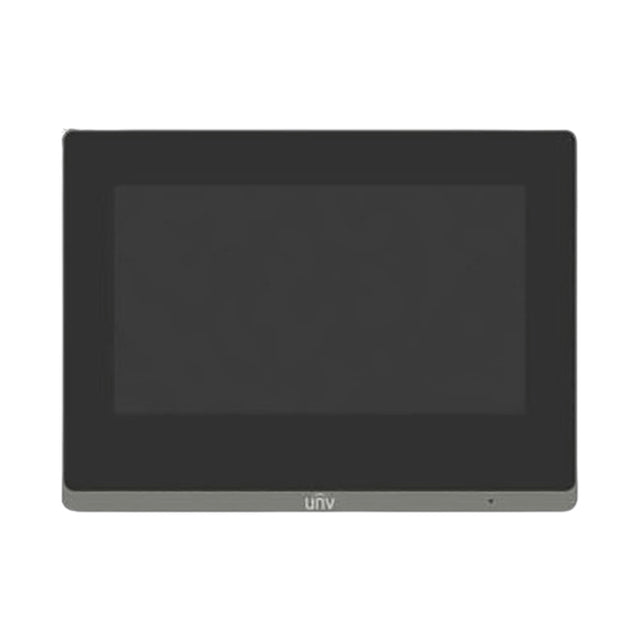

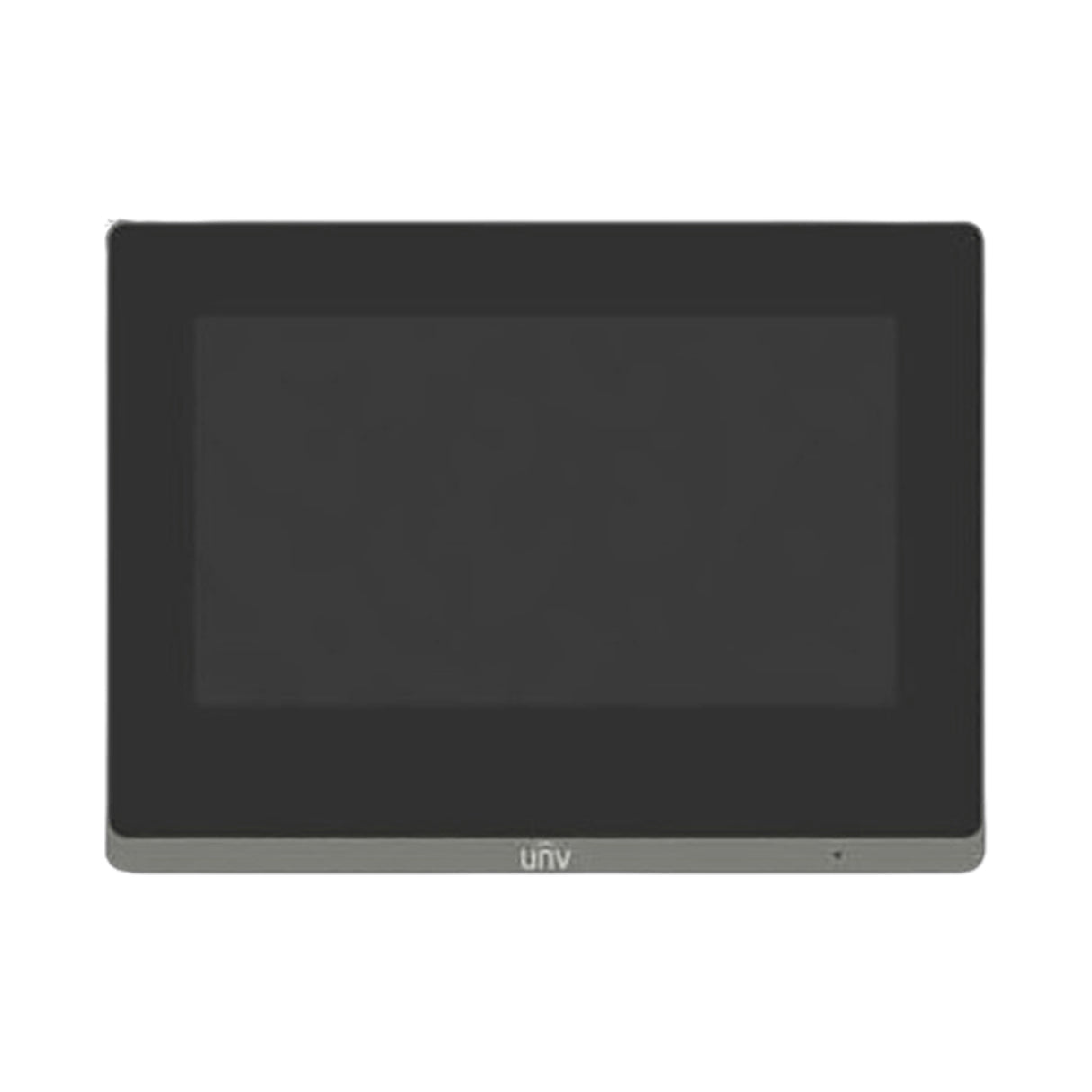

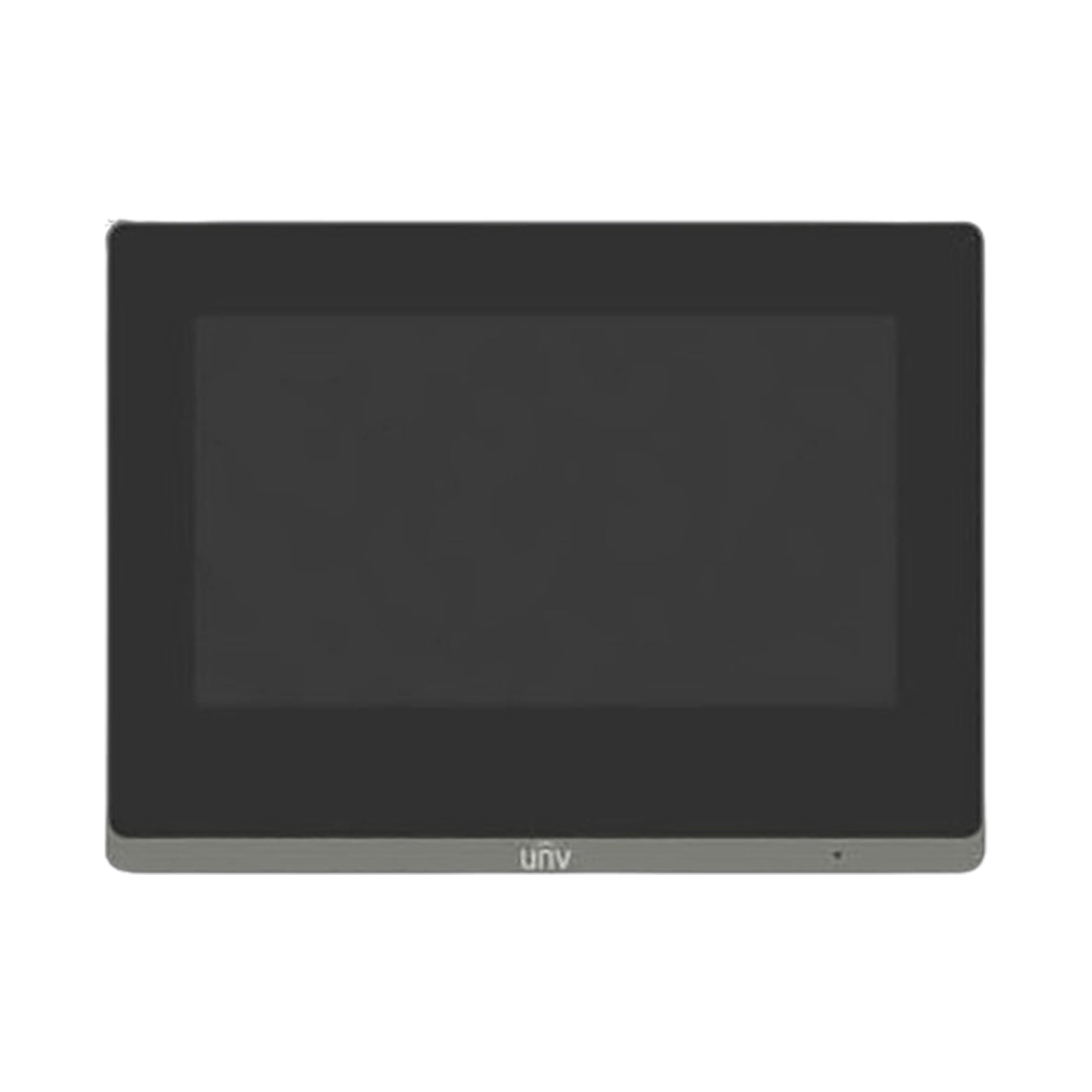

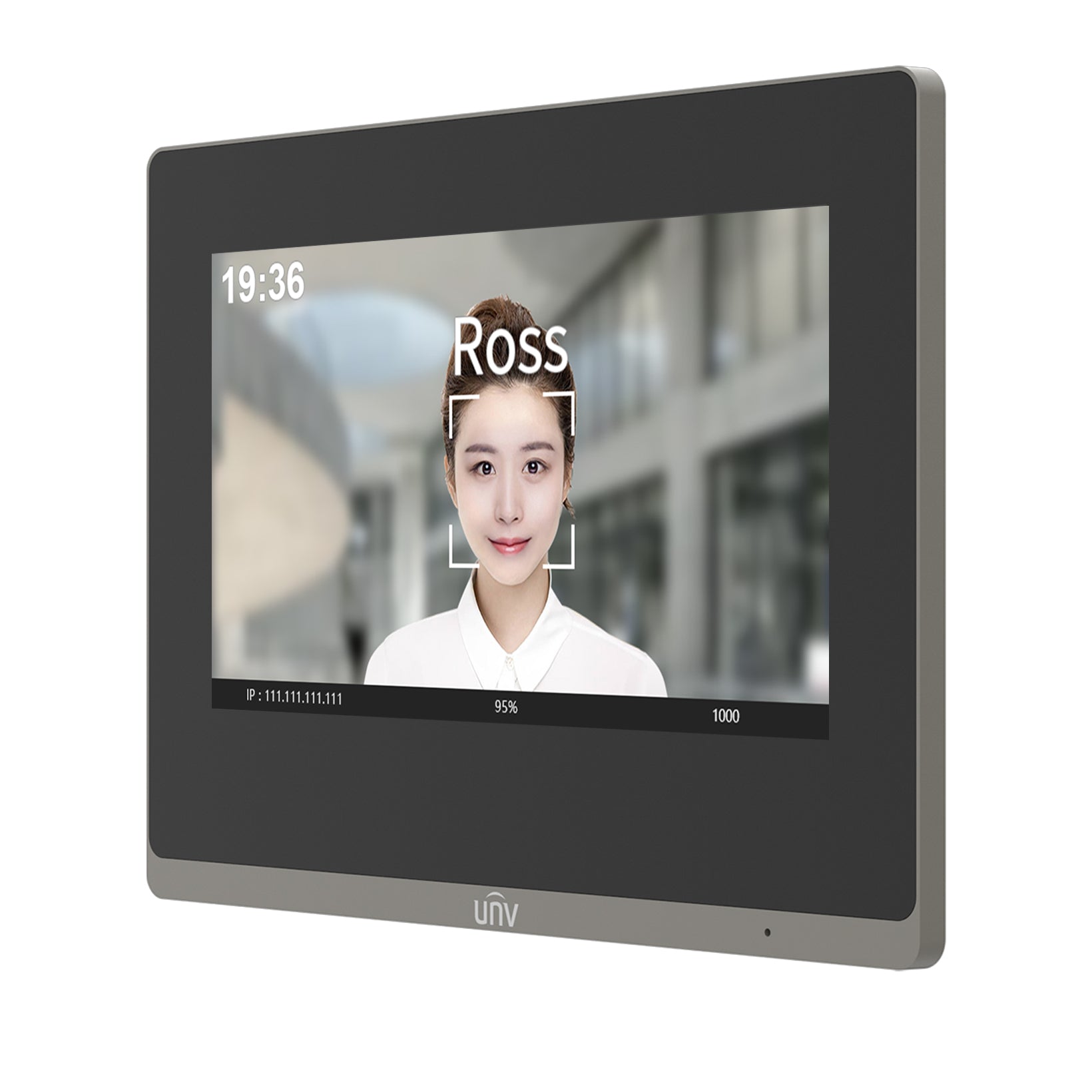

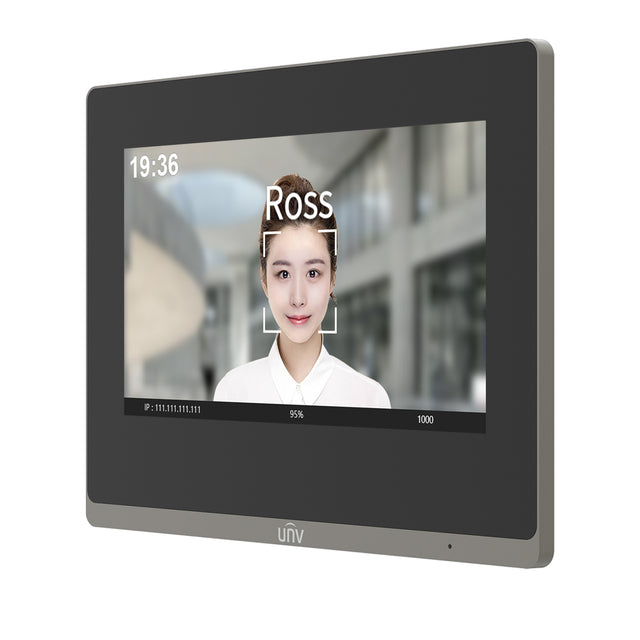

Uniview OEI-372S-H-W, Intercom Indoor Monitor
Uniview OEI-372S-H-W, Intercom Indoor Monitor is backordered and will ship as soon as it is back in stock.
Loading location-specific inventory...
Description
Description
- Indoor Station
- Rugged ABS casing and glass panel.
- 1024*600 HD touch screen.
- Batch configuration transfer.
- Remote opening of linked door stations, one-key opening.
- Network camera monitoring, security alarm.
Specifications
Parameter |
Description |
Power |
DC12V±25%,IEEE802.3af, Standard PoE |
Screen resolution |
1024×600 |
Screen |
7-inch ultra-thin TFT LCD screen |
Operation system |
Linux |
Audio quality |
Noise suppression,echo cancellation and AGC |
Audio input |
1 built-in omnidirectional microphone |
Audio output |
1 built-in speaker |
Audio compression standard |
MP3 G711 |
Audio compression rate |
128Kbps |
Protocol |
UNV private protocol |
Power consumption |
＜10W |
Weight |
360g |
Interface |
Power*1, network*1, Wi-Fi*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
Network |
100Mbps network port, supports IEEE802.3af PoE power supply |
Dimensions (L×H×W) |
193mm×143mm×25mm |
Operating environment |
-10°C to +55°C, 10% to 90%, non-condensing, indoor |
