UNV | SKU:
UVEC-T8F28M

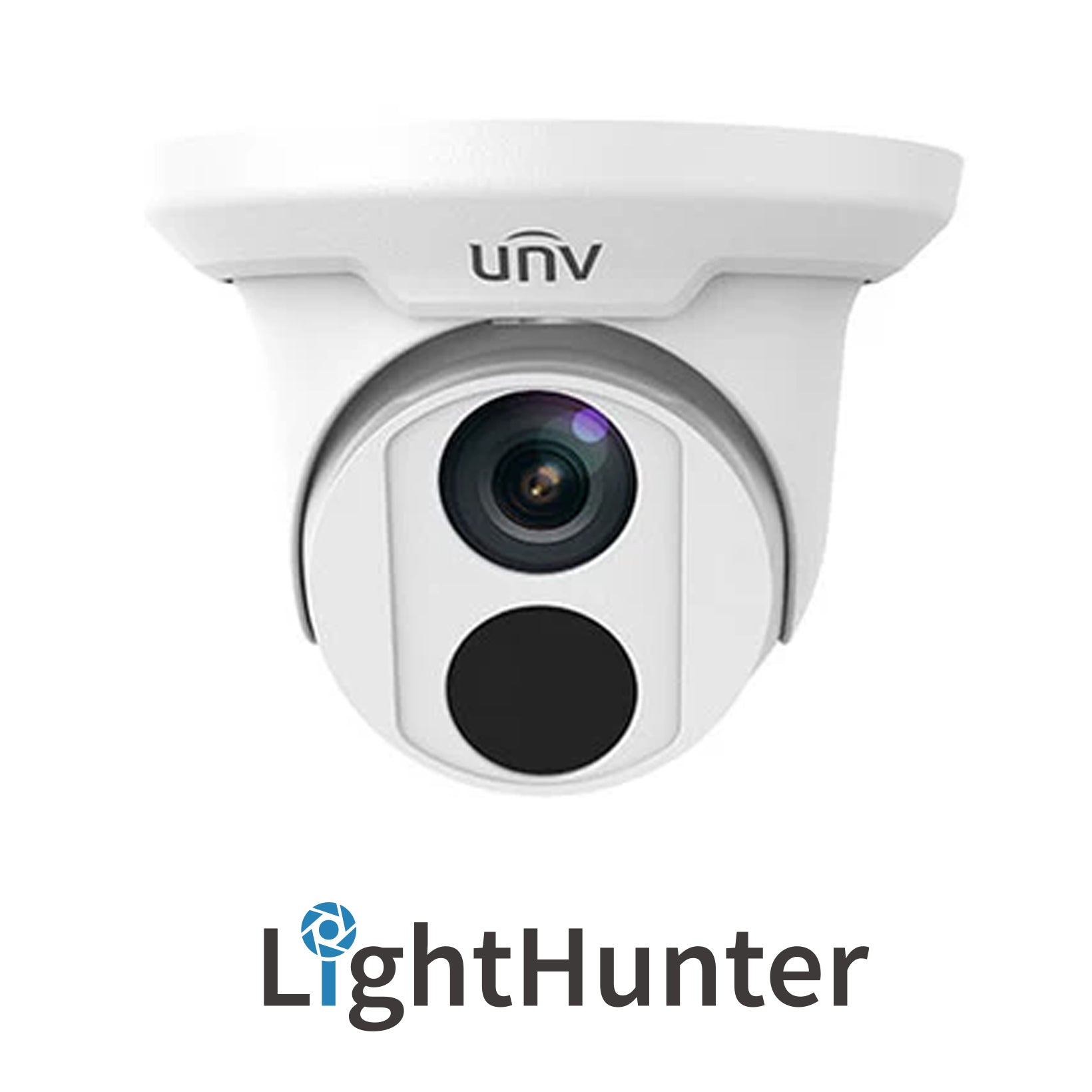

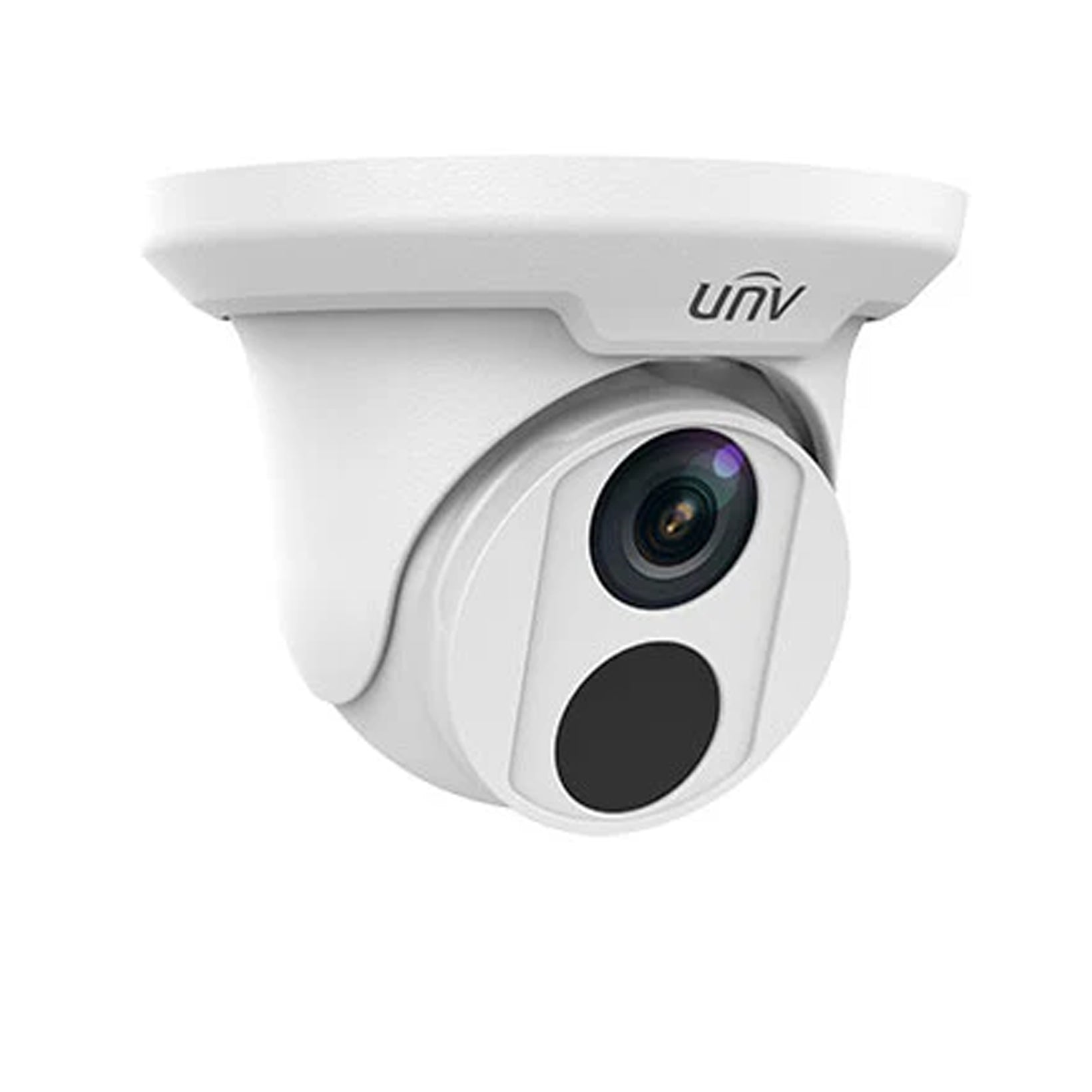

UNV EC-T8F28M, (8MP) Turret, IPC 2.8mm Fixed Lens, LightHunter, Microphone, WDR, UL Listed
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV EC-T8F28M, (8MP) Turret, IPC 2.8mm Fixed Lens, LightHunter, Microphone, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
EC-T8F28M
8MP HD Fixed Eyeball Network Camera
• High quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@15fps ; 5MP (2880*1620)@25/20fps ;4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps
• H.265, H.264, MJPEG
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
• 8MP (3840*2160)@15fps ; 5MP (2880*1620)@25/20fps ;4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps
• H.265, H.264, MJPEG
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Specifications
|
Camera
|
|||||||
|
Sensor
|
1/2.7", 8.0 megapixel, progressive scan, CMOS
|
||||||
|
Min. Illumination
|
Colour: 0.01 lux (F1.6, AGC ON)
0Lux with IR on |
||||||
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
||||||
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
||||||
|
Adjustment angle
|
Pan: 0° ~ 360°
|
Tilt: 0° ~ 75°
|
Rotate: 0° ~ 360°
|
||||
|
S/N
|
>56dB
|
||||||
|
WDR
|
120dB
|
||||||
|
Lens
|
|||||||
|
Lens Type
|
2.8mm@1.6, Fixed-focal
|
||||||
|
Field of View (H)
|
112.9°
|
||||||
|
Field of View (V)
|
59.1°
|
||||||
|
Field of View (D)
|
121.2°
|
||||||
|
DORI
|
|||||||
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
||
|
2.8
|
63.0
|
25.2
|
12.6
|
6.3
|
|||
|
Illuminator
|
|||||||
|
IR Range
|
Up to 30m (98ft) IR range
|
||||||
|
Wavelength
|
850nm
|
||||||
|
IR On/Off Control
|
Auto/Manual
|
||||||
|
Video
|
|||||||
|
Video Compression
|
H.265, H.264, MJPEG
|
||||||
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
||||||
|
Frame Rate
|
Main Stream: 8MP (3840*2160)@15fps ; 5MP (2880*1620)@25/20fps ;4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps
Sub Stream: 720P (1280*720)@30/25fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
||||||
|
Video Bit Rate
|
128 Kbps~16384 kbps
|
||||||
|
Smart Encoding
|
Supported
|
||||||
|
OSD
|
Up to 4 OSDs
|
||||||
|
Privacy Mask
|
Up to 4 areas
|
||||||
|
ROI
|
Up to 8 areas
|
||||||
|
Motion Detection
|
Up to 4 areas
|
||||||
|
|
|||||||
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
||||||
|
Image Setting
|
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
|
||||||
|
Digital noise reduction
|
2D/3D DNR
|
||||||
|
Smart IR
|
Support
|
||||||
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
||||||
|
Dewarping
|
N/A
|
||||||
|
HLC
|
Supported
|
||||||
|
BLC
|
Supported
|
||||||
|
Defog
|
Digital Defog
|
||||||
|
Events
|
|||||||
|
Behavior Detection
|
Cross line, intrusion(based on human body detection)
|
||||||
|
Motion detection, tampering alarm, audio detection
|
|||||||
|
General Function
|
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
|
||||||
|
Audio
|
|||||||
|
Audio Compression
|
G.711A,G.711U
|
||||||
|
Suppression
|
Supported
|
||||||
|
Sampling Rate
|
8KHZ
|
||||||
|
Storage
|
|||||||
|
Edge Storage
|
Micro SD, up to 256GB
|
||||||
|
Network Storage
|
NAS(NFS)
|
||||||
|
Network
|
|||||||
|
Protocols
|
IPV4, IPV6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL, TLS, SSH
|
||||||
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API , SDK
|
||||||
|
User/Host
|
Up to 32 users. 2 user levels: administrator and common user
|
||||||
|
Security
|
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
|
||||||
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
||||||
|
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
|
|||||||
|
Interface
|
|||||||
|
Audio I/O
|
N/A
|
||||||
|
Alarm I/O
|
N/A
|
||||||
|
RS485
|
N/A
|
||||||
|
Built-in Mic
|
Support
|
||||||
|
Built-in Speaker
|
N/A
|
||||||
|
WIFI
|
N/A
|
||||||
|
Network
|
1 RJ45 10M/100M Base-TX Ethernet
|
||||||
|
Video Output
|
N/A
|
||||||
|
Certification
|
|||||||
|
EMC
|
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
|
Safety
|
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
||||||
|
Protection
|
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
|
||||||
|
General
|
|||||||
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
||||||
|
Power consumption: Max 4.0W
|
|||||||
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
||||||
|
Dimensions (Ø x H)
|
Φ118 x 97mm (Φ4.6” x 3.8”)
|
||||||
|
Weight
|
0.30kg (0.66lb)
|
||||||
|
Material
|
Metal
|
||||||
|
Working Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||||||
|
Strorage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||||||
|
Surge Protection
|
4KV
|
||||||
|
Reset Button
|
N/A
|
||||||
