UNV | SKU:
UVEK-S31P8DLT46T2

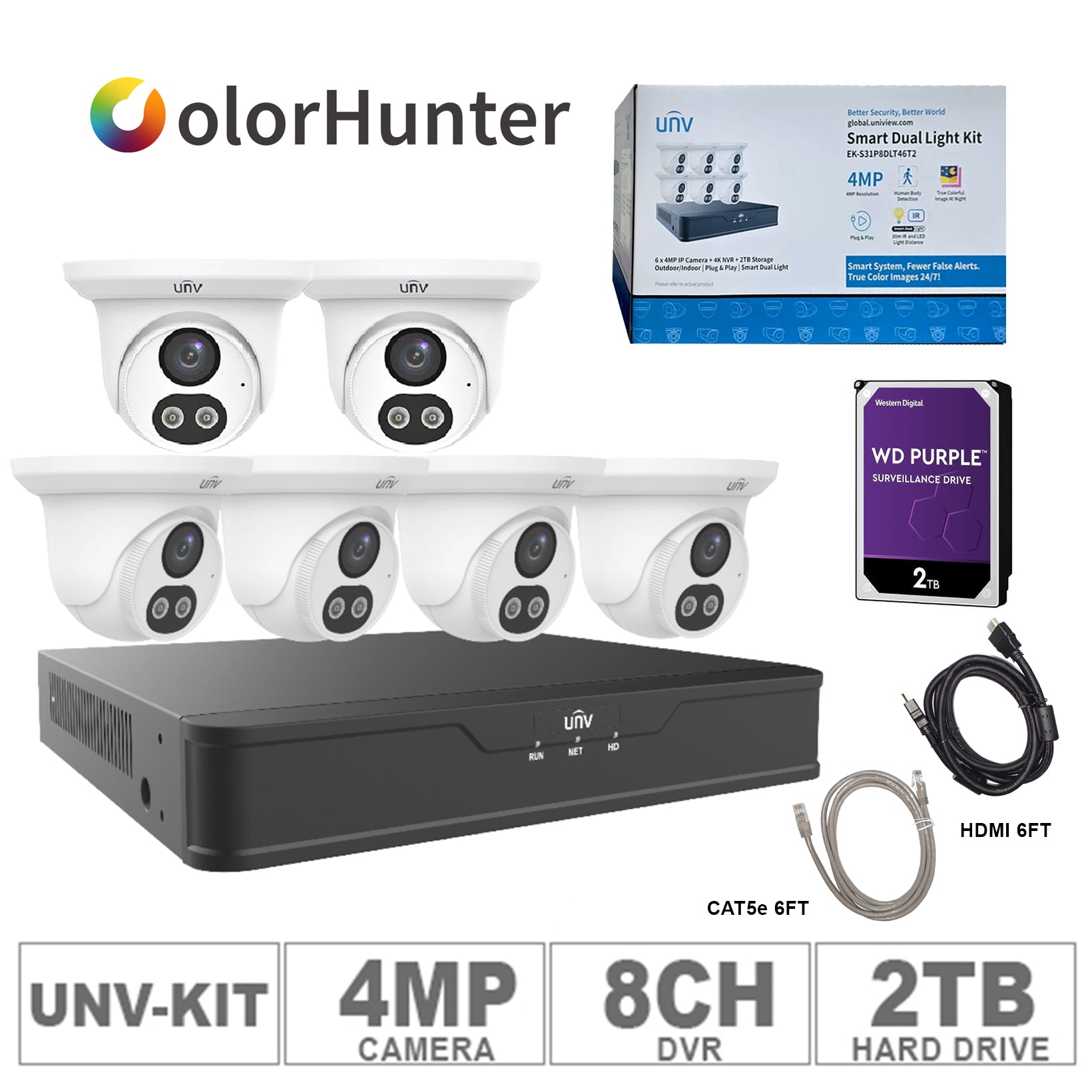

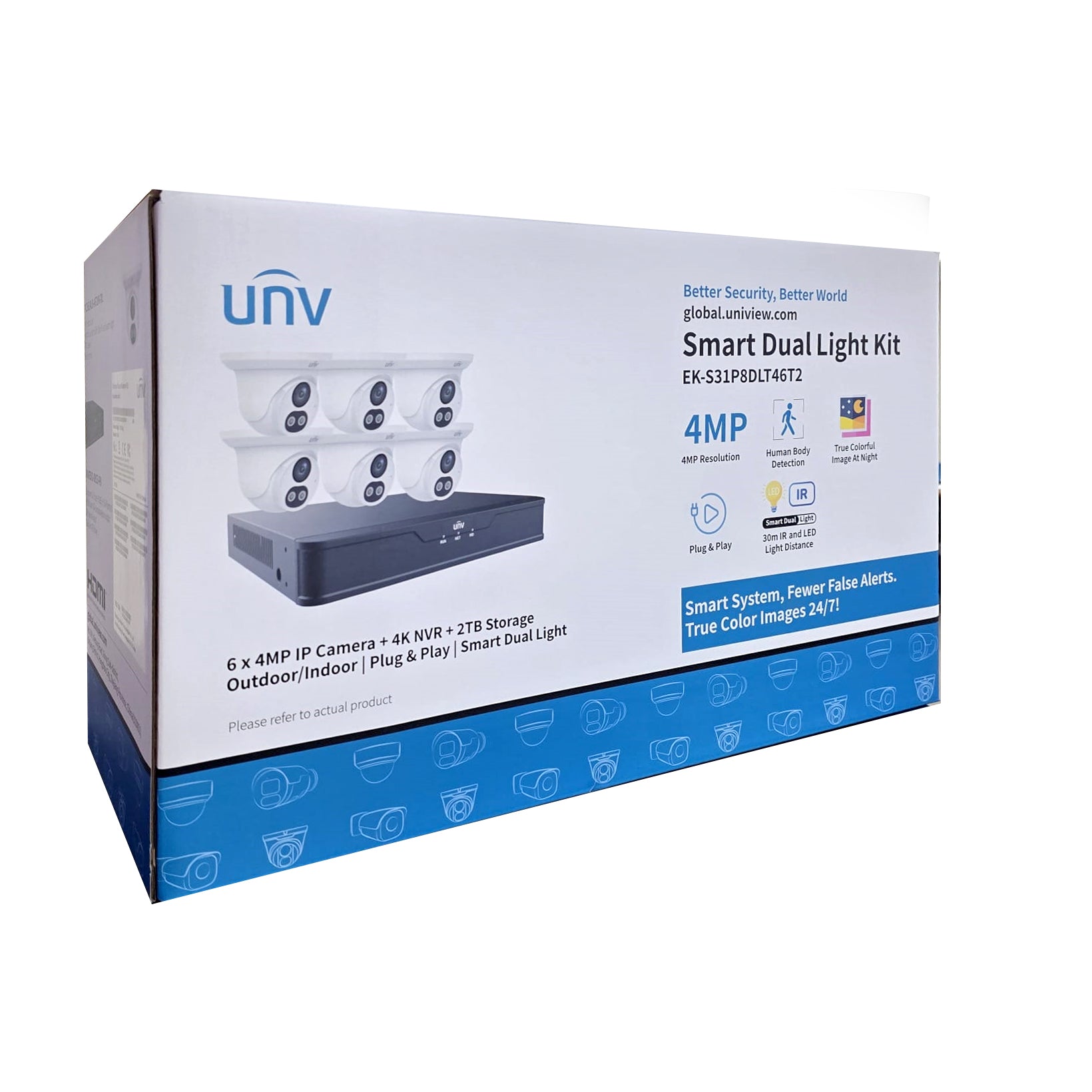

UNV EK-S31P8DLT46T2, IP Kit 8ch NVR, 6pcs Turret 4MP ColorHunter, 2TB HD
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV EK-S31P8DLT46T2, IP Kit 8ch NVR, 6pcs Turret 4MP ColorHunter, 2TB HD is backordered and will ship as soon as it is back in stock.
Description
Description
NVR301-08S3-P8
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Plug & Play with 8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD
- Support cloud upgrade
EC-T4F28M-V3
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
Specifications
Video/Audio Input | |
IP Video Input |
8-ch |
Network | |
Incoming Bandwidth |
64Mbps |
Outgoing Bandwidth |
48Mbps |
Remote Users |
128 |
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
Video/Audio Output | |
HDMI/VGA Output |
HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Recording Resolution |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output |
1-ch, RCA |
Audio Compression |
G.711A, G.711U |
Synchronous Playback |
8-ch |
Liveview display |
1/4/6/8/9 |
Corridor Mode Screen |
3/4/5/7/9 |
Snapshot | |
FTP/Schedule/Event Snapshot |
1-ch snapshot, up to D1 resolution |
Decoding | |
Decoding format |
Ultra 265/H.265/H.264 |
Live view/Playback |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability |
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 |
Hard Disk | |
SATA |
1 SATA interfaces |
Capacity |
Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
Smart | |
VCA Detection by Camera |
Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) |
VCA Search |
Face Search, Behavior Search |
General Alarm | |
General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
External Interface | |
Network Interface |
1 RJ-45 10M/100Mself-adaptive Ethernet Interface |
USB Interface |
Rear panel: 2 x USB2.0 |
RS232 |
NA |
RS485 |
NA |
Alarm In |
NA |
Alarm Out |
NA |
PoE | |
Interface |
8 RJ-45 10M/100Mself-adaptive Ethernet Interface |
Max Power |
Max 30W for single port Max 75W in total |
Supported Standard |
IEEE 802.3at, IEEE 802.3af |
General | |
Power Supply |
52V DC Power Consumption: ≤9 W (without HDD) |
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
Dimensions (W×D×H) |
260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8") |
Weight (without HDD) |
≤1.1kg (2.43lb) |
Certification | |
Certification |
CE, FCC, UL, RoHS, WEEE |
CE |
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
FCC |
Part15 Subpart B, ANSI C63.4 |
Specifications
Mode |
EC-T4F28M-V3 |
||||||
Camera | |||||||
Sensor |
1/2.9", 4.0 megapixel, progressive scan, CMOS |
||||||
Min. Illumination |
Colour: 0.01 lux (F2.0, AGC ON) 0 lux with IR |
||||||
Day/Night |
IR-cut filter with auto switch (ICR) |
||||||
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||||
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 75° |
Rotate: 0° ~ 360° |
||||
S/N |
>52dB |
||||||
WDR |
120dB |
||||||
Lens | |||||||
Lens Type |
2.8mm @F2.0 |
||||||
Iris |
Fixed |
||||||
Field of View (H) |
101.5° |
||||||
Field of View (V) |
55.6° |
||||||
Field of View (D) |
111.6° |
||||||
DORI | |||||||
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
||
2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
|||
Illuminator | |||||||
IR Range |
Up to 30m (98ft) |
||||||
Wavelength |
850nm |
||||||
IR On/Off Control |
Auto/Manual |
||||||
Video | |||||||
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||||
H.264 code profile |
Baseline profile, Main profile, High profile |
||||||
Frame Rate |
Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
Video Bit Rate |
128 Kbps~6144 kbps |
||||||
U-code |
Support |
||||||
OSD |
Up to 4 OSDs |
||||||
Privacy Mask |
Up to 4 areas |
||||||
ROI |
Up to 8 areas |
||||||
Video stream |
Dual streams |
||||||
Image | |||||||
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||||
Digital noise reduction |
2D/3D DNR |
||||||
Smart IR |
Support |
||||||
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
||||||
Dewarping |
N/A |
||||||
HLC |
Support |
||||||
BLC |
Support |
||||||
Defog |
Digital Defog |
||||||
Events | |||||||
Basic Detection |
Motion detection, Tampering alarm, Audio detection, Cross line and Intrusion |
||||||
General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
||||||
Storage | |||||||
Edge Storage |
Micro SD, up to 128GB |
||||||
Network Storage |
ANR, NAS(NFS) |
||||||
Network | |||||||
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP |
||||||
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API , SDK |
||||||
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
||||||
Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
||||||
Client |
EZStation EZView EZLive |
||||||
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||
Interface | |||||||
Audio I/O |
N/A |
||||||
Alarm I/O |
N/A |
||||||
Serial Port |
N/A |
||||||
Built-in Mic |
Support |
||||||
Built-in Speaker |
N/A |
||||||
WIFI |
N/A |
||||||
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
||||||
Video Output |
N/A |
||||||
Certification | |||||||
EMC |
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
||||||
Safety |
CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
||||||
Protection |
IP67 (IEC 60529) |
||||||
General | |||||||
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
||||||
Power consumption: Max 4.0W | |||||||
Power Interface |
Ø 5.5mm coaxial power plug |
||||||
Dimensions (Ø x H) |
Φ126 x 94mm (Φ5.0” x 3.7”) |
||||||
Weight |
0.30kg (0.66lb) |
||||||
Material |
Metal+Plastic |
||||||
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||
Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||
Surge Protection |
4KVs |
||||||
Reset Button |
N/A |
||||||
