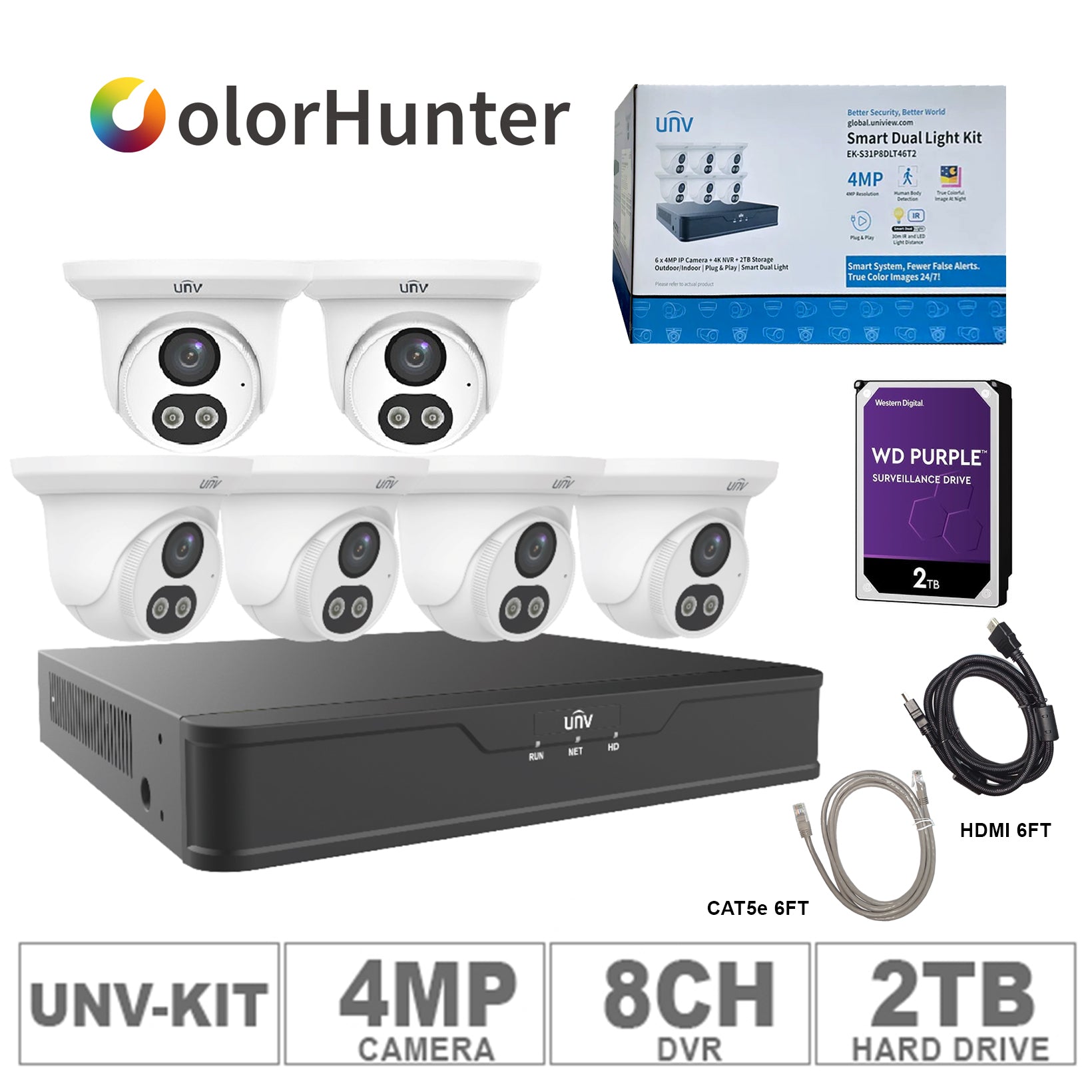

UNV EK-S31P8DLT46-T2, IP Kit 8ch NVR, 6pcs Turret 4MP ColorHunter, WDHD 2TB
MPN: UVEK-S31P8DLT46-T2
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV EK-S31P8DLT46-T2, IP Kit 8ch NVR, 6pcs Turret 4MP ColorHunter, WDHD 2TB is backordered and will ship as soon as it is back in stock.
Description
Description
NVR301-08S3-P8
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Plug & Play with 8 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD
- Support cloud upgrade
EC-T4F28M-V3
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
Specifications
|
Video/Audio Input
|
|
|
IP Video Input
|
8-ch
|
|
Network
|
|
|
Incoming Bandwidth
|
64Mbps
|
|
Outgoing Bandwidth
|
48Mbps
|
|
Remote Users
|
128
|
|
Protocols
|
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
|
|
Video/Audio Output
|
|
|
HDMI/VGA Output
|
HDMI:
4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution
|
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
|
Audio Output
|
1-ch, RCA
|
|
Audio Compression
|
G.711A, G.711U
|
|
Synchronous Playback
|
8-ch
|
|
Liveview display
|
1/4/6/8/9
|
|
Corridor Mode Screen
|
3/4/5/7/9
|
|
Snapshot
|
|
|
FTP/Schedule/Event Snapshot
|
1-ch snapshot, up to D1 resolution
|
|
Decoding
|
|
|
Decoding format
|
Ultra 265/H.265/H.264
|
|
Live view/Playback
|
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
|
Capability
|
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
|
|
Hard Disk
|
|
|
SATA
|
1 SATA interfaces
|
|
Capacity
|
Up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature) |
|
Smart
|
|
|
VCA Detection by Camera
|
Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
|
|
VCA Search
|
Face Search, Behavior Search
|
|
General Alarm
|
|
|
General Alarm
|
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
|
|
Alert Alarm
|
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
|
|
External Interface
|
|
|
Network Interface
|
1 RJ-45 10M/100Mself-adaptive Ethernet Interface
|
|
USB Interface
|
Rear panel: 2 x USB2.0
|
|
RS232
|
NA
|
|
RS485
|
NA
|
|
Alarm In
|
NA
|
|
Alarm Out
|
NA
|
|
PoE
|
|
|
Interface
|
8 RJ-45 10M/100Mself-adaptive Ethernet Interface
|
|
Max Power
|
Max 30W for single port
Max 75W in total |
|
Supported Standard
|
IEEE 802.3at, IEEE 802.3af
|
|
General
|
|
|
Power Supply
|
52V DC
Power Consumption: ≤9 W (without HDD) |
|
Working Environment
|
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
|
|
Dimensions (W×D×H)
|
260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")
|
|
Weight (without HDD)
|
≤1.1kg (2.43lb)
|
|
Certification
|
|
|
Certification
|
CE, FCC, UL, RoHS, WEEE
|
|
CE
|
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
|
|
FCC
|
Part15 Subpart B, ANSI C63.4
|
Specifications
|
Mode
|
EC-T4F28M-V3
|
||||||
|
Camera
|
|||||||
|
Sensor
|
1/2.9", 4.0 megapixel, progressive scan, CMOS
|
||||||
|
Min. Illumination
|
Colour: 0.01 lux (F2.0, AGC ON)
0 lux with IR |
||||||
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
||||||
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
||||||
|
Adjustment angle
|
Pan: 0° ~ 360°
|
Tilt: 0° ~ 75°
|
Rotate: 0° ~ 360°
|
||||
|
S/N
|
>52dB
|
||||||
|
WDR
|
120dB
|
||||||
|
Lens
|
|||||||
|
Lens Type
|
2.8mm @F2.0
|
||||||
|
Iris
|
Fixed
|
||||||
|
Field of View (H)
|
101.5°
|
||||||
|
Field of View (V)
|
55.6°
|
||||||
|
Field of View (D)
|
111.6°
|
||||||
|
DORI
|
|||||||
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
||
|
2.8
|
63.0
|
25.2
|
12.6
|
6.3
|
|||
|
Illuminator
|
|||||||
|
IR Range
|
Up to 30m (98ft)
|
||||||
|
Wavelength
|
850nm
|
||||||
|
IR On/Off Control
|
Auto/Manual
|
||||||
|
Video
|
|||||||
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
||||||
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
||||||
|
Frame Rate
|
Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||
|
Video Bit Rate
|
128 Kbps~6144 kbps
|
||||||
|
U-code
|
Support
|
||||||
|
OSD
|
Up to 4 OSDs
|
||||||
|
Privacy Mask
|
Up to 4 areas
|
||||||
|
ROI
|
Up to 8 areas
|
||||||
|
Video stream
|
Dual streams
|
||||||
|
|
|||||||
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
||||||
|
Digital noise reduction
|
2D/3D DNR
|
||||||
|
Smart IR
|
Support
|
||||||
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
||||||
|
Dewarping
|
N/A
|
||||||
|
HLC
|
Support
|
||||||
|
BLC
|
Support
|
||||||
|
Defog
|
Digital Defog
|
||||||
|
Events
|
|||||||
|
Basic Detection
|
Motion detection, Tampering alarm, Audio detection, Cross line and Intrusion
|
||||||
|
General Function
|
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
|
||||||
|
Storage
|
|||||||
|
Edge Storage
|
Micro SD, up to 128GB
|
||||||
|
Network Storage
|
ANR, NAS(NFS)
|
||||||
|
Network
|
|||||||
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
|
||||||
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API , SDK
|
||||||
|
User/Host
|
Up to 32 users. 2 user levels: administrator and common user
|
||||||
|
Security
|
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
|
||||||
|
Client
|
EZStation
EZView EZLive |
||||||
|
Web Browser
|
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
|
||||||
|
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
|
|||||||
|
Interface
|
|||||||
|
Audio I/O
|
N/A
|
||||||
|
Alarm I/O
|
N/A
|
||||||
|
Serial Port
|
N/A
|
||||||
|
Built-in Mic
|
Support
|
||||||
|
Built-in Speaker
|
N/A
|
||||||
|
WIFI
|
N/A
|
||||||
|
Network
|
1 * RJ45 10M/100M Base-TX Ethernet
|
||||||
|
Video Output
|
N/A
|
||||||
|
Certification
|
|||||||
|
EMC
|
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B) |
||||||
|
Safety
|
CE LVD (EN 62368-1)
CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
|
||||||
|
Protection
|
IP67 (IEC 60529)
|
||||||
|
General
|
|||||||
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
||||||
|
Power consumption: Max 4.0W
|
|||||||
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
||||||
|
Dimensions (Ø x H)
|
Φ126 x 94mm (Φ5.0” x 3.7”)
|
||||||
|
Weight
|
0.30kg (0.66lb)
|
||||||
|
Material
|
Metal+Plastic
|
||||||
|
Working Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||||||
|
Strorage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||||||
|
Surge Protection
|
4KVs
|
||||||
|
Reset Button
|
N/A
|
||||||
