UNV | SKU:
UVIPC2312LE-ADF28KM-WP

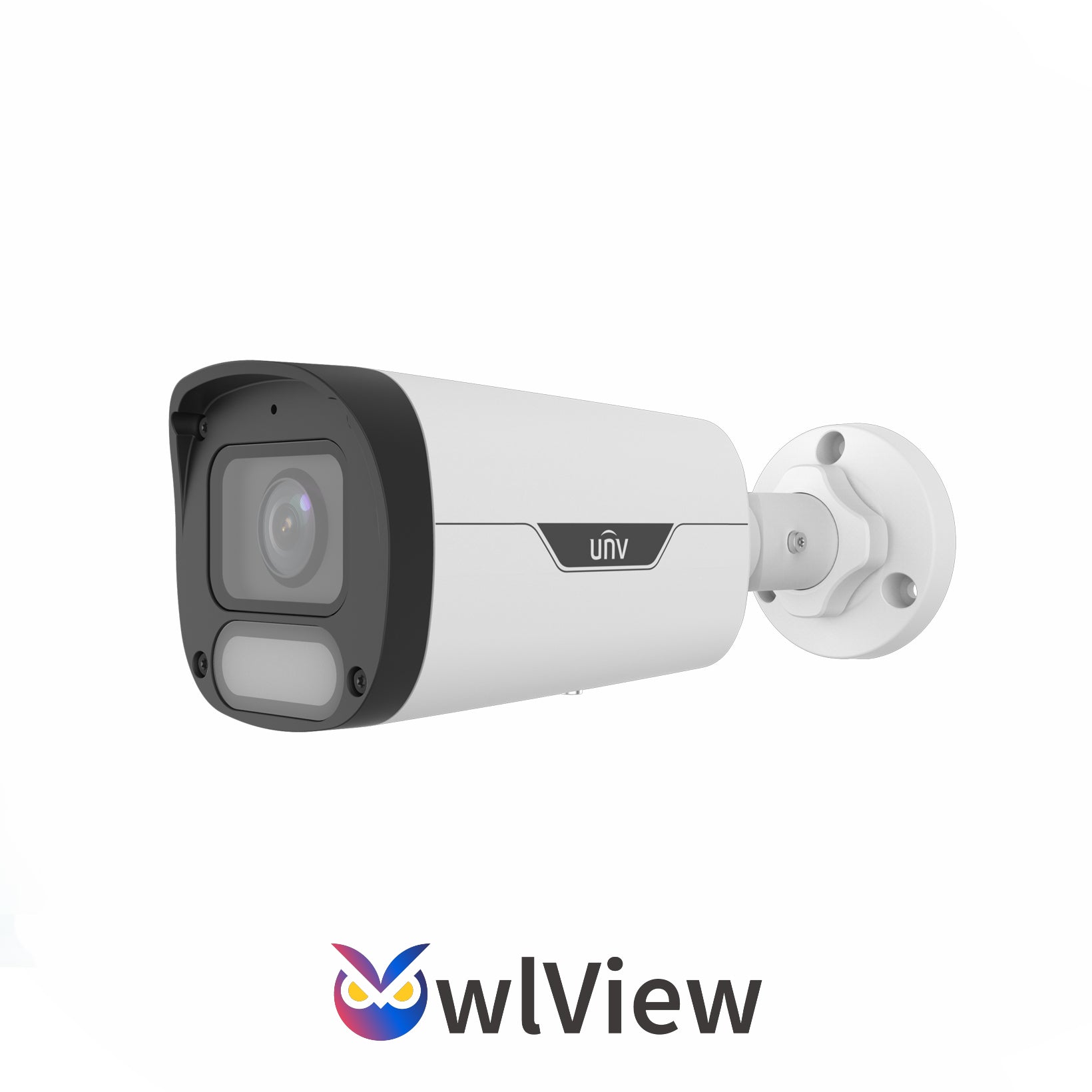

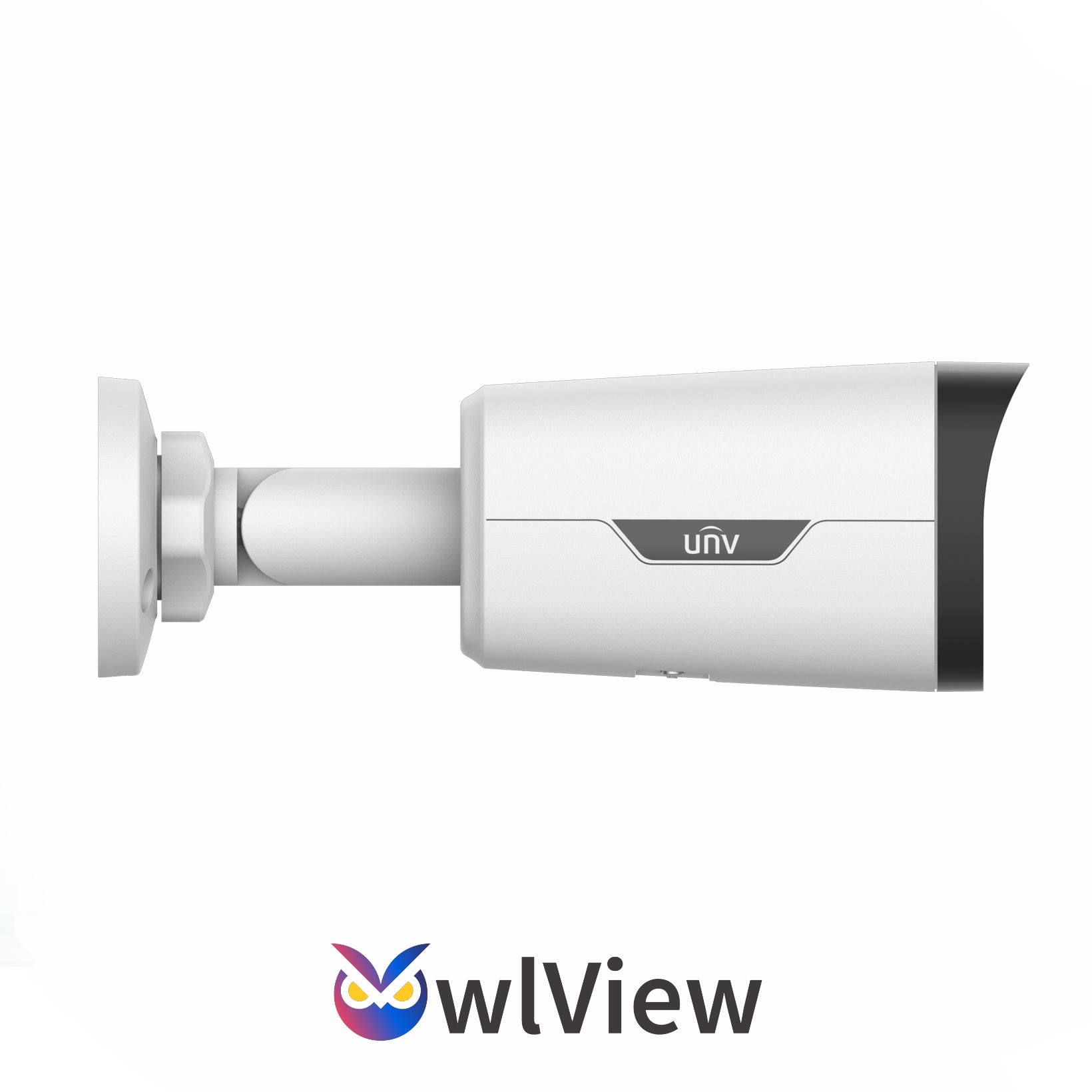

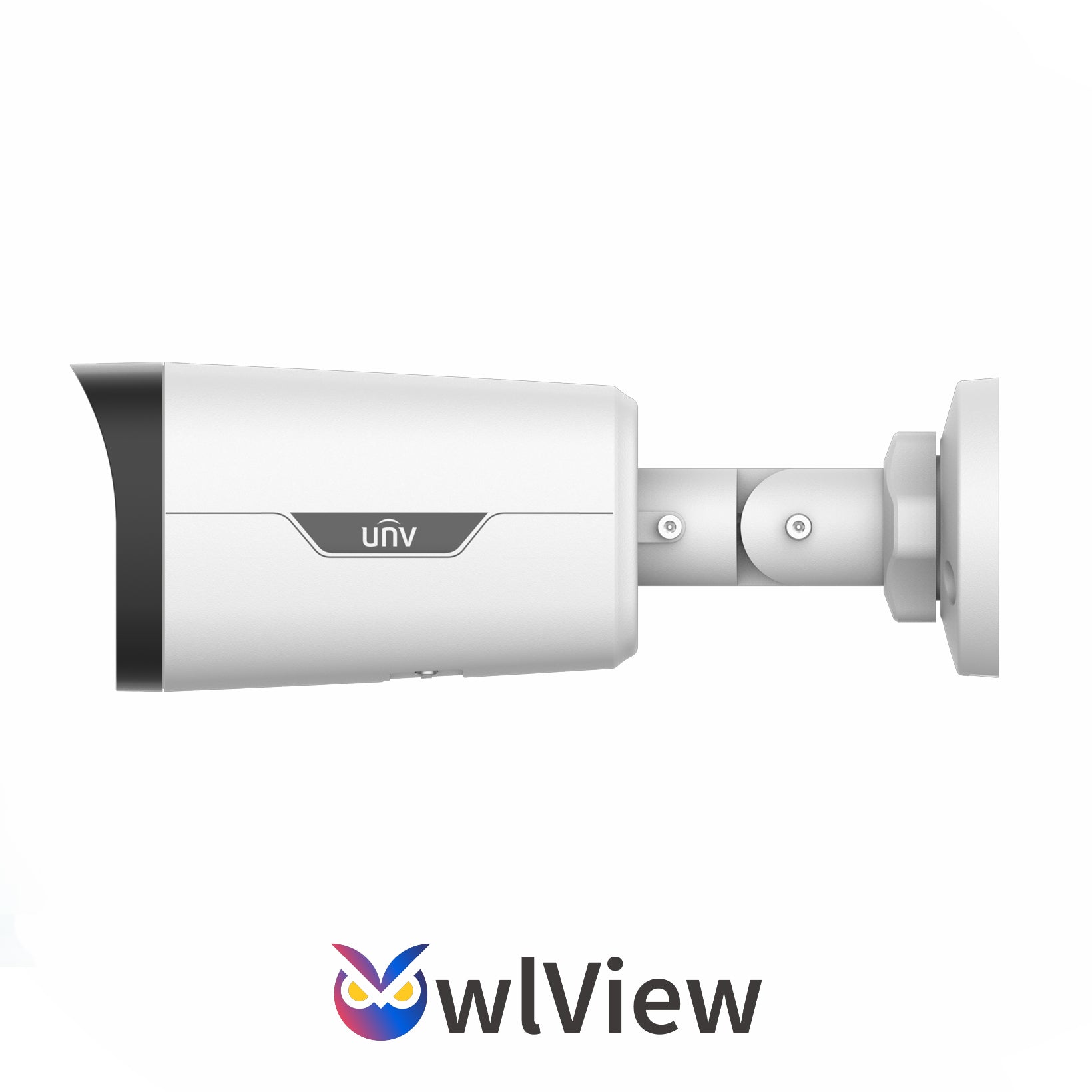

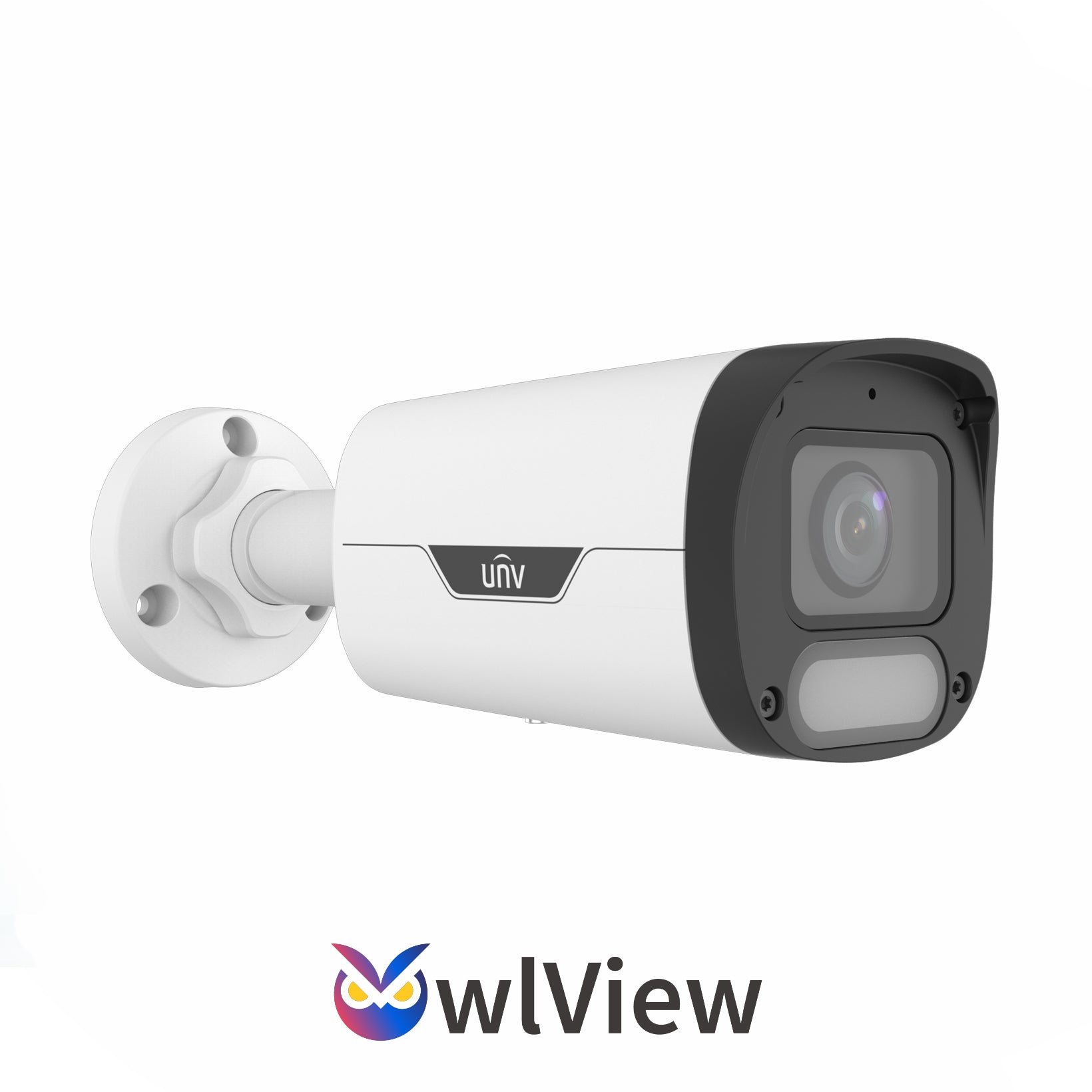

UNV IPC2312LE-ADF28KM-WP, (2MP) Bullet, IPC 2.8mm Fixed Lens, Owlview, Microphone, WDR, UL Listed
MPN: IPC2312LE-ADF28KM-WP
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV IPC2312LE-ADF28KM-WP, (2MP) Bullet, IPC 2.8mm Fixed Lens, Owlview, Microphone, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
IPC2312LE-ADF28(40)KM-WP
2MP ColorHunter with Wise-ISP Fixed Bullet Network Camera
• High quality image with 2MP, 1/2.7"CMOS sensor and F1.0 large aperture lens
• 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps;
• Ultra 265, H.265 , H.264, MJPEG
• Colorhunter with Wise-ISP technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• White Light, up to 30m warm light distance
• Supports 512 GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
• 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps;
• Ultra 265, H.265 , H.264, MJPEG
• Colorhunter with Wise-ISP technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• White Light, up to 30m warm light distance
• Supports 512 GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Specifications
Camera | ||||
Sensor |
1/2.7", 2.0 megapixel, progressive scan, CMOS |
|||
Minimum Illumination |
Color: 0.0003lux (F1.0, AGC ON) |
|||
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 90° |
||
WDR |
120dB |
|||
S/N |
>52dB |
|||
Lens | ||||
Lens |
2.8mm@F1.0 |
|||
Iris |
Fixed |
|||
Field of View (H) |
99.0° |
|||
Field of View (V) |
53.0° |
|||
Field of View (D) |
118.0° |
|||
DORI | ||||
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
|
2.8 |
45.0(147.6ft) |
18.0(59.1ft) |
||
4.0 |
64.3(210.9ft) |
25.7(84.4ft) |
||
Illuminator | ||||
Warm Light Range |
Up to 30m (98ft) |
|||
Light On/Off Control |
Auto/Manual |
|||
Video | ||||
Video Compression |
Ultra265, H.265, H.264, MJPEG |
|||
H.264 code profile |
Baseline profile, Main profile, High profile |
|||
Frame Rate |
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||
Video Bit Rate |
128 Kbps~6144Kbps |
|||
U code |
Support |
|||
OSD |
Up to 4 OSDs |
|||
Privacy Mask |
Up to 4 areas |
|||
ROI |
Up to 8 areas |
|||
Video Stream |
Dual streams |
|||
Image | ||||
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|||
Digital noise reduction |
2D/3D DNR |
|||
Smart Illumination |
Support |
|||
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|||
Dewarping |
N/A |
|||
HLC |
Support |
|||
BLC |
Support |
|||
Defog |
Digital Defog |
|||
Events | ||||
Basic Detection |
Cross line, intrusion(based on human body detection),Motion detection, Ultra motion detection, Tampering alarm, Audio Detection |
|||
General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication |
|||
Audio | ||||
Audio Compression |
G.711U, G.711A |
|||
Audio Bitrate |
64 Kbps |
|||
Two-way audio |
N/A |
|||
Suppression |
Support |
|||
Sampling Rate |
8KHZ |
|||
Storage | ||||
Edge Storage |
Micro SD, up to 512GB |
|||
Network Storage |
ANR, NAS(NFS) |
|||
Network | ||||
Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL /TLS |
|||
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
|||
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
|||
Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|||
Client |
EZStation EZView EZLive |
|||
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
|||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||
Interface | ||||
Audio I/O |
N/A |
|||
Alarm I/O |
N/A |
|||
Serial Port |
N/A |
|||
Built-in Mic |
Support |
|||
Built-in Speaker |
N/A |
|||
WIFI |
N/A |
|||
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
|||
Video Output |
N/A |
|||
Certifications | ||||
EMC |
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B) |
|||
Safety |
CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|||
Protection |
IP67 (IEC 60529) |
|||
General | ||||
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|||
Power consumption: Max 2.8W | ||||
Power Interface |
Ø 5.5mm coaxial power plug |
|||
Dimensions (L × W × H) |
206 × 73 × 73mm (8.1” × 2.9” × 2.9”) |
|||
Weight |
0.47kg(1.04lb) |
|||
Material |
Graphene + Metal |
|||
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||
Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||
surge protection |
4KV |
|||
Reset Button |
Support |
|||
