UNV | SKU:
UVIPC2314SR-ADF28KM-WP

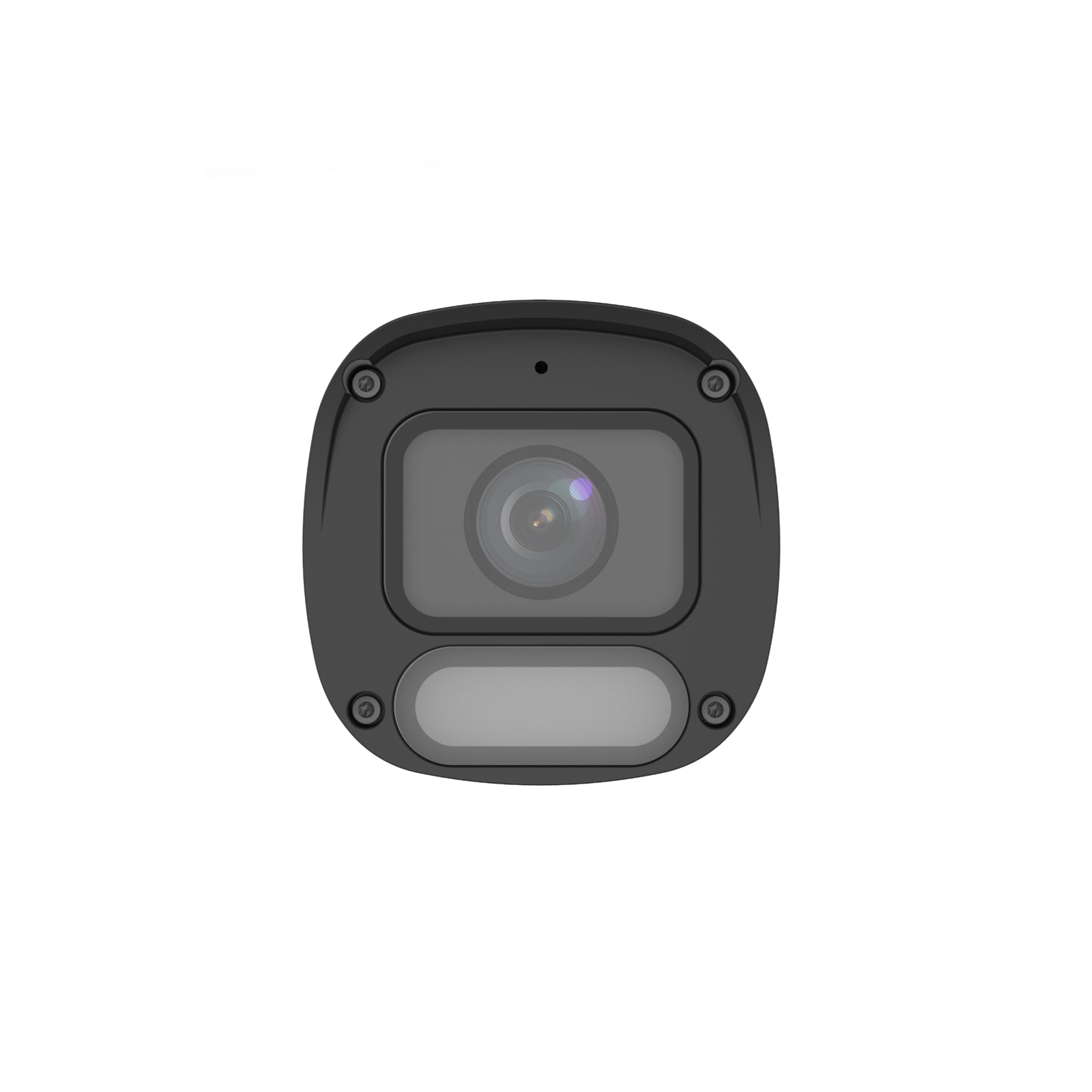

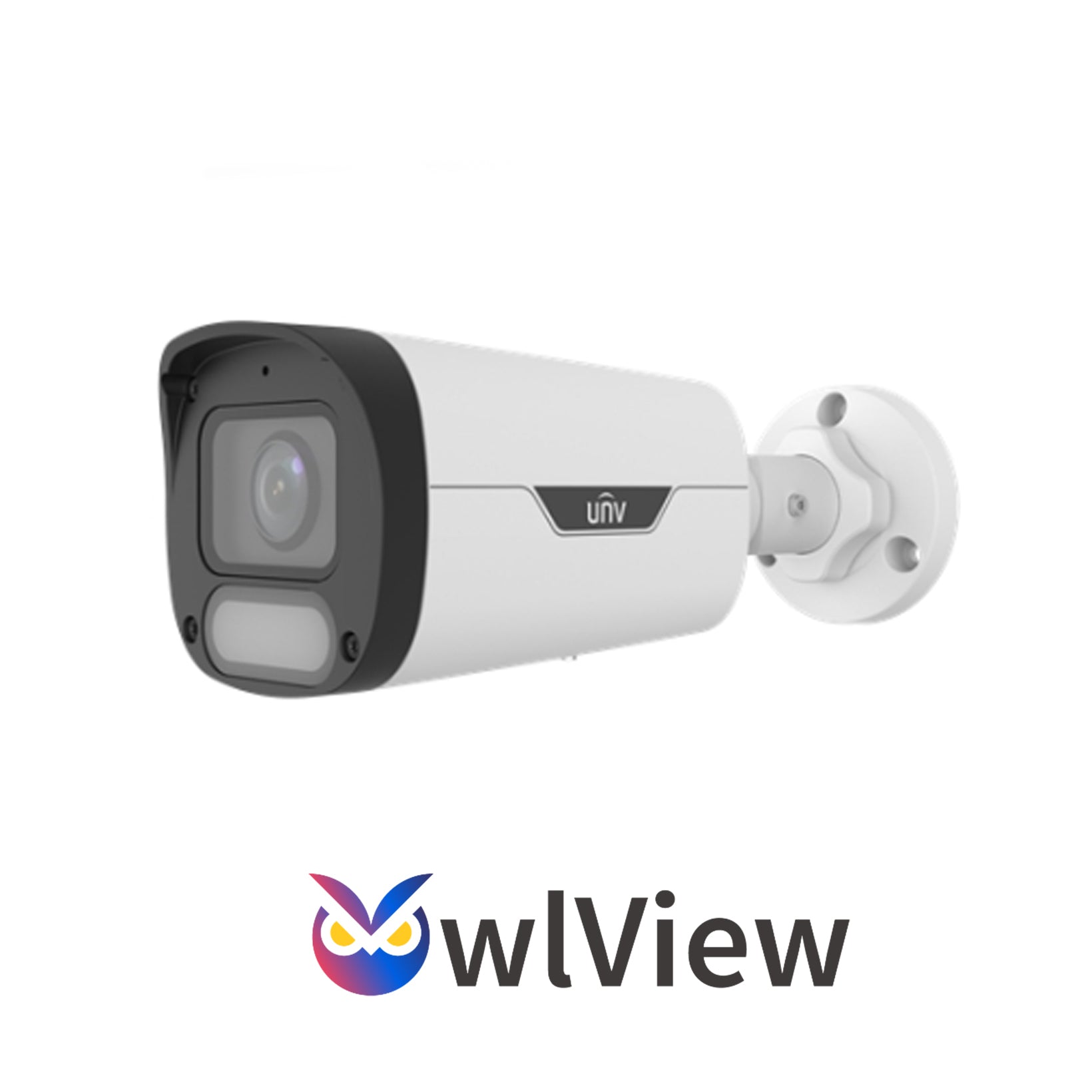

UNV IPC2314SR-ADF28KM-WP, (4MP) Bullet, IPC 2.8mm Fixed Lens, OwlView, Microphone, WDR, UL Listed
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV IPC2314SR-ADF28KM-WP, (4MP) Bullet, IPC 2.8mm Fixed Lens, OwlView, Microphone, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
IPC2314SR-ADF28(40)KM-WP
4MP ColorHunter with Wise-ISP Fixed Bullet Network Camera
• High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter with Wise ISP technology ensures 24 hour full color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built in Mic
• White Light, up to 30m warm light distance
• Supports 256 GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3 Axis
Specifications
|
Camera
|
Description
|
|
Resolution
|
4MP
|
|
Sensor
|
1/1.8"CMOS
|
|
Min. Illumination
|
Colour: 0.0003 lux (F1.0, AGC ON)
|
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|
Adjustment angle
|
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
|
|
S/N
|
>52dB
|
|
WDR
|
120dB
|
|
Lens
|
Description
|
|
Lens type
|
IPC2314SR-ADF28KM-WP:2.8mm
IPC2314SR-ADF40KM-WP:4.0mm |
|
Iris Type
|
Fixed
|
|
Iris
|
F1.0
|
|
Field of View (H)
|
IPC2314SR-ADF28KM-WP:110.4°
IPC2314SR-ADF40KM-WP:89.4° |
|
Field of View (V)
|
IPC2314SR-ADF28KM-WP:60.5°
IPC2314SR-ADF40KM-WP:48.2° |
|
Field of View (D)
|
IPC2314SR-ADF28KM-WP:115.2°
IPC2314SR-ADF40KM-WP:94.7° |
|
DORI
|
Description
|
|
DORI Distance(Lens)
|
IPC2314SR-ADF28KM-WP:2.8mm
IPC2314SR-ADF40KM-WP:4.0mm |
|
DORI Distance(Detect)
|
IPC2314SR-ADF28KM-WP:43.4m(142.5.7ft)
IPC2314SR-ADF40KM-WP:62.1(203.6ft) |
|
DORI Distance(Observe)
|
IPC2314SR-ADF28KM-WP:17.4(57.0ft)
IPC2314SR-ADF40KM-WP:24.8(81.5ft) |
|
DORI Distance(Recognize)
|
IPC2314SR-ADF28KM-WP:8.7(28.5ft)
IPC2314SR-ADF40KM-WP:12.4(40.7ft) |
|
DORI Distance(Identify)
|
IPC2314SR-ADF28KM-WP:4.3(14.3ft)
IPC2314SR-ADF40KM-WP:6.2(20.4ft) |
|
Illuminator
|
Description
|
|
Illumination Distance(Warm Light)
|
30m
|
|
Light On/Off Control
|
Auto/Manual
|
|
Video
|
Description
|
|
Video Compression
|
Ultra 265; H.265; H.264; MJPEG
|
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
|
Frame Rate
|
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
|
Video Bit Rate
|
128 Kbps~6144Kbps
|
|
U-code
|
Support
|
|
OSD
|
Up to 4 OSDs
|
|
Privacy Mask
|
Up to 4 areas
|
|
ROI
|
Up to 8 areas
|
|
Video stream
|
Dual streams
|
|
|
Description
|
|
White Balance
|
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
|
|
Digital noise reduction
|
2D/3D DNR
|
|
Smart Illumination
|
Support
|
|
Flip
|
Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
|
|
Dewarping
|
N/A
|
|
HLC
|
Support
|
|
BLC
|
Support
|
|
Defog
|
Digital Defog
|
|
Events
|
Description
|
|
Basic Detection
|
Motion detection; Ultra motion detection; Tampering alarm; Audio detection; Cross line (based on human body detection); Intrusion (based on human body detection)
|
|
General Function
|
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
|
|
Audio
|
Description
|
|
Audio Compression
|
G.711U; G.711A
|
|
Audio Bitrate
|
64 Kbps
|
|
Two-way Audio
|
N/A
|
|
Suppression
|
Support
|
|
Sampling Rate
|
8KHZ
|
|
Storage
|
Description
|
|
Edge Storage
|
Micro SD,up to 256 GB
|
|
Network Storage
|
ANR; NAS(NFS)
|
|
Network
|
Description
|
|
Protocols
|
IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T); API; SDK
|
|
User/Host
|
Up to 32 users, 2 user levels: administrator and common user
|
|
Security
|
Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
|
|
Client
|
UNV‑Link; UNV‑Link Pro; EZStation
|
|
Web Browser
|
Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
|
|
Interface
|
Description
|
|
Audio I/O
|
N/A
|
|
Alarm I/O
|
N/A
|
|
Serial Port
|
N/A
|
|
Built-in Mic
|
Support
|
|
Built-in Speaker
|
N/A
|
|
WIFI
|
N/A
|
|
Network
|
1 * RJ45 10M/100M Base‑TX Ethernet
|
|
Video Output
|
N/A
|
|
Certification
|
Description
|
|
EMC
|
CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035)
FCC (FCC 47 CFR part15 B) |
|
Safety
|
CE LVD (EN 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1) |
|
Environment
|
CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
|
|
Protection
|
IP67 (IEC 60529)
|
|
General
|
Description
|
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 2.8W |
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
|
Dimensions
|
206 × 73 × 73mm (8.1” × 2.9” × 2.9”)
|
|
Weight
|
0.48kg(1.06lb)
|
|
Material
|
Graphene + Metal
|
|
Working Environment
|
‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
|
|
Storage Environment
|
‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
|
|
Surge protection
|
4KV
|
|
Reset button
|
Support
|
|
Web Client Language
|
13 Languages
English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
