UNV | SKU:
UVIPC2318SR-ADF28KM-WP

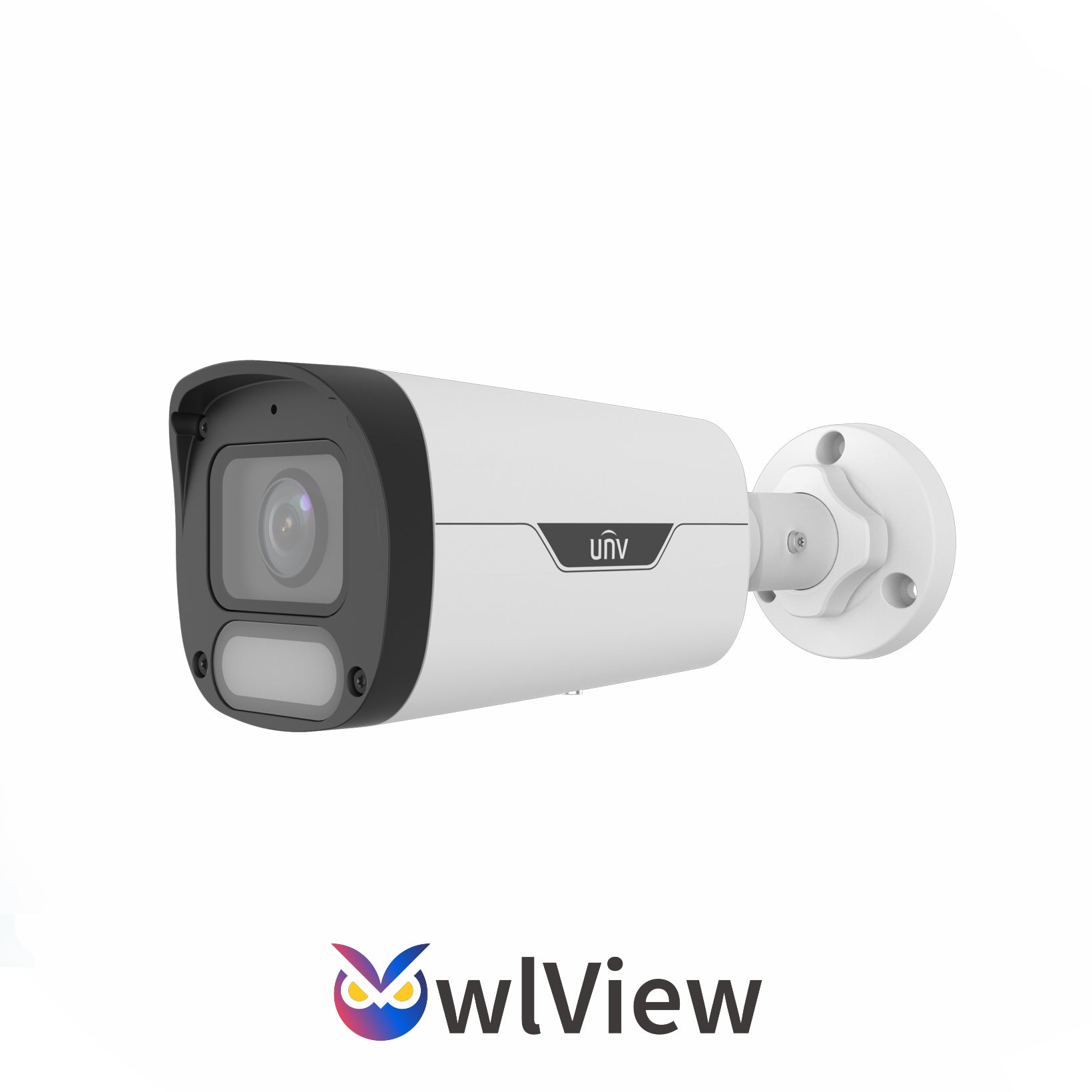

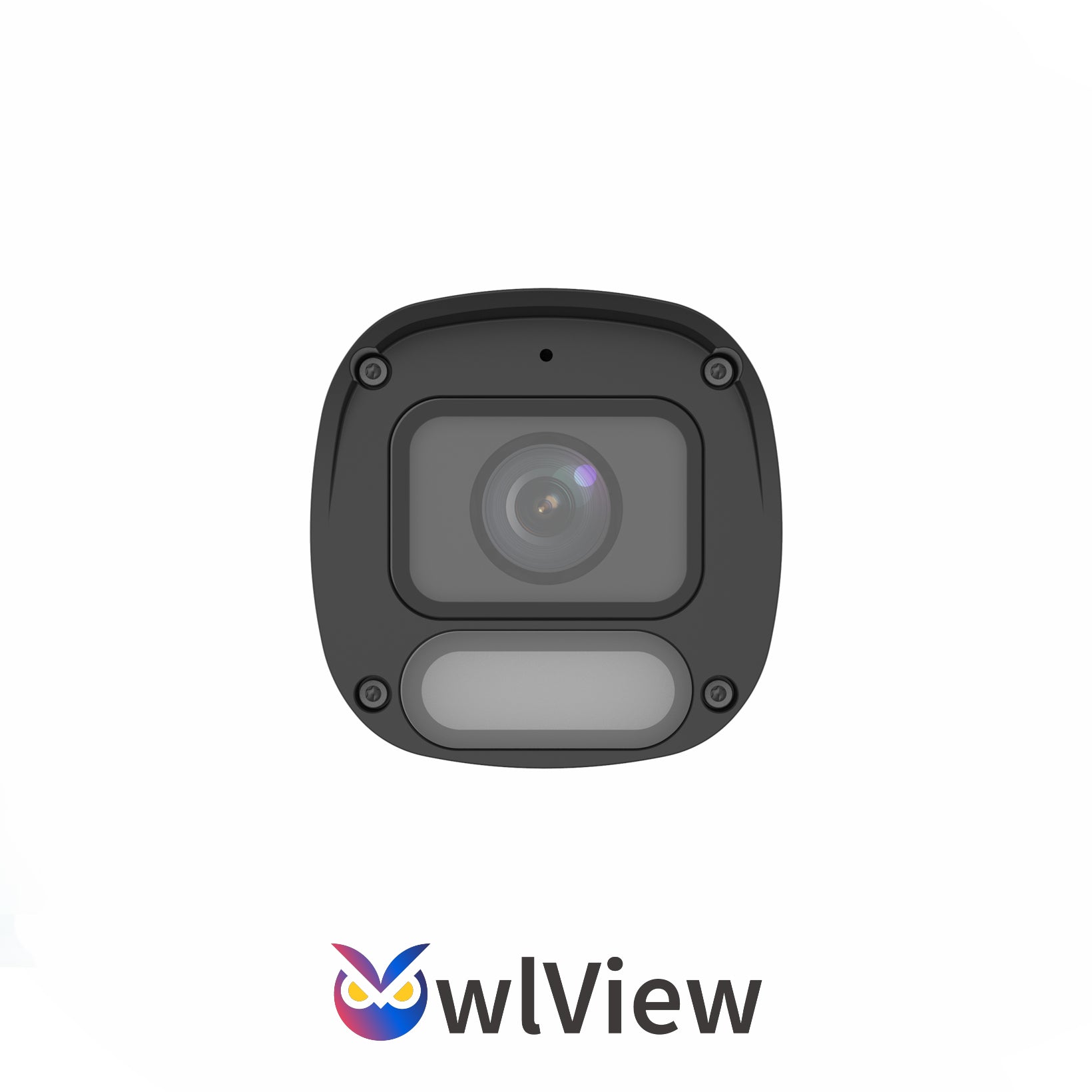

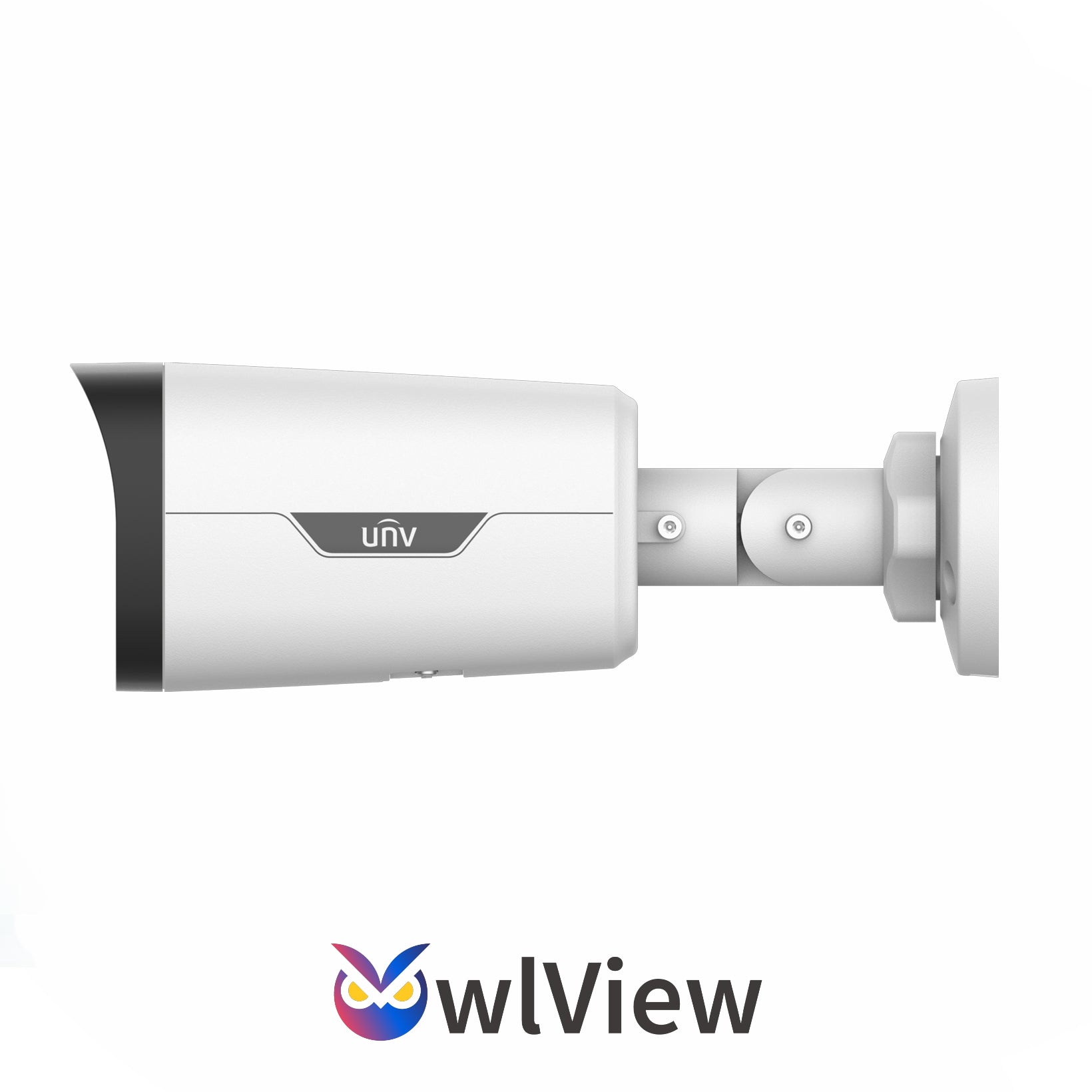

UNV IPC2318SR-ADF28KM-WP,(8MP) Bullet, IPC 2.8mm Fixed Lens, Owlview, Microphone, WDR, UL Listed
UNV IPC2318SR-ADF28KM-WP,(8MP) Bullet, IPC 2.8mm Fixed Lens, Owlview, Microphone, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Loading location-specific inventory...
Description
Description
IPC2318LE-ADF28KM-WP
8MP ColorHunter Wise-ISP Warm Light Bullet Network Camera
• High quality image with 8MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter with Wise-ISP technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• White Light, up to 30m warm light distance
• Supports 512 GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Specifications
Camera | ||||
Max Resolution |
8MP |
|||
Sensor |
1/1.8" CMOS |
|||
Min. Illumination |
Colour: 0.0003 lux (F1.0, AGC ON) |
|||
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||
Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
|||
S/N |
>52dB |
|||
WDR |
120dB |
|||
Lens | ||||
Focal Length |
2.8 mm |
|||
Iris Type |
Fixed |
|||
Iris |
F1.0 |
|||
Field of View (H) |
111.0° |
|||
Field of View (V) |
63.0° |
|||
Field of View (D) |
131.0° |
|||
Lens Type |
Fixed |
|||
DORI | ||||
DORI Distance (Lens) |
2.8mm |
|||
DORI Distance (Detect) |
63.0 (206.7ft) |
|||
DORI Distance (Observe) |
25.2 (82.7ft) |
|||
DORI Distance (Recognize) |
12.6 (41.3ft) |
|||
DORI Distance (Identify) |
6.3 (20.7ft) |
|||
Illuminator | ||||
Supplemental Light |
Warm Light |
|||
Illumination Distance (Warm Light) |
30 m (98.4 ft) |
|||
Light On/Off Control |
Auto/Manual |
|||
Video | ||||
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|||
H.264 Code Profile |
Baseline profile, Main profile, High profile |
|||
Frame Rate |
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps |
|||
Video Bit Rate |
128 Kbps ~ 6144 Kbps |
|||
U-code |
Support |
|||
OSD |
Up to 4 OSDs |
|||
Privacy Mask |
Up to 4 areas |
|||
ROI |
Up to 8 areas |
|||
Video Stream |
Dual Streams |
|||
Image | ||||
White Balance |
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
|||
Digital Noise Reduction |
2D/3D DNR |
|||
Smart Illumination |
Support |
|||
Flip |
Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise |
|||
Dewarping |
N/A |
|||
HLC |
Support |
|||
BLC |
Support |
|||
Defog |
Digital Defog |
|||
Image Stabilization |
N/A |
|||
Events | ||||
Basic Detection |
Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection |
|||
General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
|||
Intelligent | ||||
Smart Intrusion Prevention (Lite) |
Intrusion, Crossline Detection (Both detection are based on human body and vehicle detection) |
|||
Audio | ||||
Audio Compression |
G.711U, G.711A |
|||
Audio Bitrate |
64 Kbps |
|||
Two-way Audio |
N/A |
|||
Suppression |
Support |
|||
Sampling Rate |
8 KHz |
|||
Storage | ||||
Edge Storage |
Micro SD, up to 512 GB |
|||
Network Storage |
ANR, NAS (NFS) |
|||
Network | ||||
Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
|||
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
|||
User/Host |
Up to 32 users, 2 user levels: administrator and common user |
|||
Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
|||
Client |
UNV-Link, UNV-Link Pro, EZStation |
|||
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|||
Interface | ||||
Audio I/O |
N/A |
|||
Alarm I/O |
N/A |
|||
Serial Port |
N/A |
|||
Built-in Mic |
Support |
|||
Built-in Speaker |
N/A |
|||
WIFI |
N/A |
|||
Network |
1 x RJ45 10M/100M Base-TX Ethernet |
|||
Video Output |
N/A |
|||
Certification | ||||
EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|||
Safety |
CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|||
Protection |
IP67 (IEC 60529) |
|||
General | ||||
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|||
Power Consumption |
Max 3.9W |
|||
Power Interface |
Ø 5.5 mm coaxial power plug |
|||
Dimensions |
206 × 73 × 73mm (8.1” × 2.9” × 2.9”) (L x W x H) |
|||
Weight |
0.48kg(1.06lb) |
|||
Material |
Metal |
|||
Working Environment |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
|||
Storage Environment |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
|||
Surge Protection |
4KV |
|||
Reset Button |
Support |
|||
Web Client Language |
13 Languages English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
|||
