UNV  |  SKU: UVIPC314SB-ADF28K-10-BK

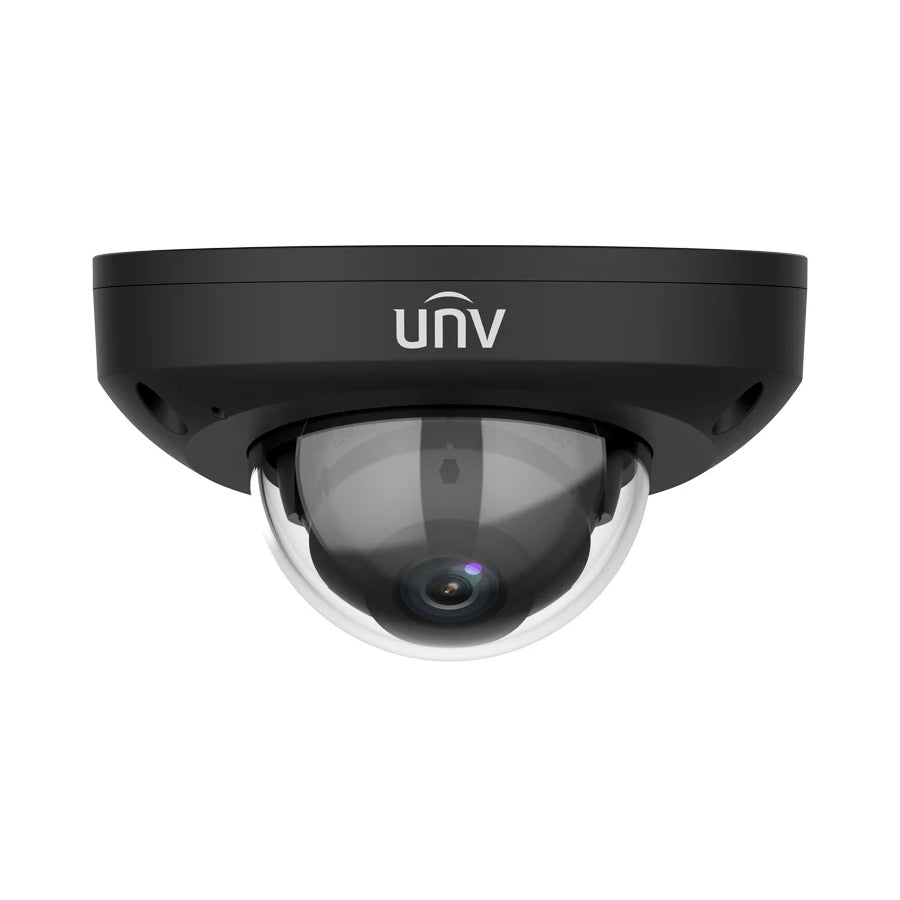

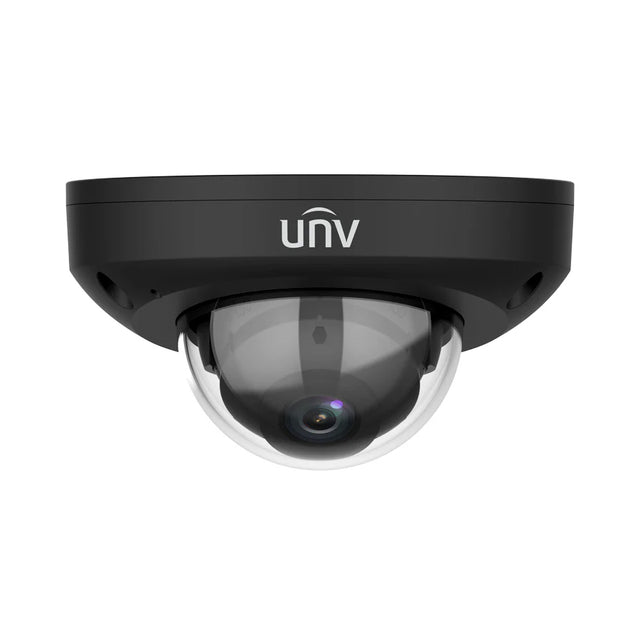

UNV IPC314SB-ADF28K-10-BK, (4MP) Mini Dome, IPC 2.8mm Fixed Lens, LightHunter, Microphone, WDR, Black, UL Listed

MPN: IPC314SB-ADF28K-10-BK

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description
4MP Fixed IR Dome Network Camera
• High quality image with 4 MP, 1/3.0" CMOS sensor
• 4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Built-in mic
• Smart IR, up to 30 m (98.4 ft) IR distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• IP67 protection
• Supports PoE power supply
• 3-axis
Specifications
Max Resolution
4 MP
Sensor
1/3.0" CMOS
Min. Illumination
Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 0° to 90°, Tilt: 0° to 68°, Rotate: 0° to 360°
S/N
>52 dB
WDR
120 dB
Lens
Focal Length
2.8 mm
Iris Type
Fixed
Iris
F1.6
Field of View (H)
101.1°
Field of View (V)
55.3°
Field of View (D)
111.1°
Lens Type
Fixed
DORI
DORI Distance (Lens)
2.8 mm
DORI Distance (Detect)
63.0 m (206.7 ft)
DORI Distance (Observe)
25.2 m (82.7 ft)
DORI Distance (Recognize)
12.6 m (41.3 ft)
DORI Distance (Identify)
6.3 m (20.7 ft)
Illuminator
Supplemental Light
IR
Illumination Distance (IR)
30 m (98.4 ft)
Wavelength
850 nm
Light On/Off Control
Auto/Manual
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps;
Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps;
Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate
128 Kbps to 16 Mbps
U-code
Support
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
ROI
Support
Video Stream
Triple streams
Smart IR
Support
White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction
2D/3D DNR
Flip
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping
N/A
HLC
N/A
BLC
Support
Defog
Digital defog
Intelligent
Smart Intrusion Prevention
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting
Support people flow counting and crowd density monitoring
Statistical Analysis
N/A
Events
Basic Detection
Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8 kHz
Storage
Edge Storage
MicroSD, up to 512 GB
Network Storage
ANR, NAS (NFS)
Network
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host
Up to 32 users. 3 user levels: administrator, common user and operator
Security
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client
EZStation, APP
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O
N/A
Serial Port
N/A
Built-in Mic
Support
Built-in Speaker
N/A
WIFI
N/A
Network
1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output
N/A
Certification
EMC
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety
CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection
IP67 (IEC 60529)
IK10 (IEC 62262)
General
Power
DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption
Max. 6.0 W
Power Interface
Ø5.5 mm coaxial power plug
Dimensions
Ø110 mm × 61 mm (Ø4.3" × 2.4") (Ø × H)
Weight
0.37 kg (0.82 lb)
Material
Metal
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection
4 KV
Reset Button
N/A
Web Client Language
20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
