UNV | SKU:
UVIPC3524SR-ADF28KM-WP

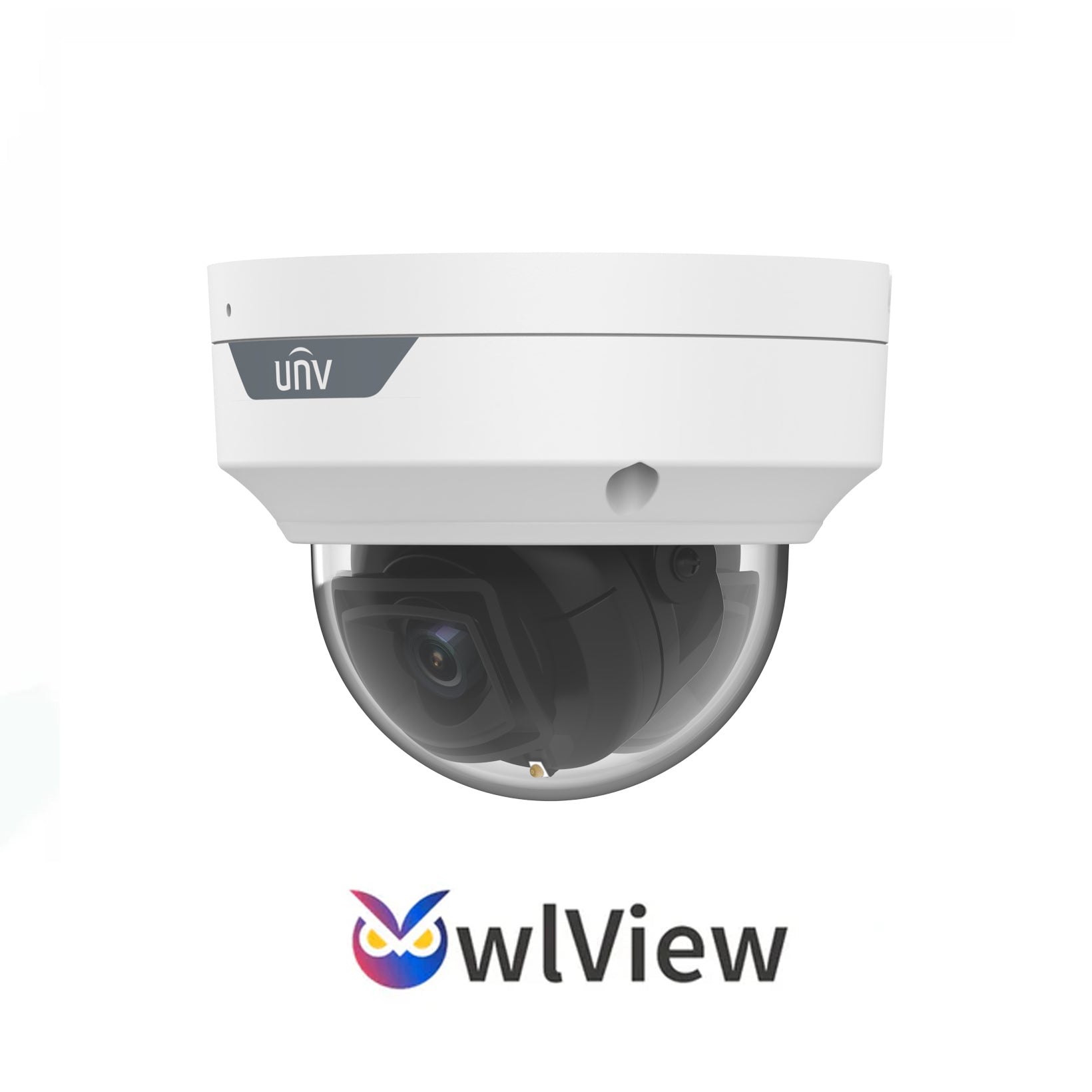

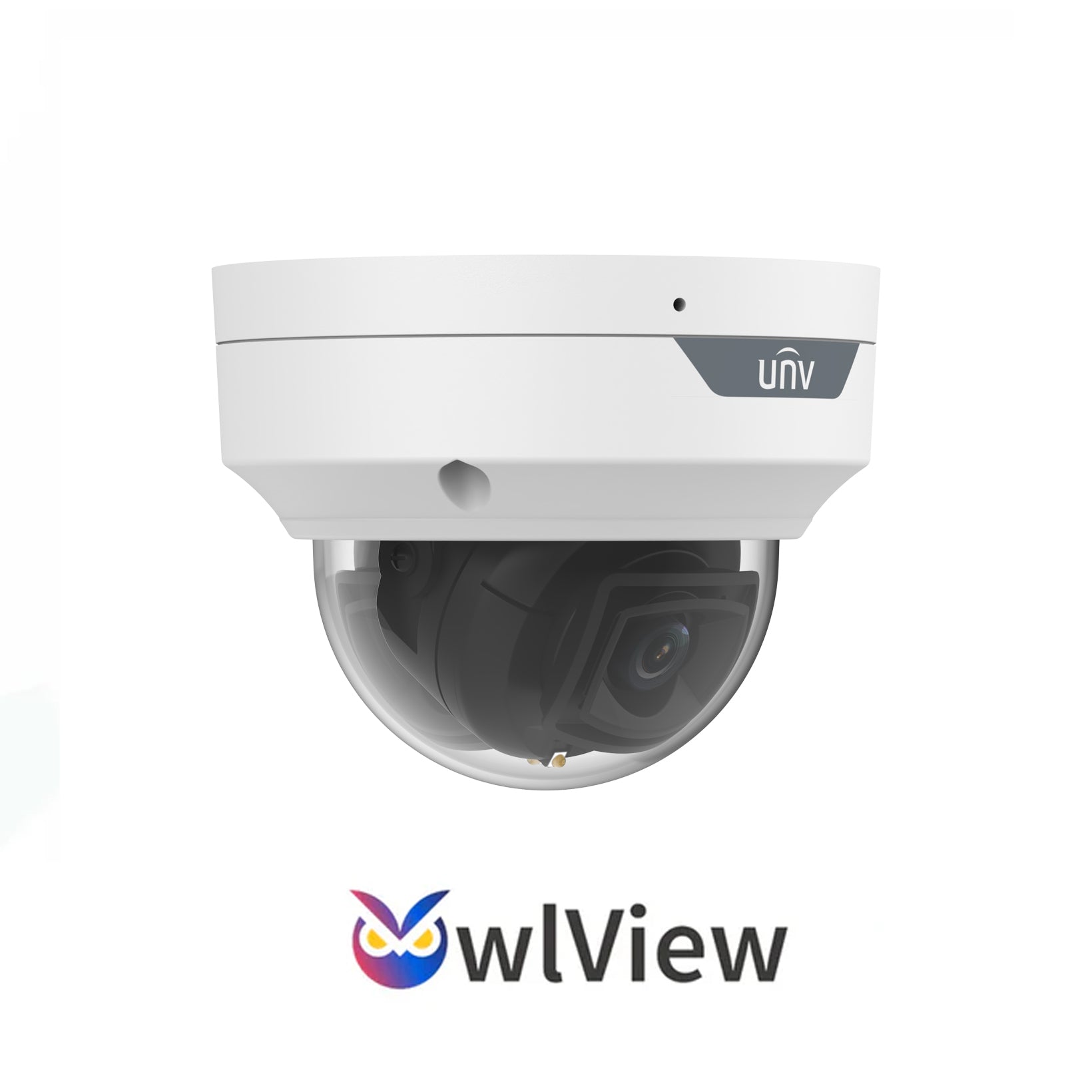

UNV IPC3524SR-ADF28KM-WP, (4MP) Dome, IPC 2.8mm Fixed Lens, OwlView, Microphone, WDR, UL Listed
MPN: IPC3524SR-ADF28KM-WP
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV IPC3524SR-ADF28KM-WP, (4MP) Dome, IPC 2.8mm Fixed Lens, OwlView, Microphone, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
Features
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, include cross line, intrusion
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle
• Colorhunter with Wise-ISP technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• White Light, up to 30m (98ft) warm light distance
• Supports 512 GB Micro SD card
• IP67 protection
• IK10 protection
• Support PoE power supply
• 3-Axis
SPECIFICATIONS
Camera
Max Resolution
4 MP
Sensor
1/1.8" CMOS
Min. Illumination
Colour: 0.0003 lux (F1.0, AGC ON)
Shutter
Auto/Manual, 1 to 1/100000 s
Adjustment Angle
Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360°
S/N
> 52 dB
WDR
120 dB
Lens
Focal Length
2.8 mm
Iris Type
Fixed
Iris
F1.0
Field of View (H)
124.3°
Field of View (V)
61.4°
Field of View (D)
135°
Lens Type
Fixed
DORI
DORI Distance (Lens)
2.8mm
DORI Distance (Detect)
43.4 (142.5ft)
DORI Distance (Observe)
17.4 (57.0ft)
DORI Distance (Recognize)
8.7 (28.5ft)
DORI Distance (Identify)
4.3 (14.3ft)
Illuminator
Supplemental Light
Warm light
Illumination Distance (Warm Light)
30 m (98.4 ft)
Light On/Off Control
Auto/Manual
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288),Max 30fps; CIF(352*288),Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288),Max 30fps; CIF(352*288),Max 30fps
Video Bit Rate
128 Kbps to 6144 Kbps
U-code
Support
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Support
Video Stream
Dual streams
White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction
2D/3D DNR
Smart Illumination
Support
Flip
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping
N/A
HLC
Support
BLC
Support
Defog
Digital defog
Events
Basic Detection
Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Intelligent
Smart Intrusion Prevention (Lite)
Intrusion, crossline detection (both detection are based on human body and vehicle detection)
Audio
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
N/A
Suppression
Support
Sampling Rate
8 kHz
Storage
Edge Storage
Micro SD, up to 512 GB
Network Storage
ANR, NAS (NFS)
Network
Protocols
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T),
API, SDK
API, SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client
UNV-Link, UNV-Link Pro, EZStation
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O
N/A
Alarm I/O
N/A
Serial Port
N/A
Built-in Mic
Support
Built-in Speaker
N/A
WIFI
N/A
Network
1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output
N/A
Certification
EMC
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4)
FCC (FCC 47 CFR part15 B)
FCC (FCC 47 CFR part15 B)
Safety
CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection
IP67 (IEC 60529)
IK10 (IEC 62262)
IK10 (IEC 62262)
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption
Max 4.0W
Power Interface
Ø5.5 mm coaxial power plug
Dimensions
Ø128 x 100mm (Ø5.0” x 3.9”) (Ø x H)
Weight
0.61kg (1.34lb)
Material
Metal
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection
4 KV
Reset Button
Support
Web Client Language
13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
