UNV  |  SKU: UVIPC3608SB-ADF16KM-I0

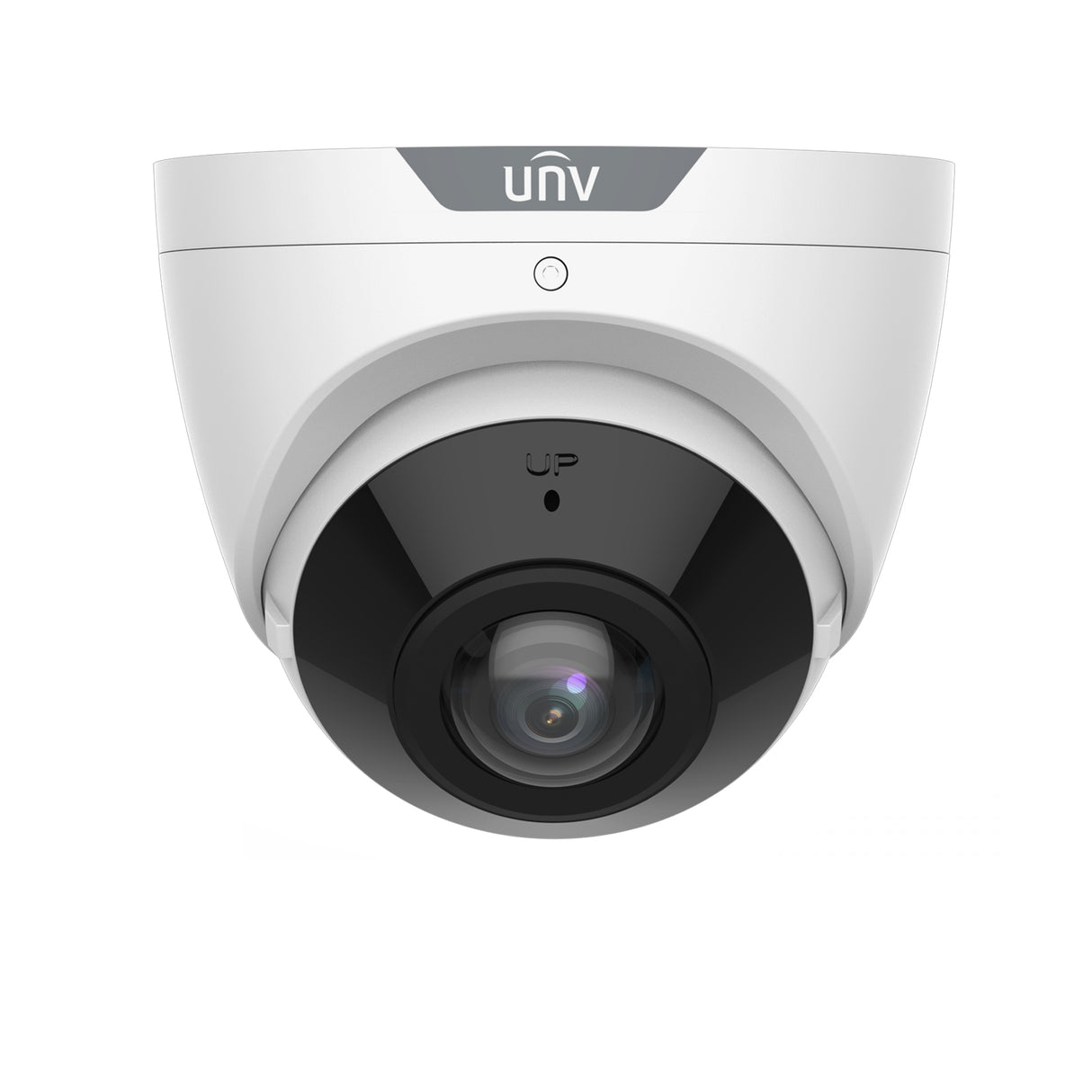

UNV IPC3608SB-ADF16KM-I0, (8MP) Turret, IPC 1.68mm Fixed lens Wide Angle, LightHunter, Mic & Speaker, WDR, UL Listed

MPN: IPC3608SB-ADF16KM-I0

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

UNV IPC3608SB-ADF16KM-I0, (8MP) Turret, IPC 1.68mm Fixed lens Wide Angle, LightHunter, Mic & Speaker, WDR, UL Listed is backordered and will ship as soon as it is back in stock.

Description

IPC3608SB-ADF16KM-I0

8MP OmniView Fixed IR Turret Network Camera

• High quality image with 8 MP, 1/2.7" CMOS sensor
• 8 MP (3840 × 2160)@30/25 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Wide angle technology realizes the horizontal viewing angle of 180°
• The dewarp level can be configured in the range of 1 to 9
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• 120 dB true WDR technology enables clear image in strong light scene
• Built-in mic
• Smart IR, up to 20 m (65.6 ft) IR distance
• MicroSD, up to 512 GB
• IP67 protection
• IK10 vandal resistant

Specifications
Camera
Max Resolution
8 MP
Sensor
1/2.7" CMOS
Min. Illumination
Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N
>52 dB
WDR
120 dB
Lens
Focal Length
1.68 mm
Iris Type
Fixed
Iris
F2.0
Field of View (H)
180°
Field of View (V)
100°
Field of View (D)
180°
Lens Type
Fixed
DORI
DORI Distance (Lens)
1.68 mm
DORI Distance (Detect)
37.8 m (124.0 ft)
DORI Distance (Observe)
15.1 m (49.6 ft)
DORI Distance (Recognize)
7.6 m (24.9 ft)
DORI Distance (Identify)
3.8 m (12.5 ft)
Illuminator
Supplemental Light
IR
Illumination Distance (IR)
20 m (65.6 ft)
IR On/Off Control
Auto/Manual
Wavelength
850 nm
Video
Video Compression
Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile
Baseline profile, Main profile, High profile
Frame Rate-Main Stream
8 MP (3840 × 2160), max. 30 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps
Frame Rate-Sub Stream
720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Frame Rate-Third Stream
D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate
128 Kbps to 16 Mbps
U-code
Support
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
ROI
Support
Video Stream
Triple streams
Auto Scene Match (ASM)
Support (only WDR)
White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart IR
Support
Digital Noise Reduction
2D/3D DNR
Flip
Normal, Flip vertical, Flip horizontal, 180°
Dewarping
Support
HLC
Support
BLC
Support
Defog
Digital defog
Image Stabilization
N/A
Low Illumination Characteristics
Low-light
Intelligent
Smart Intrusion Prevention
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Attribute Collection
SIP with color retrieval
Events
Basic Detection
Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
N/A
Suppression
Support
Sampling Rate
8 kHz
Storage
Edge Storage
MicroSD, up to 512 GB
Network Storage
ANR, NAS (NFS)
Network
Protocols
IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration
ONVIF (Profile S, Profile G, Profile T),
API, SDK
User/Host
Up to 32 users. 3 user levels: administrator, common user and operator
Security
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client
UNV-Link, UNV-Link Pro, EZStation
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O
N/A
Alarm I/O
N/A
Serial Port
N/A
Built-in Mic
Support
Built-in Speaker
N/A
WIFI
N/A
Network
1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output
N/A
Certification
EMC
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety
CE LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection
IP67 (IEC 60529)
IK10 (IEC 62262)
General
Power
DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption
Max. 5.5 W
Power Interface
Ø5.5 mm coaxial power plug
Dimensions
Ø111 mm × 93 mm (Ø4.4" × 3.7") (Ø × H)
Weight
0.48 kg (1.06 lb)
Material
Metal
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection
4 KV
Reset Button
Support
Web Client Language
20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
