UNV | SKU:
UVIPC3618SB-ADF28KM-I0

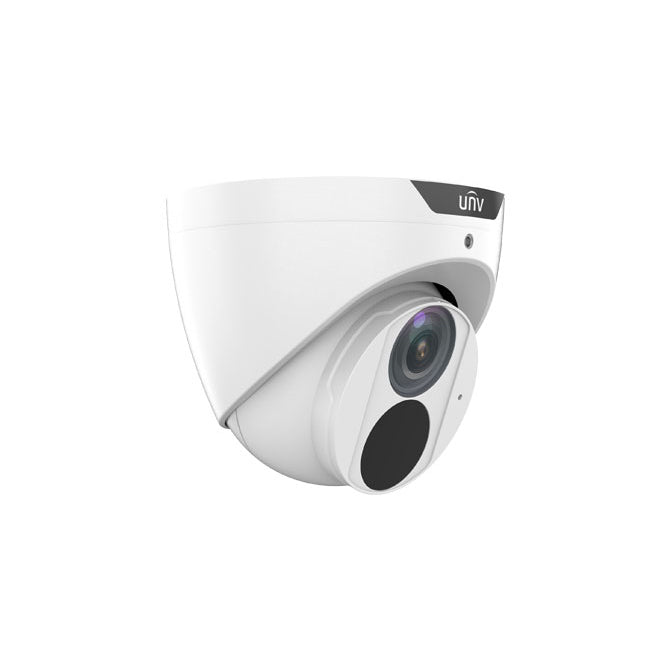

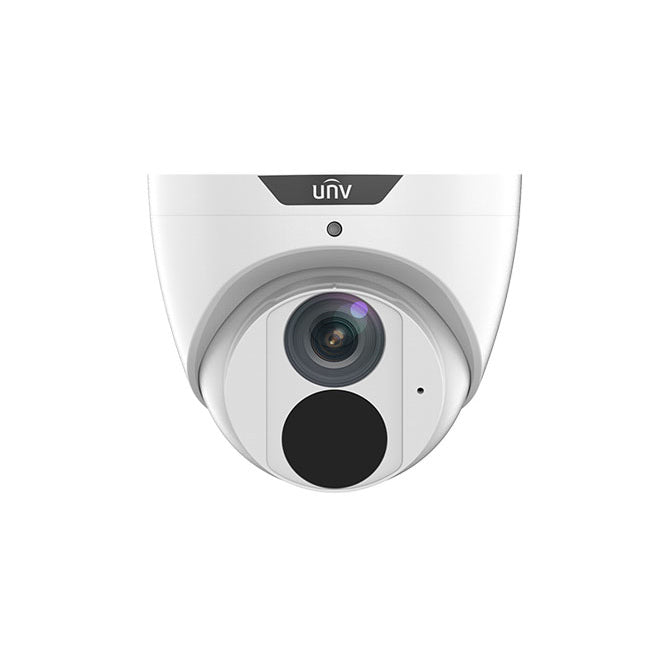

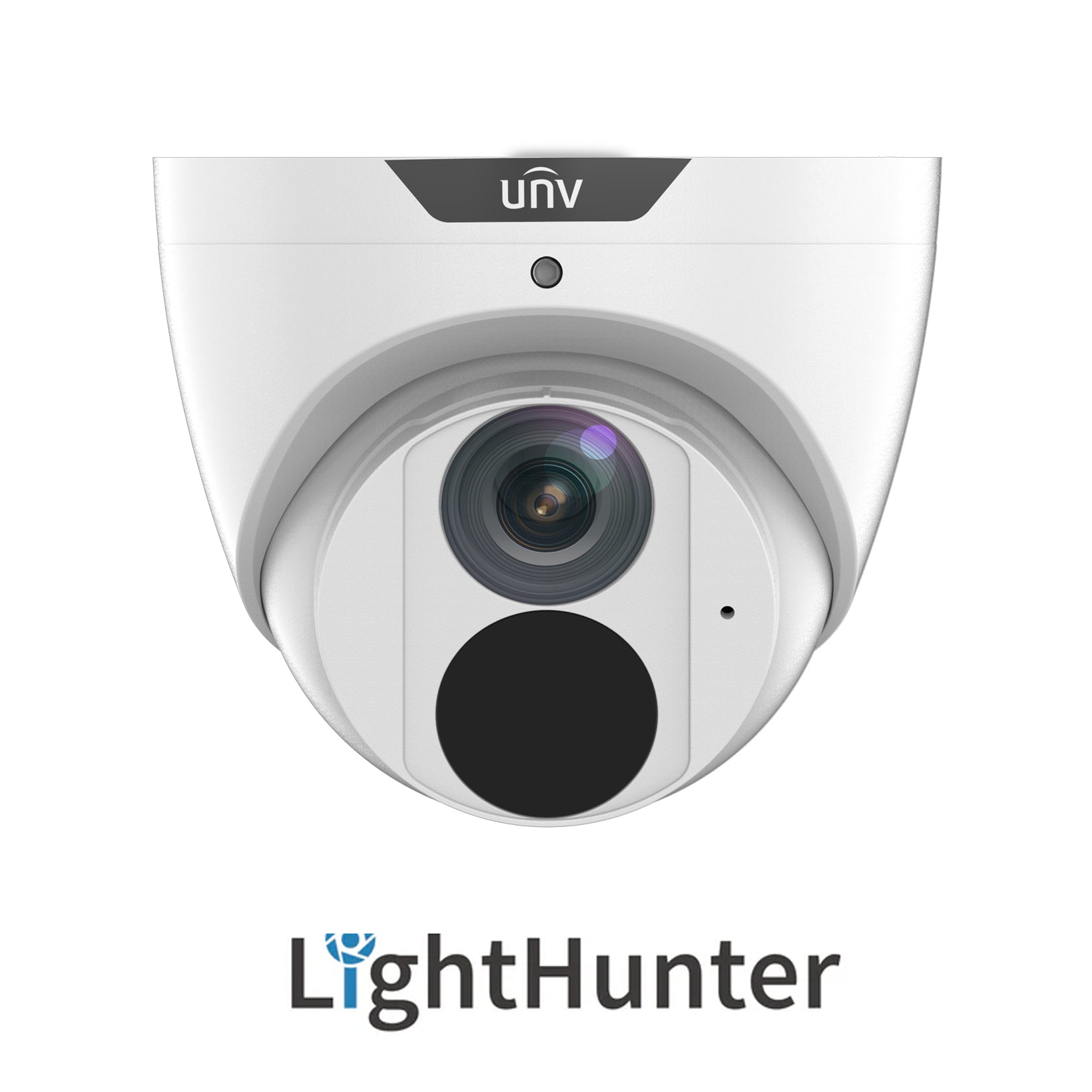

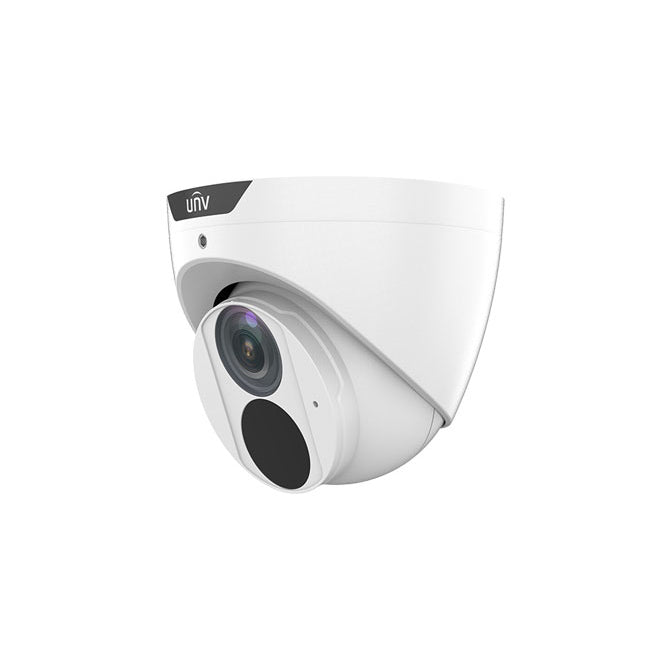

UNV IPC3618SB-ADF28KM-I0, (8MP) Turret, IPC 2.8mm Lens, LightHunter , Microphone, WDR, UL Listed
UNV IPC3618SB-ADF28KM-I0, (8MP) Turret, IPC 2.8mm Lens, LightHunter , Microphone, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Loading location-specific inventory...
Description
Description
• High quality image with 8MP, 1/2.7"CMOS sensor
• 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
Specifications
|
Camera
|
||||
|
Sensor
|
1/2.7", 8.0 megapixel, progressive scan, CMOS
|
|||
|
Minimum Illumination
|
Colour: 0.0025 lux (F1.6, AGC ON)
0 lux with IR on |
|||
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|||
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
|||
|
Adjustment angle
|
Pan: 3° ~ 360°
|
Tilt: 0° ~ 80°
|
||
|
WDR
|
120dB
|
|||
|
S/N
|
>56dB
|
|||
|
Lens
|
||||
|
Lens
|
2.8mm@F1.6
|
|||
|
Iris
|
Fixed
|
|||
|
Field of View (H)
|
112.4°
|
|||
|
Field of View (V)
|
60.1°
|
|||
|
Field of View (D)
|
146.1°
|
|||
|
DORI
|
||||
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
|
|
2.8
|
84.0
|
33.6
|
||
|
4.0
|
120.0
|
48.0
|
||
|
Illuminator
|
||||
|
IR Range
|
Up to 30m (98 ft) IR range
|
|||
|
Wavelength
|
850nm
|
|||
|
IR On/Off Control
|
Auto/Manual
|
|||
|
Video
|
||||
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|||
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
|||
|
Frame Rate
|
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
|||
|
U-code
|
Support
|
|||
|
OSD
|
Up to 8 OSDs
|
|||
|
Privacy Mask
|
Up to 4 areas
|
|||
|
ROI
|
Up to 8 areas
|
|||
|
Video Stream
|
Triple streams
|
|||
|
|
||||
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|||
|
Image Setting
|
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
|
|||
|
Digital Noise Reduction
|
2D/3D DNR
|
|||
|
Smart IR
|
Support
|
|||
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
|||
|
Dewarping
|
Support
|
|||
|
HLC
|
Support
|
|||
|
BLC
|
Support
|
|||
|
Defog
|
Digital Defog
|
|||
|
Intelligent
|
||||
|
Smart intrusion prevention
|
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
|
|||
|
Statistical Analysis
|
People counting, support people flow counting and crowd density monitoring
|
|||
|
Events
|
||||
|
Basic Detection
|
Motion detection, Ultra motion detection, Tampering alarm, Audio detection
|
|||
|
General Function
|
Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication
|
|||
|
Audio
|
||||
|
Audio Compression
|
G.711
|
|||
|
Audio Bitrate
|
64 Kbps
|
|||
|
Suppression
|
Support
|
|||
|
Sampling Rate
|
8KHZ
|
|||
|
Storage
|
||||
|
Edge Storage
|
Micro SD, up to 256GB
|
|||
|
Network Storage
|
ANR, NAS(NFS)
|
|||
|
Network
|
||||
|
Protocols
|
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
|
|||
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API,SDK
|
|||
|
User/Host
|
Up to 32 users. 3 user levels: administrator, common user, operator
|
|||
|
Security
|
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
|
|||
|
Client
|
EZStation
EZView EZLive |
|||
|
Web Browser
|
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
|
|||
|
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
|
||||
|
Interface
|
||||
|
Audio I/O
|
N/A
|
|||
|
Alarm I/O
|
N/A
|
|||
|
RS485
|
N/A
|
|||
|
Built-in Mic
|
Support
|
|||
|
Built-in Speaker
|
N/A
|
|||
|
WIFI
|
N/A
|
|||
|
Network
|
1 * RJ45 10M/100M Base-TX Ethernet
|
|||
|
Video Output
|
N/A
|
|||
|
Certifications
|
||||
|
EMC
|
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||
|
Safety
|
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
|||
|
Protection
|
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
|
|||
|
General
|
||||
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
|
|||
|
Power consumption: Max 5.0W
|
||||
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
|||
|
Dimensions (L × W × H)
|
Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
|
|||
|
Weight
|
0.44kg (0.97lb)
|
|||
|
Material
|
Metal
|
|||
|
Working Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|||
|
Strorage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
|||
|
Surge Protection
|
4KV
|
|||
|
Reset Button
|
N/A
|
|||
