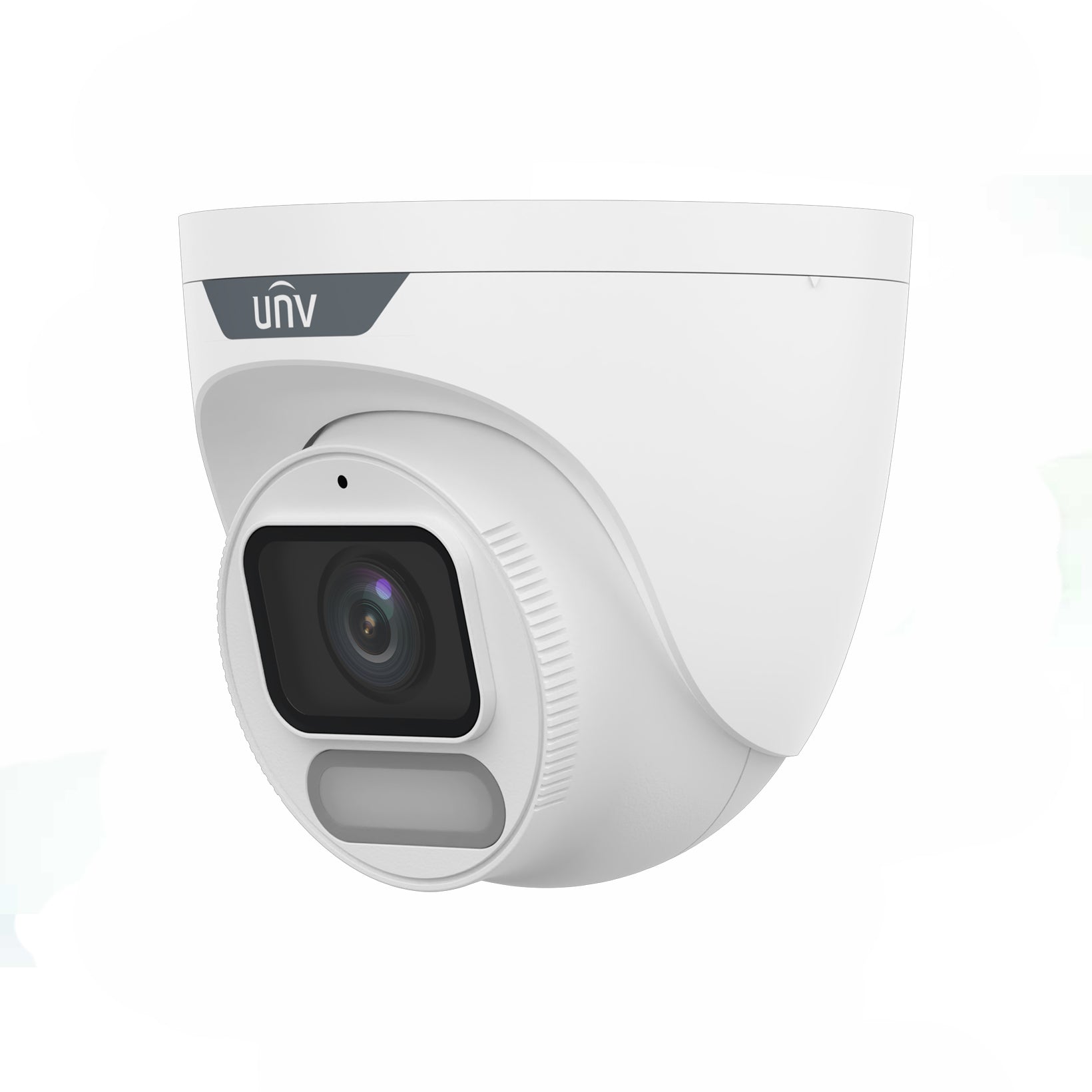

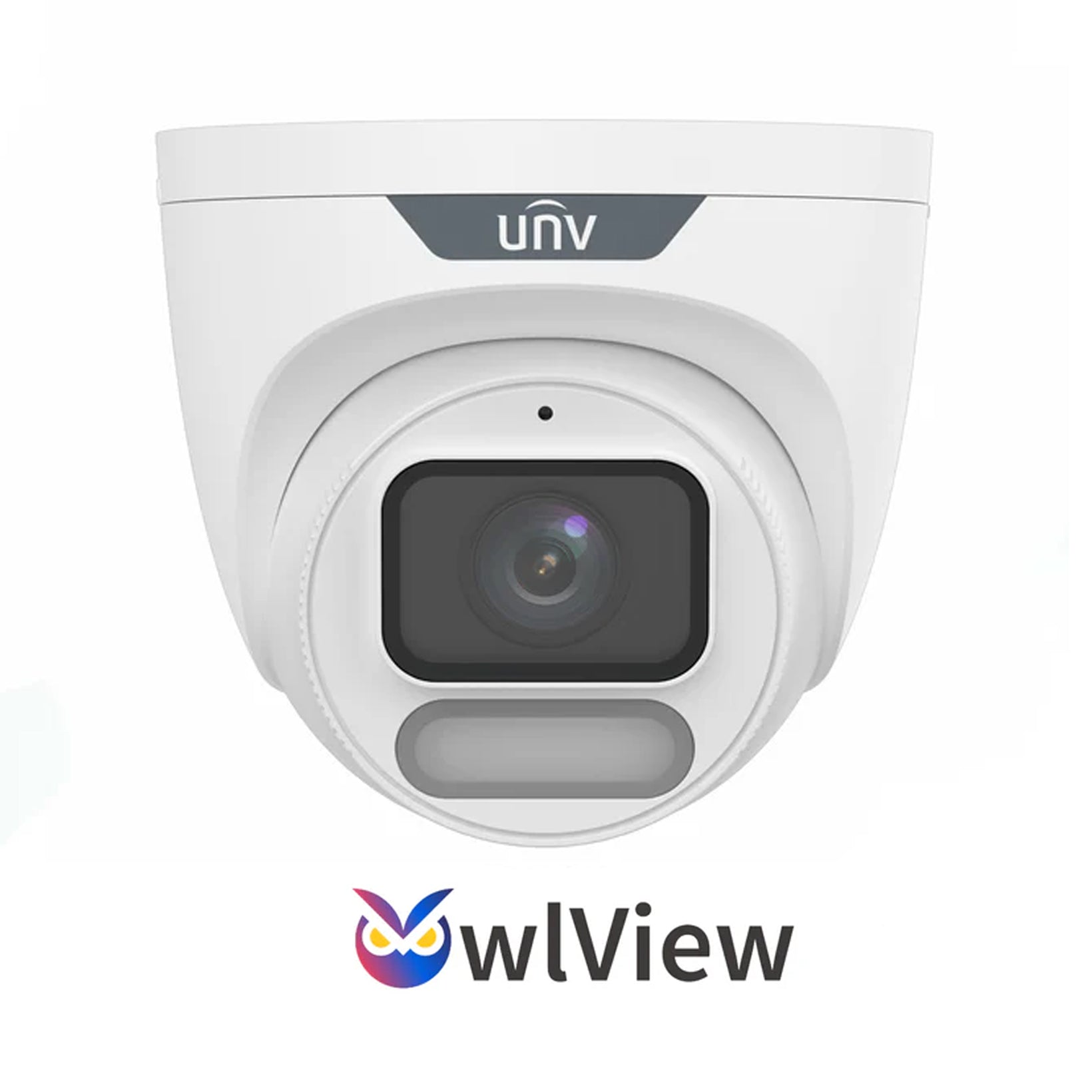

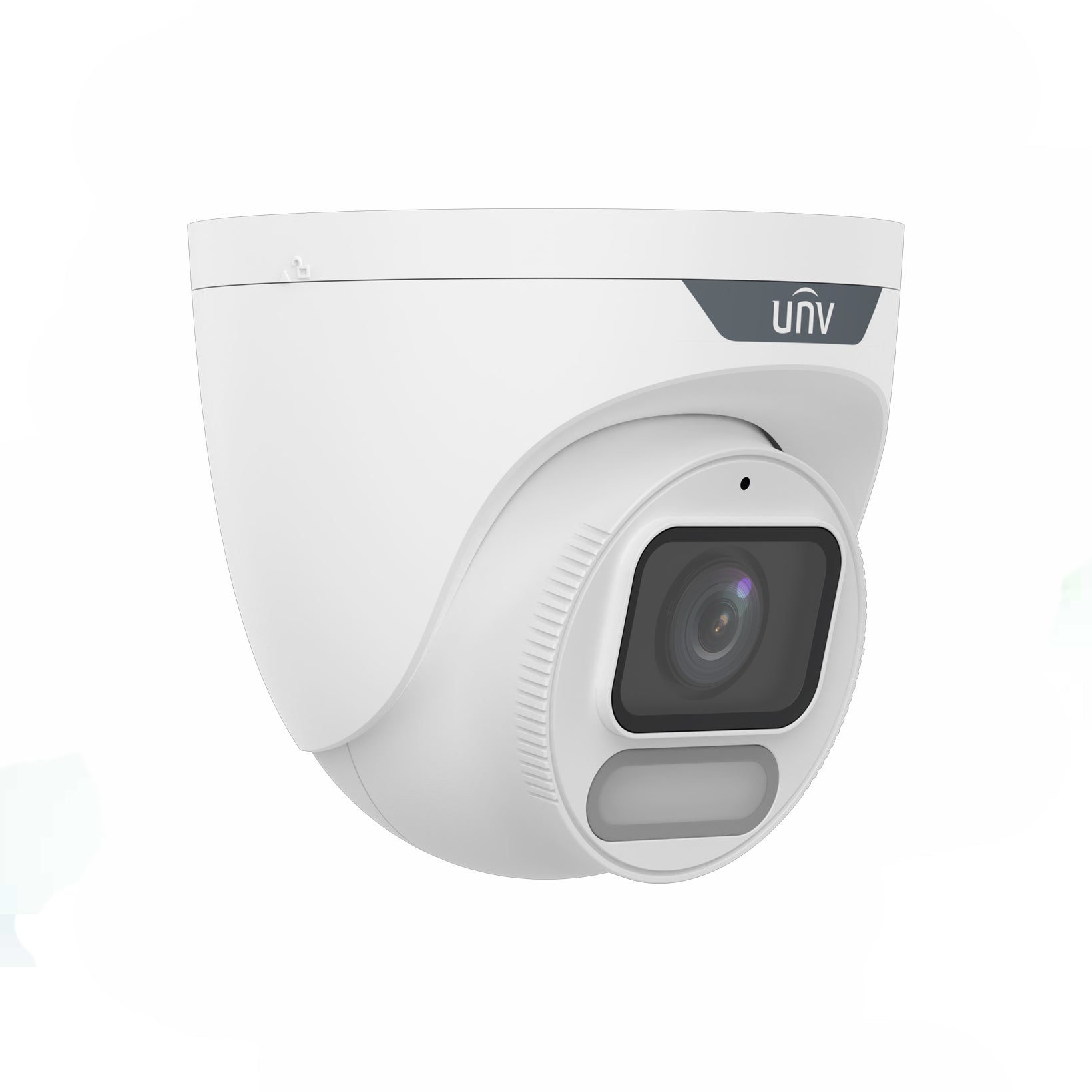

UNV IPC3622LE-ADF28K-WP, (2MP) Turret, IPC 2.8mm Fixed Lens, Owlview, Microphone, WDR, UL Listed
by UNV
SKU UVIPC3622LE-ADF28K-WP
IPC3622LE-ADF28(40)K-WP 2MP
ColorHunter Wise-ISP Fixed Warm Light Turret Network Camera
High quality image with 2MP, 1/2.7"CMOS sensor and F1.0 large aperture lens
• 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Support ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• White Light, up to 30m (98ft) warm light distance
• Supports 512 GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
| IPC3622LE-ADF28K-WP | |||
| Camera | |||
| Max Resolution | 2MP | ||
| Sensor | 1/2.7" CMOS | ||
| Min. Illumination | Colour: 0.0003 lux (F1.0, AGC ON) | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° | ||
| S/N | >52dB | ||
| WDR | 120dB | ||
| Lens | |||
| Focal Length | 2.8 mm | ||
| Iris Type | Fixed | ||
| Iris | F1.0 | ||
| Field of View (H) | 99.0° | ||
| Field of View (V) | 53.0° | ||
| Field of View (D) | 118.0° | ||
| Lens Type | Fixed | ||
| DORI | |||
| DORI Distance (Lens) | 2.8mm | ||
| DORI Distance (Detect) | 45.0m(147.6ft) | ||
| DORI Distance (Observe) | 18.0(59.1ft) | ||
| DORI Distance (Recognize) | 9.0(29.5ft) | ||
| DORI Distance (Identify) | 4.5(14.8ft) | ||
| Illuminator | |||
| Supplemental Light | Warm Light | ||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | ||
| Light On/Off Control | Auto/Manual | ||
| Video | |||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
||
| Video Bit Rate | 128 Kbps ~ 6144 Kbps | ||
| U-code | Support | ||
| OSD | Up to 4 OSDs | ||
| Privacy Mask | Up to 4 areas | ||
| ROI | Support | ||
| Video Stream | Dual Streams | ||
| Image | |||
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | ||
| Digital Noise Reduction | 2D/3D DNR | ||
| Smart Illumination | Support | ||
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise | ||
| Dewarping | N/A | ||
| HLC | Support | ||
| BLC | Support | ||
| Defog | Digital Defog | ||
| Events | |||
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection | ||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication | ||
| Intelligent | |||
| Smart Intrusion Prevention (Lite) | Intrusion, Crossline Detection (Both detection are based on human body and vehicle detection) | ||
| Audio | |||
| Audio Compression | G.711U, G.711A | ||
| Audio Bitrate | 64 Kbps | ||
| Two-way Audio | N/A | ||
| Suppression | Support | ||
| Sampling Rate | 8 KHz | ||
| Storage | |||
| Edge Storage | Micro SD, up to 512 GB | ||
| Network Storage | ANR, NAS (NFS) | ||
| Network | |||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
||
| User/Host | Up to 32 users, 2 user levels: administrator and common user | ||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||
| Client | UNV-Link, UNV-Link Pro, EZStation | ||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||
| Interface | |||
| Audio I/O | N/A | ||
| Alarm I/O | N/A | ||
| Serial Port | N/A | ||
| Built-in Mic | Support | ||
| Built-in Speaker | N/A | ||
| WIFI | N/A | ||
| Network | 1 x RJ45 10M/100M Base-TX Ethernet | ||
| Video Output | N/A | ||
| Certification | |||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
||
| Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||
| Protection | IP67 (IEC 60529) | ||
| General | |||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||
| Power Consumption | Max 2.6W | ||
| Power Interface | Ø 5.5 mm coaxial power plug | ||
| Dimensions | Ø118 x 106mm (Ø4.6” x 4.2”) (Ø x H) | ||
| Weight | 0.47kg(1.04lb) | ||
| Material | Metal + Plastic | ||
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | ||
| Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | ||
| Surge Protection | 4KV | ||
| Reset Button | Support | ||
| Web Client Language | 13 Languages English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
||
