UNV | SKU:
UVIPC6215SR-X5PAEW-VG

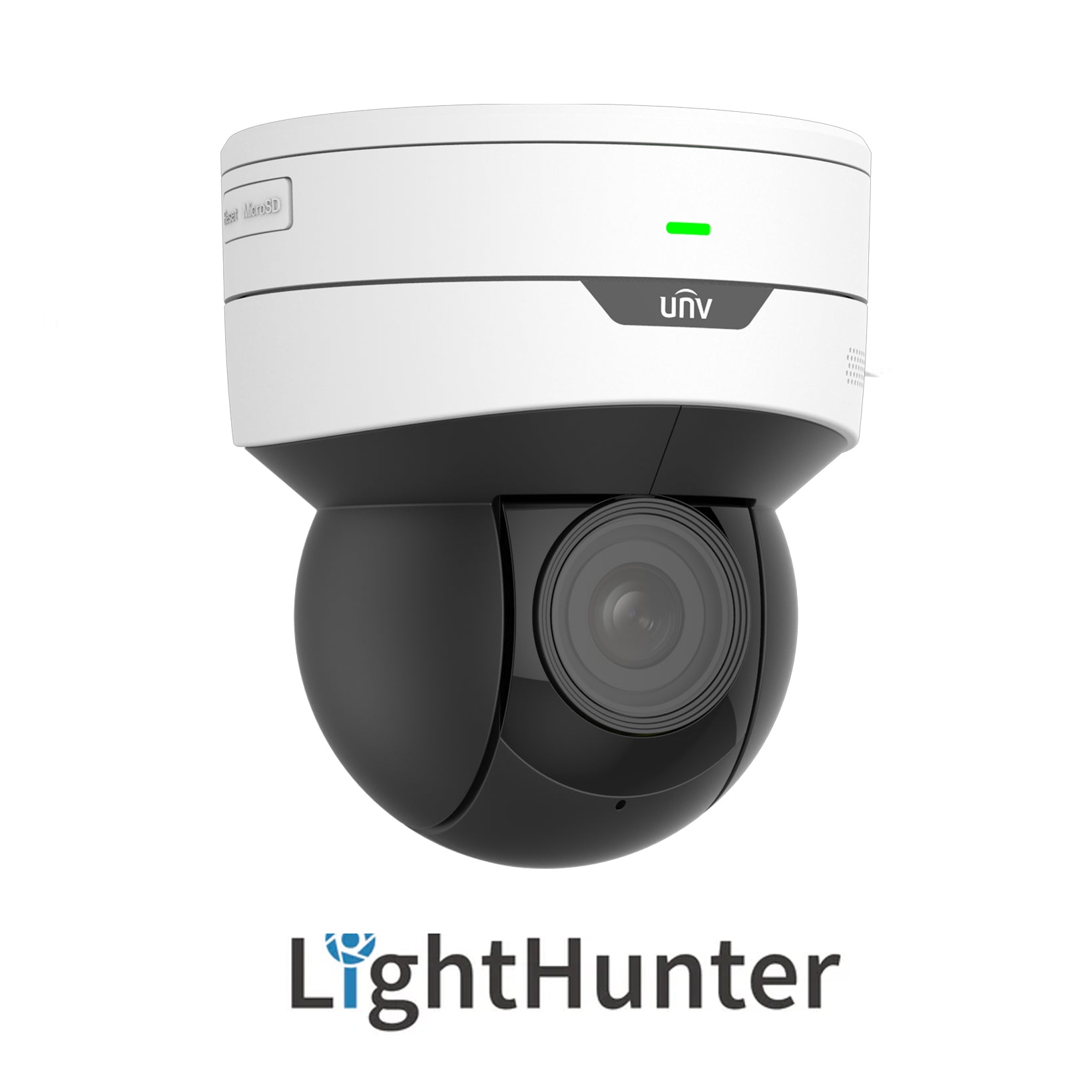

UNV IPC6215SR-X5PAEW-VG, (5MP) Indoor Mini PTZ, IPC 2.7-13.5mm 5X Zoom, LightHunter, Microphone & Speaker, WDR, UL Listed
MPN: IPC6215SR-X5PAEW-VG
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV IPC6215SR-X5PAEW-VG, (5MP) Indoor Mini PTZ, IPC 2.7-13.5mm 5X Zoom, LightHunter, Microphone & Speaker, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
IPC6415SR-X5UPW-VG

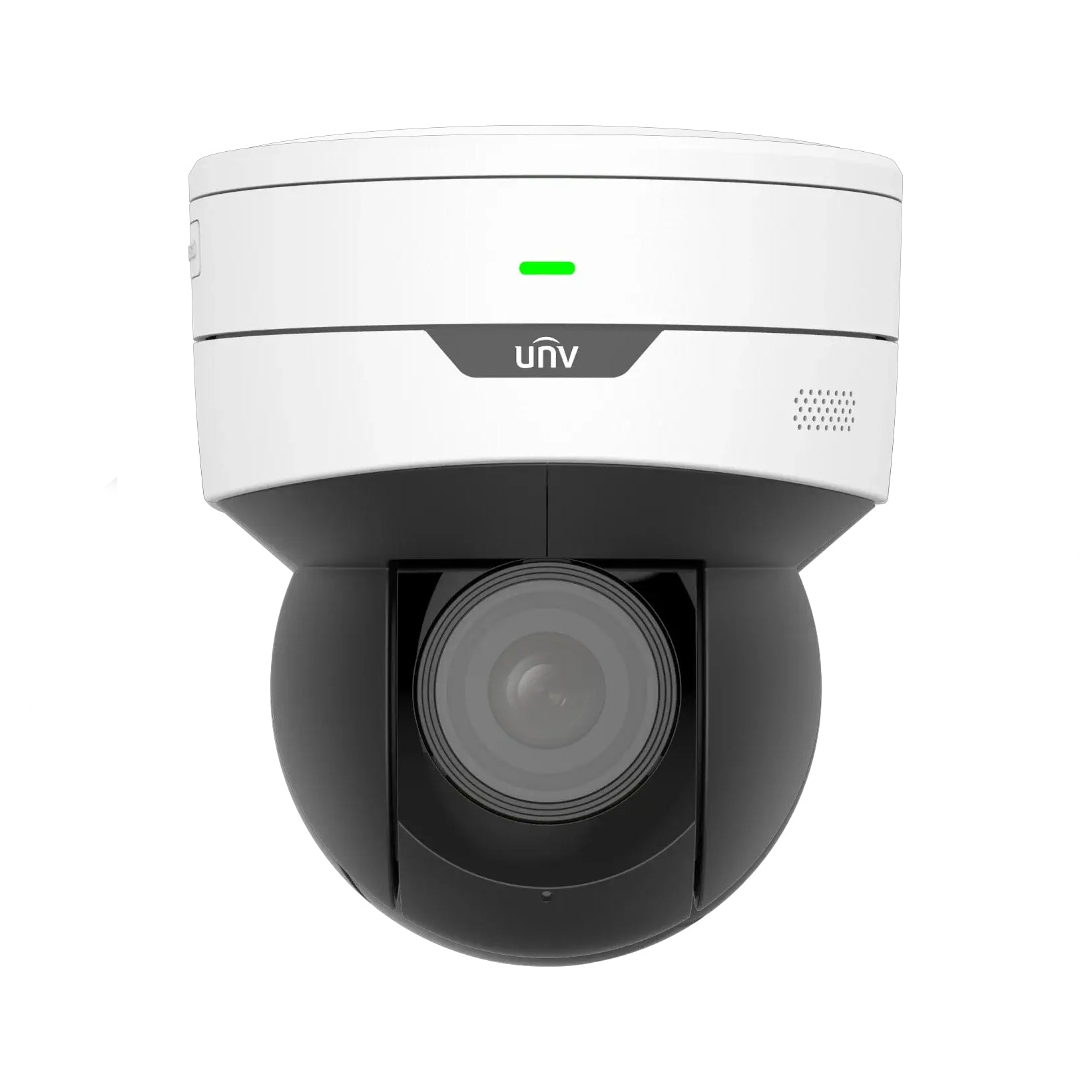

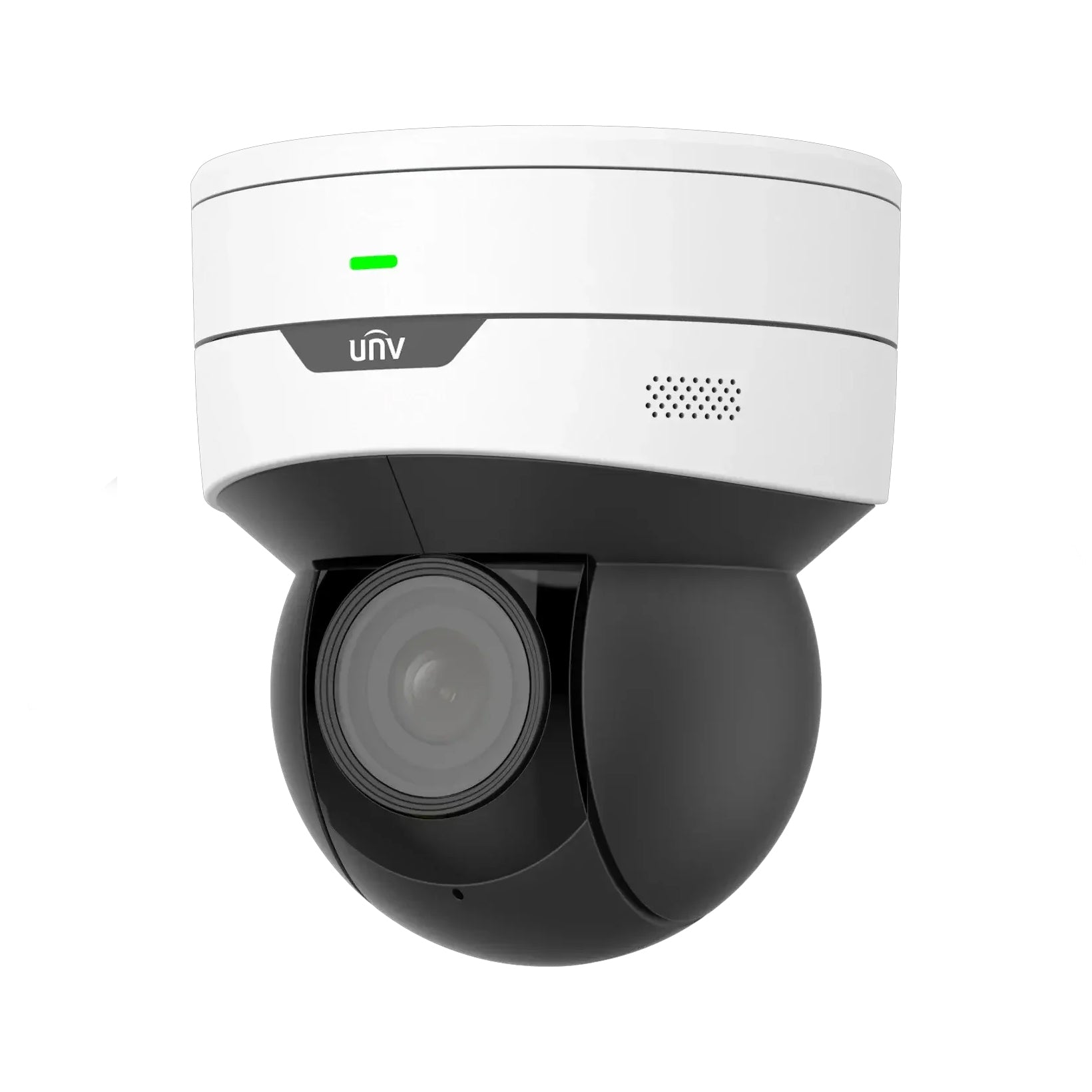

5MP WDR Starlight IR Network Indoor MiniPTZ Dome Camera
• High quality image with 5MP,1/2.7" CMOS sensor
• 2880*1620@30fps in the main stream, 16:9 aspect ratio
• Ultra 265, H.265, H.264, MJPEG
• 5X optical zoom allows for closer viewing of subjects
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
• LightHunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Wi-Fi connection and easy installation
• Built-in Mic & Speaker, support two-way audio
• Alarm 1 in and 1 out
• Smart IR, up to 30m (98 ft) IR distance
Features
Introducing the UNV 5MP WDR Starlight IR Network Indoor Mini PTZ Dome Camera, model UNV-IPC6415SR-X5UPW-VG. This advanced PTZ (Pan-Tilt-Zoom) dome camera is meticulously engineered to provide exceptional security features and cutting-edge technology for indoor surveillance. With a 5-megapixel sensor, Wide Dynamic Range (WDR), and Starlight IR capabilities, the UNV-IPC6415SR-X5UPW-VG ensures clear and detailed visuals, optimizing identification and monitoring in various scenarios.
Specifications
Camera |
|||||
Sensor |
1/2.7", 5.0 megapixel, progressive scan, CMOS |
||||
Min. Illumination |
Colour:0.003 lux (F1.2, AGC ON) 0 lux with IR |
||||
Day/Night |
IR-cut filter with auto switch (ICR) |
||||
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
WDR |
120dB |
||||
S/N |
＞56dB |
||||
Lens | |||||
Lens type |
2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens |
||||
Iris |
Auto aperture |
||||
Field of View (H) |
106.9°~30.6° |
||||
Field of View (V) |
56.0°~17.7° |
||||
Field of View (D) |
131.5°~39.8° |
||||
DORI | |||||
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
2.7 |
70.9(232.5ft) |
28.4(93.0ft) |
14.2(46.5ft) |
7.1(23.3ft) |
|
13.5 |
247.5(812.0ft) |
99.0(324.8ft) |
49.5(162.4ft) |
24.8(81.2ft) |
|
Illuminator | |||||
IR Range |
Up to 30m (98 ft) IR range |
||||
Wavelength |
850nm |
||||
IR On/Off Control |
Auto/Manual |
||||
Video | |||||
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||
Frame Rate |
Main Stream: 5MP (2880*1620),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
||||
Video Bit Rate |
128 Kbps~16 Mbps |
||||
U-code |
Support |
||||
ROI |
Support |
||||
Video stream |
Triple streams |
||||
OSD |
Up to 8 OSDs |
||||
Privacy Mask |
24 areas, up to 4 areas per scene |
||||
Image | |||||
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
Digital noise reduction |
2D/3D DNR |
||||
Smart IR |
Support |
||||
Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
||||
HLC |
Support |
||||
BLC |
Support |
||||
Defog |
Digital Defog |
||||
Intelligent | |||||
Smart Intrusion prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
||||
Events | |||||
Basic Detection |
Motion detection, Audio detection, Tampering alarm |
||||
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
Audio | |||||
Audio Compression |
G.711U, G.711A |
||||
Audio Bitrate |
64 Kbps |
||||
Two-way Audio |
Support |
||||
Suppression |
Support |
||||
Sampling Rate |
8 kHz |
||||
Storage | |||||
Edge Storage |
Micro SD, up to 256 GB |
||||
Network Storage |
ANR,NAS(NFS) |
||||
Network | |||||
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
||||
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
||||
User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
||||
Security |
Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
||||
Client |
EZStation EZLive EZView |
||||
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
||||
Pan & Tilt | |||||
Pan Range |
350° |
||||
Pan Speed |
0.1°/s ~ 60°/s |
||||
Preset speed: 60°/s | |||||
Tilt Range |
0° ~ 90° |
||||
Tilt Speed |
0.1° ~ 50°/s |
||||
Preset speed: 50°/s | |||||
Number of Presets |
1024 |
||||
Preset Patrol |
16 patrols, up to 64 presets for each patrol |
||||
Patrol Stay Time |
120s~1800s |
||||
Preset Image Freeze |
N/A |
||||
Home Position |
Support |
||||
Interface | |||||
Audio I/O |
N/A |
||||
Alarm I/O |
1/1 |
||||
Serial Port |
1 RS485 |
||||
Built-in Mic |
Support |
||||
Built-in Speaker |
Support |
||||
WIFI |
Support (IEEE802.11b/g/n) |
||||
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
||||
Video output |
N/A |
||||
Certification | |||||
EMC |
CE-EMC (EN 55032: 2015+A1:2020; EN 61000-3-3: 2013+A1: 2019; EN IEC 61000-3-2: 2019+A1: 2021; EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
RF |
FCC ID (FCC CFR 47 part15 C) CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09)) |
||||
Safety |
CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
Environment |
CE-ROHS (2011/65/EU;(EU)2015/863) |
||||
General | |||||
Power |
DC12V(±25%), PoE+(IEEE 802.3at) |
||||
Power consumption: Max 15W | |||||
Power Interface |
Ø 5.5mm coaxial power plug |
||||
Dimensions (Ø x H) |
Φ129 x 143.6mm (Φ5.1" x 5.7") |
||||
Weight |
0.76kg(1.67lb) |
||||
Working Environment |
-10℃~50℃(14°F ~ 122°F)，Humidity: ≤95% RH (non-condensing) |
||||
Storage Environment |
-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
||||
Surge protection |
4KV |
||||
Reset Button |
Support |
||||
