UNV | SKU:
UVIPC6424SR-X25-VF-B

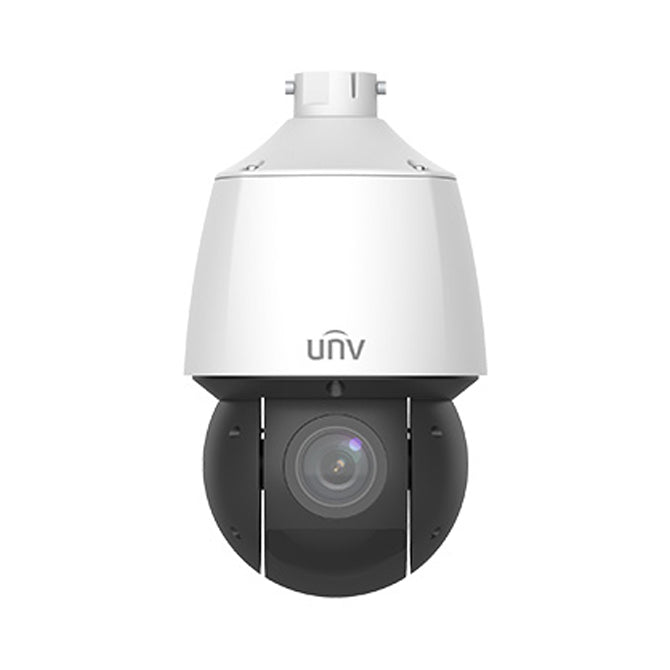

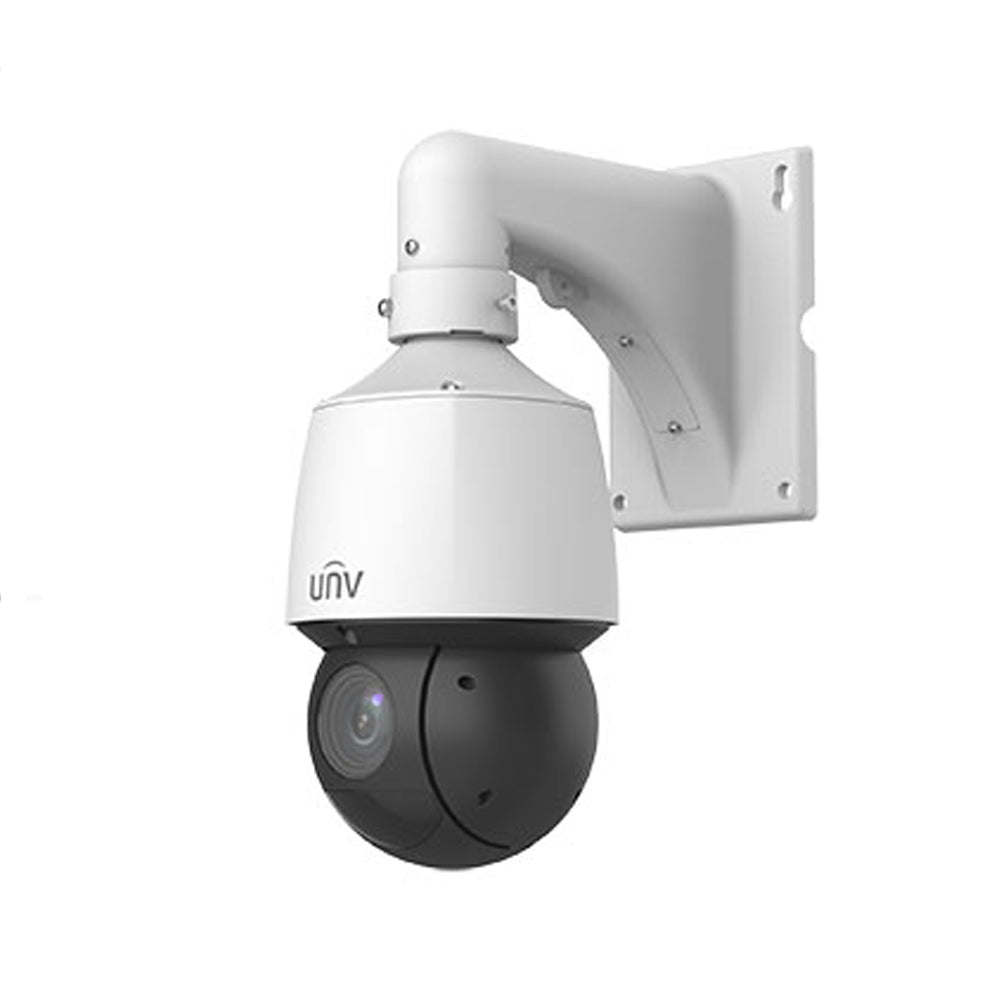

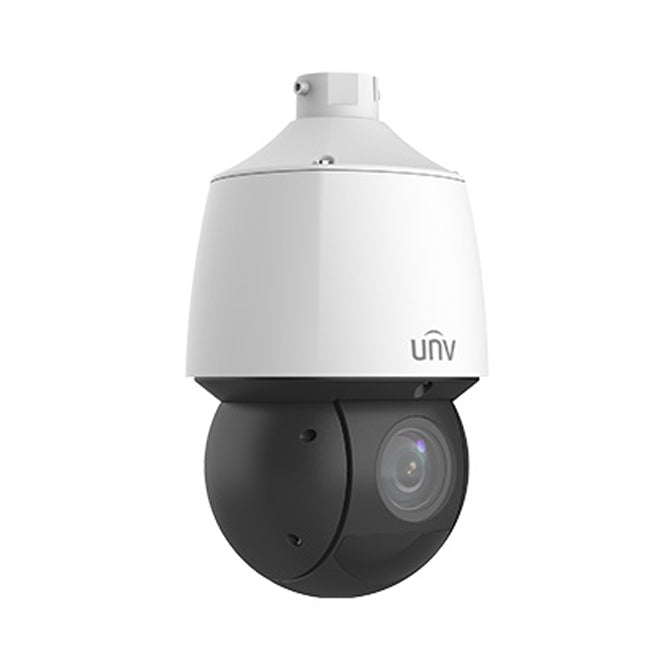

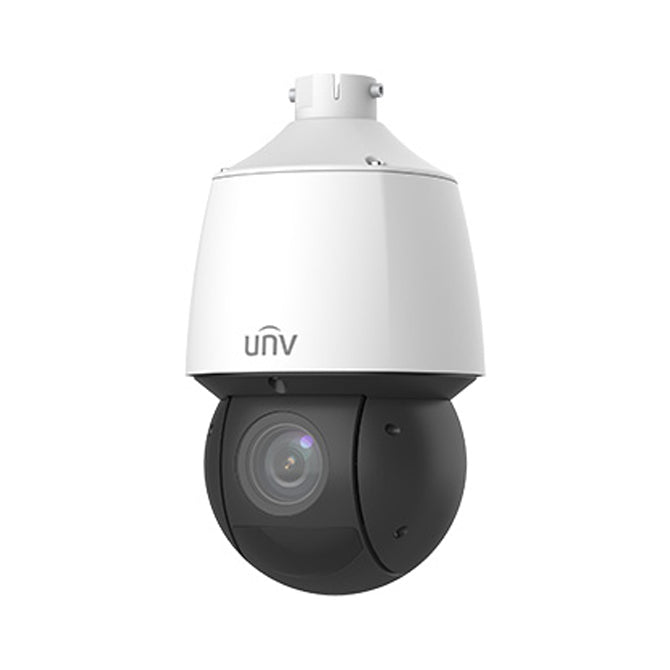

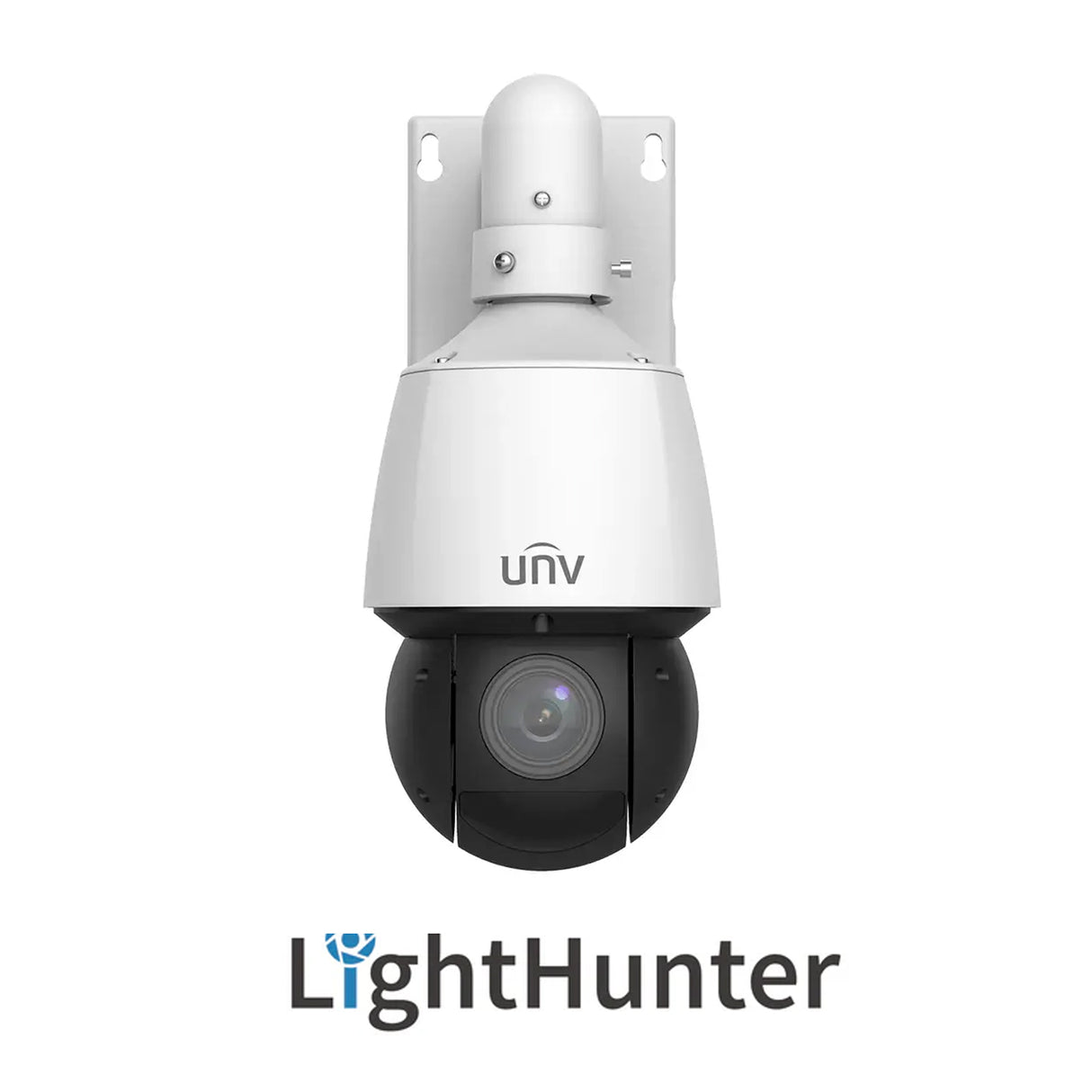

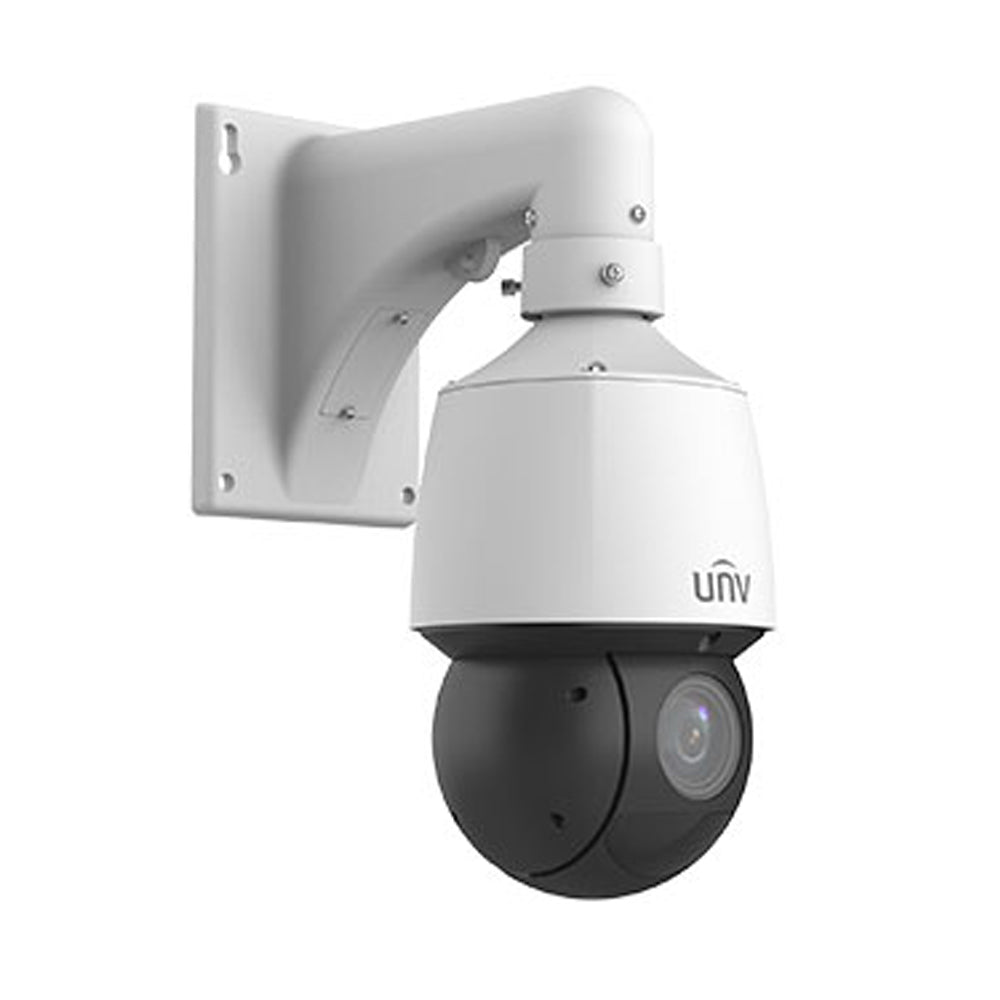

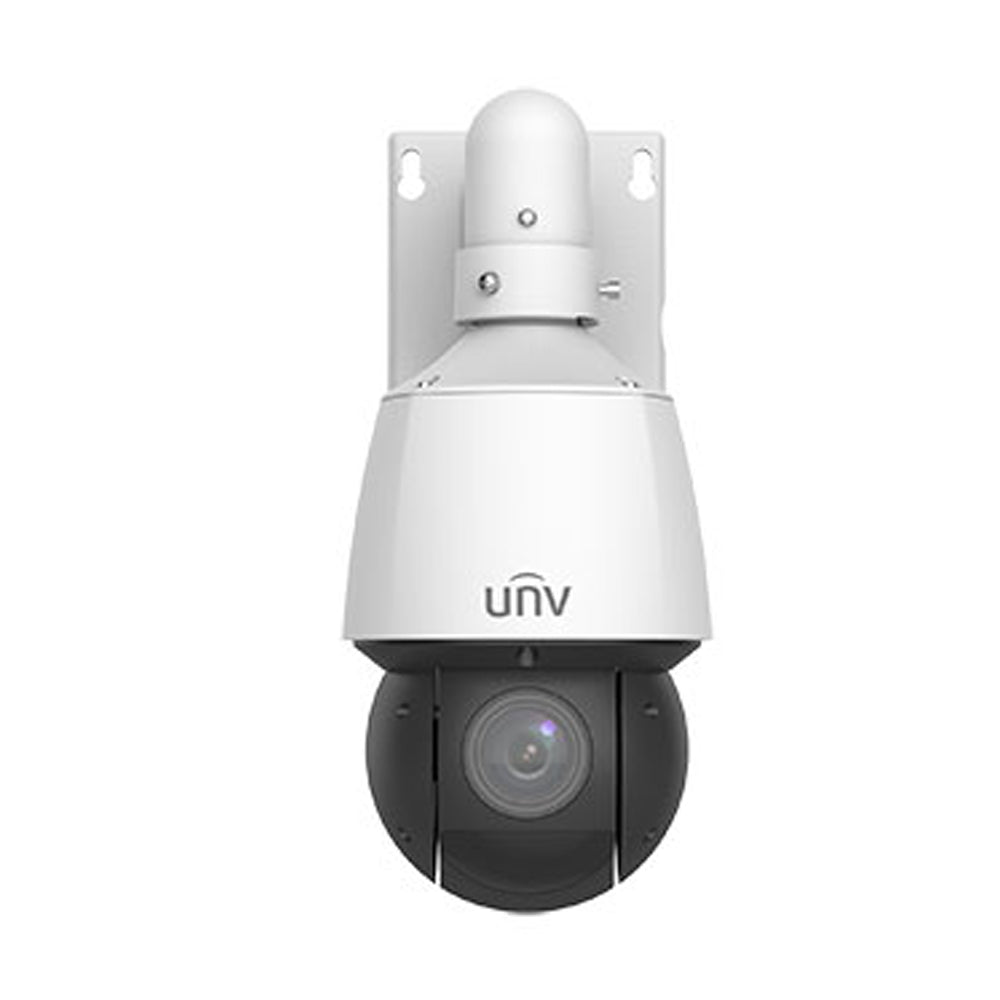

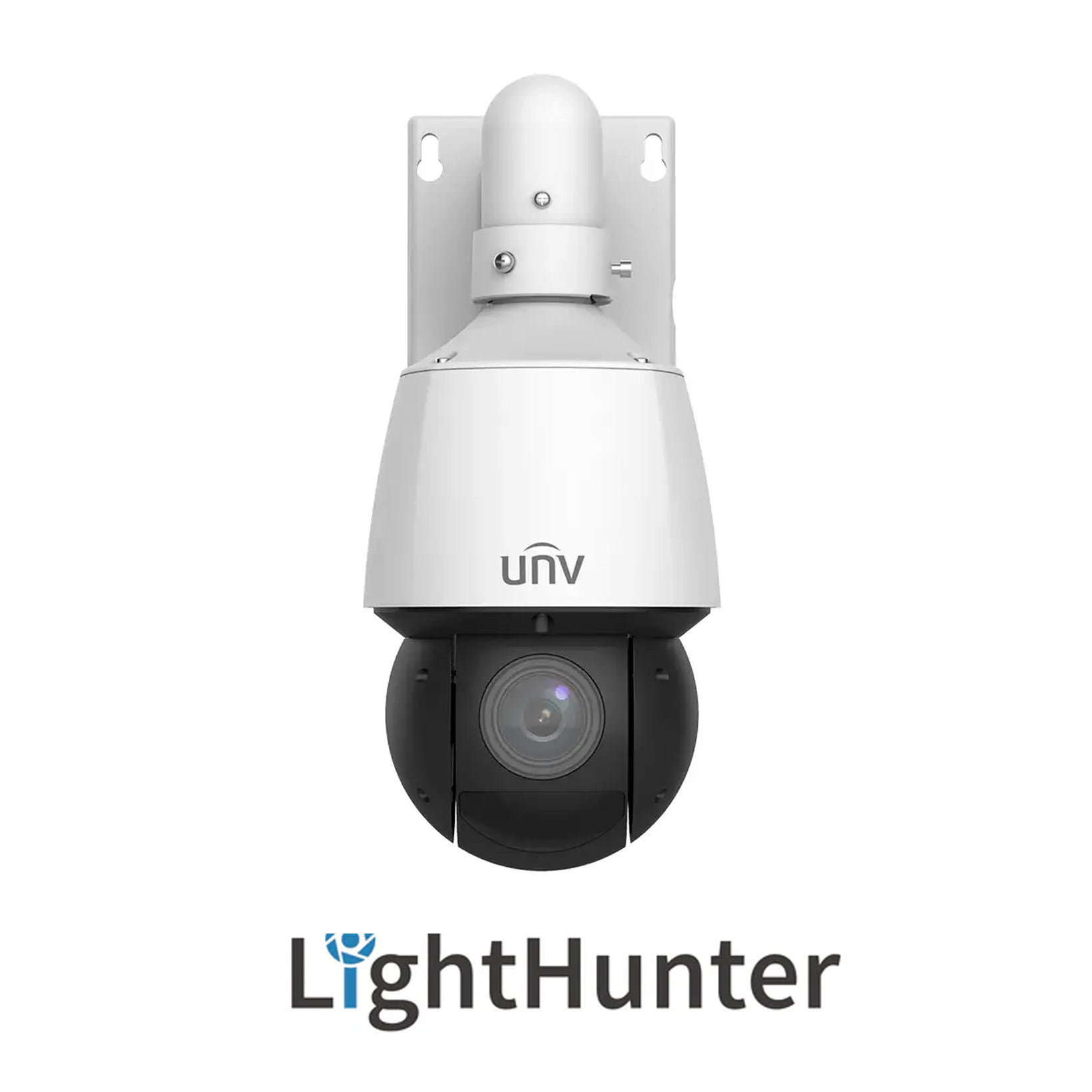

UNV IPC6424SR-X25-VF, (4MP) PTZ, IPC 4.8-120MM 25X Zoom, LightHunter, WDR, UL Listed, Bracket included
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV IPC6424SR-X25-VF, (4MP) PTZ, IPC 4.8-120MM 25X Zoom, LightHunter, WDR, UL Listed, Bracket included is backordered and will ship as soon as it is back in stock.
Description
Description
IPC6424SR-X25-VF
4MP 25x Lighthunter Network PTZ Dome Camera
- 2688 x 1520 Resolution at 30 fps
- IR LEDs for Night Vision up to 328'
- 4.8-120mm Motorized Varifocal Lens
- 52.2 to 2.74° Horizontal Field of View
- Endless Panning, -15 to 90° Tilt Range
- 25x Optical Zoom
- Two-Way Audio
- Complies with ONVIF Profiles G, S & T
- IP67 Rated for Outdoor Use
- IK10-Rated Vandal Resistance
Features
Monitor your surroundings with the IPC6424SR-X25-VF 4MP Outdoor PTZ Network Dome Camera from Uniview.
This unit uses a 1/2.8" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs provide up to 328' of night vision. A 4.8-120mm motorized varifocal lens delivers a 52.2 to 2.74° horizontal field of view. The camera features endless panning, a -15 to 90° tilt range, and 25x optical zoom.
Two-way audio is possible thanks to an audio input and output. An onboard card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
- Smart IR
- Auto and manual IR on/off control
- IR cut filter with auto switch for day and night functionality
- LightHunter technology for visibility in low-light conditions
- Triple streaming
- Up to 8 OSDs
- Privacy masking for up to 24 areas (up to four areas per scene)
- Analytics include: motion detection, tampering alarm, and audio detection
- Flipped perspectives include normal, vertical, horizontal, 180°, and 90° (clockwise and anti-clockwise)
- Additional features include: adjustable white balance, digital defog, 120 dB wide dynamic range, 2D-DNR/3D-DNR, >56 dB S/N ratio, highlight compensation, and backlight compensation
- Supports ANR and NAS
- Compatible with Internet Explorer, Chrome, Firefox, Edge, EZStation, EZView, and EZLive
- Reset button
- 6kV surge protection
PTZ Features
- 1024 presets
- 16 preset patrols (up to 64 presets for each patrol)
- 16 route patrols (up to 32 actions for each patrol)
- 16 recorded patrols (up to 128 actions for each patrol)
- Patrol stay time from 15 to 1800 seconds
- Supports autotracking, preset image freeze, and home position
Specifications
|
Camera
|
|||||
|
Sensor
|
1/2.8", 4.0 megapixel, progressive scan, CMOS
|
||||
|
Min. Illumination
|
Colour: 0.003 Lux (F1.5, AGC ON)
0 Lux with IR |
||||
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
||||
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
||||
|
WDR
|
120dB
|
||||
|
S/N
|
>56dB
|
||||
|
Lens
|
|||||
|
Lens type
|
4.8 ~ 120mm, AF automatic focusing and motorized zoom lens
|
||||
|
Digital Zoom
|
16
|
||||
|
Optical Zoom
|
25
|
||||
|
Iris
|
Auto; F1.5 ~ F3.8
|
||||
|
Field of View (H)
|
52.20°~2.74°
|
||||
|
Field of View (V)
|
30.81°~1.54°
|
||||
|
Field of View (D)
|
64.20°~3.23°
|
||||
|
DORI
|
|||||
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
4.8
|
119.3(391.2ft)
|
47.7(156.5ft)
|
23.9(78.2ft)
|
11.9(39.1ft)
|
|
|
120
|
2475.0(8120.1ft)
|
990.0(3248.0ft)
|
495.0(1624.0ft)
|
247.5(812.0ft)
|
|
|
Illuminator
|
|||||
|
IR Range
|
Up to 100m (328 ft) IR range
|
||||
|
Wavelength
|
850nm
|
||||
|
IR On/Off Control
|
Auto/Manual
|
||||
|
Video
|
|||||
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
||||
|
Frame Rate
|
Main Stream: 4MP(2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
||||
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
||||
|
U-code
|
Support
|
||||
|
ROI
|
Support
|
||||
|
Video Stream
|
Triple streams
|
||||
|
OSD
|
Up to 8 OSDs
|
||||
|
Privacy Mask
|
24 areas, up to 4 areas per scene
|
||||
|
|
|||||
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
||||
|
Digital Noise Reduction
|
2D/3D DNR
|
||||
|
Smart IR
|
Support
|
||||
|
Flip
|
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
||||
|
HLC
|
Support
|
||||
|
BLC
|
Support
|
||||
|
Defog
|
Digital Defog
|
||||
|
Intelligent
|
|||||
|
Smart Intrusion Prevention
|
Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection
|
||||
|
People Counting
|
Support people flow counting and crowd density monitoring
|
||||
|
Events
|
|||||
|
Basic Detection
|
Motion detection, Audio detection, Tampering Alarm
|
||||
|
Auto Tracking
|
Support
|
||||
|
General Function
|
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication,
User Authentication |
||||
|
Audio
|
|||||
|
Audio Compression
|
G.711U,G.711A
|
||||
|
Audio Bitrate
|
64 Kbps
|
||||
|
Two-way Audio
|
Support
|
||||
|
Suppression
|
Support
|
||||
|
Sampling Rate
|
8 kHz
|
||||
|
Storage
|
|||||
|
Edge Storage
|
Micro SD, up to 256 GB
|
||||
|
Network Storage
|
ANR,NAS(NFS)
|
||||
|
Network
|
|||||
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
|
||||
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API,SDK
|
||||
|
User/Host
|
Up to 32 users. 3 user levels: administrator, operator and common user
|
||||
|
Security
|
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
|
||||
|
Client
|
EZStation
EZLive EZView |
||||
|
Web Browser
|
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
|
||||
|
Pan & Tilt
|
|||||
|
Pan Range
|
360° (endless)
|
||||
|
Pan Speed
|
0.1°/s ~ 200°/s
|
||||
|
Preset speed: 240°/s
|
|||||
|
Tilt Range
|
–15° ~ 90° (auto reverse)
|
||||
|
Tilt Speed
|
0.1°/s ~ 120°/s
|
||||
|
Preset speed: 200°/s
|
|||||
|
Number of Presets
|
1024
|
||||
|
Preset Patrol
|
16 patrols, up to 64 presets for each patrol
|
||||
|
Route Patrol
|
16 patrols, up to 32 actions for each patrol
|
||||
|
Recorded Patrol
|
16 patrols, up to 128 actions for each patrol
|
||||
|
Patrol Stay Time
|
15s~1800s
|
||||
|
Preset Image Freeze
|
Support
|
||||
|
Home Position
|
Support
|
||||
|
Interface
|
|||||
|
Audio I/O
|
1/1
|
||||
|
Alarm I/O
|
2/1
|
||||
|
Serial Port
|
1 RS485
|
||||
|
Built-in Mic
|
N/A
|
||||
|
Built-in Speaker
|
N/A
|
||||
|
WIFI
|
N/A
|
||||
|
Network
|
1 * RJ45 10M/100M Base-TX Ethernet
|
||||
|
Video Output
|
1 BNC
|
||||
|
Certification
|
|||||
|
EMC
|
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
|
Safety
|
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863)
|
||||
|
Protection
|
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002) |
||||
|
General
|
|||||
|
Power |
DC12V(±25%,3A), PoE+(IEEE 802.3at)
|
||||
|
Power consumption: MAX 21W
|
|||||
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
||||
|
Dimensions (Ø x H)
|
Ø166 x 295mm (Ø6.5” x 11.6”)
|
||||
|
Weight
|
3.05kg(6.72lb)
|
||||
|
Working Environment
|
-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
|
||||
|
Storage Environment
|
-40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
|
||||
|
Surge Protection
|
6KV
|
||||
|
Reset Button
|
Support
|
||||
