UNV | SKU:
UVIPC9312LFW-AF28-2X4

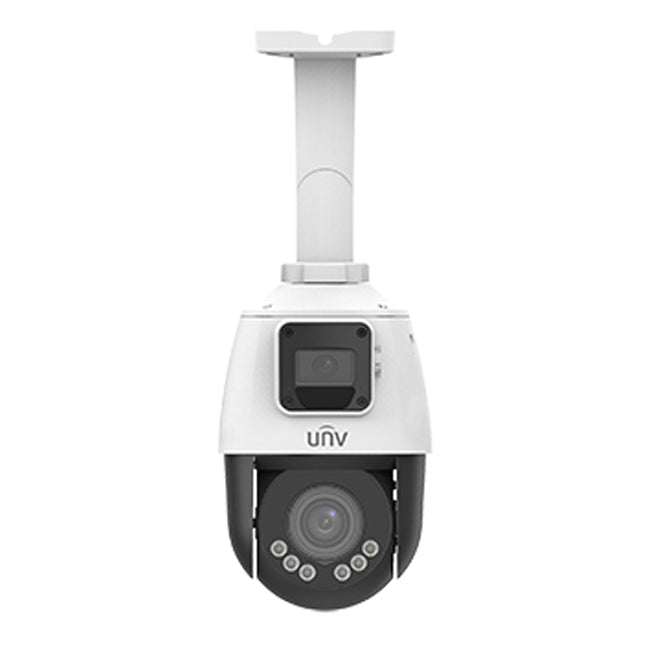

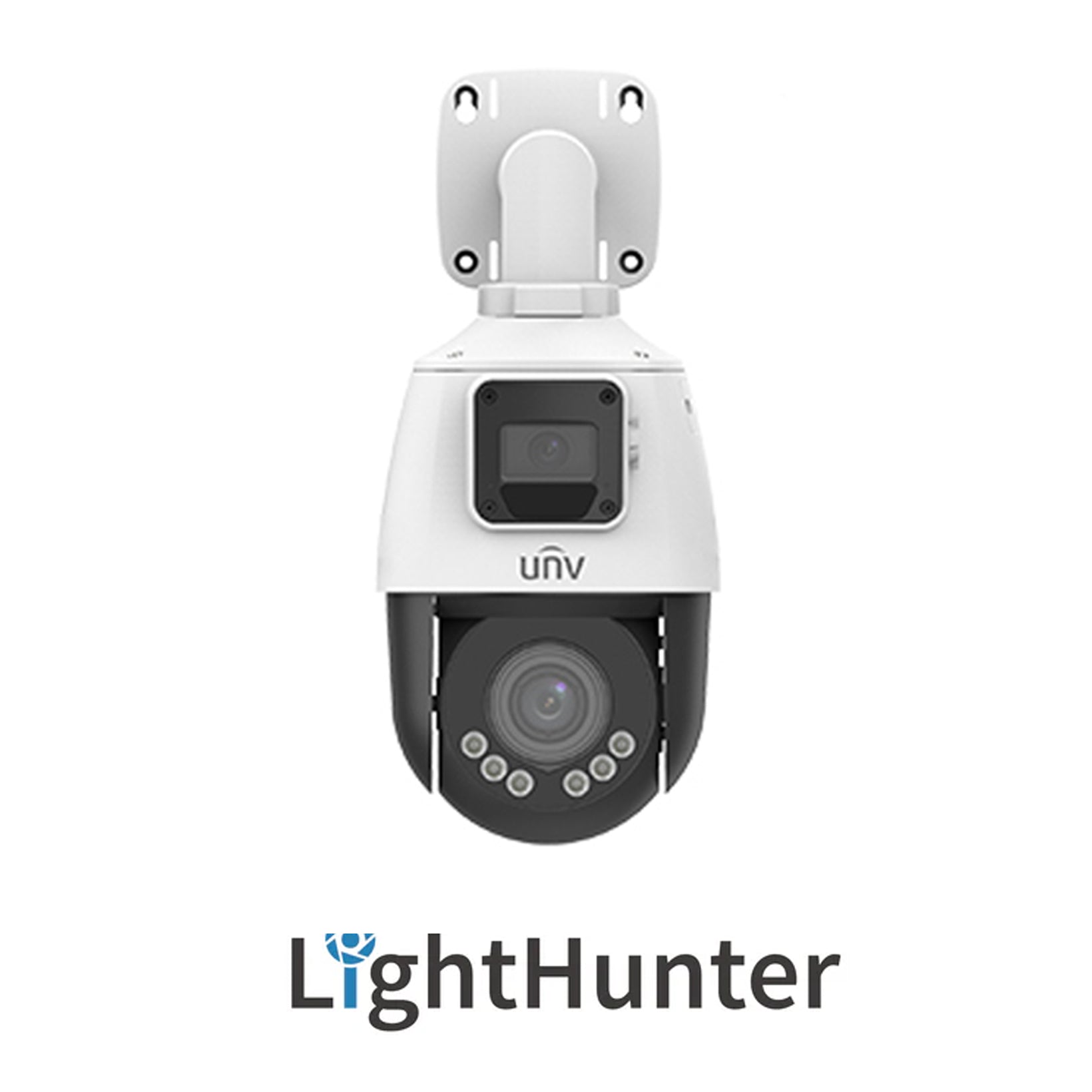

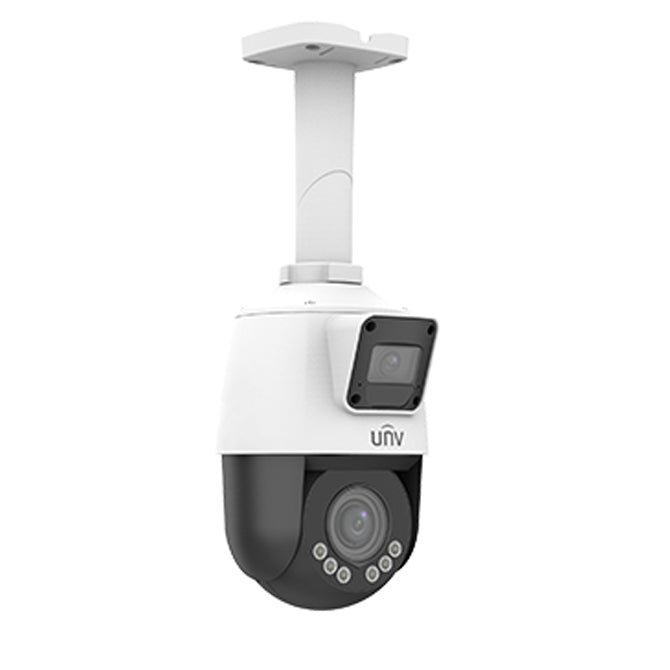

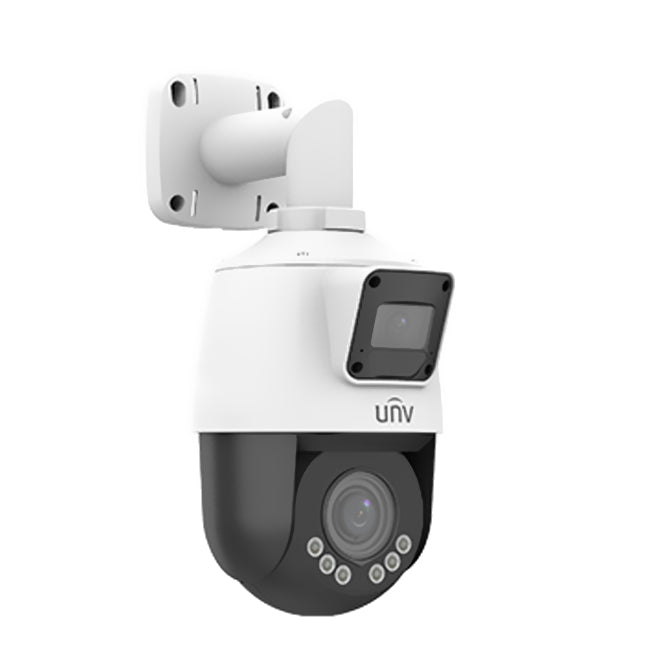

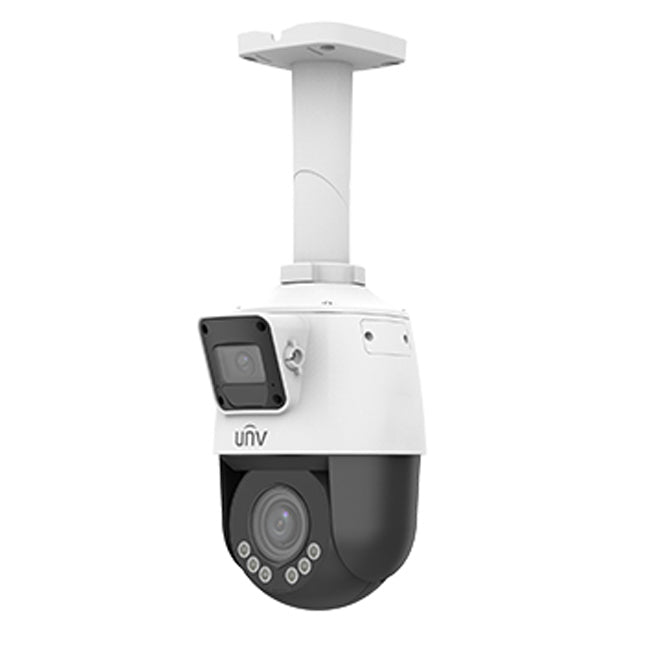

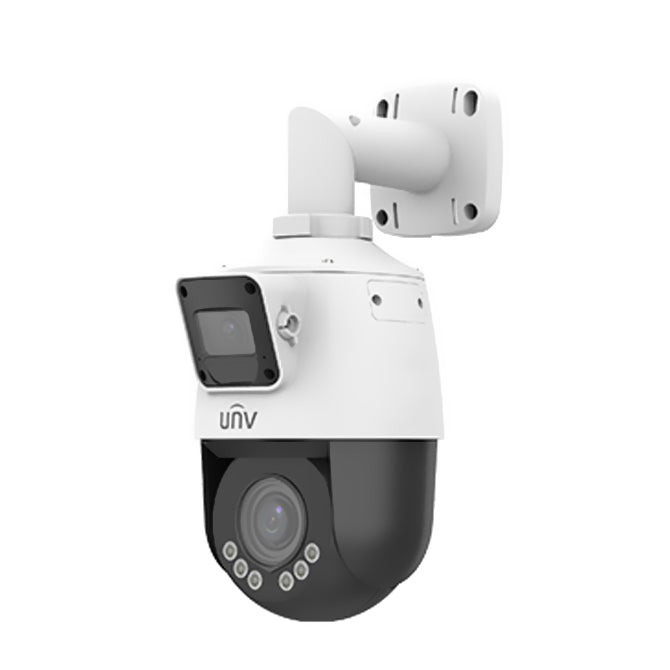

UNV IPC9312LFW-AF28-2X4, (2MP) PTZ, IPC 2.8mm and 2.8-12mm Dual Lens 4X Zoom, LightHunter, Microphone & Speker, WDR, UL Listed
MPN: IPC9312LFW-AF28-2X4
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV IPC9312LFW-AF28-2X4, (2MP) PTZ, IPC 2.8mm and 2.8-12mm Dual Lens 4X Zoom, LightHunter, Microphone & Speker, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
IPC9312LFW-AF28-2X4
2*2MP Lighthunter Dual-lens Network PTZ camera
• Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
• High quality image with 2MP,1/2.8’’ CMOS sensor
• 1920*1080@25fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 4X optical zoom of PTZ channel allows for closer viewing of subjects
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Up to 120 dB Optical WDR (Wide Dynamic Range)
• Built-in 2*mic & high-power speaker, support two-way audio, has better sound performance
• Support ceiling mount and wall mount
Specifications
Camera |
Panorama |
Detail |
||||
Sensor |
1/2.8", 2MP, CMOS |
|||||
Min. Illumination |
Color:0.002 lux (F1.6, AGC ON) 0 lux with IR |
Color:0.002 lux (F1.6, AGC ON) 0 lux with IR/Warm light |
||||
Day/Night |
IR-cut filter with auto switch (ICR) |
|||||
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||||
WDR |
120dB |
DWDR |
||||
S/N |
＞52dB |
|||||
Lens | ||||||
Lens type |
2.8mm@F1.6 |
2.8~12mm@F1.6, AF automatic focusing and motorized zoom lens |
||||
Optical Zoom |
N/A |
4X |
||||
Iris |
Fixed aperture |
|||||
Field of View (H) |
102.4° |
106.6° ~ 30.6° |
||||
Field of View (V) |
54.9° |
56.5° ~ 17.4° |
||||
Field of View (D) |
133.1° |
138.6° ~ 37.6° |
||||
DORI | ||||||
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
2.8(Panorama) |
43.4(142.5ft) |
17.4(57.0ft) |
8.7(28.5ft) |
4.3(14.3ft) |
||
2.8(Detail) |
43.4(142.5ft) |
17.4(57.0ft) |
8.7(28.5ft) |
4.3(14.3ft) |
||
12(Detail) |
162.9(534.6ft) |
65.2(213.8ft) |
32.6(106.9ft) |
16.3(53.5ft) |
||
Illuminator | ||||||
IR Range |
Up to 10m (32.8 ft) |
Up to 50m (164.0 ft) |
||||
Warm Light Range |
N/A |
Up to 10m (32.8 ft) |
||||
Wavelength |
850nm (IR) |
|||||
Light On/Off Control |
Auto/Manual |
|||||
Video | ||||||
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|||||
Frame Rate |
Main Stream: 1080P (1920*1080),Max 25fps Sub Stream: 720P (1280*720), Max 25fps |
|||||
Video Bit Rate |
128 Kbps~16 Mbps |
|||||
U-code |
Support (Main stream) |
|||||
ROI |
Up to 8 areas |
|||||
Video stream |
Dual streams |
|||||
OSD |
Up to 4 OSDs |
|||||
Privacy Mask |
24 areas, up to 4 areas per scene |
|||||
Image | ||||||
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|||||
Digital noise reduction |
2D/3D DNR |
|||||
Smart IR |
Support |
|||||
Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
|||||
HLC |
Support |
|||||
BLC |
Support |
|||||
Defog |
Digital defog |
|||||
Events | ||||||
Basic Detection |
Motion detection, Audio detection |
|||||
General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|||||
Audio | ||||||
Audio Compression |
G.711U, G.711A |
|||||
Audio Bitrate |
64 Kbps |
|||||
Two-way Audio |
Support |
|||||
Suppression |
Support |
|||||
Sampling Rate |
8 kHz |
|||||
Storage | ||||||
Edge Storage |
Micro SD, up to 256 GB |
|||||
Network Storage |
ANR |
|||||
Network | ||||||
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
|||||
Compatible Integration |
ONVIF (Profile S, Profile G), API, SDK |
|||||
User/Host |
Up to 32 users. 3 user levels: administrator, operator and common user |
|||||
Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|||||
Client |
EZStation EZLive EZView |
|||||
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
|||||
Pan & Tilt | ||||||
Pan Range |
N/A |
0° ~ 345° |
||||
Pan Speed |
N/A |
1°/s ~ 40°/s |
||||
Preset speed: N/A |
Preset speed: 40°/s |
|||||
Tilt Range |
18° ± 5° |
-10° ~ 100° |
||||
Tilt Speed |
N/A |
1°/s ~ 50°/s |
||||
Preset speed: N/A |
Preset speed: 50°/s |
|||||
Number of Presets |
256 |
|||||
Preset Patrol |
16 patrol routes, up to 64 presets for each route |
|||||
Patrol Stay Time |
1000s~1800s |
|||||
Preset Image Freeze |
N/A |
|||||
Home Position |
Support |
|||||
Interface | ||||||
Audio I/O |
N/A |
|||||
Alarm I/O |
N/A |
|||||
Serial Port |
N/A |
|||||
Built-in Mic |
Support (Mic*2) |
|||||
Built-in Speaker |
Support |
|||||
Wi-Fi |
N/A |
|||||
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
|||||
Video Output |
N/A |
|||||
Certification | ||||||
EMC |
CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||||
Safety |
CE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||||
Environment |
CE-ROHS (2011/65/EU) |
|||||
Protection |
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
|||||
General | ||||||
Power |
DC12V, PoE+(IEEE 802.3at) |
|||||
Power consumption: MAX 16W | ||||||
Power Interface |
Ø 5.5mm coaxial power plug |
|||||
Dimensions (Ø x H) |
Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”) Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”) |
|||||
Weight |
1.03kg (2.27lb) |
|||||
Working Environment |
-20℃ ~ 60℃(-4°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) |
|||||
Storage Environment |
-30℃ ~ 70℃(-22°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) |
|||||
Surge protection |
2KV |
|||||
Reset button |
Support |
|||||
