UNV | SKU:
UVIPC94144SFW-X25-F40C

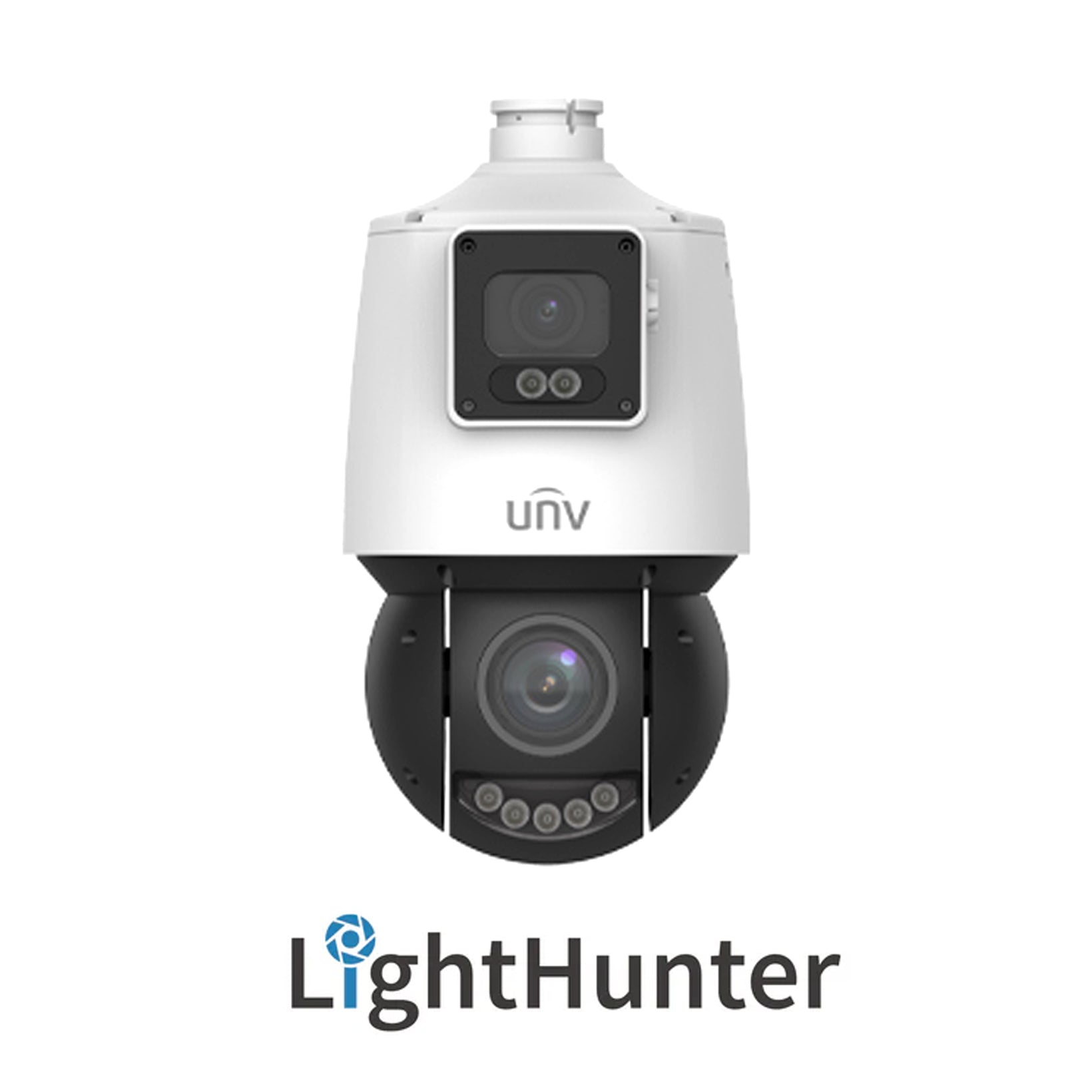

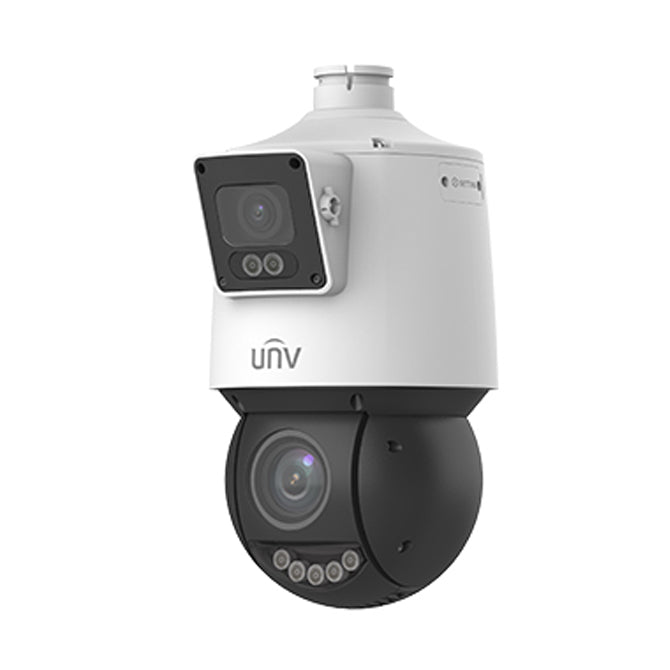

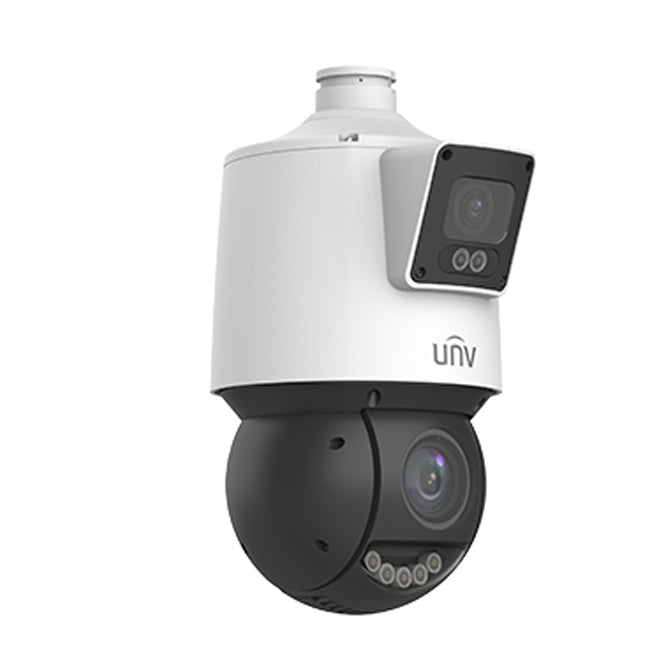

UNV IPC94144SFW-X25-F40C, (4MP) PTZ, IPC 4mm and 4.8-120MM Dual Lens 25X Zoom, LightHunter, Microphone & Speaker, WDR, UL Listed, NDAA Compliant
MPN: IPC94144SFW-X25-F40C
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV IPC94144SFW-X25-F40C, (4MP) PTZ, IPC 4mm and 4.8-120MM Dual Lens 25X Zoom, LightHunter, Microphone & Speaker, WDR, UL Listed, NDAA Compliant is backordered and will ship as soon as it is back in stock.
Description
Description
Features
4MP+4MP Lighthunter Dual-lens Network PTZ Camera
• Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
• Ultra 265, H.265, H.264, MJPEG
• 25X optical zoom of PTZ channel allows for closer viewing of subjects
• PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• IR & warm light illumination to deal with different scenes and achieve full-color illumination
• DC12V or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out
SPECIFICATIONS
|
Channel 1 (Panorama)
|
Channel 2 (Detail)
|
|
|
Camera
|
||
|
Sensor
|
1/1.8" CMOS
|
1/2.7" CMOS
|
|
Min. Illumination
|
Color: 0.0005 Lux (F1.0, AGC ON), 0 lux with IR
|
Color: 0.003 Lux (F1.5, AGC ON), 0 lux with IR
|
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
|
|
Shutter
|
Auto/Manual, 1 to 1/100000 s
|
|
|
WDR
|
120 dB
|
|
|
S/N
|
>56 dB
|
|
|
Lens
|
||
|
Focal Length
|
4.0 mm
|
4.8 to 120 mm
|
|
Optical Zoom
|
N/A
|
25X
|
|
Iris
|
F1.0
|
F1.5 to F3.8
|
|
Field of View (H)
|
94.9°
|
55.46° to 3.09°
|
|
Field of View (V)
|
51.5°
|
32.94° to 1.73°
|
|
Field of View (D)
|
116.7°
|
68.22° to 3.80°
|
|
DORI
|
||
|
DORI Distance (Detect)
|
90.0 m (295.3 ft.)
|
123.8 m to 2475.0 m (406.0 ft. to 8120.1 ft.)
|
|
DORI Distance (Observe)
|
36.0 m (118.1 ft.)
|
43.2 m to 1080.0 m (141.7 ft. to 3543.3ft.)
|
|
DORI Distance (Recognize)
|
18.0 m (59.1 ft.)
|
21.6 m to 540 m (70.9 ft. to 1771.7 ft.)
|
|
DORI Distance (Identify)
|
9.0 m (29.5 ft.)
|
10.8 m to 270 m (35.4 ft. to 885.8 ft.)
|
|
Video
|
||
|
Privacy Mask
|
Up to 4 areas
|
24 areas, up to 4 areas per scene
|
|
Frame Rate-Main Stream
|
4 MP (2688 × 1520)@25 fps (Default)
4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; |
|
|
Frame Rate-Sub Stream
|
720P (1280 × 720), max. 30 fps;
D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
1080P (1920 × 1080), max. 30 fps;
720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
|
Frame Rate-Third Stream
|
D1 (720 × 576), max. 30 fps;
640 × 360, max. 30 fps; 2CIF (704 × 288) , max. 30 fps; CIF (352 × 288) , max. 30 fps |
|
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
|
|
Frame Rate
|
Main Stream: 4 MP (2688 × 1520), max. 30 fps;
Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps |
Main Stream: 4 MP (2688 × 1520), max. 30 fps;
Sub Stream: 1080P (1920 × 1080), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps |
|
Frame Rate Recommendation
|
2688 × 1520@30 fps + 720P@30 fps + D1@16 fps
2688 × 1520@30 fps + 720P@25 fps + D1@30 fps 2688 × 1520@25 fps + 720P@25 fps + D1@25 fps 2560 × 1440@30 fps + 720P@30 fps + D1@30 fps 2560 × 1440@30 fps + 720P@25 fps + D1@30 fps 2560 × 1440@25 fps + 720P@25 fps + D1@25 fps 1080P@30 fps + 720P@30 fps + D1@30 fps 1080P@25 fps + 720P@25 fps + D1@25 fps |
2688 × 1520@30 fps + 1080P@30 fps + D1@16 fps
2688 × 1520@30 fps + 1080P@25 fps + D1@30 fps 2688 × 1520@25 fps + 1080P@25 fps + D1@25 fps 2560 × 1440@30 fps + 1080P@30 fps + D1@30 fps 2560 × 1440@30 fps + 1080P@25 fps + D1@30 fps 2560 × 1440@25 fps + 1080P@25 fps + D1@25 fps 1080P@30 fps + 1080P@30 fps + D1@30 fps 1080P@25 fps + 1080P@25 fps + D1@25 fps |
|
Video Bit Rate
|
128 Kbps to 16 Mbps
|
|
|
U-code
|
Support
|
|
|
ROI
|
Support
|
|
|
Video Stream
|
Triple streams
|
|
|
OSD
|
Up to 8 OSDs
|
|
|
|
||
|
White Balance
|
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
|
|
|
Digital Noise Reduction
|
2D/3D DNR
|
|
|
Flip
|
Normal, Flip vertical, Flip horizontal, 180°
|
|
|
HLC
|
Support
|
|
|
BLC
|
Support
|
|
|
Smart IR
|
Support
|
|
|
Defog
|
Digital defog
|
|
|
Heatwave Reduction
|
Support
|
|
|
Illuminator
|
||
|
Light On/Off Control
|
Auto/Manual
|
|
|
Wavelength
|
N/A
|
850 nm
|
|
Illumination Distance (IR)
|
N/A
|
100 m (328.1 ft.)
|
|
Illumination Distance (Warm Light)
|
30 m (98.4 ft.)
|
N/A
|
|
Supplemental Light
|
Warm light
|
|
|
Events
|
||
|
Basic Detection
|
Motion detection, Audio detection, Tampering alarm
|
|
|
General Function
|
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output
|
|
|
UMD (Ultra Motion Detection)
|
Support
|
|
|
Intelligent
|
||
|
Linkage Function
|
Support. Triggered by fixed lens via smart intrusion prevention function to track target
|
N/A
|
|
Smart Intrusion Prevention
|
Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
|
|
|
People Counting
|
Support people flow counting and crowd density detection
|
|
|
Exception Detection
|
Object Left Behind, Object removed, Scene change
|
Object Left Behind, Object removed
|
|
Audio
|
||
|
Audio Compression
|
G.711U, G.711A
|
|
|
Audio Bitrate
|
128 Kbps
|
|
|
Two-way Audio
|
Support
|
|
|
Suppression
|
Support
|
|
|
Sampling Rate
|
16 kHz
|
|
|
Storage
|
||
|
Edge Storage
|
MicroSD, up to 512 GB
|
|
|
Network Storage
|
ANR
|
|
|
Network
|
||
|
Protocols
|
SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
|
|
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
|
|
|
User/Host
|
Up to 32 users. 3 user levels: administrator, common user and operator
|
|
|
Security
|
TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
|
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3
|
|
Client
|
EZStation, UNV-Link, UNV-Link Pro
|
|
|
Web Browser
|
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
|
|
|
PTZ
|
||
|
Number of Presets
|
N/A
|
1024
|
|
Preset Patrol
|
N/A
|
16 patrols, up to 64 presets for each patrol
|
|
Route Patrol
|
N/A
|
16 patrols, up to 32 actions for each patrol
|
|
Recorded Patrol
|
N/A
|
16 patrols, up to 128 actions for each patrol
|
|
Patrol Stay Time
|
15 s to 1800 s
|
|
|
Preset Image Freeze
|
N/A
|
|
|
Home Position
|
N/A
|
Support
|
|
Number of Presets (IPC)
|
N/A
|
1024
|
|
Pan Range
|
N/A
|
360°
|
|
Tilt Range
|
18°±5°
|
-15° to 90°
|
|
Pan Speed
|
N/A
|
0.1°/s to 80°/s
|
|
Tilt Speed
|
N/A
|
0.1°/s to 80°/s
|
|
Interface
|
||
|
Audio I/O
|
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
|
|
|
Alarm I/O
|
2/1
|
|
|
Serial Port
|
1 × RS485
|
|
|
Built-in Mic
|
N/A
|
|
|

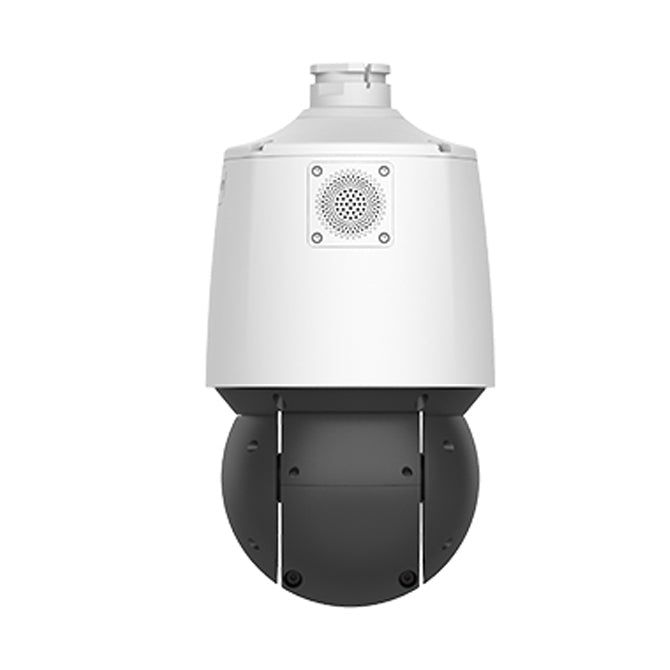

Built-in Speaker
|
Support
|
|
|
WIFI
|
N/A
|
|
|
Network
|
1 × RJ45 10 M/100 M Base-TX Ethernet
|
|
|
Video Output
|
N/A
|
|
|
Certification
|
||
|
EMC
|
CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|
|
Safety
|
CE LVD (EN 62368-1: 2014+A11: 2017)
UL (UL 62368-1, 2nd Ed , Issue Date: 2014-12-01) |
|
|
Environment
|
CE-RoHS (2011/65/EU; (EU) 2015/863)
|
|
|
Protection
|
IP66 (IEC 60529 : 1989+AMD1: 1999+AMD2: 2013)
|
|
|
General
|
||
|
Power
|
DC 12 V (±25%), PoE+ (IEEE 802.3at)
|
|
|
Power Consumption
|
Max. 24 W
|
|
|
Power Interface
|
Ø5.5 mm coaxial power plug
|
|
|
Dimensions
|
304 mm × 195 mm × 163 mm (12.0" × 7.7" × 6.4" ) (L × W × H)
|
|
|
Weight
|
2.27 kg (5.00 lb.)
|
|
|
Working Environment
|
-40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing)
|
|
|
Storage Environment
|
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
|
|
|
Surge Protection
|
4 KV
|
|
|
Reset Button
|
Support
|
|
|
Web Client Language
|
22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
|
|
