UNV | SKU:
UVKIT-IP/01

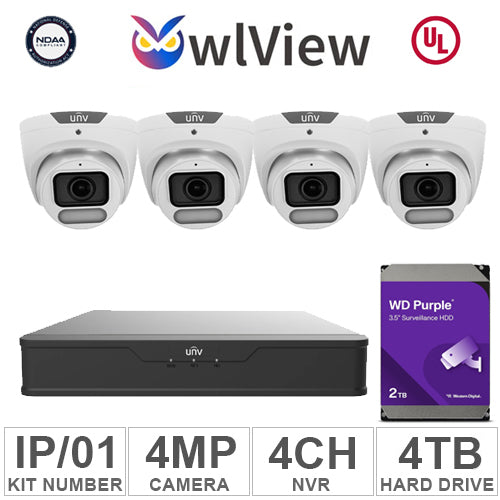

UNV KIT-IP/01 (4 IP Cameras 4MP + 1-WD/4-TB + 1-NVR/4-CH)
MPN: KIT-IP/01
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV KIT-IP/01 (4 IP Cameras 4MP + 1-WD/4-TB + 1-NVR/4-CH) is backordered and will ship as soon as it is back in stock.
Description
Description
- 1-NVR 4 Channels: UVNVR301-4B-P4-IQ
-
4-Cameras 4MP: UVIPC3624SR-ADF28KM-WP
- 1-Hard Drive 4TB: WDHD4TBWDP
UVIPC3624SR-ADF28KM-WP
- High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise ISP technology ensures 24 hour full color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built in Mic
- White Light, up to 30m (98ft) warm light distance
- Supports 256 GB Micro SD card
- IP67 protection
- Support PoE power supply
- 3 Axis
UVNVR301-4B-P4-IQ
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 16 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
WDHD4TBWDP
Capacity |
4 TB |
|---|---|
Cache Memory Installed Size |
64 MB |
Disk Speed (RPM) |
5,400 rpm |
Hard Disk Form Factor |
3.5 in |
Hardware Connectivity |
SATA 6.0 Gb/s |
Dimensions (L x W x H) |
5.79" x 4" x 1.03" |
Compatibility |
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays. |
Item Weight |
0.99 lb |
