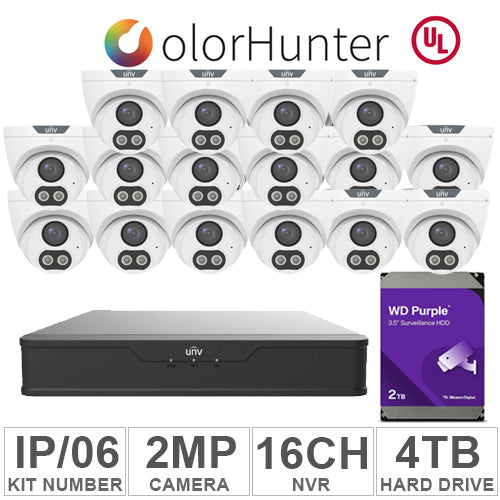

UNV KIT-IP/06 (16 IP Cameras 2MP + 1-WD/4-TB + 1-NVR/16-CH)
by UNV
SKU UVKIT-IP/06
- 1-NVR 16 Channels: NVR1616P4KSAT2
- 16-Cameras 2MP: IPC3612SR3-ADF28KMC-DL
- 1-Hard Drive 4TB: WDHD4TBWDP
- High quality image with 2MP, 1/3"CMOS sensor
- 2MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic & Speaker
- Smart IR, up to 30m (98ft) IR distance
- White Light, up to 30m (98ft) white light distance
- Supports 128 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
- 16-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- 2 SATA HDDs, up to 10TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Guard Viewer App
| Capacity | 4 TB |
|---|---|
| Cache Memory Installed Size | 64 MB |
| Disk Speed (RPM) | 5,400 rpm |
| Hard Disk Form Factor | 3.5 in |
| Hardware Connectivity | SATA 6.0 Gb/s |
| Dimensions (L x W x H) | 5.79" x 4" x 1.03" |
| Compatibility | WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays. |
| Item Weight | 0.99 lb |
