UNV  |  SKU: UVKIT-IP/22

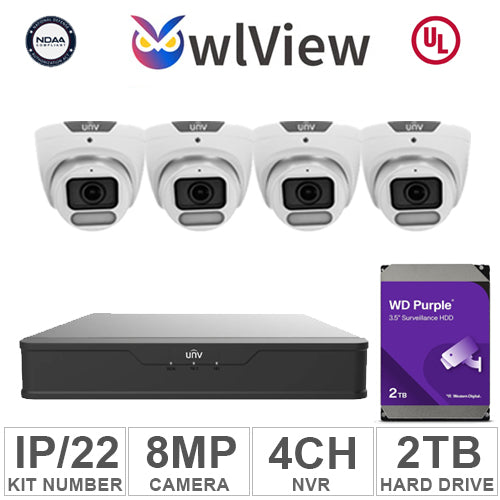

UNV KIT-IP/22 (4 Cameras IP 8MP + 1WD/2TB + 1NVR/16CH)

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description
  • 1-NVR 4 Channels: UVNVR301-4B-P4-IQ
  • 4-Cameras 8MP: IPC3628SR-ADF28KM-WP
  • 1-Hard Drive 2TB: WDHD2TBWDP
IPC3628SR-ADF28KM-WP
  • High quality image with 8MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Colorhunter with Wise‑ISP technology ensures 24‑hour full‑color images
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built‑in Mic
  • White Light, up to 30m (98ft) warm light distance
  • Supports 512 GB Micro SD card
  • IP67 protection
  • Support PoE power supply
  • 3‑Axis
UVNVR301-4B-P4-IQ
  • Support Ultra 265/H.265/H.264 video formats
  • 4/8-channel input
  • Plug & Play with 4/8 independent PoE network interfaces
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Up to 12 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
WDHD2TBWDP
Capacity
2 TB
Cache Memory Installed Size
64 MB
Disk Speed (RPM)
5,400 rpm
Hard Disk Form Factor
3.5 in
Hardware Connectivity
SATA 6.0 Gb/s
Dimensions (L x W x H)
5.79" x 4" x 1.03"
Compatibility
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
Item Weight
0.99 lb
