UNV | SKU:
UVKIT-IP/23

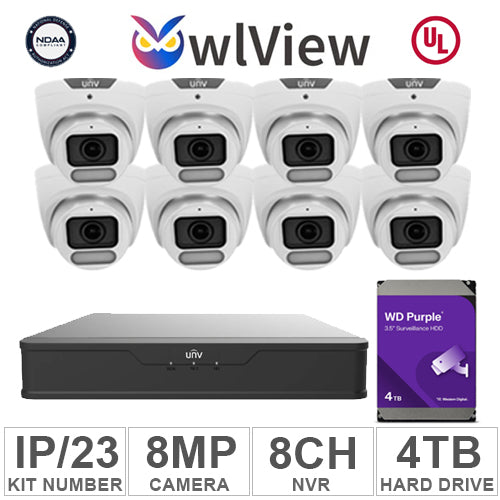

UNV KIT-IP/23 (8 Cameras IP 8MP + 1WD/4TB + 1 NVR/8CH)
UNV KIT-IP/23 (8 Cameras IP 8MP + 1WD/4TB + 1 NVR/8CH) is backordered and will ship as soon as it is back in stock.
Loading location-specific inventory...
Description
Description
- 1-NVR 4 Channels: UVNVR308-8B-P8-IQ
-
8-Cameras 8MP: IPC3628SR-ADF28KM-WP
- 1-Hard Drive 4TB: WDHD4TBWDP
IPC3628SR-ADF28KM-WP
- High quality image with 8MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise‑ISP technology ensures 24‑hour full‑color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built‑in Mic
- White Light, up to 30m (98ft) warm light distance
- Supports 512 GB Micro SD card
- IP67 protection
- Support PoE power supply
- 3‑Axis
UVNVR301-8B-P8-IQ
- Support Ultra 265/H.265/H.264 video formats
- 4/8/16 channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 12 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
WDHD4TBWDP
|
Capacity
|
4 TB
|
|---|---|
|
Cache Memory Installed Size
|
64 MB
|
|
Disk Speed (RPM)
|
5,400 rpm
|
|
Hard Disk Form Factor
|
3.5 in
|
|
Hardware Connectivity
|
SATA 6.0 Gb/s
|
|
Dimensions (L x W x H)
|
5.79" x 4" x 1.03"
|
|
Compatibility
|
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
|
|
Item Weight
|
0.99 lb
|
