UNV  |  SKU: UVKIT-TVI/03

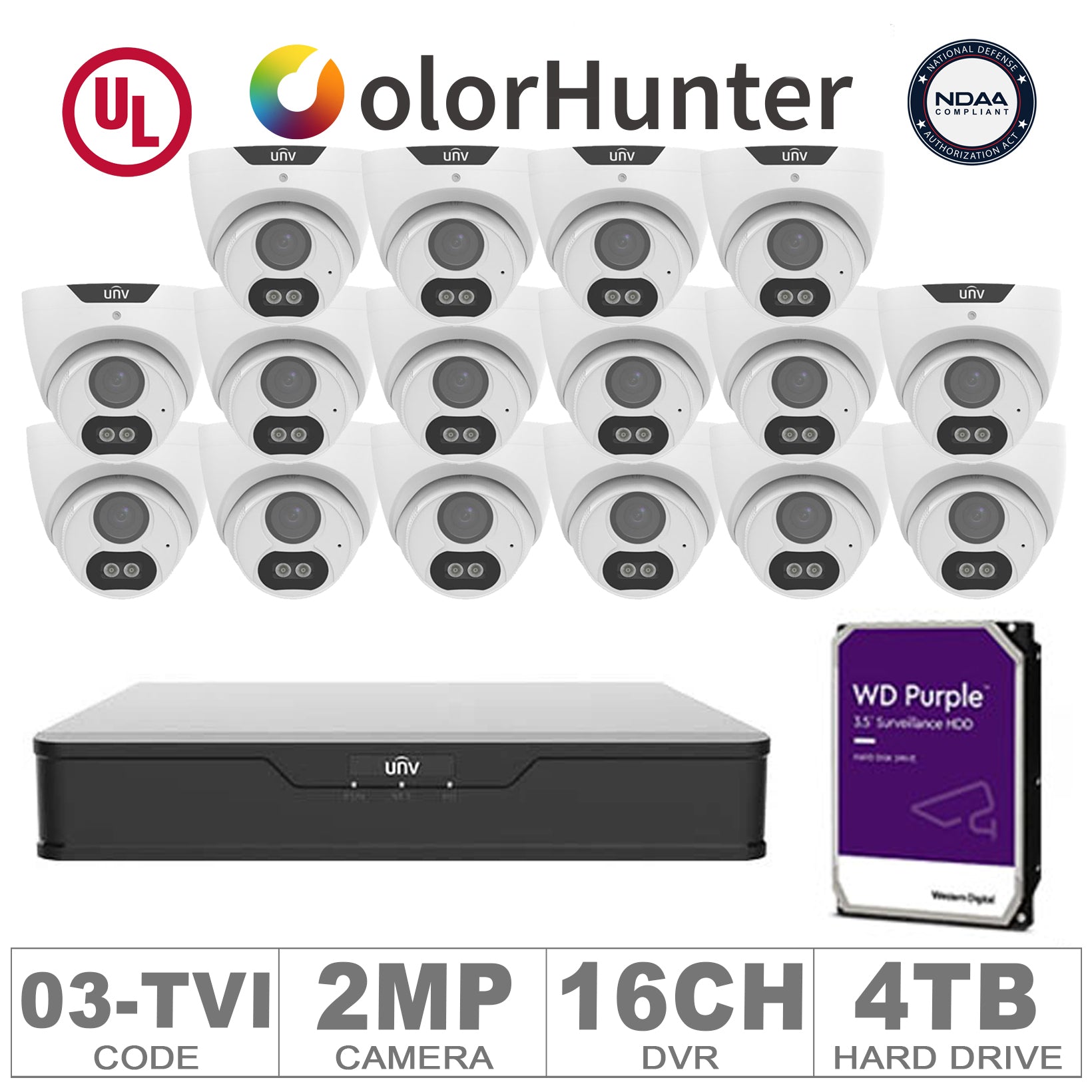

UNV KIT-TVI/03 (16 TVI Cameras 2MP + 1-WD/4-TB + 1-DVR/16-CH)

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description

UVXVR301-16G3

  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(only for TVI cameras)
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 4/8/16 channel BNC input
  • Support 1 ch HDMI output, 1 ch VGA output at up to 1920*1080
  • HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols
  • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
UAC-T122-AF28M-W
  • TVI/AHD/CVI/CVBS
  • Supports white light illumination, 24/7 color images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
  • Built-in microphone for high quality audio transmission via coaxial cables
  • Supports digital defog
  • Metal front face and housing
  • 3-Axis
WDHD4TBWDP
Capacity
4 TB
Cache Memory Installed Size
64 MB
Disk Speed (RPM)
5,400 rpm
Hard Disk Form Factor
3.5 in
Hardware Connectivity
SATA 6.0 Gb/s
Dimensions (L x W x H)
5.79" x 4" x 1.03"
Compatibility
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
Item Weight
0.99 lb
