UNV | SKU:
UVKIT-TVI/05

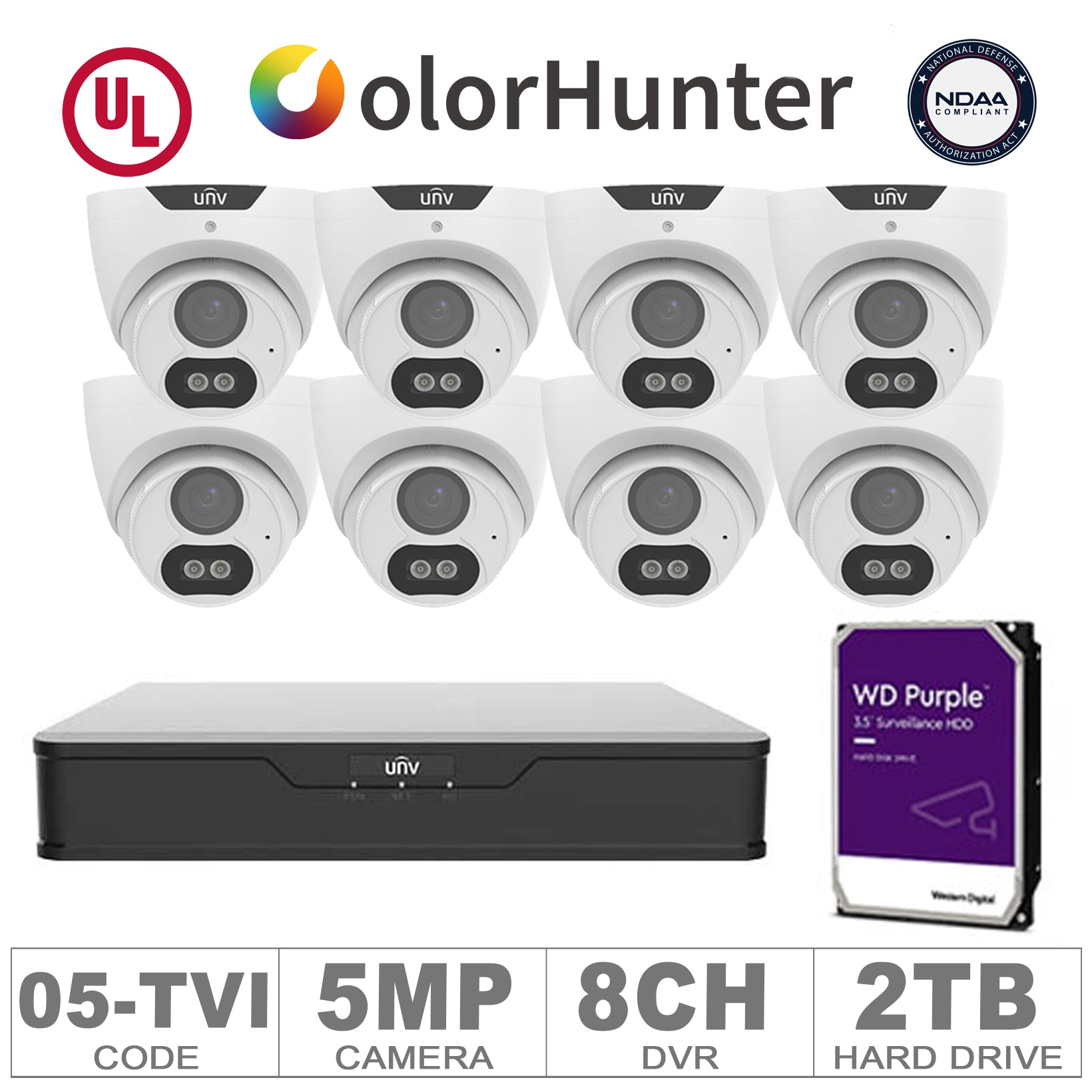

UNV KIT-TVI/05 (8 TVI Cameras 5MP + 1WD/2-TB + 1 DVR/8-CH)
MPN: KIT-TVI/05
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV KIT-TVI/05 (8 TVI Cameras 5MP + 1WD/2-TB + 1 DVR/8-CH) is backordered and will ship as soon as it is back in stock.
Description
Description
- 1-DVR 8 Channels: XVR301-08Q3
- 8-Cameras 5MP: UAC-T145-AF28M-DL
- 1-Hard Drive 2TB: WDHD2TBWDP
XVR301-08Q3
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8-channel BNC input
- Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
-
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
UAC-T145-AF28M-DL
- High quality imaging with 5MP resolution
- TVI/AHD/CVI/CVBS
- Supports IR cut filter with auto switch (ICR)
- Smart Dual Light
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built in microphone for high quality audio transmission via coaxial cables
WDHD2TBWDP
|
Capacity
|
2 TB
|
|---|---|
|
Cache Memory Installed Size
|
64 MB
|
|
Disk Speed (RPM)
|
5,400 rpm
|
|
Hard Disk Form Factor
|
3.5 in
|
|
Hardware Connectivity
|
SATA 6.0 Gb/s
|
|
Dimensions (L x W x H)
|
5.79" x 4" x 1.03"
|
|
Compatibility
|
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
|
|
Item Weight
|
0.99 lb
|
