UNV | SKU:
UVNVR502-16B-P16

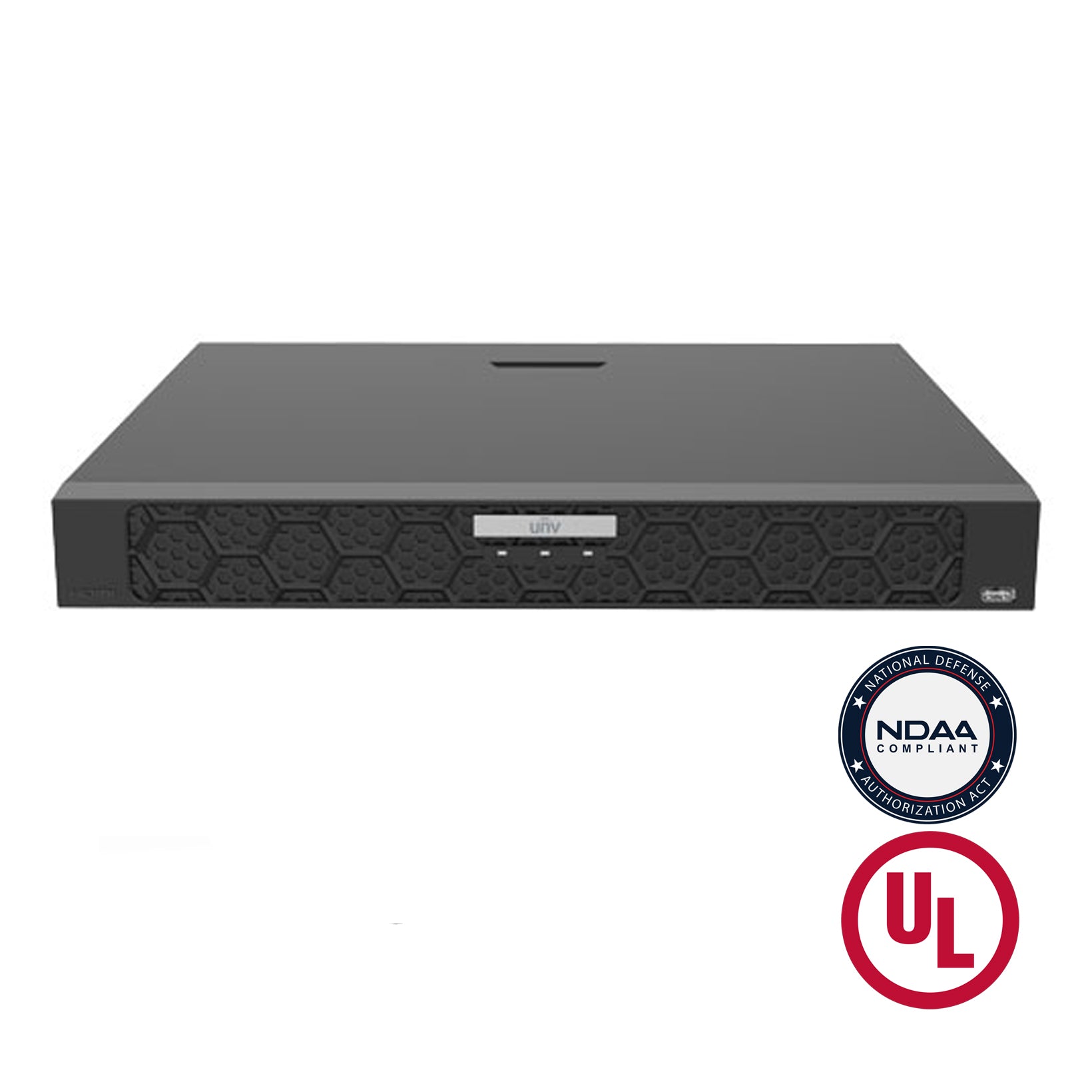

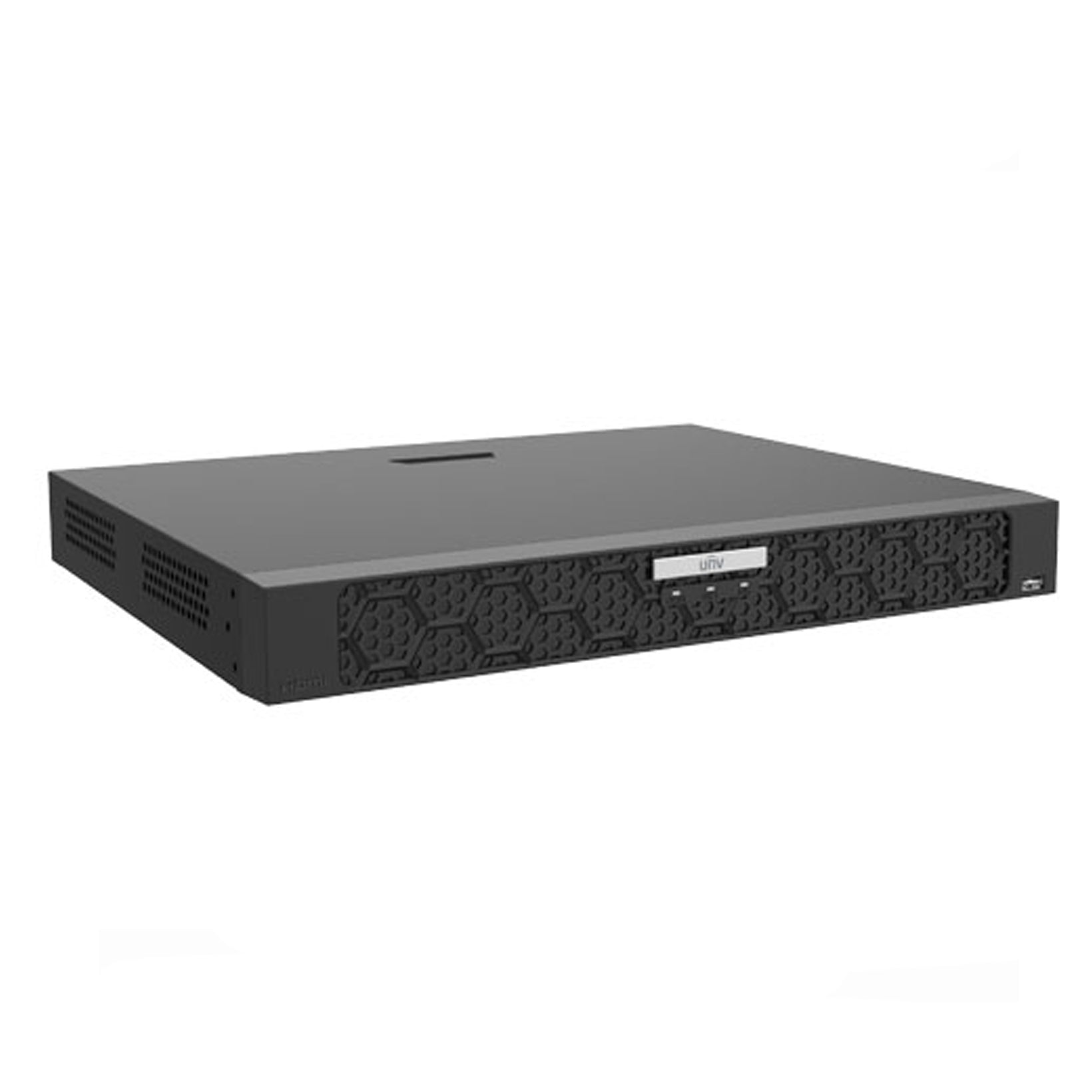

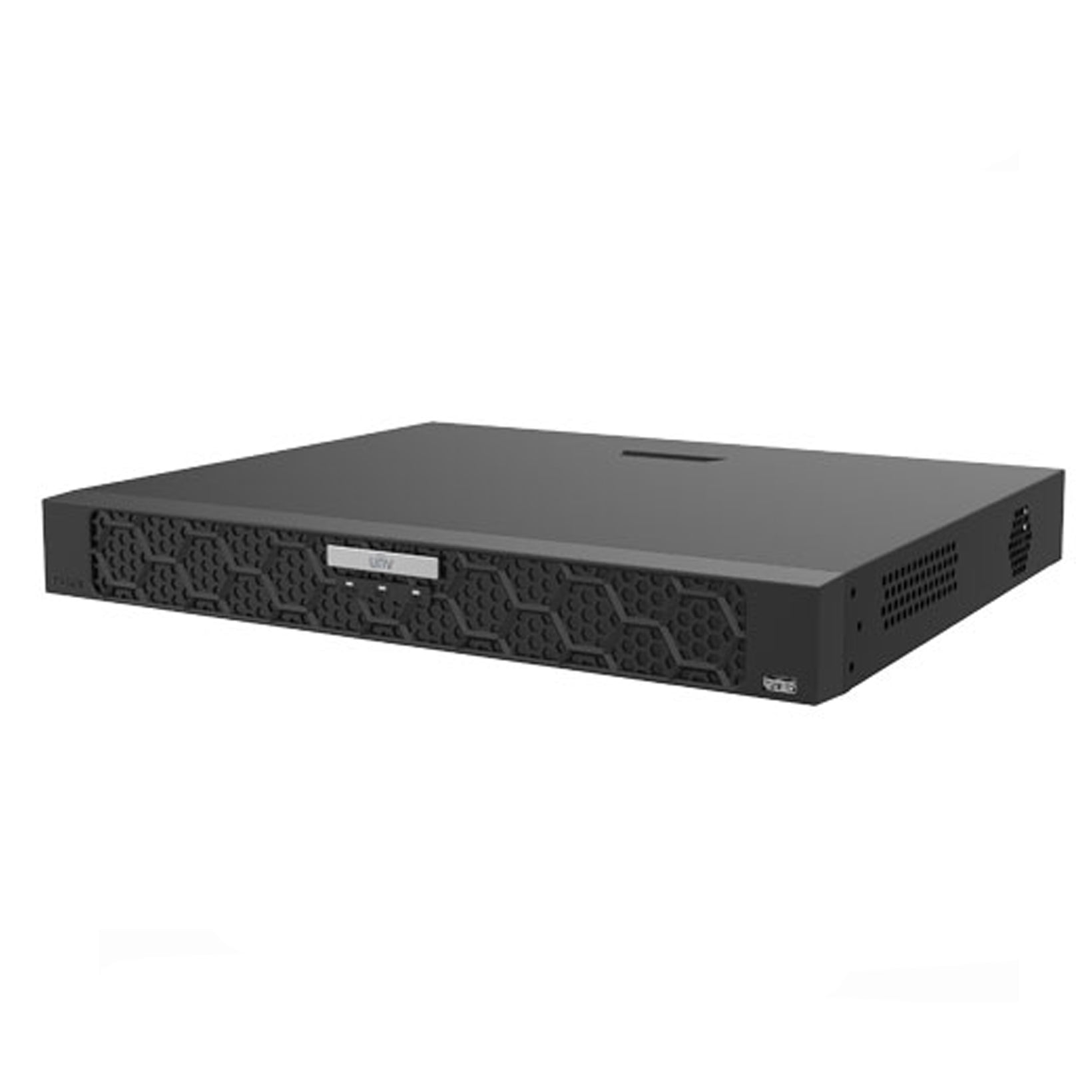

UNV NVR502-16B-P16,(16CH), 2-SATA,16 PoE,4K,UK Listed
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV NVR502-16B-P16,(16CH), 2-SATA,16 PoE,4K,UK Listed is backordered and will ship as soon as it is back in stock.
Description
Description
- Support Ultra 265/H.265/H.264 video formats
- 8/16/32-channel input
- Plug & Play with 8/16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- VGA and HDMI independent output
- Up to 16 Megapixels resolution recording
- 2 SATA HDD, up to 10TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Specifications
|
Video/Audio Input
|
|||||
|
IP Video Input
|
8-ch
|
16-ch
|
|||
|
Audio Input
|
1-ch, RCA
|
||||
|
Network
|
|||||
|
Incoming bandwidth
|
320Mbps
|
||||
|
Outgoing bandwidth
|
160Mbps
|
||||
|
Remote Users
|
128
|
||||
|
Protocols
|
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6
|
||||
|
Browser
|
IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
||||
|
Video/Audio Output
|
|||||
|
HDMI/VGA Output
|
HDMI:
4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 |
||||
|
Recording Resolution
|
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
||||
|
Audio Output
|
1-ch, RCA
|
||||
|
Two-way Audio
|
1-ch, RCA(Using the audio input and output)
|
||||
|
Audio Compression
|
G.711A, G.711U
|
||||
|
Synchronous Playback
|
8-ch
|
16-ch
|
|||
|
Liveview display
|
1/4/6/8/9
|
1/4/6/8/9/16
|
|||
|
Corridor Mode Screen
|
3/4/5/7/9
|
3/4/5/7/9/10/12/16
|
|||
|
Snapshot
|
|||||
|
FTP/Schedule/Event Snapshot
|
4-ch snapshot, up to D1 resolution
|
||||
|
Decoding
|
|||||
|
Decoding format
|
Ultra 265/H.265/H.264
|
||||
|
Live view/Playback
|
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
|
||||
|
Capability
|
Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 |
||||
|
Hard Disk
|
|||||
|
SATA
|
2 SATA interfaces
|
||||
|
Capacity
|
Up to 10TB for each disk
|
||||
|
Smart
|
|||||
|
VCA Detection by Camera
|
Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
|
||||
|
VCA Search
|
Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
|
||||
|
People Counting
|
People Flow Counting, Crowd Density Monitoring
|
||||
|
Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera
|
Total 8-ch
|
||||
|
General Alarm
|
|||||
|
General Alarm
|
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
|
||||
|
Alert Alarm
|
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
|
||||
|
External Interface
|
|||||
|
Network Interface
|
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
|
||||
|
USB Interface
|
Front: 1 x USB2.0, Rear panel: 1 x USB3.0
|
||||
|
RS232
|
NA
|
||||
|
RS485
|
1
|
||||
|
Alarm In
|
8-ch
|
||||
|
Alarm Out
|
2-ch
|
||||
|
PoE
|
|||||
|
Interface
|
8 RJ-45 10M/100M self-adaptive Ethernet Interface
|
16 RJ-45 10M/100M self-adaptive Ethernet Interface
|
|||
|
Max Power
|
Max 30W for single port
Max 130W in total |
Max 30W for single port
Max 240W in total |
|||
|
Supported Standard
|
IEEE 802.3af/at
|
||||
|
General
|
|||||
|
Power Supply
|
100~240V AC
Power Consumption: ≤ 20W (without HDD) |
||||
|
Working Environment
|
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
|
||||
|
Dimensions (W×D×H)
|
380mm × 322mm × 53mm (15.0"×12.7"×2.1")
|
||||
|
Weight (without HDD)
|
≤ 2.6Kg (5.73lb)
|
||||
|
Certification
|
|||||
|
Certification
|
CE, FCC, UL, RoHS, WEEE
|
||||
|
CE
|
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
|
||||
|
FCC
|
Part15 Subpart B
|
||||
