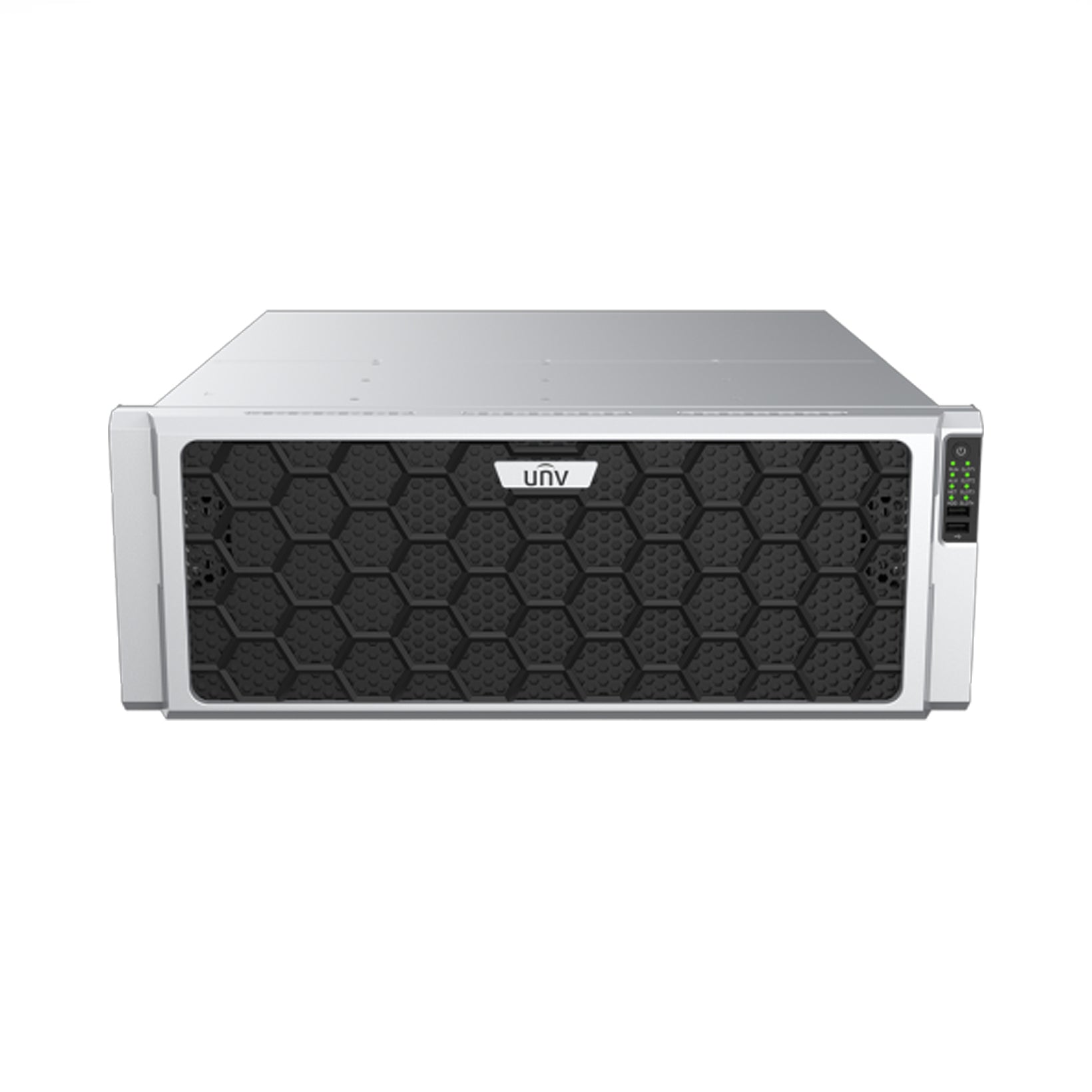

UNV NVR824-256R (256 CH), 24-SATA Interface, 4K, Raid, UL Listed
MPN: NVR824-256R
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV NVR824-256R (256 CH), 24-SATA Interface, 4K, Raid, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
NVR824-R Series
Network Video Recorder
- Support Ultra 265/H.265/H.264 video formats
- 128/256‑channel input
- Third‑party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
- Support 2‑ch HDMI, 1‑ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI1, HDMI2 and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- Redundant power supply optional
- Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
- Support 2 miniSAS Interfaces
- Support 12V power output
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
- Support N+1 Hot spare
Specifications
|
Decoding
|
Description
|
|
DecodingFormat
|
Ultra 265, H.265, H.264
|
|
DecodingCapability
|
3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1
|
|
AudioCompression
|
G.711A, G.711U
|
|
Network
|
Description
|
|
IncomingBandwidth
|
768Mbps
|
|
OutgoingBandwidth
|
768Mbps
|
|
RemoteUsers
|
128
|
|
Protocols
|
TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
|
|
Browser(Plugin)
|
Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
|
|
Video/AudioInput
|
Description
|
|
IPVideoInput
|
NVR824‑128R:128‑ch NVR824‑256R:256‑ch
|
|
RCAAudioInput
|
1‑ch
|
|
Video/AudioOutput
|
Description
|
|
HDMIOutput
|
HDMI1/HDMI2:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
|
|
VGAOutput
|
VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
|
|
RCAAudioOutput
|
1‑ch
|
|
LiveviewDisplay
|
VGA:1/4/6/8/9/16/25/36, HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
|
|
CorridorModeScreen
|
3/4/5/7/9/10/12/16/32
|
|
Two-wayAudio
|
Description
|
|
Two-wayAudio
|
1‑ch, RCA(Using the audio input and output)
|
|
Snapshot
|
Description
|
|
FTP/Schedule/EventSnapshot
|
128‑ch snapshot, up to 4K resolution
|
|
Recording
|
Description
|
|
RecordingResolution
|
12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
|
|
SynchronousPlaybackinLocal
|
16‑ch
|
|
Smart
|
Description
|
|
VCADetectionbyIPC
|
Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
|
|
SmartbyNVR
|
In the Smart Card datasheet
|
|
VCASearch
|
Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report
|
|
SmartbyIPC
|
All channels (up to 64 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
|
|
VehiclePictureLibrary
|
Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
|
|
SIPbyNVR
|
In the Smart Card datasheet
|
|
CapacityofSnapshotRecords
|
5 millions records for face snapshot; 5 millions records for vehicle snapshot;2 millions records for SIP
|
|
Alarm
|
Description
|
|
GeneralAlarm
|
Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
|
|
AlertAlarm
|
IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;High CPU Temperature;High Motherboard Temperature;Array Damaged;Array Degraded
|
|
HardDisk
|
Description
|
|
SATA
|
24 SATA interfaces
|
|
Capacity
|
Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
|
|
DiskArrayType
|
RAID 0, 1, 5, 6, 10, 50, 60
|
|
HotSwap
|
Support
|
|
ExternalInterface
|
Description
|
|
NetworkInterface
|
4 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
|
|
USB
|
Front panel: 2 x USB2.0;Rear panel: 2 x USB3.0
|
|
RS485
|
1
|
|
RS232
|
1
|
|
AlarmIn
|
24‑ch
|
|
AlarmOut
|
8‑ch
|
|
eSATA
|
1
|
|
miniSAS
|
2
|
|
Extensionboard
|
4
|
|
PowerOutput
|
12V
|
|
PowerSupply
|
AC 100 ～ 240 V
|
|
PowerSwitch
|
Support
|
|
RedundantPowerSupply
|
Support
|
|
WorkingEnvironment
|
Description
|
|
WorkingTemperature
|
‑10 °C ~ 50 °C (14 °F ~ 122 °F)
|
|
WorkingHumidity
|
≤ 90% RH (non‑condensing)
|
|
PowerConsumption(withoutHDD)
|
≤ 70W
|
|
Dimensions
|
Description
|
|
Weight(withoutHDD)
|
≤ 12.5Kg (27.56lb)
|
|
Dimensions
|
484.6mm × 533mm × 175.5mm (19.1"×21.0"×6.9")
|
|
Certification
|
Description
|
|
Certification
|
CE, FCC, UL, RoHS, WEEE
|
|
CE
|
EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
|
|
FCC
|
Part15 Subpart B
|
