UNV | SKU:
UVTIC3612SA-F2-4F3AC-I1

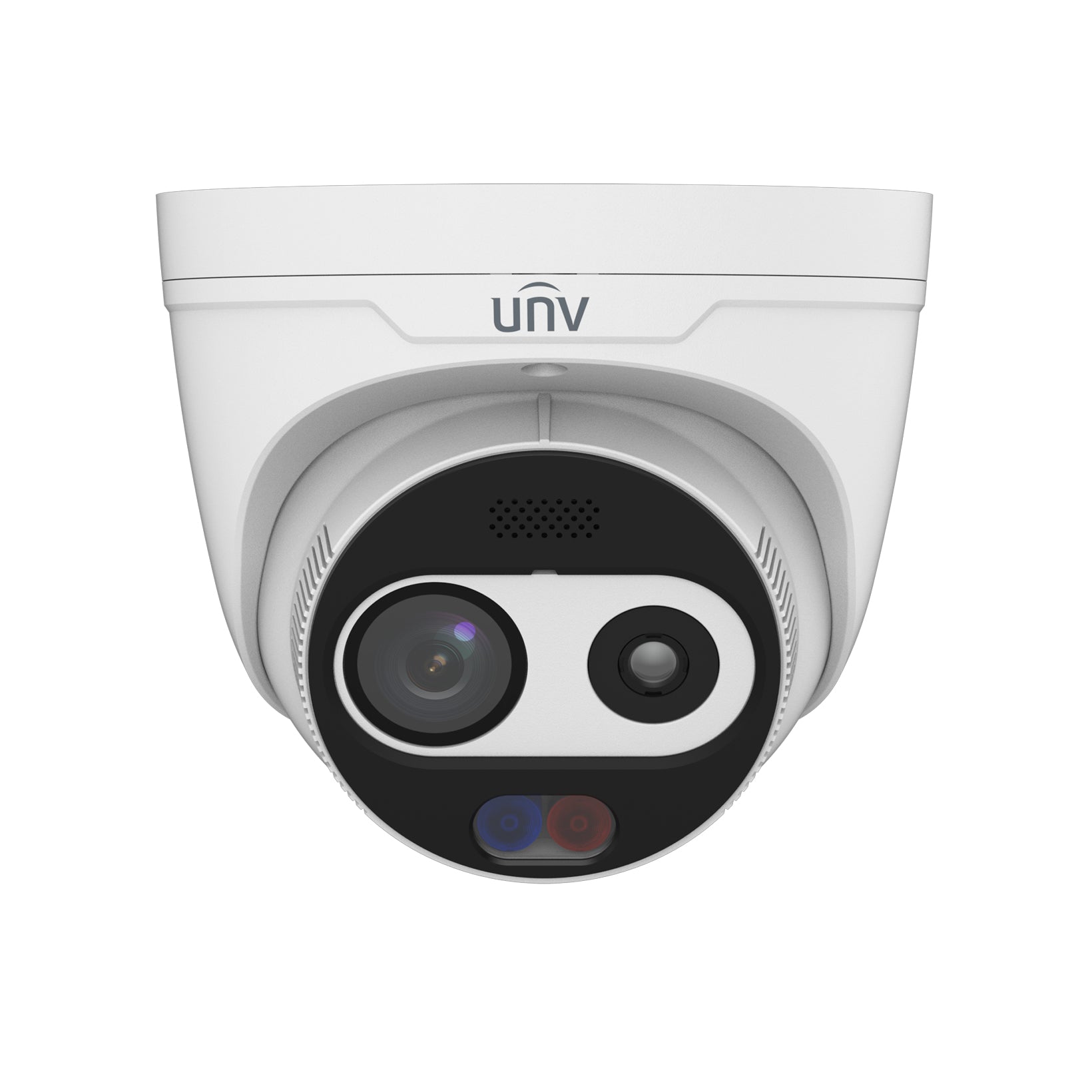

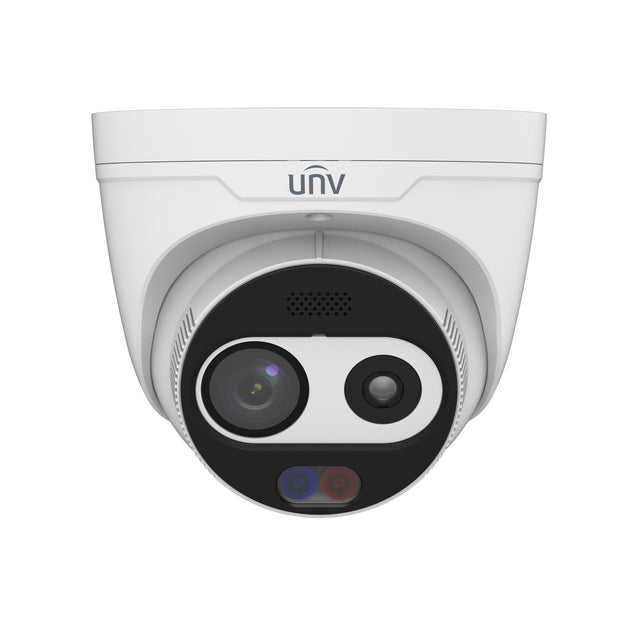

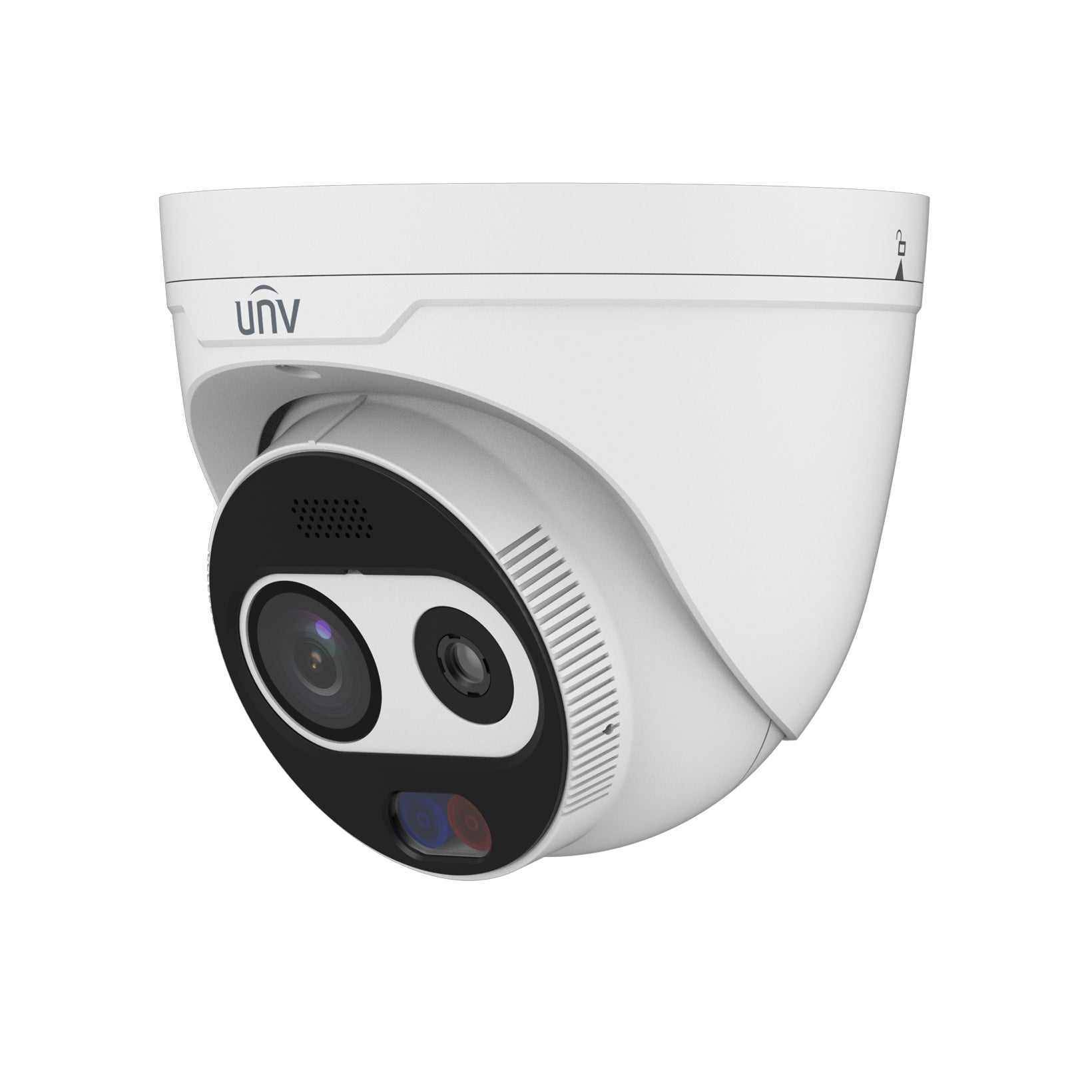

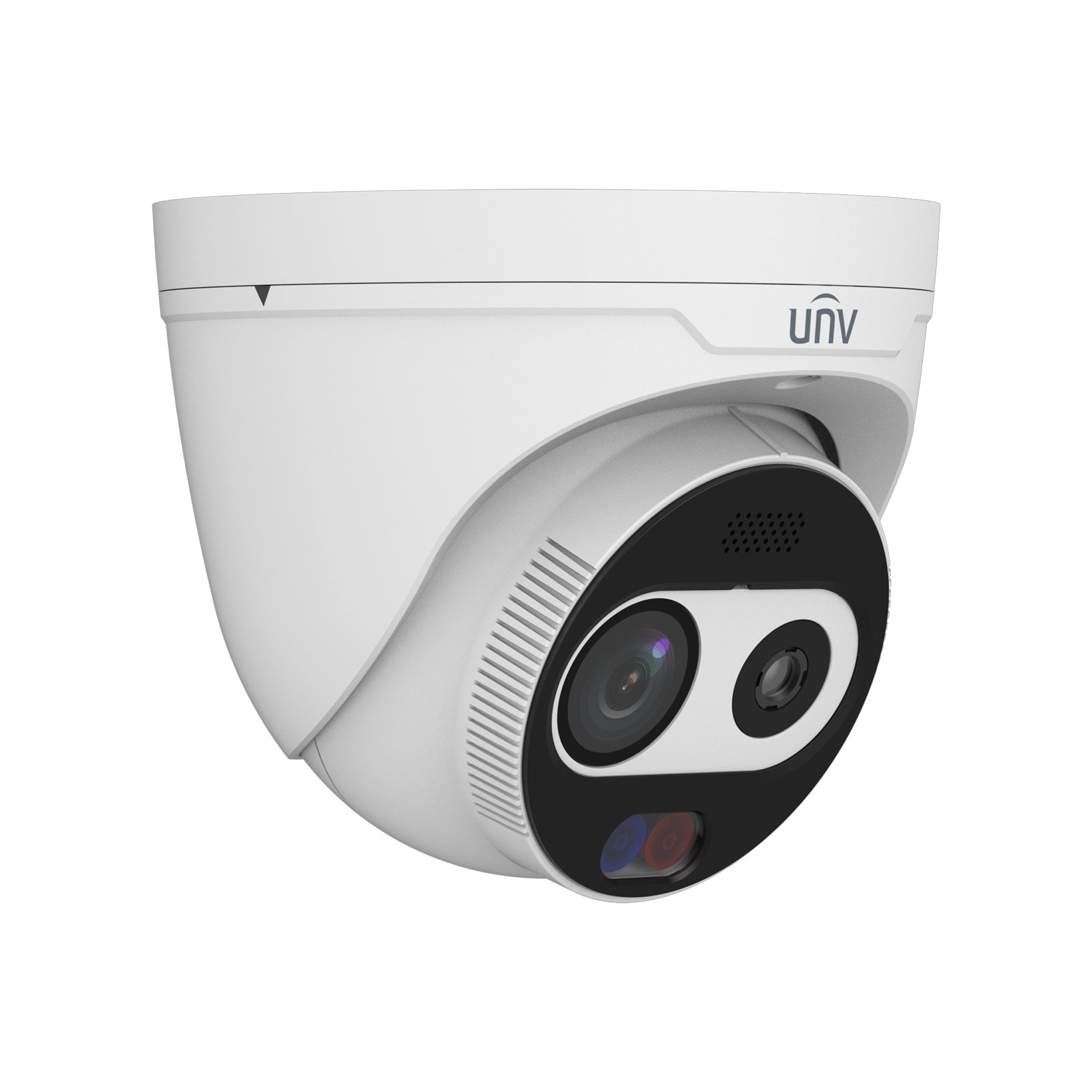

UNV TIC3612SA-F2-4F3AC-I1, (4MP) Turret, IPC 2.6mm Fixed Lens, Thermal & Optical Dual Spectrum, WDR, UL Listed
MPN: TIC3612SA-F2-4F3AC-I1
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV TIC3612SA-F2-4F3AC-I1, (4MP) Turret, IPC 2.6mm Fixed Lens, Thermal & Optical Dual Spectrum, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
Thermal & Optical Dual-spectrum Turret Network Camera
• Thermal & Optical dual spectrum image, dual video with single IP address, adaptable to more various scenes
• 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring
• Thermal module support reliable fire detection, smoking detection and fire shield area
• Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm
• Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
• Optical module supports smog recognition, which can help with fire alarm reconfirm
• Support picture in picture mode, real time contrast live, more convenient and clear
• Support audio and light alarm, with red and blue warning lights built in
• Ultra 265, H.265, H.264, MJPEG
• Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
• DC12V±25% or PoE power supply
• Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 G
• 1/2.8" target surface, high sensitivity sensor, satisfy the need of starlight monitoring
• Thermal module support reliable fire detection, smoking detection and fire shield area
• Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm
• Thermal & Optical dual spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
• Optical module supports smog recognition, which can help with fire alarm reconfirm
• Support picture in picture mode, real time contrast live, more convenient and clear
• Support audio and light alarm, with red and blue warning lights built in
• Ultra 265, H.265, H.264, MJPEG
• Max 2688*1520@30fps in the optical module and Max 960P@30fps in the thermal module
• DC12V±25% or PoE power supply
• Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 512 G
Specifications
Camera | ||||
Original Resolution |
N/A |
|||
Sensor |
1/2.8" CMOS |
|||
Min. Illumination |
Colour: 0.01 lux (F1.6, AGC ON) B/W: 0.005 lux(F1.6,AGC ON) 0 lux with IR |
|||
Day/Night |
IR-cut filter with auto switch (ICR) |
|||
Pixel Size |
N/A |
|||
NETD |
< 50 mk@F1.0@25 ℃ |
|||
Shutter |
Auto/Manual, 1 to 1/100000 s |
|||
WDR |
120 dB |
|||
S/N |
>56 dB |
|||
Lens | ||||
Focal Length |
2.6 mm |
|||
Iris |
F1.6 |
|||
Field of View (H) |
108.5° |
|||
Field of View (V) |
70.7° |
|||
Field of View (D) |
133.5° |
|||
DORI | ||||
DORI Distance (Detect) |
58.5m(191.9ft) |
|||
DORI Distance (Observe) |
23.4m(76.8ft) |
|||
DORI Distance (Recognize) |
11.7m(38.4ft) |
|||
DORI Distance (Identify) |
5.9m(19.2ft) |
|||
Illuminator | ||||
Wavelength |
750 nm |
|||
Illumination Distance (IR) |
30m |
|||
Light On/Off Control |
Auto/Manual |
|||
Video | ||||
Frame Rate |
4MP(2688*1520), Max 30fps |
|||
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|||
Video Bit Rate |
128 Kbps to 16 Mbps |
|||
U-code |
Support |
|||
ROI |
Support |
|||
Video Stream |
Triple Streams |
|||
OSD |
Up to 8 OSDs |
|||
Privacy Mask |
Up to 8 areas (8 blacks/ 8 mosaics) |
|||
Image | ||||
White Balance |
Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
|||
Digital Noise Reduction |
2D/3D DNR |
|||
Flip |
Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
|||
Defog |
Digital Defog |
|||
Palette |
N/A |
|||
Intelligent | ||||
Smart Intrusion Prevention |
Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|||
Smoke and Fire Detection |
Support |
|||
Events | ||||
Fire Detection |
N/A |
|||
Basic Detection |
Motion Detection, Tampering Alarm, Audio Detection |
|||
General Function |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output |
|||
Audio | ||||
Audio Compression |
G.711U, G.711A |
|||
Audio Bitrate |
128 Kbps |
|||
Two-way Audio |
Support |
|||
Suppression |
Support |
|||
Sampling Rate |
16KHZ |
|||
Storage | ||||
Edge Storage |
Micro SD, up to 512 GB |
|||
Network Storage |
ANR |
|||
Network | ||||
Protocols |
IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH |
|||
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
|||
User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
|||
Client |
EZStation, UNV-Link, UNV-Link Pro |
|||
Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
|||
Interface | ||||
Built-in Mic |
Support |
|||
Built-in Speaker |
Support |
|||
Audio I/O |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
|||
Alarm I/O |
2/2 |
|||
Serial Port |
1 channel RS485 interface |
|||
Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
|||
Video Output |
N/A |
|||
Certification | ||||
EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 50130-4:2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||
Safety |
CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|||
Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
|||
General | ||||
Power |
DC12V(±25%), PoE(IEEE802.3af) |
|||
Power Consumption |
Max 12W |
|||
Power Interface |
Ø5.5 mm coaxial power plug |
|||
Dimensions |
Φ129 x 114 mm(Φ5.08" x 4.49")(Φ x H) |
|||
Weight |
0.72kg(1.6lb) |
|||
Working Environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
|||
Storage Environment |
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
|||
Surge Protection |
6 KV |
|||
Reset Button |
Support |
|||
RTC |
Support |
|||
Web Client Language |
1 Language: English |
|||
Live View | ||||
Maximum Bitstream |
35 |
|||
Maximum Bandwidth |
50 Mbps |
|||
OSD Font |
Vector |
|||
OSD Color |
Support |
|||
OSD Character Number |
40 |
|||
Other | ||||
Corridor Mode |
Support |
|||
Software Version |
Q6202 |
|||
