UNV | SKU:
UVUAC-B128-ADF28MS

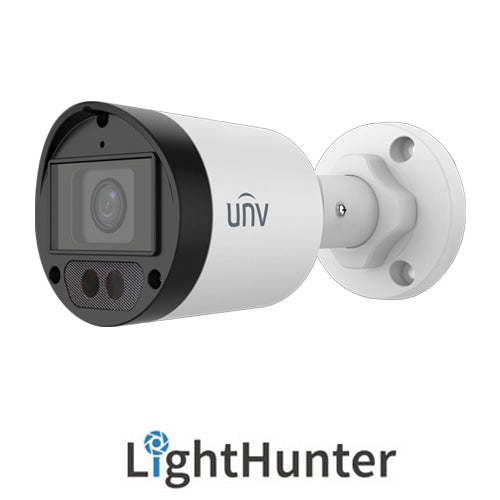

UNV UAC-B128-ADF28MS,(8MP) Bullet, TVI 2.8mm Fixed Lens, LightHunter, AOC, WDR, UL Listed
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UNV UAC-B128-ADF28MS,(8MP) Bullet, TVI 2.8mm Fixed Lens, LightHunter, AOC, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description
UAC-B128-ADF28(40)MS
8MP LightHunter Fixed IR Bullet Analog Camera
• High quality imaging with 8MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• LightHunter monitoring with high-sensitivity sensor
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• 120dB true WDR technology enables clear image in strong light scene
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• LightHunter monitoring with high-sensitivity sensor
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• 120dB true WDR technology enables clear image in strong light scene
Specification
|
Sensor
|
|
|
Pixel
|
8MP
|
|
Size
|
1/2.7"
|
|
Minimum illumination
|
0.005 lux (F1.6, AGC ON)
0 lux (IR ON) |
|
Lens
|
|
|
Lens
|
2.8mm
|
|
Lens mount
|
M12
|
|
Angle of view
|
H: 109.1° V: 61.0° D: 126.7°
|
|
Illuminator
|
|
|
Illuminator
|
Two IR illuminators
|
|
Illumination distance
|
40m
|
|
Lifetime
|
≥60,000 hours
|
|
Video
|
|
|
Resolution
|
4K: 3840(H) × 2160(V)
5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) |
|
Frame rate
|
CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps
TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC |
|
Shutter time
|
PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s |
|
|
|
|
Exposure mode
|
Four modes: Global (default), BLC, HLC, WDR
|
|
Day/Night
|
Three modes: Auto (default), Day, Night
|
|
Digital noise reduction
|
2D/3D
|
|
White balance
|
Two modes: Auto (default), Manual
|
|
WDR
|
120dB WDR
|
|
Smart IR
|
Support
|
|
Flip
|
Supports 180° horizontal flip, 180° vertical flip
|
|
Defog
|
N/A
|
|
Audio
|
|
|
Microphone
|
Built-in Mic
|
|
Camera audio
|
CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
|
|
Interface
|
|
|
Power
|
5.5mm power interface
|
|
Video output
|
BNC, supports TVI/AHD/CVI/CVBS
|
|
Operating environment
|
|
|
Temperature
|
-30°C to 60°C (-22°F to 140°F)
|
|
Humidity
|
≤95% (RH, non-condensing)
|
|
Surge protection
|
4kV
|
|
General
|
|
|
Power
|
DC 12V (±25%), with reverse polarity protection, Max 4.8W
|
|
Mount
|
3D bracket supplied, surface mount (default), optional backbox, pole mount bracket
|
|
Dimensions
|
157mm*67mm*66mm (L*W*H)
|
|
Material
|
Metal
|
|
Weight
|
300g(0.67lb)
|
|
OSD menu language
|
11 Languages
English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish |
|
Certification
|
|
|
EMC
|
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B) |
|
Safety
|
CE-LVD (EN 62368-1)
|
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
|
|
Protection
|
IP67 (IEC 60529)
|
