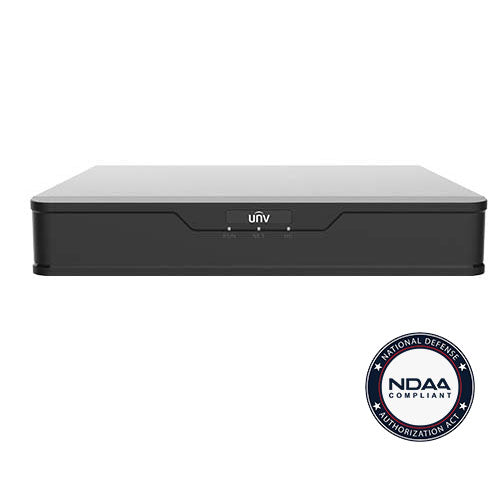

UNV XVR301-16G3 (16-CH) 1 SATA Interface, 5MP, 16 BNC, 8 IP, AOC, UL Listed
by UNV
SKU UVXVR301-16G3
- Support H.265/H.264 video formats
- Support audio over coaxial cable(only for TVI cameras)
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8/16 channel BNC input
- Support 1 ch HDMI output, 1 ch VGA output at up to 1920*1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
- The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| Video/Audio Input | Description |
| IP Video Input | XVR301‑04G3:2‑ch XVR301‑08G3:4‑ch XVR301‑16G3:8‑ch |
| Analog Video Input | XVR301‑04G3:4‑ch, BNC XVR301‑08G3:8‑ch, BNC XVR301‑16G3:16‑ch, BNC |
| Max IP Video Input | XVR301‑04G3:6‑ch XVR301‑08G3:8‑ch XVR301‑16G3:16‑ch |
| Supported Analog Camera Types | XVR301‑04G3:Support AHD input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input XVR301‑08G3:Support AHD input: 5MP@12.5fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12.5fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input XVR301‑16G3:Support AHD input: 5MP@12.5fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12.5fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
| RCA Audio Input | 1‑ch |
| Video/Audio Output | Description |
| HDMI Output | HDMI:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCA Audio Output | 1‑ch |
| Live View Display | XVR301‑04G3:HDMI/VGA: 1/4/6/8/9 XVR301‑08G3:HDMI/VGA: 1/4/6/8/9/16 XVR301‑16G3:HDMI/VGA: 1/4/6/8/9/25 |
| Encoding/Decoding | Description |
| Recording Resolution | XVR301‑04G3:5MP Lite/4MP Lite/1080P/720P/D1 XVR301‑08G3:5MP Lite/4MP Lite/1080P Lite/720P/D1 XVR301‑16G3:5MP Lite/4MP Lite /1080P Lite/720P/D1 |
| Recording Frame Rate | XVR301‑04G3:Main stream: 5MP Lite@12fps Sub stream: D1@12fps Main stream: 4MP Lite@15fps Sub stream: D1@15fps Main stream: 1080P@15fps Sub stream: D1@15fps Main stream: 720P@25fps Sub stream: D1@25fps XVR301‑08G3/XVR301‑16G3:Main stream: 5MP Lite@6fps Sub stream: D1@6fps Main stream: 4MP Lite@8fps Sub stream: D1@8fps Main stream: 1080P Lite@12fps Sub stream: D1@12fps Main stream: 720P@12fps Sub stream: D1@12fps |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding Capability | XVR301‑04G3:Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 XVR301‑08G3:Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30 XVR301‑16G3:Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
| Two-way Audio | Description |
| Two-way Audio | 1‑ch, RCA(Using the audio input and output) |
| Analog Snapshot | Description |
| FTP/Schedule/Event Snapshot | XVR301‑04G3:FTP/Event snapshot:4‑ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported XVR301‑08G3:FTP/Event snapshot:8‑ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported XVR301‑16G3:FTP/Event snapshot:16‑ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported |
| Network | Description |
| Incoming Bandwidth | XVR301‑04G3:16Mbps (Up to 24Mbps after all analog channel conversion) XVR301‑08G3:32Mbps (Up to 40Mbps after all analog channel conversion) XVR301‑16G3:40Mbps (up to 56Mbps after all analog camera conversion) |
| Outgoing Bandwidth | XVR301‑04G3:48Mbps XVR301‑08G3/XVR301‑16G3:64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP;NTP |
| Browser(Plugin) | IE(IE10/11) Firefox (version 52.0 and above) Chrome(version 45 and above) Edge(version 79 and above) |
| Smart | Description |
| Analog Smart by XVR | Ultra Motion Detection(UMD) |
| Smart Functions by XVR | XVR301‑04G3/XVR301‑08G3:4‑ch(UMD) XVR301‑16G3:8‑ch(UMD) |
| Alarm | Description |
| General Alarm | Motion |
| Alert Alarm | IP Conflict;Network Disconnected;Disk offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| Hard Disk | Description |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| External Interface | Description |
| Network Interface | 1 RJ45 10M/100M self‑adaptive Ethernet Interface |
| USB | Rear panel: 2 x USB2.0 |
| Power Supply | DC 12V/2A |
| Working Environment | Description |
| Working Temperature | ‑10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | ≤ 90% RH(non‑condensing) |
| Power Consumption (without HDD) | XVR301‑04G3/XVR301‑08G3:≤ 8W XVR301‑16G3:≤ 10W |
| Dimensions | Description |
| Weight (without HDD) | ≤1.1 Kg ( 2.42lb ) |
| Dimensions | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") |
| Certification | Description |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
