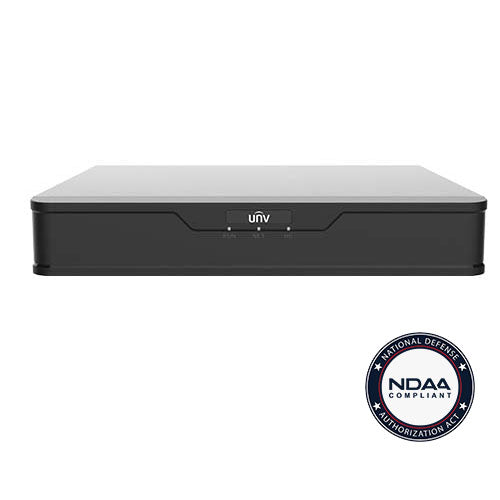

UNV XVR301-08Q3 (8-CH) 1 SATA Interface, 4K, 8 BNC, 4 IP, AOC, UL Listed

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(only for TVI cameras)
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 4/8-channel BNC input
  • Support 1-ch CVBS output, 1-ch VGA output, 1-ch HDMI output at up to 4K(3840 x 2160)
  • HDMI and VGA simultaneous output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols
  • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Video/Audio Input
Analog Video Input 4-ch, BNC 8-ch, BNC
IP Video Input 2-ch(only IP up to 6ch), each channel up to 4MP 4-ch(only IP up to 12ch), each channel up to 8MP
Supported Analog Camera Types Support AHD input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input: 8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
Support AHD input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support TVI input: 8MP@15fps
5MP@20fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVI input: 8MP@15fps
5MP@25fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
Audio Input 1-ch, RCA
Audio Compression G.711U
Video/Audio Output
CVBS Output 1-ch, BNC
VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output 1-ch, RCA
Synchronous Playback 4 8
Live view display HDMI/VGA: 1/4/6/8/9 HDMI/VGA: 1/4/6/8/9/16
Two-way Audio 1-ch, RCA
Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to 704*576 resolution 8-ch snapshot, up to 704*576 resolution
Network
Incoming Bandwidth 40Mbps (Up to 48Mbps after all analog channel conversion) 40Mbps (Up to 56Mbps after all analog channel conversion)
Outgoing Bandwidth 48Mbps 64Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Encoding
Recording Resolution 8MP Lite/5MP Lite/4MP Lite/1080P/720P/CIF 8MP Lite/5MP Lite/4MP Lite /1080P/720P/CIF
Recording
Frame Rate
Main stream Sub stream Main stream Sub stream
8MP Lite@8fps D1@8fps 8MP Lite@8fps D1@8fps
5MP Lite @12fps D1@12fps 5MP Lite @12fps D1@12fps
4MP Lite@15fps D1@15fps 4MP Lite@15fps D1@15fps
1080P@15fps D1@15fps 1080P@15fps D1@15fps
720p@30fps D1@30fps 720p@30fps D1@30fps
Audio Sample Rate 8KHz,16 bit per channel
Audio Bit Rate 64Kbps per channel
Decoding
Capability Analog: 4 x 8MP Lite@8, 4x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15
IP: 1 x 4MP@30, 2 x 1080P@30
Analog: 8 x 8MP Lite@8, 8x 5MP Lite@12, 8x 4MP Lite@15, 8x 1080P@15
IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30
Hard Disk
SATA 1 SATA interface
Capacity Up to 8TB for each HDD
(The maximum HDD capacity varies with environment temperature)
Smart Alarm
VCA Detection Ultra Motion Detection(UMD) for analog:4-ch Ultra Motion Detection(UMD) for analog:8-ch
VCA Search Behavior Search
General Alarm
General Alarm Motion detection
Alert Alarm IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
RS485 1
Alarm In 4-ch
Alarm Out 1-ch
General
Power Supply 12V DC
Power Consumption: ≤ 10 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
Weight ( without HDD ) ≤1.1 Kg ( 2.42lb )
Certification
Certification UL /CE /FCC /RoHS /WEEE
