UNV  |  SKU: UVIPC6324LWH-AX5C-VG2

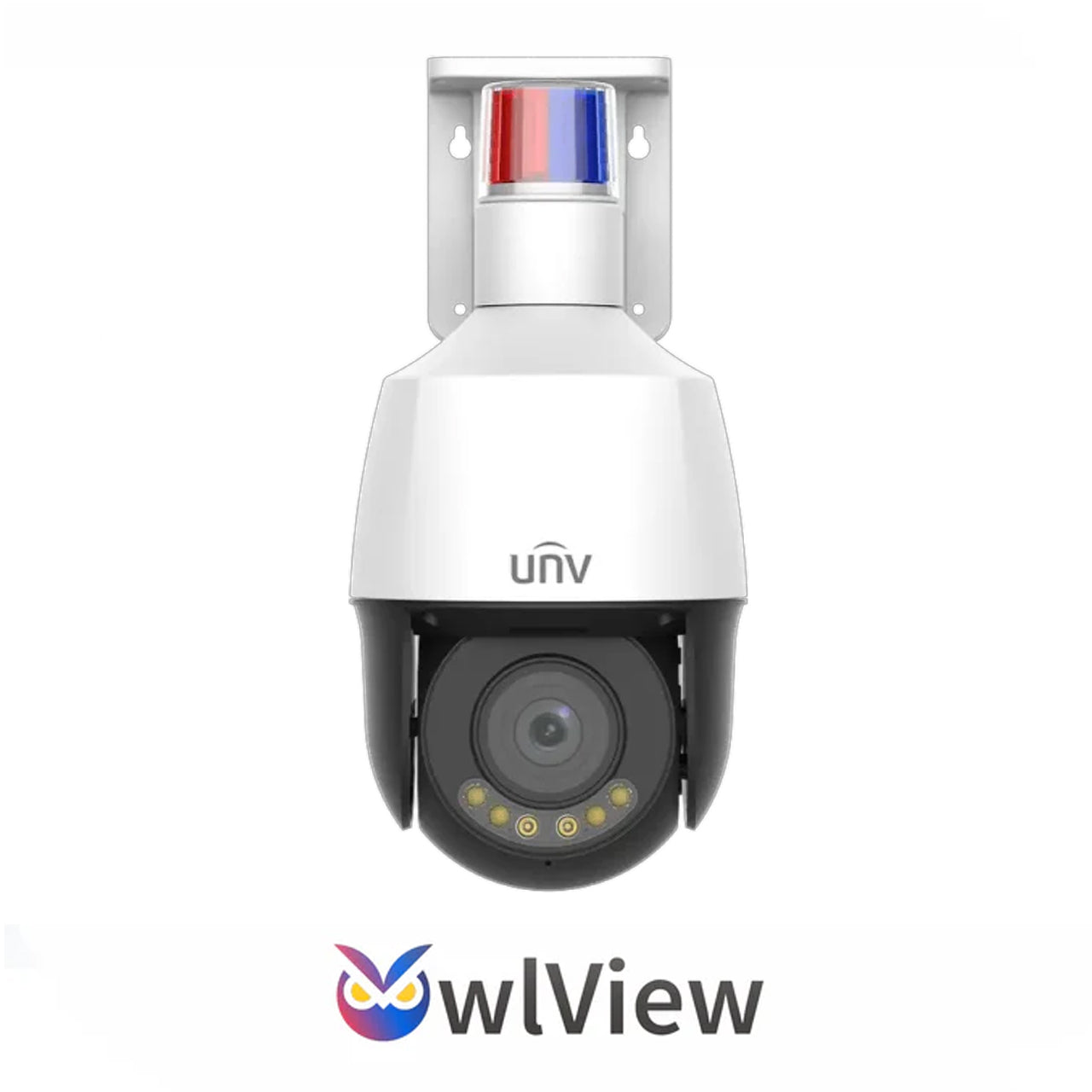

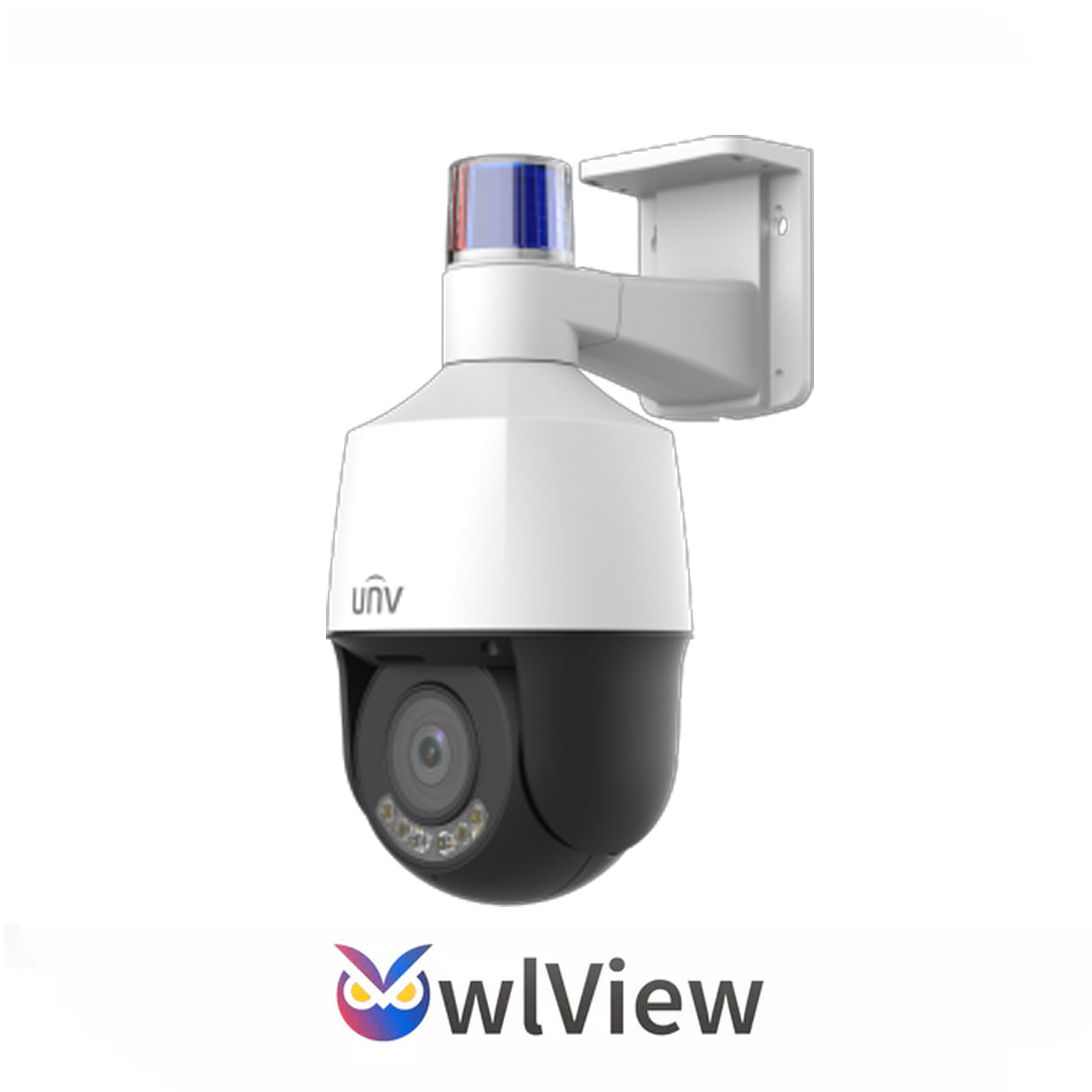

UNVIPC6324LWH-AX5C-VG2, (4MP) PTZ, IPC 2.7-13MM, 5X Zoom, Owlview, WDR, UL Listed

MPN: IPC6324LWH-AX5C-VG2

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description
IPC6324LWH-AX5C-VG2
4MP 5X Wise-ISP Tri-Guard Warm light Network PTZ Camera
• High quality image with 4 MP, 1/1.8" CMOS sensor
• Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
• Ultra 265, H.265, H.264, MJPEG
• 2688 × 1520@30 fps in the main stream, 16:9 aspect ratio
• Smart intrusion prevention, supports false alarm filtering, cross line detection, intrusion detection
• Up to 120 dB WDR (wide dynamic range)
• Built-in mic and speaker
• 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• IP66 protection
• DC 12 V, PoE (IEEE 802.3at) power supply
Specifications
Camera
Sensor
1/1.8" CMOS
Min. Illumination
Color: 0.0005 Lux (F1.2, AGC ON)
Shutter
Auto/Manual, 1 to 1/100000 s
WDR
120 dB
S/N
>56 dB
Lens
Focal Length
2.7 to 13.5 mm
Optical Zoom
5X
Field of View (H)
113.69° to 50.29°
Field of View (V)
59.46° to 28.45°
Field of View (D)
156.23° to 59.34°
DORI
DORI Distance (Lens)
2.7 to 13.5 mm
DORI Distance (Detect)
98.6 m to 209.9 m (323.3 ft. to 688.7 ft)
DORI Distance (Observe)
39.4 m to 84.0 m (129.3 ft. to 275.5 ft)
DORI Distance (Recognize)
19.7 m to 42.0 m (64.7 ft. to 137.7 ft)
DORI Distance (Identify)
9.9 m to 21.0 m (32.3 ft. to 68.9 ft)
Video
Privacy Mask
Up to 4 areas
Frame Rate-Main Stream
4 MP (2560 × 1440)@25 fps (Default)
4 MP (2688 × 1520), max. 30 fps;
4 MP (2560 × 1440), max. 30 fps
Video Compression
Ultra 265, H.265, H.264, MJPEG
Video Bit Rate
128 Kbps to 6144 Kbps
U-code
Support
ROI
Support
Video Stream
Triple streams
OSD
Up to 8 OSDs
Intelligent
Auto Tracking
Support, target filtering: human only
Smart Intrusion Prevention
Support false alarm filtering: cross Line detection, intrusion detection (based on human body and vehicle detection)
White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction
2D/3D DNR
Flip
Normal, Flip vertical, Flip horizontal, 180°
HLC
Support
BLC
Support
Defog
Digital defog
Illuminator
Light On/Off Control
Auto/Manual
Illumination Distance (Warm Light)
40 m
Events
Basic Detection
Motion detection, Audio detection, Tampering alarm
Motion Detection
Support
Tampering Detection
Support
Audio Detection
Support
General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
UMD (Ultra Motion Detection)
Support
Audio
Audio Compression
G.711U, G.711A
Audio Bitrate
128 Kbps
Two-way Audio
Support
Suppression
Support
Sampling Rate
8 kHz, 16 kHz
Storage
Edge Storage
MicroSD, up to 512 GB
Network
Protocols
TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration
ONVIF (Profile S,Profile G,Profile T), API
Security
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client
EZStation, EZLive, EZView
Web Browser
Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above
PTZ
Number of Presets
1024
Preset Patrol
16 patrols, up to 64 presets for each patrol
Patrol Stay Time
120 s to 1800 s
Home Position
Support
Number of Presets (IPC)
1024
Pan Range
0° to 345°
Tilt Range
-10° to 100°
Pan Speed
1°/s to 50°/s
Tilt Speed
1°/s to 40°/s
Number of Patrol
16
Interface
Audio I/O
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O
1/1
Built-in Mic
Support
Built-in Speaker
Support
Network
1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
EMC
CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130)
FCC SDoC (47 CFR Part 15; Subpart B)
Safety
UL (UL 62368-1)
CUL (CAN/CSA C22.2 No. 62368-1)
CE-LVD (EN IEC 62368-1)
Environment
CE-ROHS (2011/65/EU;(EU)2015/863)
Protection
IP66 (IEC 60529)
General
Power
DC 12 V±25%, PoE (IEEE 802.3at)
Power Consumption
≤ 25.4 W
Weight
1.33 kg (2.93 lb)
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment
-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection
2 KV
Reset Button
Support
Material
Metal
Heater
Support
Web Client Language
22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Live View
Maximum Bitstream
35
OSD Color
Support
OSD Character Number
40
Configurable
P/N
Support


App Logo
