UNV | SKU:
UVIPC815SB-ADF14K-10
UVIPC815SB-ADF14K-10, (5MP) Fisheye. IPC 1.4Mmm Lens, Smart IR,2 Microphones, WDR, UL Listed
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
UVIPC815SB-ADF14K-10, (5MP) Fisheye. IPC 1.4Mmm Lens, Smart IR,2 Microphones, WDR, UL Listed is backordered and will ship as soon as it is back in stock.
Description
Description

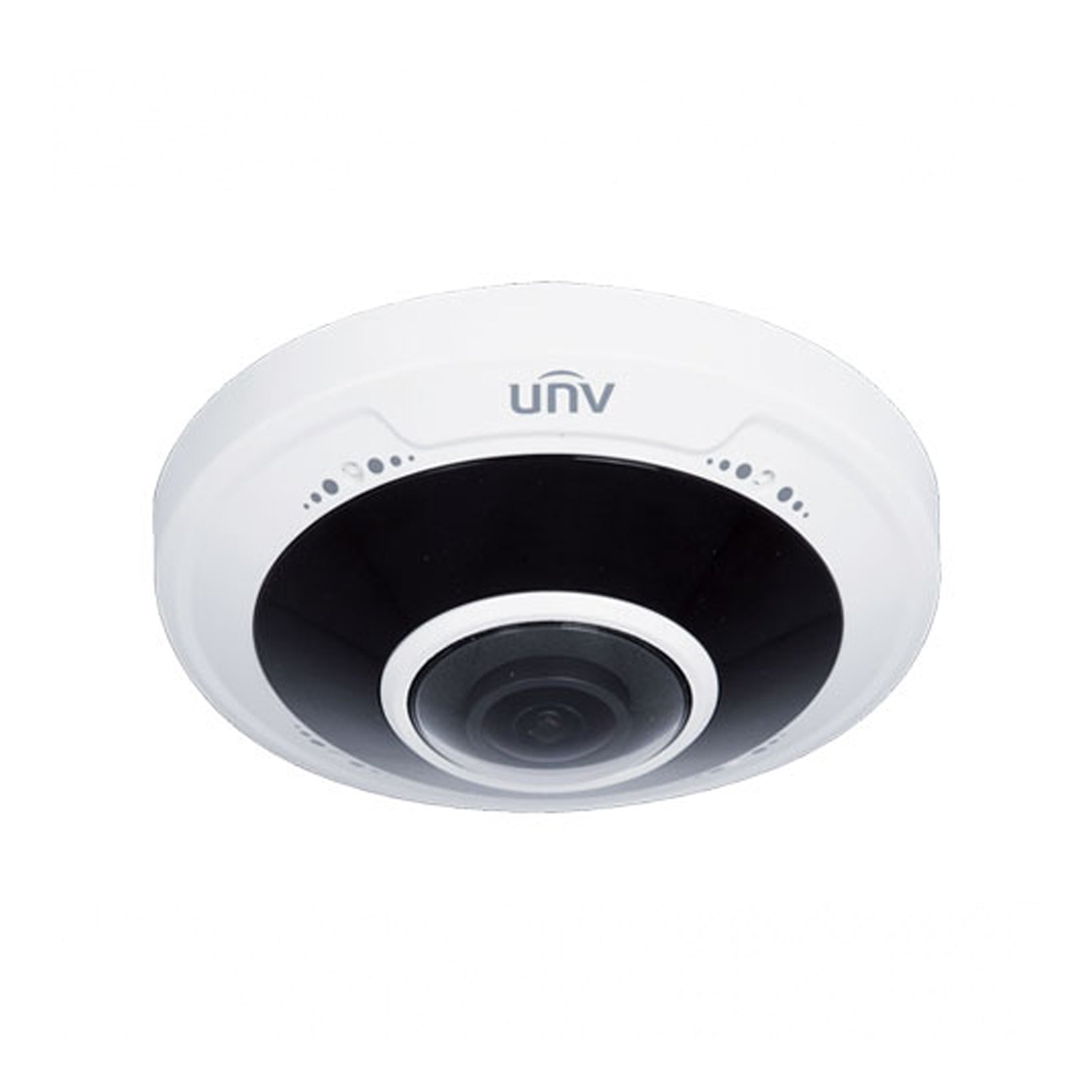

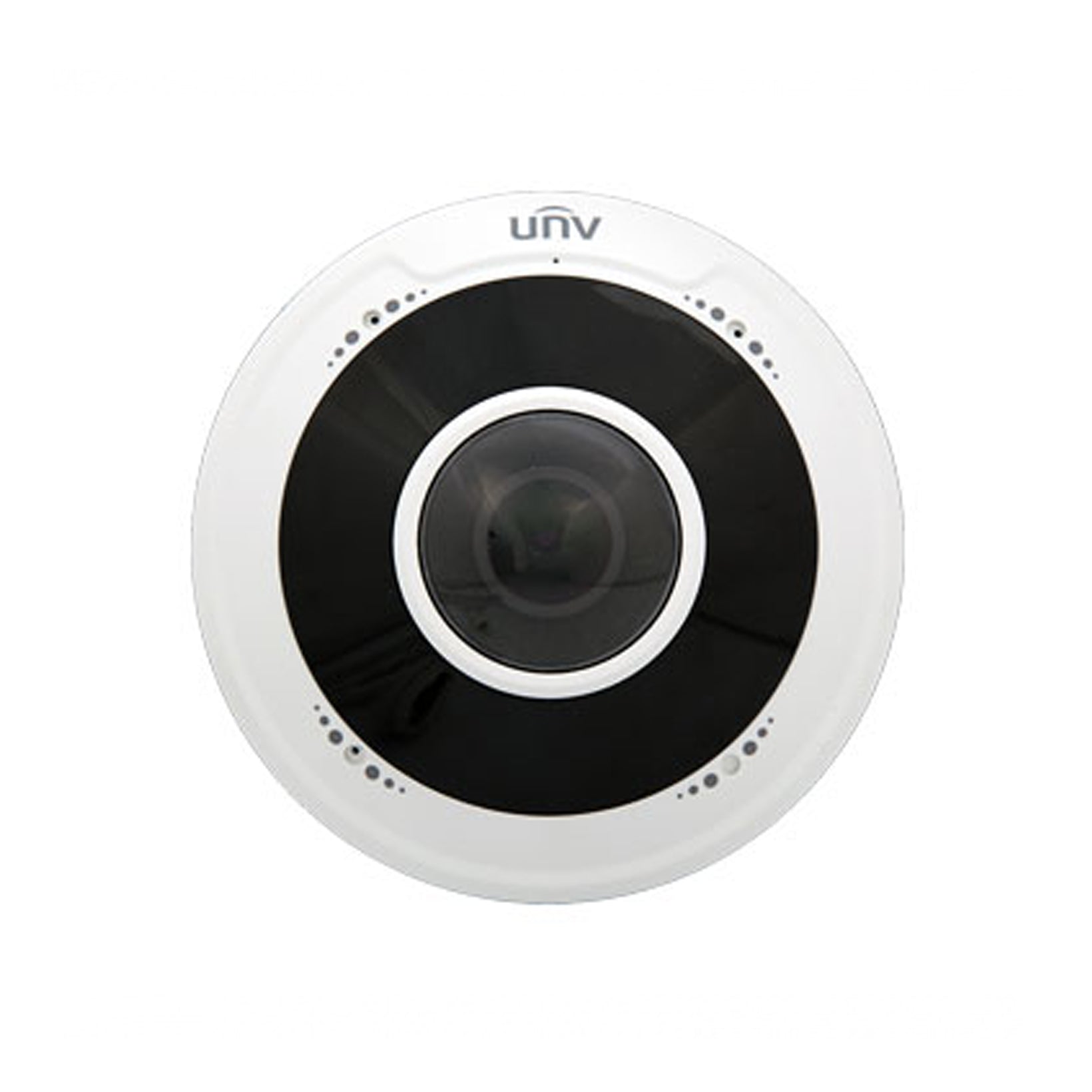

5MP Fisheye Fixed Dome Network Camera
• High quality image with 5MP, 1/2.8"CMOS sensor
• 5MP (2592*1944):@ 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Built-in 2 Mic, Supports the detection of sounds over longer distances
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 10m (33ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP66 protection
• Support PoE power supply
• 5MP (2592*1944):@ 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Built-in 2 Mic, Supports the detection of sounds over longer distances
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 10m (33ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP66 protection
• Support PoE power supply
Specifications
|
Image sensor
|
1/2.8", progressive scan, 5.0 megapixel, CMOS
|
||||
|
Minimum Illumination
|
Colour: 0.01 lux (F2.0, AGC ON)
0 lux with IR |
||||
|
Day/Night
|
IR-cut filter for day & night function
|
||||
|
Shutter
|
Auto/Manual, shutter time: 1~1/100000 s
|
||||
|
WDR
|
120dB
|
||||
|
S/N
|
>55dB
|
||||
|
Lens
|
|||||
|
Lens type
|
1.4mm@F2.0
|
||||
|
Iris
|
Fixed
|
||||
|
Angle of View
|
360°
|
||||
|
DORI
|
|||||
|
DORI Distance
|
Lens
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|
1.4mm
|
31.5
|
12.6
|
6.3
|
3.2
|
|
|
Illuminator
|
|||||
|
IR Range
|
UP to 10m (33ft)
|
||||
|
wavelength
|
850nm
|
||||
|
IR On/Off Control
|
Auto/Manual
|
||||
|
Video
|
|||||
|
Compression
|
Ultra 265, H.265, H.264, MJPEG
|
||||
|
H.264 code profile
|
Baseline profile, Main Profile, High Profile
|
||||
|
Frame Rate
|
Main Stream: 5MP (2592*1944): Max.30fps;
Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
||||
|
U-code
|
Support
|
||||
|
OSD
|
Up to 8 OSDs
|
||||
|
Privacy Mask
|
Up to 4 areas
|
||||
|
ROI
|
Up to 8 areas
|
||||
|
Video Stream
|
Triple streams
|
||||
|
|
|||||
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
||||
|
Digital noise reduction
|
2D/3D DNR
|
||||
|
Smart IR
|
Support
|
||||
|
Flip
|
Normal/Flip Vertical/ Flip Horizontal/180°
|
||||
|
Dewarping
|
N/A
|
||||
|
HLC
|
N/A
|
||||
|
BLC
|
Support
|
||||
|
Defog
|
Digital Defog
|
||||
|
Events
|
|||||
|
Statistical Analysis
|
heat map
|
||||
|
Basic Detection
|
Motion detection, tampering alarm, audio detection
|
||||
|
General Function
|
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
|
||||
|
Audio
|
|||||
|
Audio Compression
|
G.711
|
||||
|
Audio Bitrate
|
64 Kbps
|
||||
|
Two-way audio
|
Supported
|
||||
|
Suppression
|
Supported
|
||||
|
Sampling Rate
|
8 KHZ
|
||||
|
Storage
|
|||||
|
Edge Storage
|
Micro SD, up to 256GB
|
||||
|
Network Storage
|
ANR, NAS(NFS)
|
||||
|
Network
|
|||||
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
|
||||
|
Compatible Integration
|
ONVIF (Profile S, Profile G, Profile T), API,SDK
|
||||
|
User/Host
|
Up to 32 users. 2 user levels: administrator and common user
|
||||
|
Security
|
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
|
||||
|
Client
|
EZStation
EZView EZLive |
||||
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
||||
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
|
|||||
|
Live View Display
|
|||||
|
Mount Type
|
Support table, wall, and ceiling
|
||||
|
Decoding Mode
|
Support software decoding
|
||||
|
Display Mode
|
11 display modes in total
Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ |
||||
|
Interface
|
|||||
|
Audio I/O
|
Input: impedance 35 kΩ; amplitude 2 V [p-p]
|
||||
|
Output: impedance 600 Ω; amplitude 2 V [p-p]
|
|||||
|
Alarm I/O
|
1/1
|
||||
|
RS485
|
N/A
|
||||
|
Built-in Mic
|
Supported 2
|
||||
|
Built-in Speaker
|
N/A
|
||||
|
WIFI
|
N/A
|
||||
|
Network
|
1 * RJ45 10M/100M Base-TX Auto-adaptive Ethernet
|
||||
|
Video Output
|
N/A
|
||||
|
Certifications
|
|||||
|
EMC
|
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
|
Safety
|
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
|
Environment
|
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
||||
|
Protection
|
IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002) |
||||
|
General
|
|||||
|
Power
|
DC12V±25%,PoE (IEEE 802.3af)
|
||||
|
Power consumption: Max. 8.5W
|
|||||
|
Power Interface
|
Ø 5.5mm coaxial power plug
|
||||
|
Dimensions (Φ × H)
|
Φ125 × 43.7 mm (Φ4.9" × 1.7")
|
||||
|
Weight
|
0.36kg (0.79lb)
|
||||
|
Material
|
Metal + Plastic
|
||||
|
Working Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||||
|
Strorage Environment
|
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||||
|
surge protection
|
4KV
|
||||
|
Reset Button
|
Supported
|
||||
