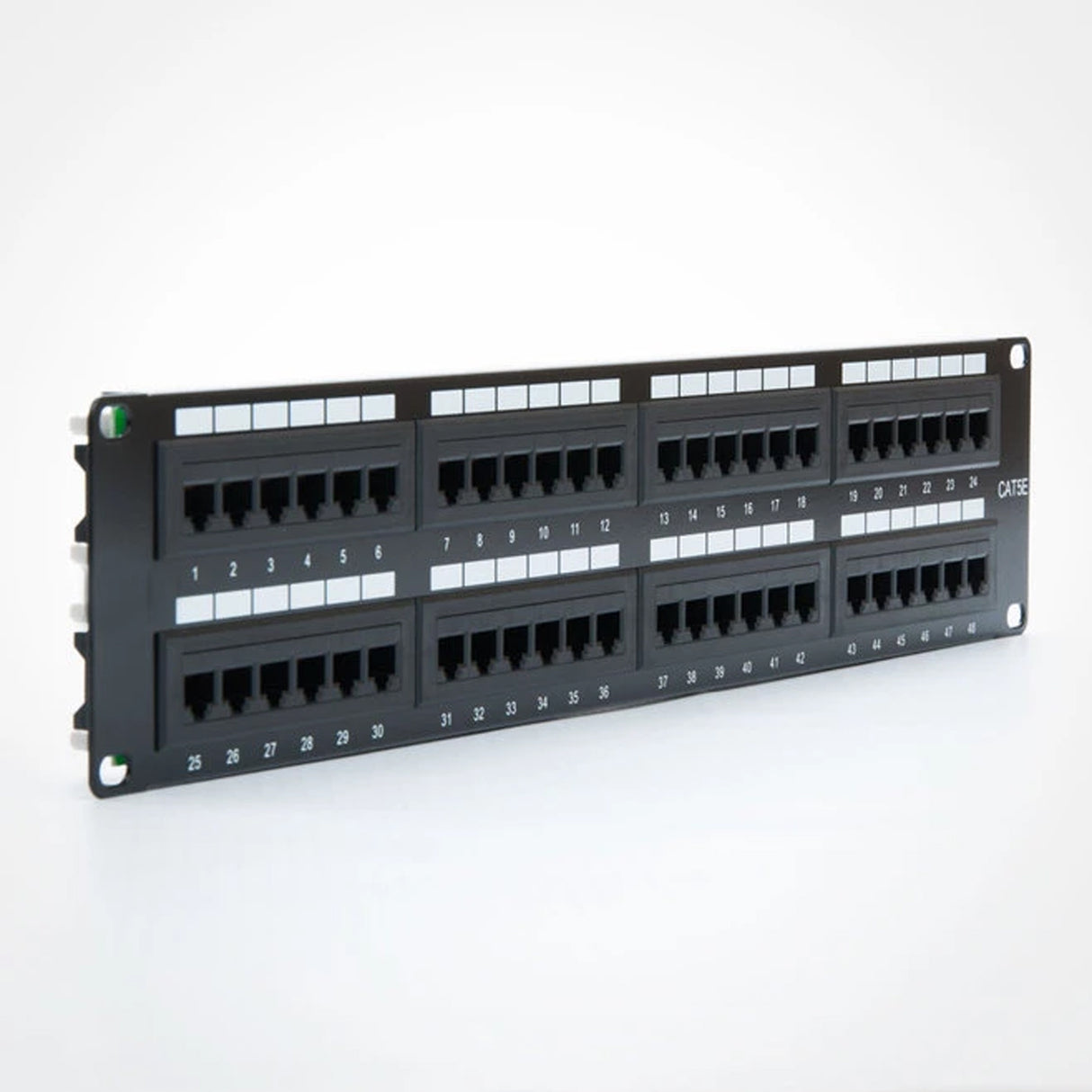

Vanco 820548 48-Port CAT5e Patch Panel 2U

by Vanco
SKU VC820548
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Vanco 820548 Cat5E Patch Panel 2U - 48 Port

  • Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification
  • Space saving, high-density 19in panel design
  • Wire Diameter Supported: 22AWG To 26AWG
  • Insulation Diameter Range: 0.70 to 1.40mm
  • 1U Height, Designed to mount to any standard 19" Rack or Cabinet
  • Jack Contacts: Phosphor bronze, 50-micron gold plated
  • IDC Contacts: Phosphor bronze, 50-micron gold plate over nickel plating
  • Flammability: UL 94 VO
  • Size: 1.75x19in
  • Operating Temperature: -40 to +70 degrees Celsius
  • Black electrostatic powder-coated steel
  • Accommodates top, bottom or side cable entry
  • UL Certification
  • TIA/EIA-T568-A & B Wiring configuration
