Vanco PAV140, Commercial Power Amplifier 70V, 40watts
MPN:
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Vanco PAV140, Commercial Power Amplifier 70V, 40watts is backordered and will ship as soon as it is back in stock.
Description
Description
- Single Channel
- 40W, 70/100V Compatible
- Front-Panel Controls + IR or RS232
- Volume, Menu, Bass, Treble, Mic Controls
- 16 ID Codes for Use with Multiple Units
- 3-Level Mic Input with Ducking Function
- Works with Condenser, Dynamic, Wireless
- Two Analog Inputs + Digital Input
- Power Adapter and Cables Included
- Mounting Hardware Included
Overview

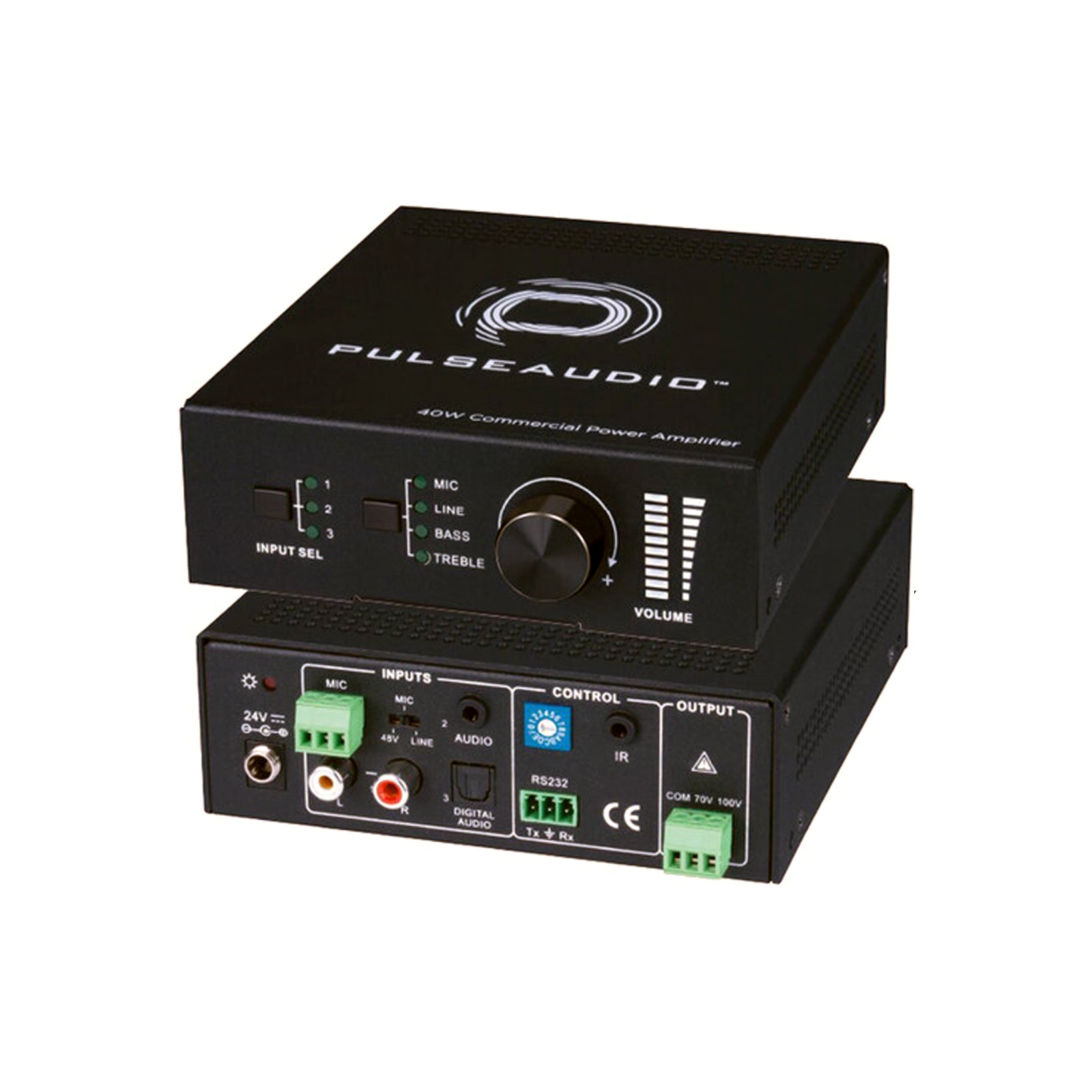

The Vanco PAV140 is a single-channel, 40W commercial amplifier well suited for background music and announcements for a variety of applications including retail, restaurants, office setting, and more. The Class-D amplifier supports 40W at 8 ohms and can also output 70/100V for multiple speakers with longer cable runs to additional rooms.

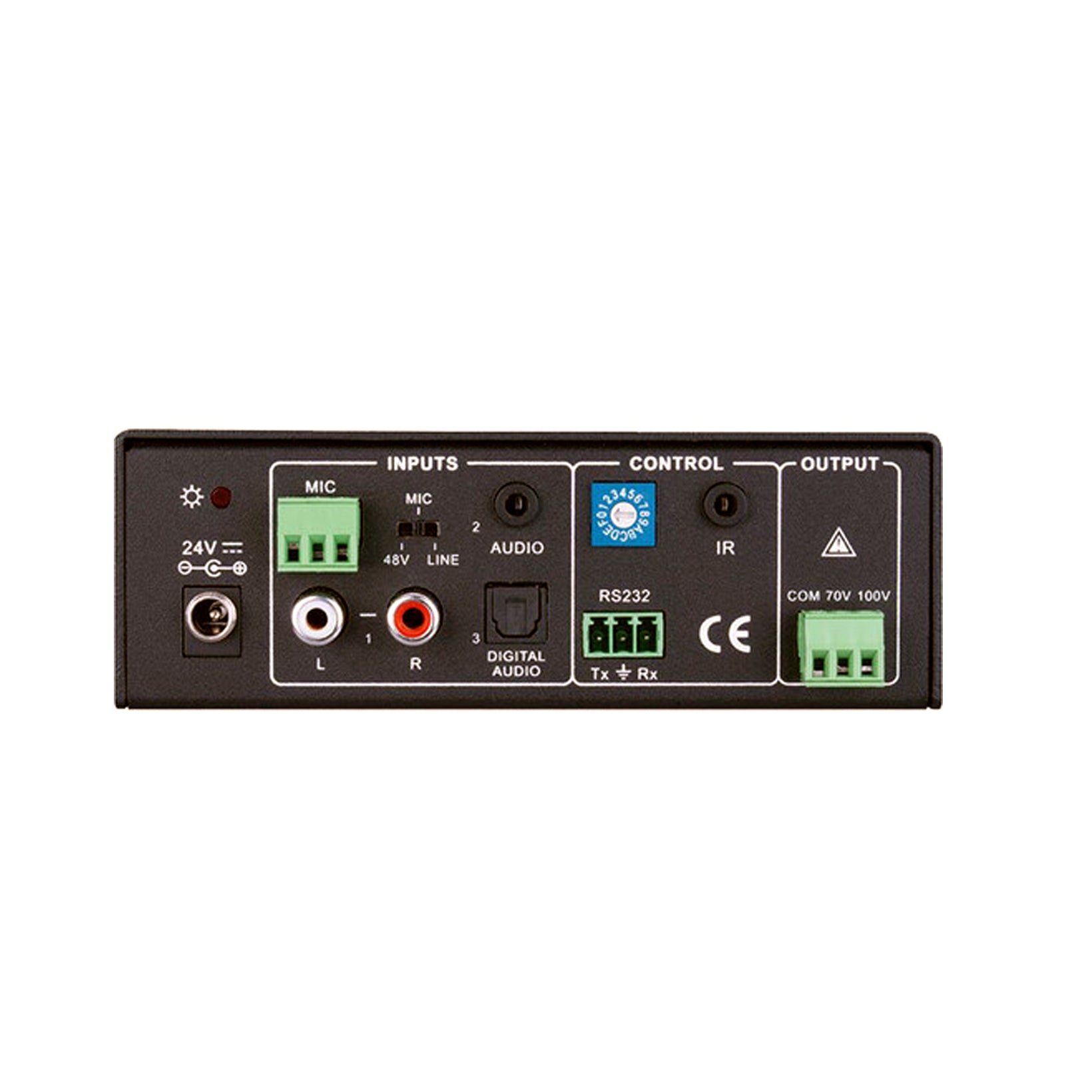

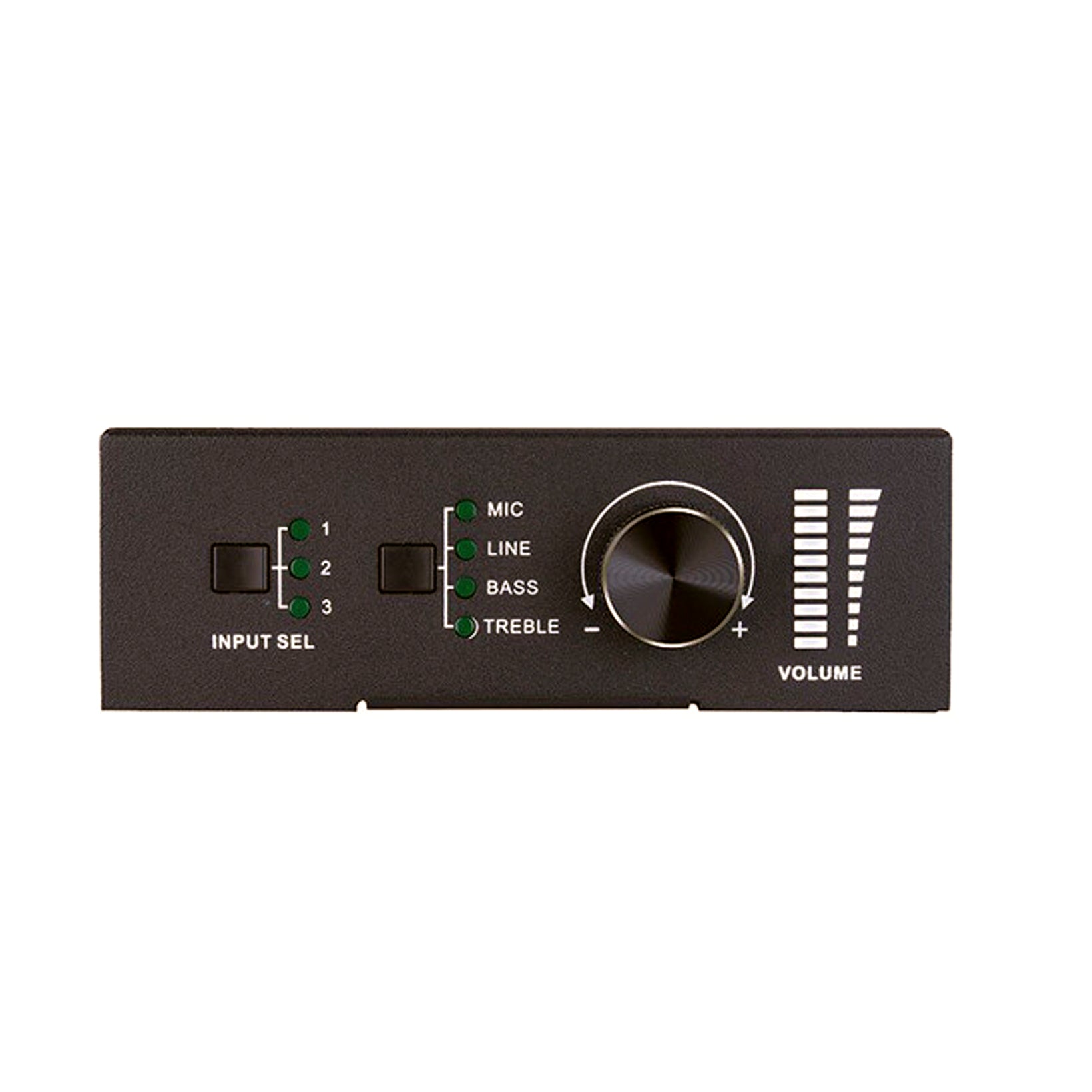

The front panel offers a volume control, input selection, and a menu select for adjusting settings for microphone, line, bass, and treble. The rear panel features a red power LED, stereo RCA inputs, a stereo 3.5mm input, and a terminal block mic input. The mic section includes a selection switch for 48V (condenser mic), Mic (dynamic mic), and line (wireless mic with line-level output). A digital optical input is also available.
The unit can also be controlled via IR or RS232 inputs. A 16-channel dial allows you to connect and control multiple amplifiers individually. The anti-static case provides solid protection for long-term and stable performance. The amplifier is convection cooled for silent operation. The PAV140 includes mounting hardware, pluggable terminal blocks, plastic feet, an RS232 cable, and a 24 VDC power adapter.
Features
• 40W single-channel 70/100-volt amplifier
• Controllable via front panel, IR, or RS232
• Front-panel dial controls volume, menu selection, bass, treble, and microphone levels
• 16 ID codes for addressing and controlling multiple units
• 3-level MIC input with ducking functionality, supports condenser, dynamic, and wireless microphones
• MIC port can support balanced/unbalanced signal to effectively suppress external noise
• Two analog stereo audio inputs and one digital audio input
• Convection cooled, no external fan needed
• LED indicator for power and working status
• Anti-static case design provides good protection for long-term and stable performance
• Mounting accessories included
Specifications
Number of Channels | 1 |
---|---|
Power Rating | 1 x 40 W |
Amplifier Class | Class-D |
Load Impedance / Voltage | Mono: 70 / 100 V |
EQ | 2-Band Shelving EQ |
Ducking/Muting |
Yes
|
Analog Audio I/O |
1 x 2RCA TS Female Unbalanced Line Input
1 x 1/8" / 3.5 mm TRS Female Line Input 1 x Block 3-Pin Mic Input |
Digital I/O |
1 x TOSLINK Input (I/O)
|
USB |
None
|
Phantom Power |
48 VDC
|
