Vertical Cable (209-2315-DB), Spekaer Cable 16AWG, 2 Conductor, Stranded (65 Strand),UV Rated Outer Jacket, Direct Burial 500ft, PE Jacket, Pull Box, Black
SKU VE162DIRBURBK(209-2315-DB)

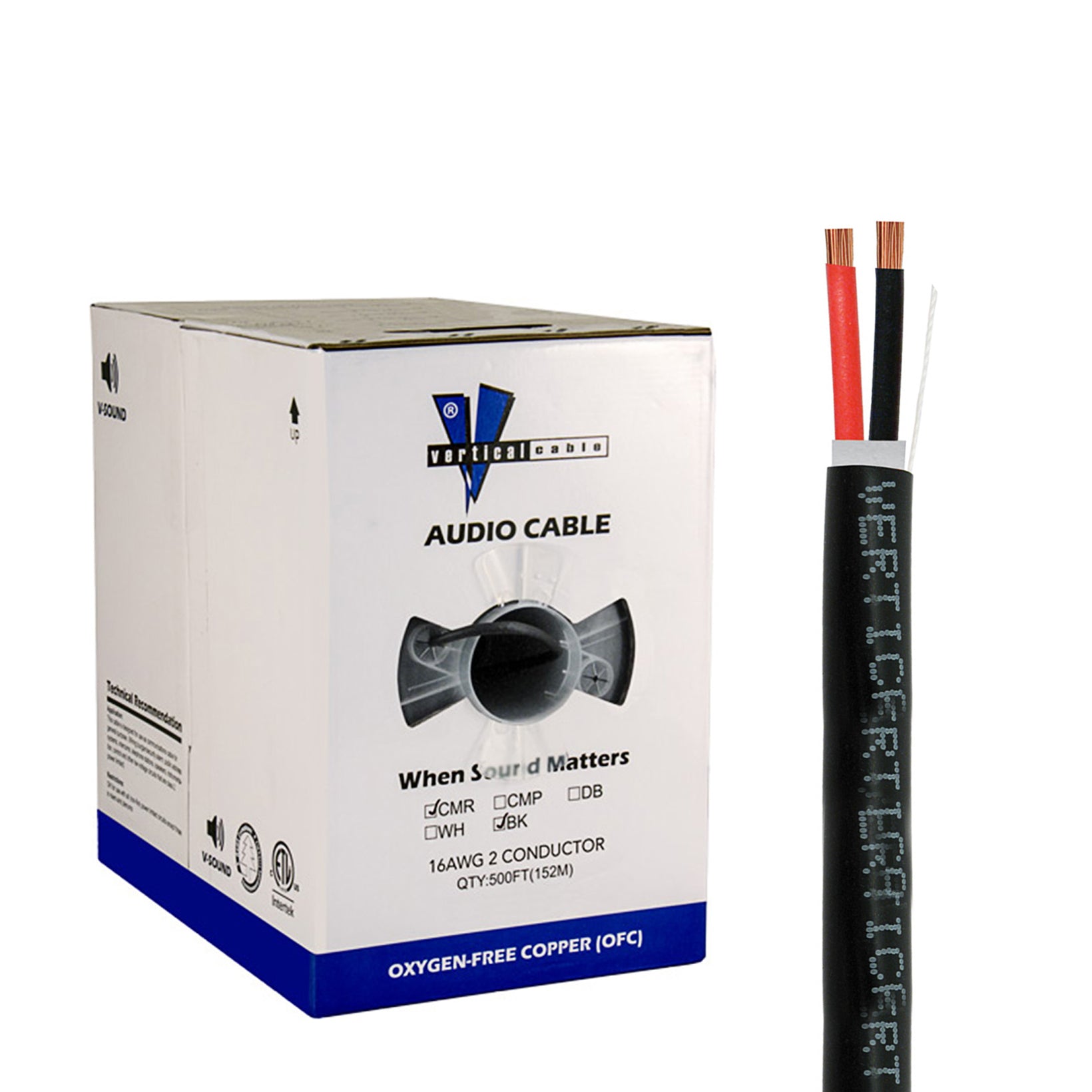

Vertical Cable 209-2315/DB 16AWG 2 Conductor Stranded Burial Spike Cable (Black, 500 feet)
Deliver High Performance! The Vertical Cable 209-2315/DB is a 16 AWG 2 Conductor Stranded Burial Spike Cable that comes in a convenient pull box. Suitable for direct burial, it is weather resistant, ET Listed, and RoHS Compliant.
Weather Proof
Vertical Cable’s 209-2315/DB is constructed with a protective Durable Weather Resistant Jacket layer. This cable is not only stormproof, but also UV resistant to withstand any type of harsh environment.
Effortless Install
The Vertical Cable 209-2315/DB has an easily-strippable jacket and sequential distance offering you an effortless install.

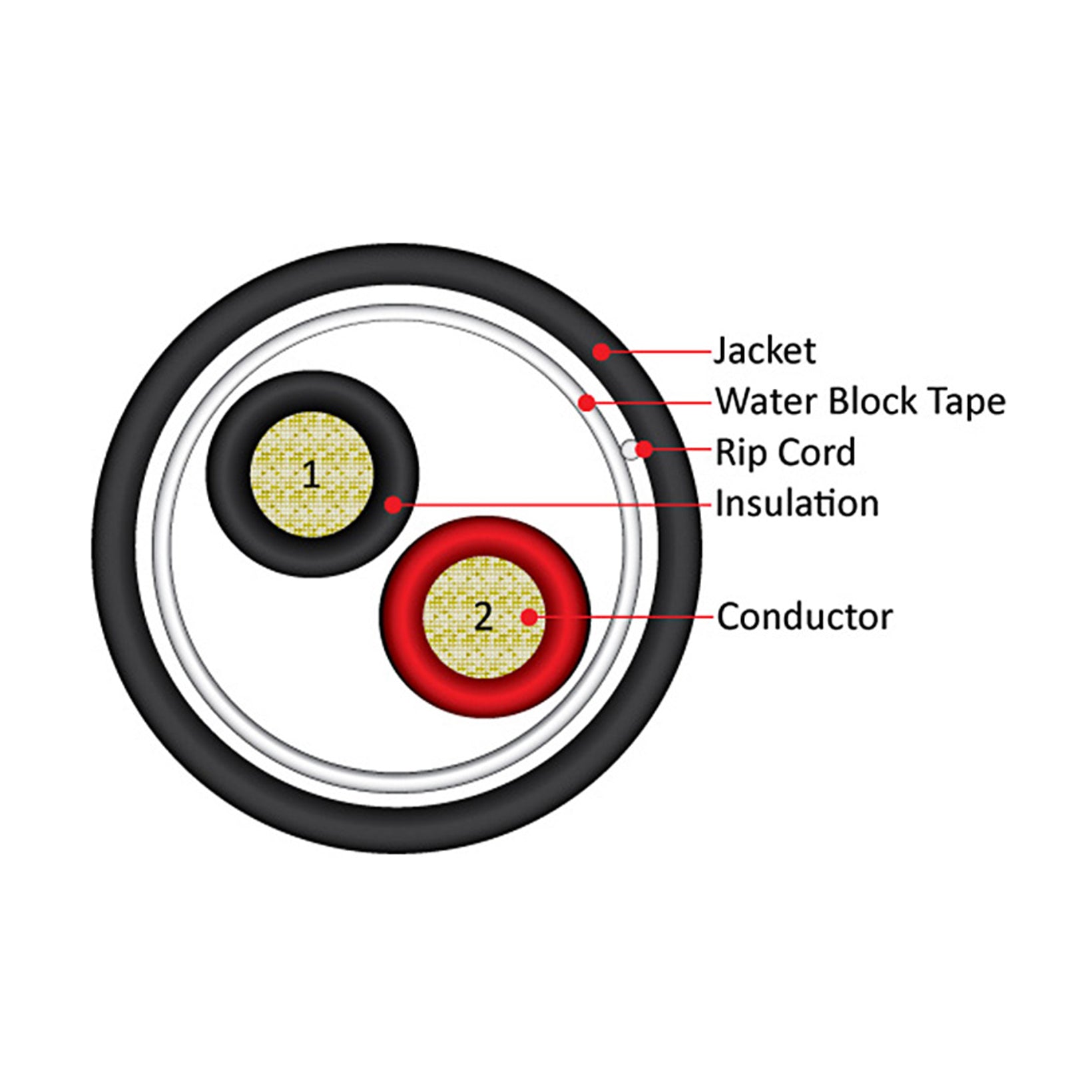

| Conductor | 2 Core (Stranded BC) |
|---|---|
| Material | Oxygen Free Copper Wire Strands |
| Size | 16 AWG |
| Stranding | 65 Strands |
| Strand Diameter | 0.16 mm |
| Insulation Material | PVC |
| Average Thickness | 0.31 mm |
| Min. Point Thickness | 0.27 mm |
| Diameter (±0.05 mm) | 2.10 mm |
| Water Block Tape | Yes |
| Jacket Material | PE (UV) |
| Color | Black |
| Average Thickness | 0.95 mm |
| Min. Point Thickness | 0.88 mm |
| Outer Diameter (±0.1 mm) | 6.00 mm |
| Insulation Color | Black, Red |
| Ripcord Material | Nylon (150D) |
| Electrical Performance | |
| Rated Temperature | -20ºC - 75ºC |
| Rated Voltage | 300V |
| Reference Standard | ETL Listed |
| Mechanical Characteristics | |
| Test Object | Jacket |
| Test Material | PE |
| Before: Tensile Strength (Mpa) | >=13.8 |
| Aging: Elongation (%) | >=100 |
| After: Tensile Strength (Mpa) | >=85% of unaged |
| Aging: Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) | No CRack |
