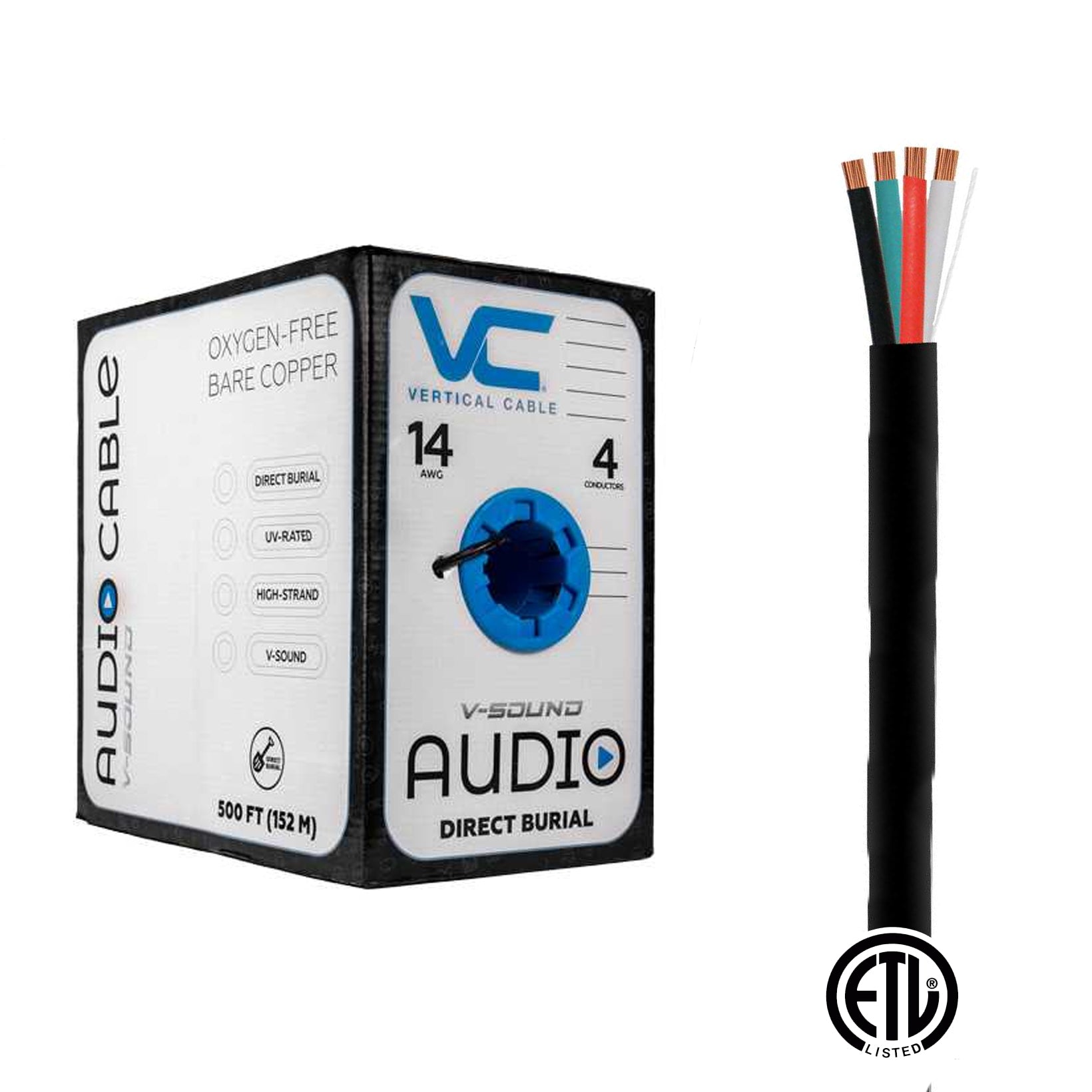

Vertical Cable 14/4 DIRECT BURIAL High Strand Audio Cable, UV Rated Outer Jacket, 14AWG, 4 Conductor, Stranded, 105 Strand, (500ft) Pull Box, Black

SKU VE144DIRBURBK(209-2321DB)
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Vertical Cable 209-2321/DB

High Strand Audio Cable, UV Rated Outer Jacket, Direct Burial, 14AWG, 4 Conductor, Stranded (105 Strand), 500ft, Pull Box, Black

  • Suitable for Direct Burial
  • Durable Weather Resistant Jacket
  • High-Strand Oxygen Free
  • Bare Copper Conductors
  • ETL Listed, RoHS Compliant
  • 500ft Pull Box
  • UV Rated Outer Jacket,
  • Conductor: 4 Core (Stranded BC)
  • Material: Oxygen Free Copper Wire Strands
  • Size: 14 AWG
  • Stranding: 105 Strand
  • Strand Diameter: 0.16 mm
  • Insulation Material: SRPVC
  • Average Thickness: 0.36 mm
  • Min. Point Thickness: 0.33 mm
  • Diameter (±0.05mm): 2.60 mm
  • Assembly Diameter (±0.1mm): 6.20 mm
  • Jacket Material: PE
  • Color: Black
  • Average Thickness: 0.95 mm
  • Min. Point Thickness: 0.88 mm
  • Outer Diameter: 8.20 mm
  • Insulation Color: Black, Red, Green, White
  • Ripcord Material: Nylon (150D)
  • Rated Temperature (ºC): -20 - 75
  • Voltage Rating: 30V
  • Reference Standard: ETL
  • Test Material: PE
  • Before Tensile Strength (Mpa): >=13.8
  • Aging Elongation (%): >=100
  • Aging Condition (ºCxhrs): 100x168
  • After Tensile Strength (Mpa): >=85% of unaged
  • Aging Elongation (%): >=50% of unaged
  • Cold Bend (-20±2ºCx4hrs): No Crack
