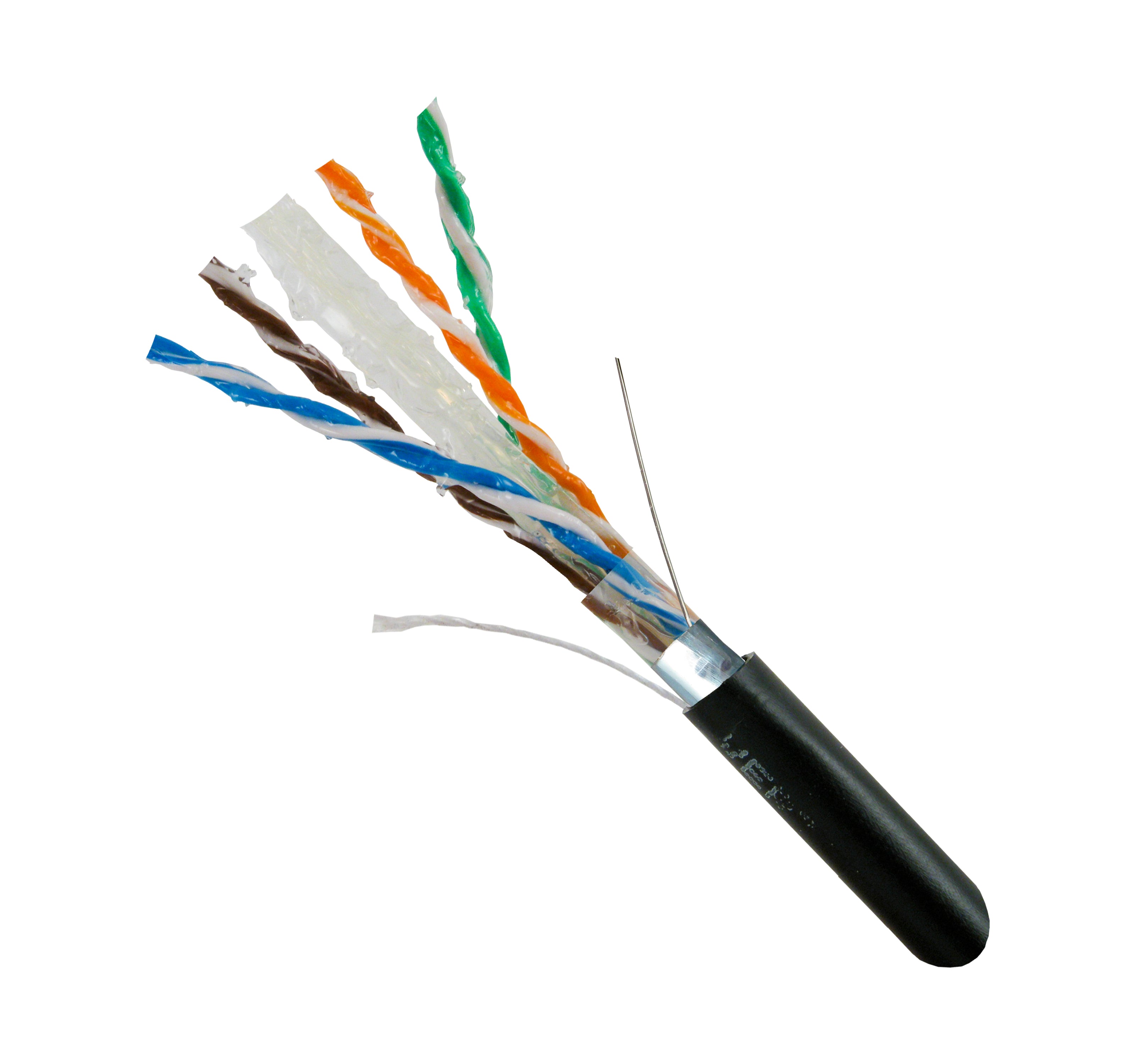

Vertical Cable (069-558/S/CMXF), CAT6, CMXF, Direct Burial, Gel-Filled Core, LLDPE Jacket, Shielded, 23 AWG, 8C, Solid Bare Copper, 1000ft, Wooden Spool, Black

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Cat 6 550 mhz F/UTP 1000 feet black
  • Shielded Twisted Pair F/UTP Cable - 550 MHz
  • 23 awg wires made of solid bare copper conductors
  • ETL type CMR for indoor and riser network installations
  • Exceeds TIA/EIA-568-C.2 specifications

This Cat 6 shielded twisted pair F/UTP cable is a high performance data communication cable suitable for 550mhz high speed applications. It has excellent attenuation and crosstalk characteristics and exceeds TIA/EIA-568-C.2 specification.

This ethernet cable is designed for indoor and riser network installations and is approved by ETL to be type CMR. The wires are 23 awg in size and are made of solid bare copper conductors.

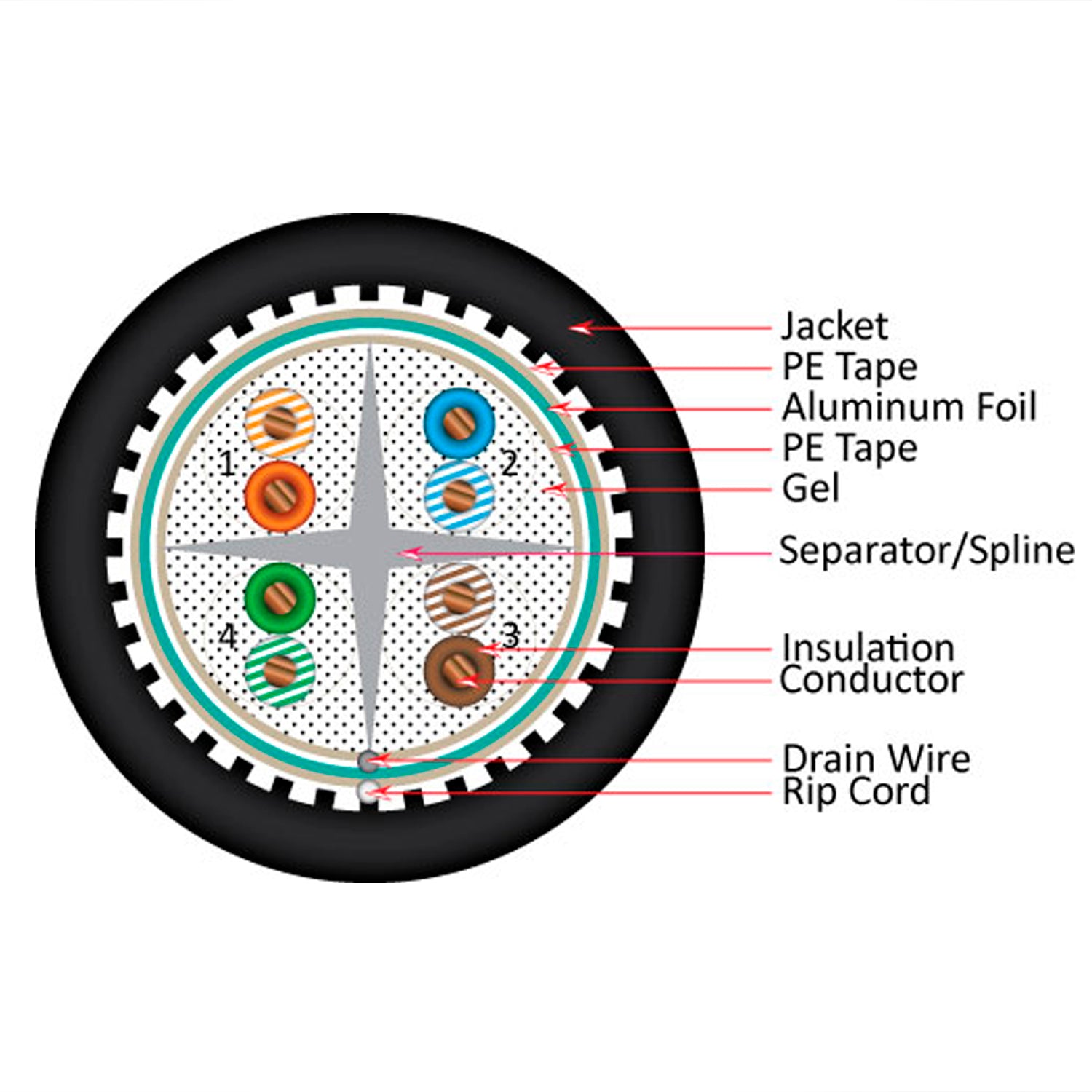

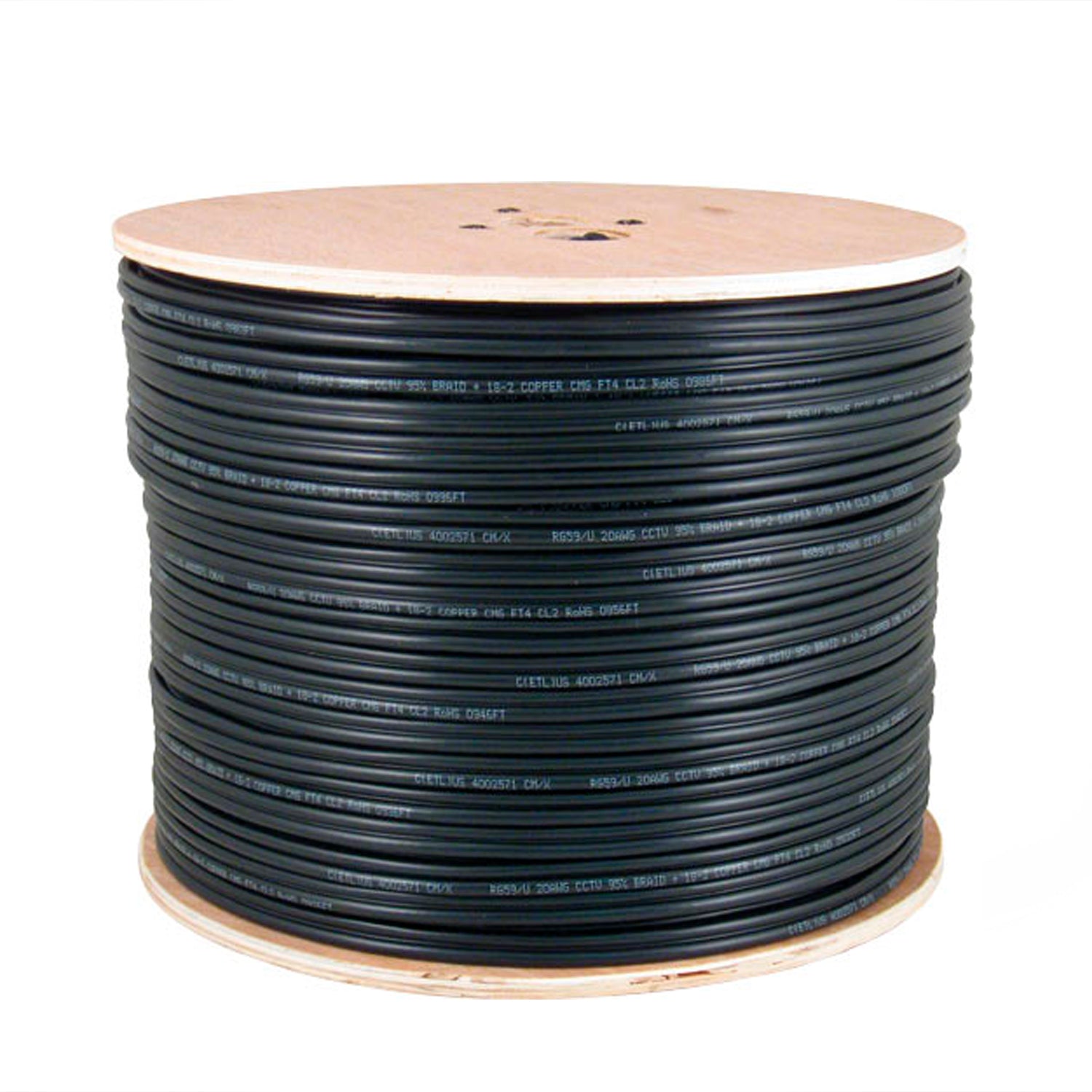

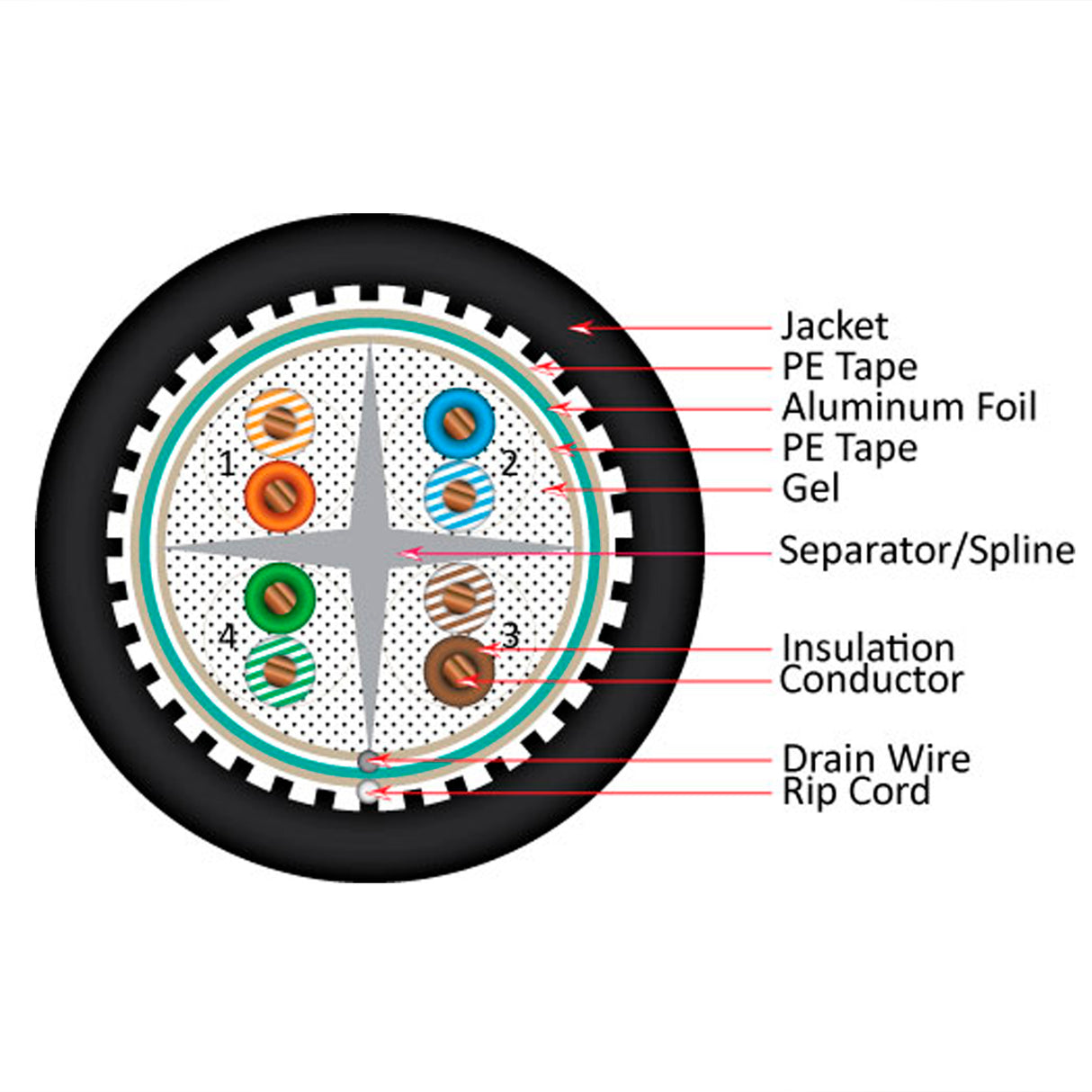

All 4 pairs are easily identified by color stripes. The insulation material is HDPE and the jacket is made of PVC and the cable is equipped with AL foil as a shield and drain wire. This cable is supplied in 1000 feet wooden spool and sequential length markings are printed on the jacket.
