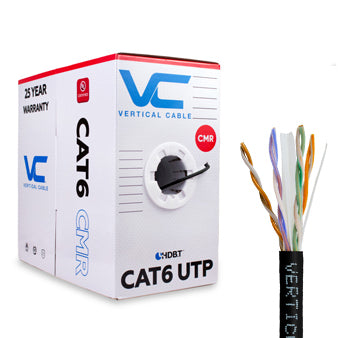

Vertical Cable (CAT6UL) 23AWG, Solid Copper, Pull Box, 1000ft, White / Black / Blue

VERTICAL CABLE 060 SERIES – CAT6 UTP CMR CABLE

The 060 Series is a CAT6 CMR cable engineered for high-performance riser installations requiring Gigabit Ethernet and full PoE++ Type 4 power delivery. This CAT6 CMR cable features 23 AWG solid bare copper conductors, a 550 MHz bandwidth, and a PVC riser-rated jacket.

KEY FEATURES

Here’s what makes the 060 Series ideal for riser-rated network installations:

• 23 AWG Solid Bare Copper: Eight solid copper conductors (4 pairs) deliver consistent signal transmission and optimal PoE power delivery.

• 550 MHz Bandwidth: Supports Gigabit Ethernet with headroom for demanding network applications.

• Full PoE++ Type 4 Support: Supports IEEE 802.3bt up to 100W for powering high-wattage devices like PTZ cameras and wireless access points.

• UTP Construction: Unshielded twisted-pair design simplifies termination without grounding requirements.

• CMR Riser-Rated Jacket: PVC jacket meets NEC requirements for installation in vertical risers between floors.

• Polypropylene Separator: PP spline maintains pair geometry for excellent crosstalk performance.

• PE Insulation: Polyethylene insulation ensures stable electrical characteristics across the frequency range.

• Integrated Ripcord: Easy jacket removal for efficient termination.

• Standards Compliant: Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 transmission performance specifications.

• ETL-Listed and RoHS Compliant: Third-party verified for safety and environmental compliance.

• Multiple Color Options: Available in 5 colors for easy circuit identification.

• 1000 ft Pull Box: Convenient pull box packaging for efficient installation.

APPLICATIONS

The 060 Series CAT6 CMR cable excels in commercial and enterprise riser installations:

• Commercial Buildings: Install vertical backbone cabling between floors in office buildings, hotels, and multi-story facilities.

• Enterprise Networks: Deploy Gigabit Ethernet with full PoE++ support for workstations, VoIP phones, and wireless access points.

• Educational Facilities: Run riser cables between floors in schools, universities, and campus buildings.

• Healthcare Facilities: Provide reliable connectivity for patient rooms, nursing stations, and medical devices across multiple floors.

• Retail Environments: Install backbone cabling for POS systems, security cameras, and digital signage throughout multi-level stores.

WHY CHOOSE THE 060 SERIES CAT6 CABLE?

Choosing the 060 Series means investing in dependable performance and long-term reliability:

1. Full PoE++ Type 4 Support – Supports IEEE 802.3bt up to 100W for powering high-wattage network devices without separate power infrastructure.

2. True Riser Compliance – CMR-rated PVC jacket meets NEC requirements for vertical installations between floors without conduit.

3. 550 MHz Bandwidth – Exceeds Category 6 requirements with headroom for demanding Gigabit Ethernet applications.

4. Quality Construction – 23 AWG solid bare copper with PP separator delivers consistent performance across the full channel length.

5. Verified Compliance – ETL-Listed and tested to exceed ANSI/TIA-568.2-D and ISO/IEC 11801 standards.

WHAT’S NEXT?

Once you’ve specified the 060 Series for your project:

• Select Your Colors – Choose from 5 available colors to implement your color-coding scheme for easy circuit identification.

• Plan Vertical Runs – Ensure proper support intervals for vertical cable runs per NEC and TIA guidelines.

• Use Compatible Connectors – Terminate with Vertical Cable CAT6 RJ45 plugs (012-022-100 or 012-023/EZF-100) for optimal performance.

• Test After Installation – Certify all links to CAT6 standards using appropriate test equipment before commissioning.
