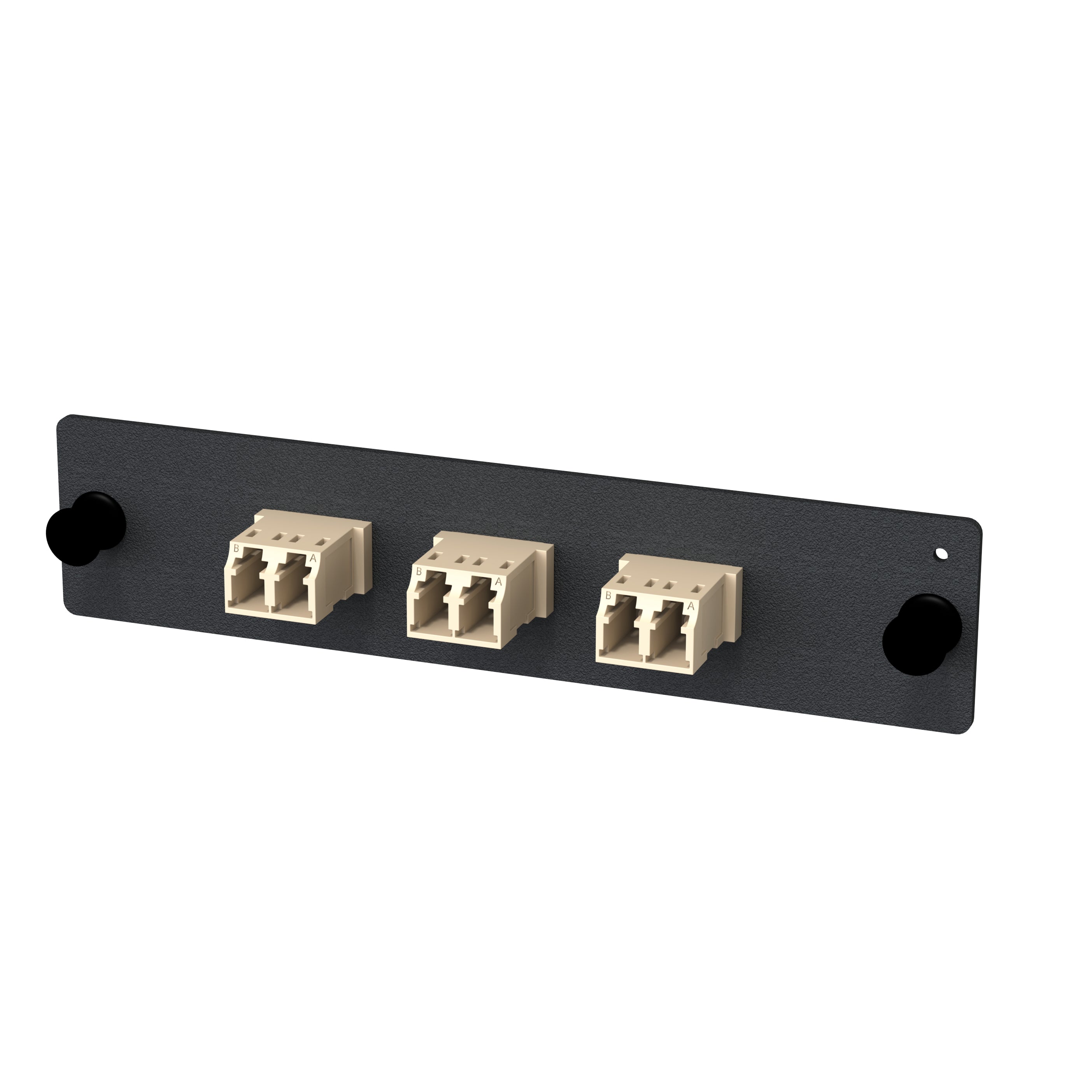

Vertical Cable LGX Adapter Plates, 6F/3P LC OM1

Introducing the LGX Adapter Plates – Flangeless (264-LAP Series)

If you’re in the market for high-performance fiber optic solutions, look no further than the LGX Adapter Plates – Flangeless (264-LAP Series). These innovative adapter plates are designed with ease of use, compatibility, and superior durability in mind, making them an essential component in any fiber optic installation. This comprehensive guide will highlight the features and benefits of the LGX Adapter Plates – Flangeless (264-LAP Series), ensuring you have all the information needed to make an informed decision.

Key Features of LGX Adapter Plates

• LGX Compatible: Specifically designed to work seamlessly with LGX systems.

• Lightweight Aluminum Construction: Crafted from durable 0.6 in. (1.5 mm) thick, 15-gauge aluminum alloy featuring a black powder coating for enhanced durability and a sleek aesthetic.

• Nylon/ABS Panel Fasteners: Engineered for secure attachment and long-lasting performance.

• Broad Fiber Type Compatibility: Supports a variety of fiber types, including:

  • Single-Mode (SM) 9/125

  • Multi-Mode (MM) 50/125

  • Multi-Mode (MM) 62.5/125

• Plug Type Compatibility: Works with various plug types like PC, UPC, and APC.

• Versatile Mounting Options: Can be mounted in either horizontal or vertical positions to meet your specific installation needs.

• Regulatory Compliance: Meets industry regulations such as Regulation (EC) No 1907/2006 (REACH) and Directive 2011/65/EU Am. 2015/863/EU (RoHS2).

• Quality Standards for Plastic Parts: Achieves ANSI/UL 94 V-0 ratings for flame-retardant quality.

• Telcordia GR-326-CORE Compatible: Guarantees reliability and performance in demanding applications.

Technical Specifications

The LGX Adapter Plates – Flangeless (264-LAP Series) are engineered with precise measurements to ensure a perfect fit and optimal performance. Here are the key specifications:

• Width: 5.12 in. (130 mm)
• Height: 1.14 in. (29 mm)
• Mounting Hole Distance: 4.65 in. (118 mm) center-to-center
• Depth (varies by adapter type):
  • FC: 0.6 in. (15 mm)
  • MPO: 1 in. (25 mm)
  • ST, SC, LC: 1.2 in. (30 mm)

Adapter Construction

The LGX Adapter Plates – Flangeless (264-LAP Series) feature a robust design that ensures reliable performance in various applications.

• One-Piece or Two-Piece Design: Depending on your application, choose between a one-piece design for simplicity or a two-piece design for versatility.
• Split Zirconia Ceramic Sleeves: Each single-fiber adapter is constructed with high-quality sleeves, ensuring optimal durability and light transmission.
• Retention Mechanism: The flangeless adapters feature secure fit options that minimize potential disconnections.
• Flanged Adapters: Optional flanged adapters come with holes for self-tapping screws, providing additional stability and ease of installation.

Advantages of Using LGX Adapter Plates

Utilizing the LGX Adapter Plates – Flangeless (264-LAP Series) in your fiber optic system can significantly enhance performance. Here are some notable advantages:

• Improved Signal Quality: High-quality materials lead to reduced loss and optimal signal quality.
• Ease of Installation: Thoughtfully designed for straightforward installation, even in constrained spaces.
• Cost-Effective: Durable and reliable, these adapter plates minimize the need for frequent replacements, proving to be a cost-effective solution for fiber optic installations.
• Enhanced Versatility: With various compatibility options and mounting preferences, these adapter plates are suitable for numerous applications, catering to both technicians and engineers alike.
