Vertical Cable Optical Fiber Rack-Mount Enclosure, Budget-Series, LGX, Three-Position, 1 RMU.

VERTICAL CABLE 267-REB01-1C1 – OPTICAL FIBER RACK-MOUNT ENCLOSURE – LGX | THREE-POSITION | 1 RMU

The 267-REB01-1C1 is a compact, budget-series optical fiber rack-mount enclosure engineered for LGX-style adapter plates. Designed for dense optical fiber terminations, it provides front and rear access for quick maintenance. With support for up to 72 fibers and two 24-fiber splice trays, this 1 RMU unit is ideal for structured cabling setups requiring versatility and reliability.

KEY FEATURES

Here’s what makes the 267-REB01-1C1 enclosure a solid pick for structured fiber installations:

• 1 RMU Form Factor: Mounts into standard 19 in. (482.6 mm) racks with a 1.75 in. (44.5 mm) height profile.

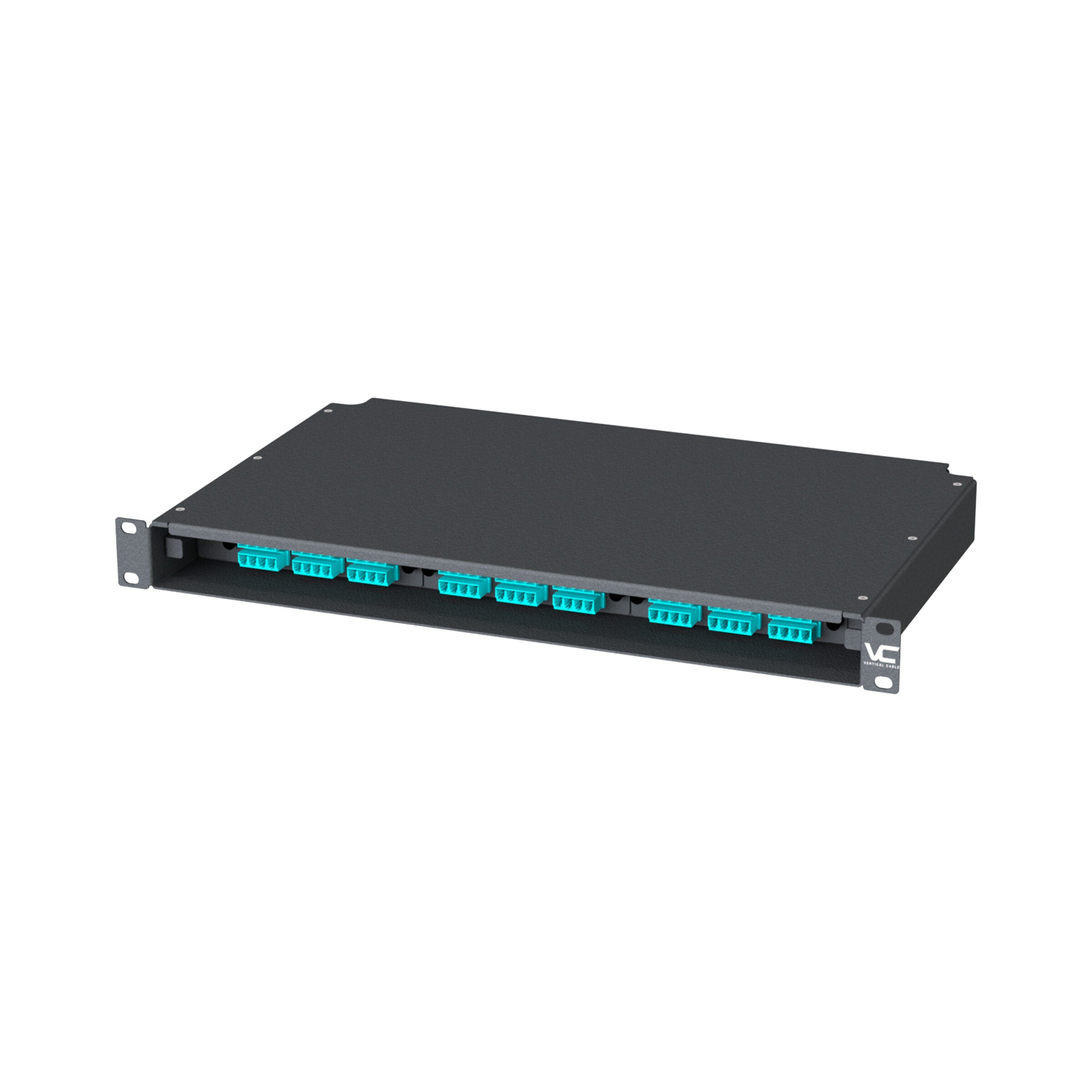

• Three LGX Adapter Plate Capacity: Holds up to 3 adapter plates (72 fibers max).
• Splice Tray Compatibility: Supports 2 standard 24-fiber splice trays or 1 array cassette, up to 72 fibers.
• Durable Aluminum Frame: Made from 15-gauge aluminum (0.06 in. | 1.5 mm), powder-coated in black.

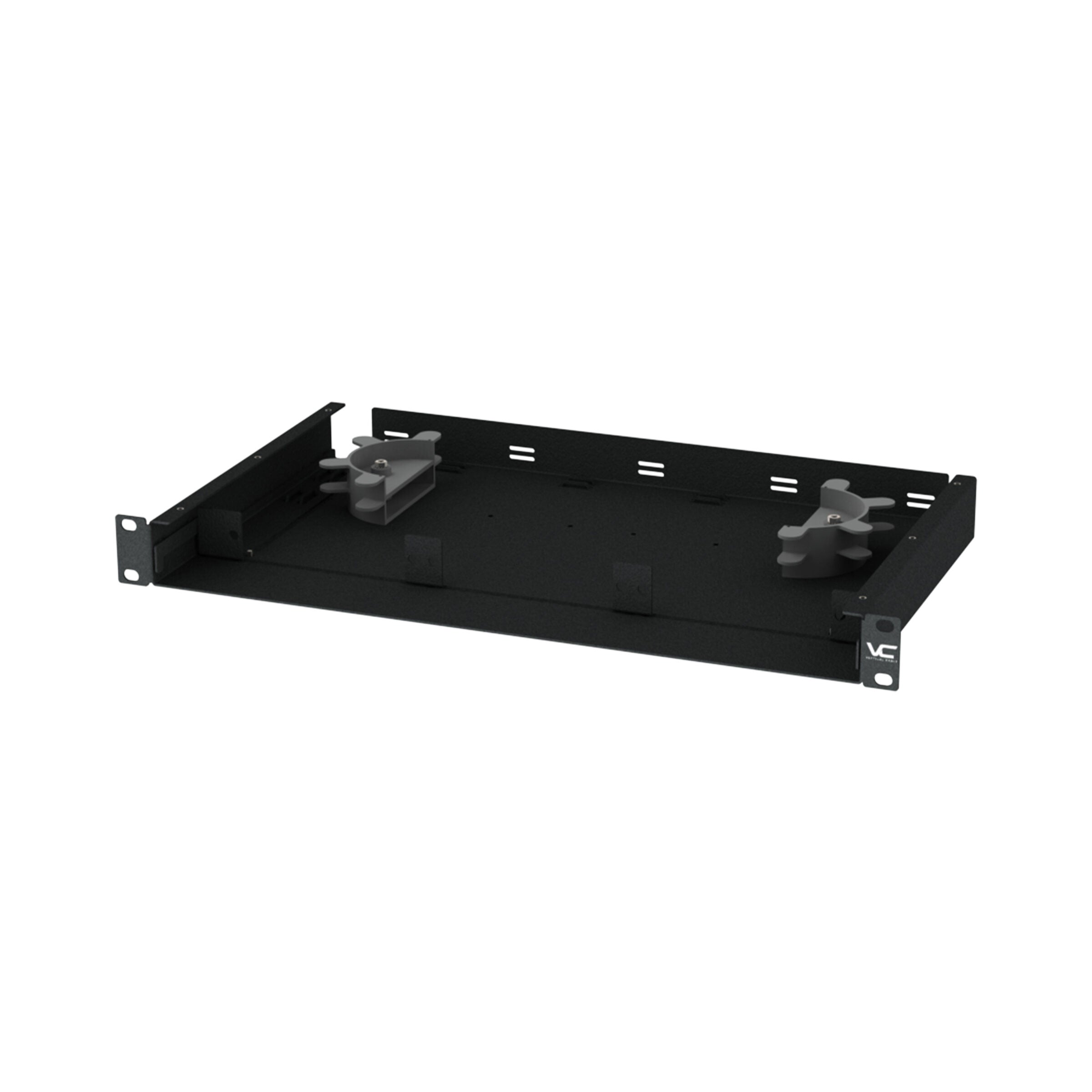

• Removable Cover: Top cover is secured with screws for added protection and accessibility.

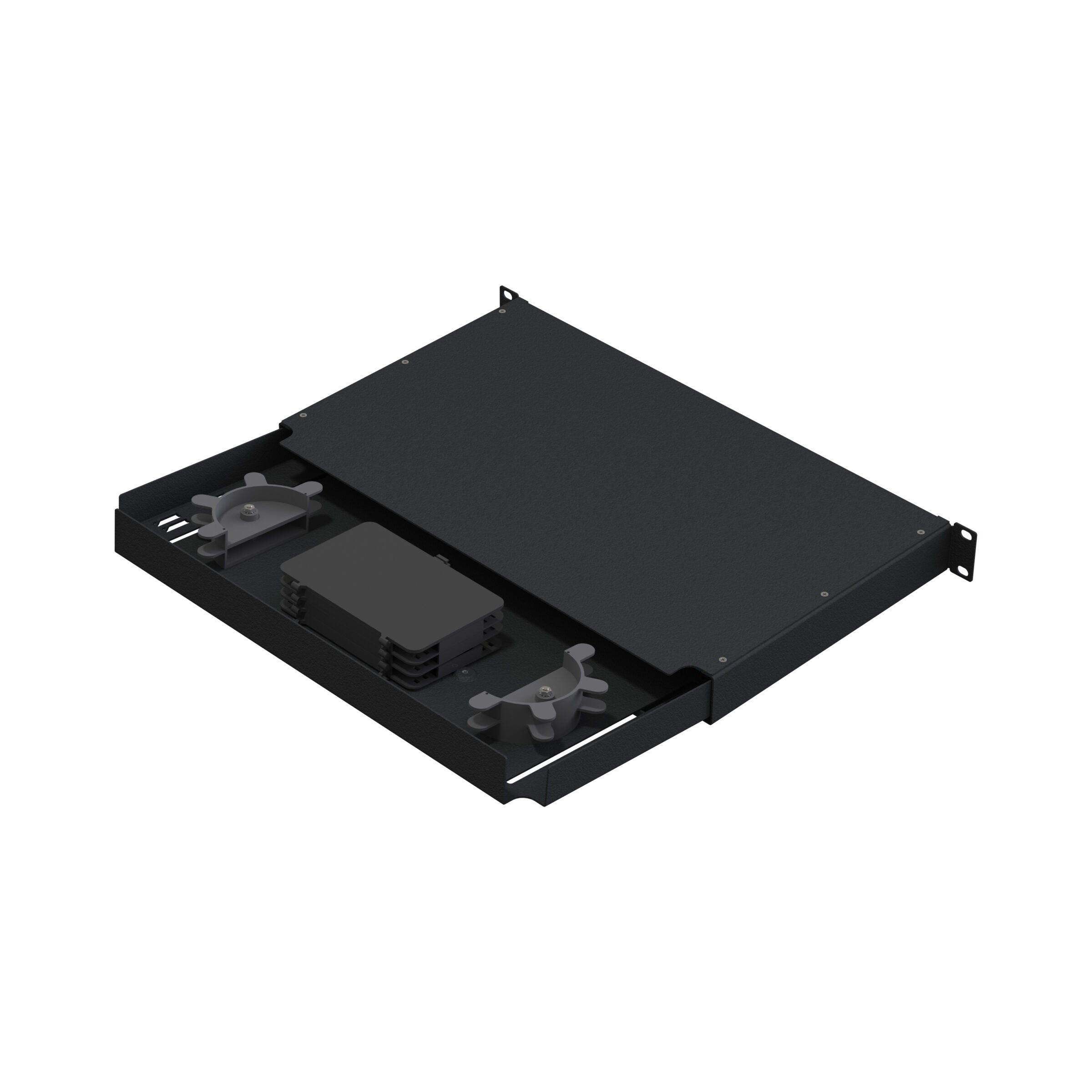

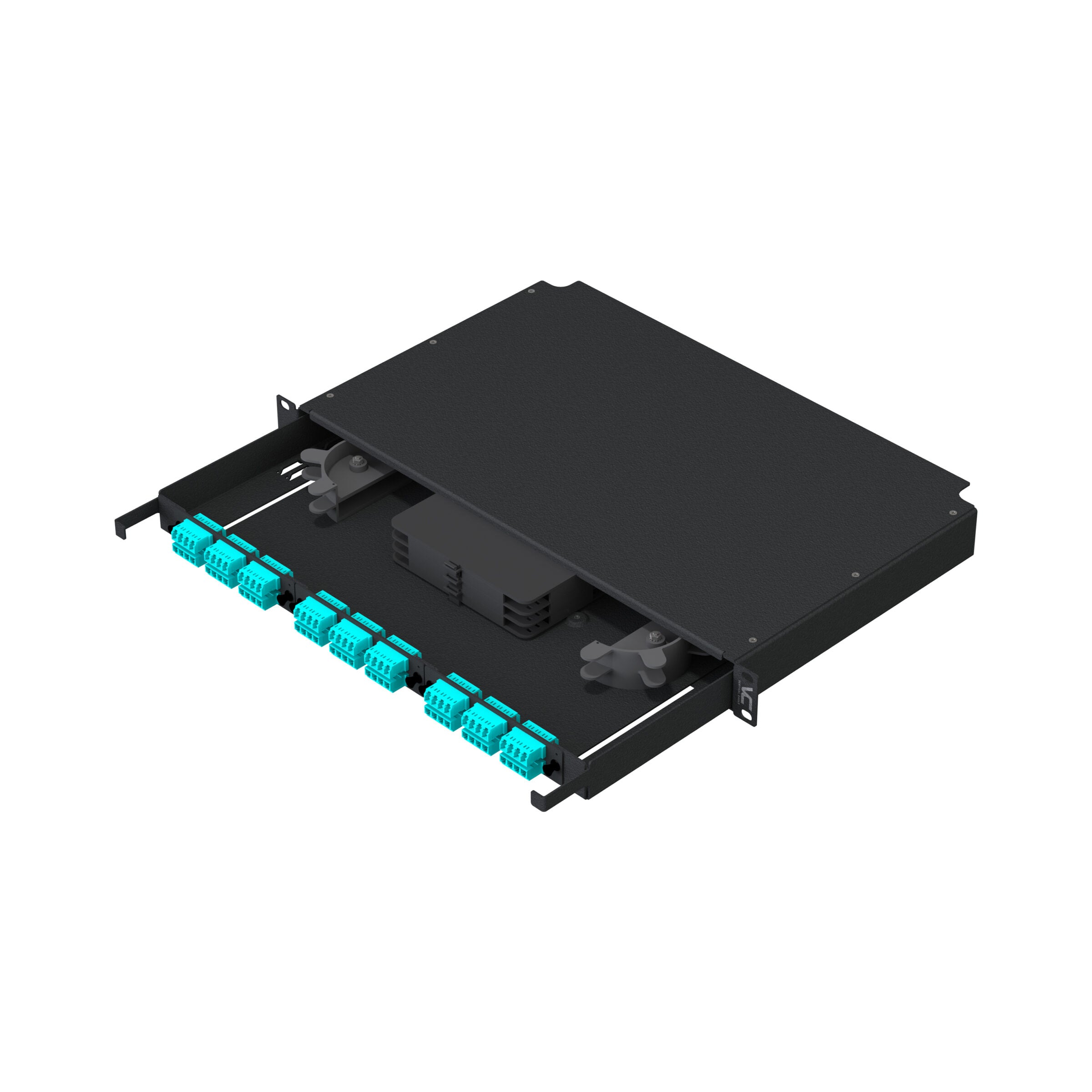

• Retractable Stage: Smooth front and rear sliding tray for simplified access and servicing.
• Cable Management: Includes two rear entry openings, bridge lances, cable ties, and self-gripping wraps.
• Fiber Routing: Two-level internal spools help maintain bend radius and fiber integrity.
• Mounting Hardware Included: Comes with (4x) 10-32 and (4x) 12-24 screws and N12 washers for versatile rack compatibility.
• Lightweight: Weighs 4.5 lbs. (2 kg), minimizing strain on rack frames.
• Compact Depth: Measures only 11.2 in. (284.5 mm) deep, ideal for shallow cabinets or tight spaces.

APPLICATIONS

The 267-REB01-1C1 excels in environments requiring compact yet robust optical fiber terminations:

• Data Centers: Centralize high-density fiber terminations with minimal space usage.
• Enterprise LAN Rooms: Ideal for interconnecting backbones or fiber-to-desk deployments.
• Telecom Closets: Enable structured fiber management in low-visibility, high-density areas.
• Campus Networks: Support multi-floor or multi-building fiber runs in commercial buildings.
• Industrial Facilities: Provide reliable fiber access points in network closets and secure areas.

WHY CHOOSE THE 267-REB01-1C1 OPTICAL FIBER ENCLOSURE?

Professionals rely on the 267-REB01-1C1 for its smart footprint, durability, and value. Here’s why:

1. Optimized for LGX Panels – Seamlessly integrates with industry-standard LGX adapters and cassettes.

2. Dual Splice Tray Support – Enables redundancy or segmented fiber termination for different zones or services.

3. Fast Maintenance Access – Retractable tray with dual-side entry streamlines technician work.

4. Lightweight Yet Strong – Aluminum frame reduces rack strain without compromising rigidity.

5. All-Inclusive Design – Ships with mounting hardware, wraps, and fiber-friendly components to simplify deployment.

WHAT’S NEXT?

Once your 267-REB01-1C1 is installed:

• Load up to three LGX adapter plates for SC, LC, or ST fiber connections.

• Add compatible 24-fiber splice trays for secure pigtail splicing.

• Use included wraps and cable ties to ensure bend radius compliance and routing clarity.

• Maintain easy front/rear access for updates, inspections, or expansions.

• Expand your optical network with more LGX enclosures, patch panels, or surface-mount modules.
